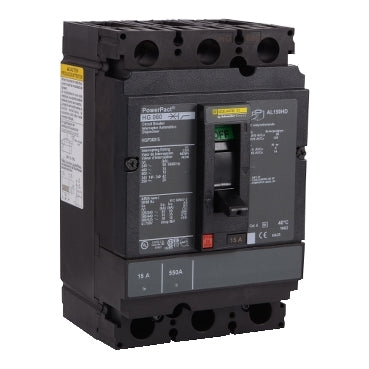

Square D HGP36035 Circuit Breaker | 600V 35A 3P 35kA@480V Bolt-On Powerpact HGP
Square D HGP36035 Circuit Breaker | 600V 35A 3P 35kA@480V Bolt-On Powerpact HGP
Price:
Sale
Sold out
Regular price
$378.21 USD
Regular price
$5,240.00 USD
Sale price
$378.21 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D HGP36035 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 35A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HGP36035
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGP
✔ Voltage: 600
✔ Amperage: 35
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Height 6.42 in (163 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 5
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
The Square D HGP36035 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 35A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.
