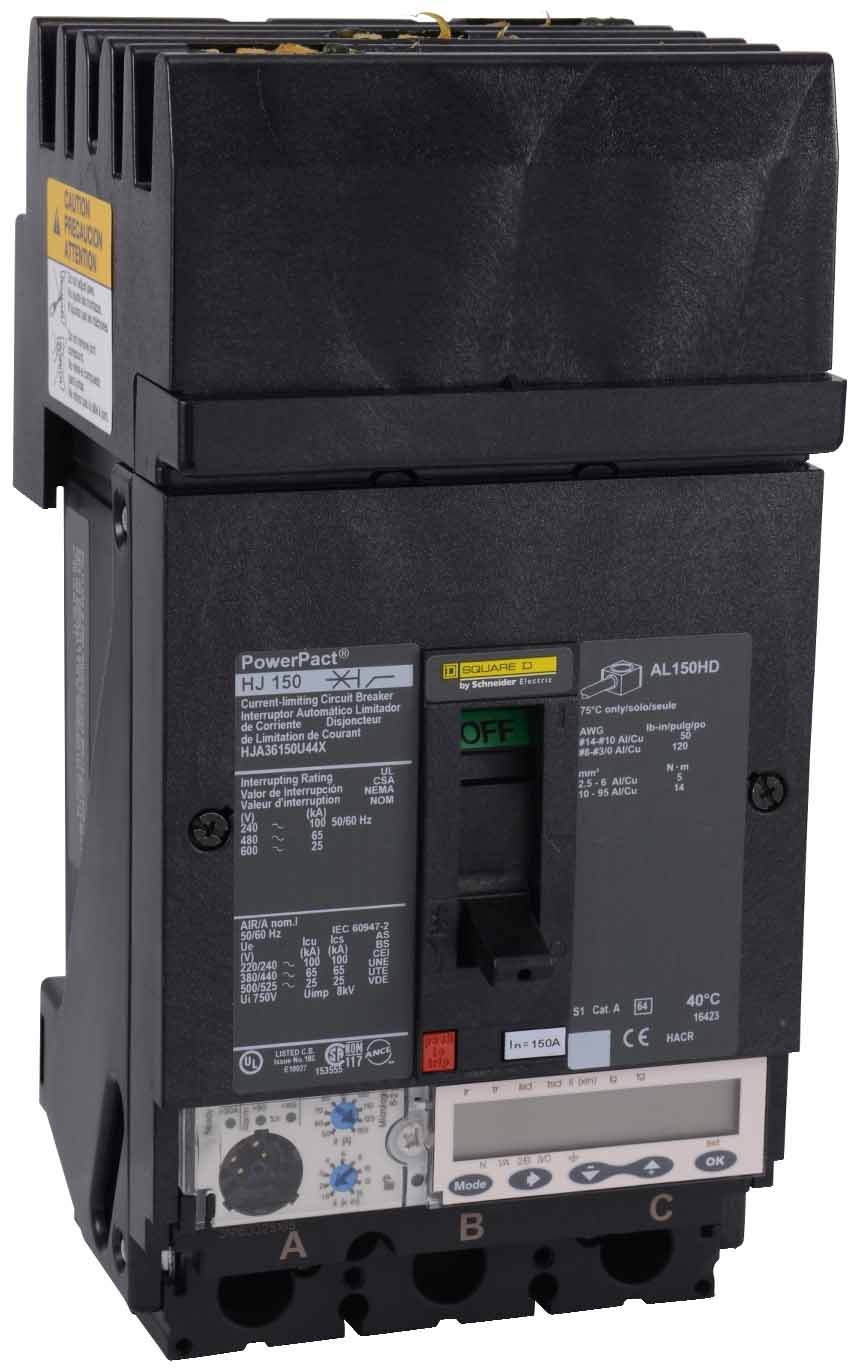

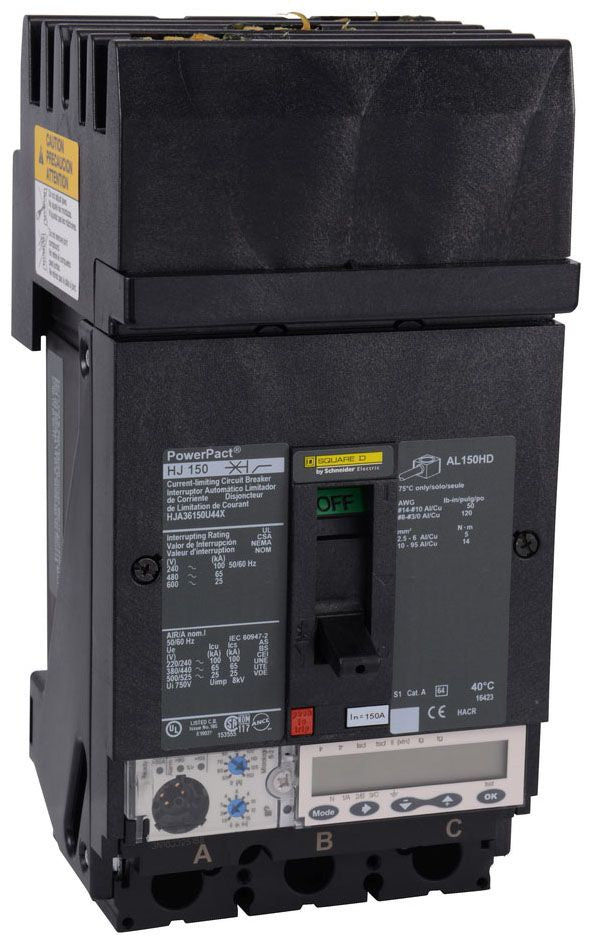

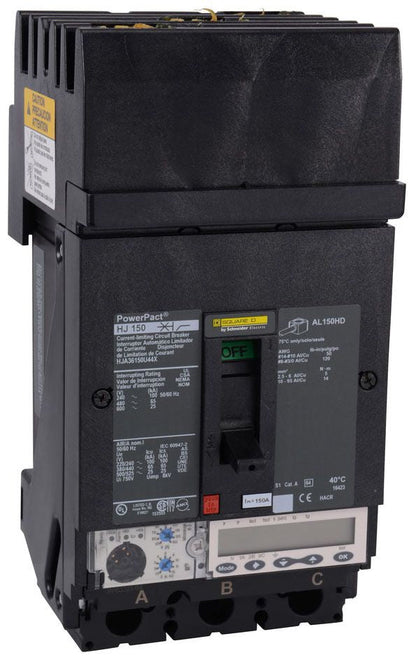

Square D HJA36150U44X Circuit Breaker | 600V 150A 3P 65kA@480V I-Line Style Plug-In Powerpact
Square D HJA36150U44X Circuit Breaker | 600V 150A 3P 65kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$3,368.86 USD
Regular price
$7,213.00 USD
Sale price
$3,368.86 USD
Unit price
per
Shipping calculated at checkout.
Stock:
18 in stock
Couldn't load pickup availability
Product Description:
The Square D HJA36150U44X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 150A amperage rating with a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with LSIG functions. It is designed for reliable performance in industrial and commercial applications.
Key Features:
✔ Part Number: HJA36150U44X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJA
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901764373
✔ GTIN: 00785901764373
✔ Country of Origin: United States

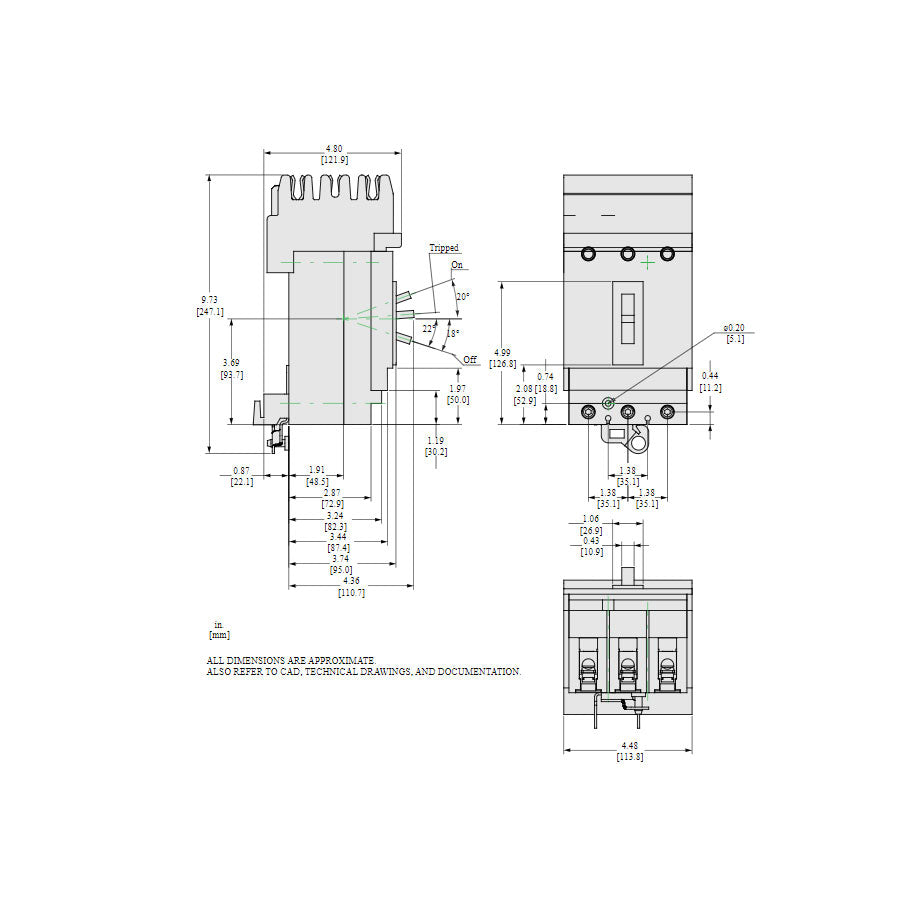

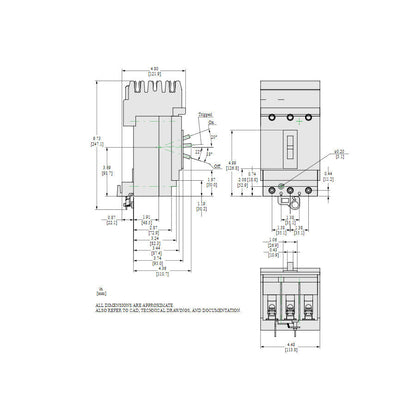

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 3.63
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
The Square D HJA36150U44X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 150A amperage rating with a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with LSIG functions. It is designed for reliable performance in industrial and commercial applications.
