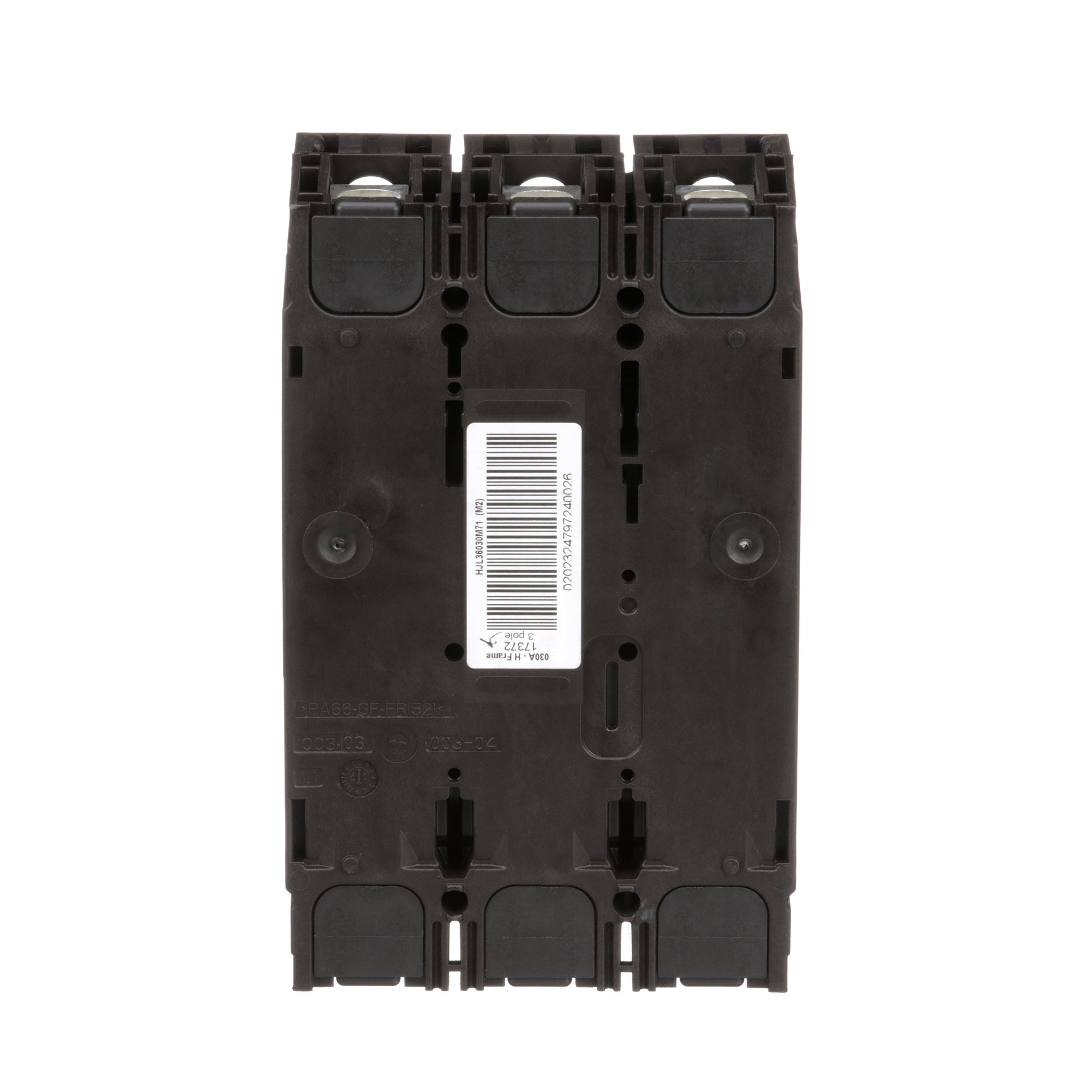

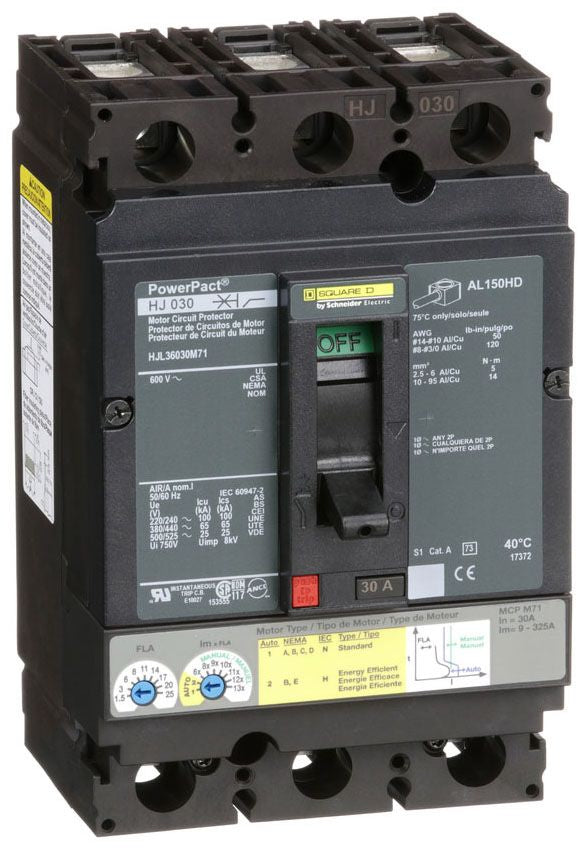

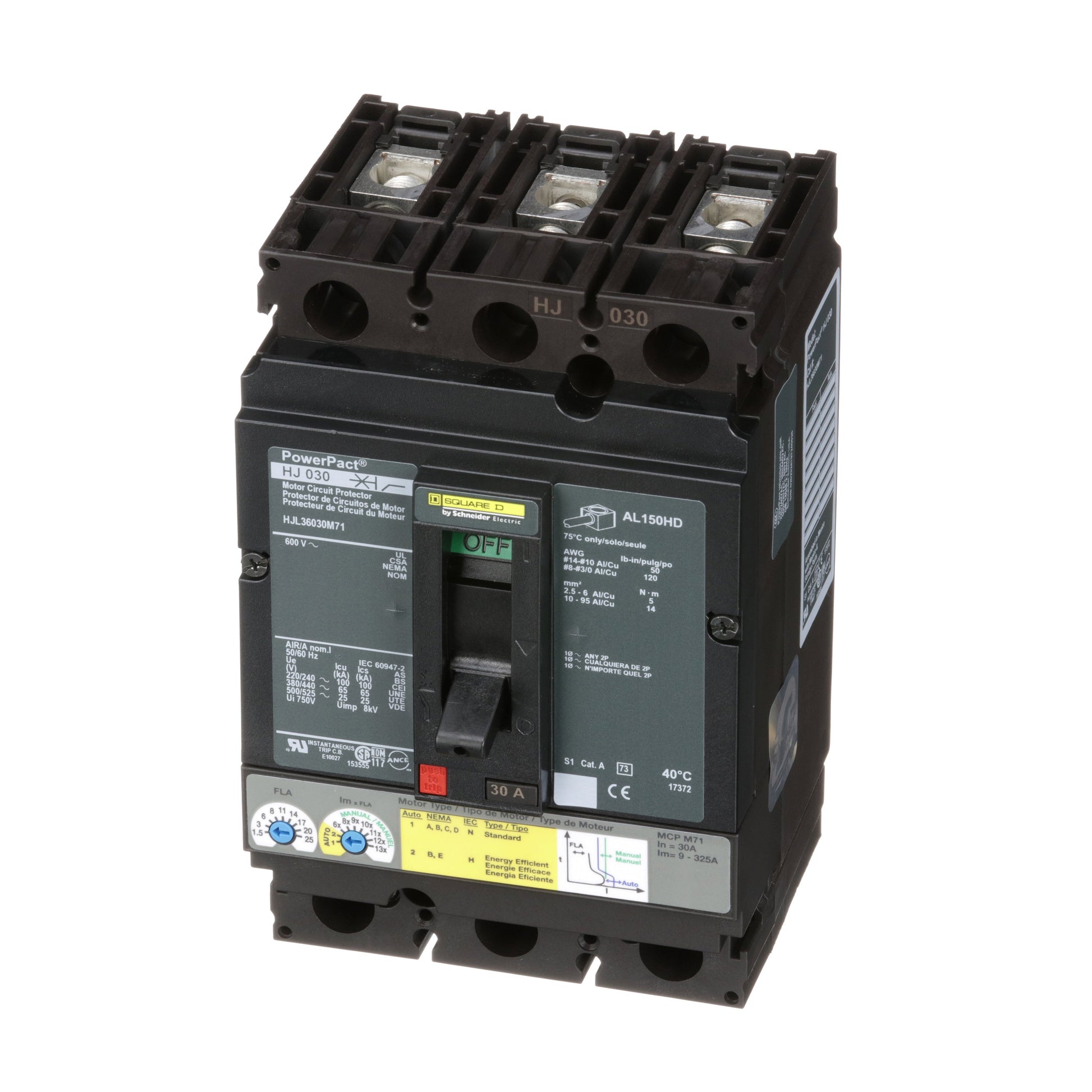

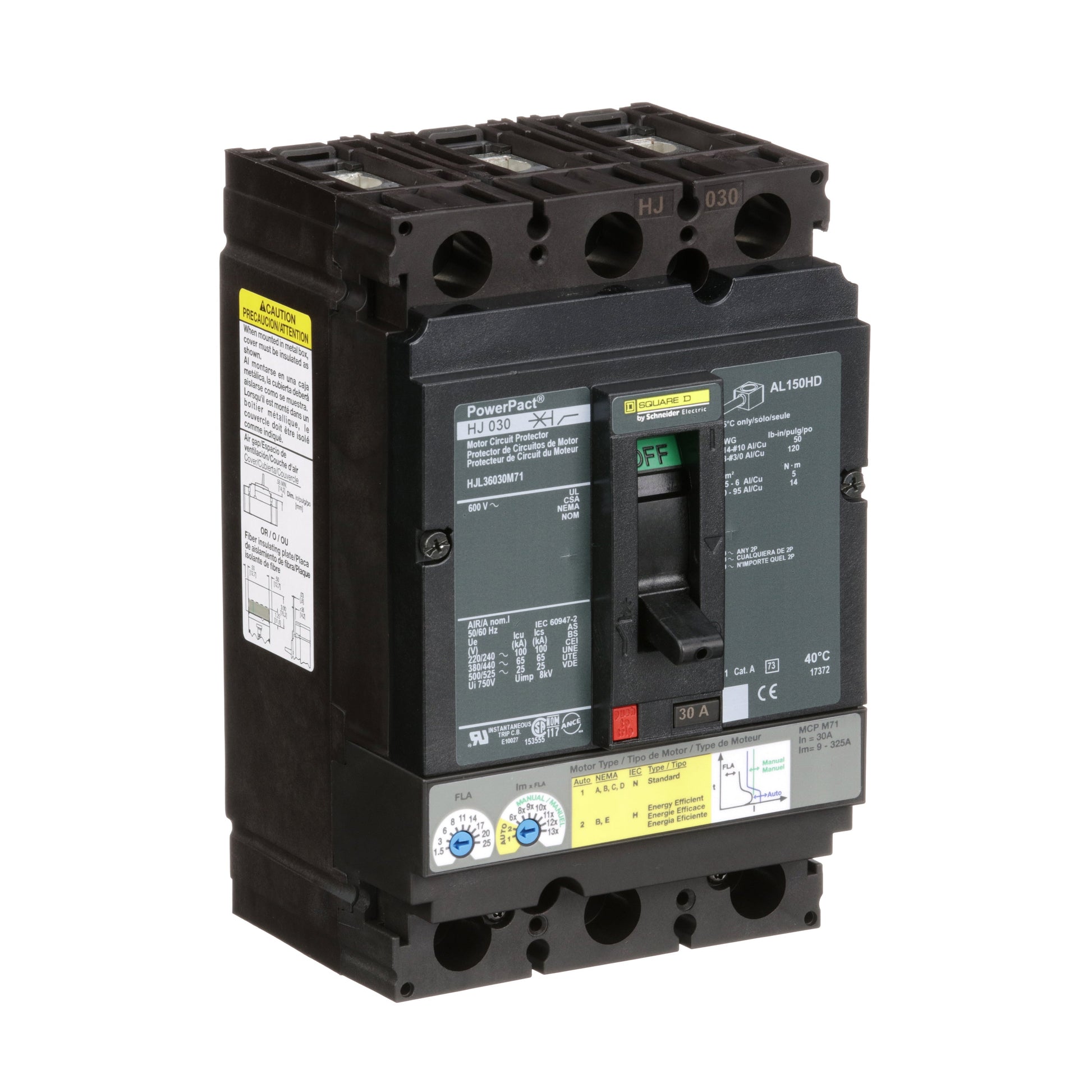

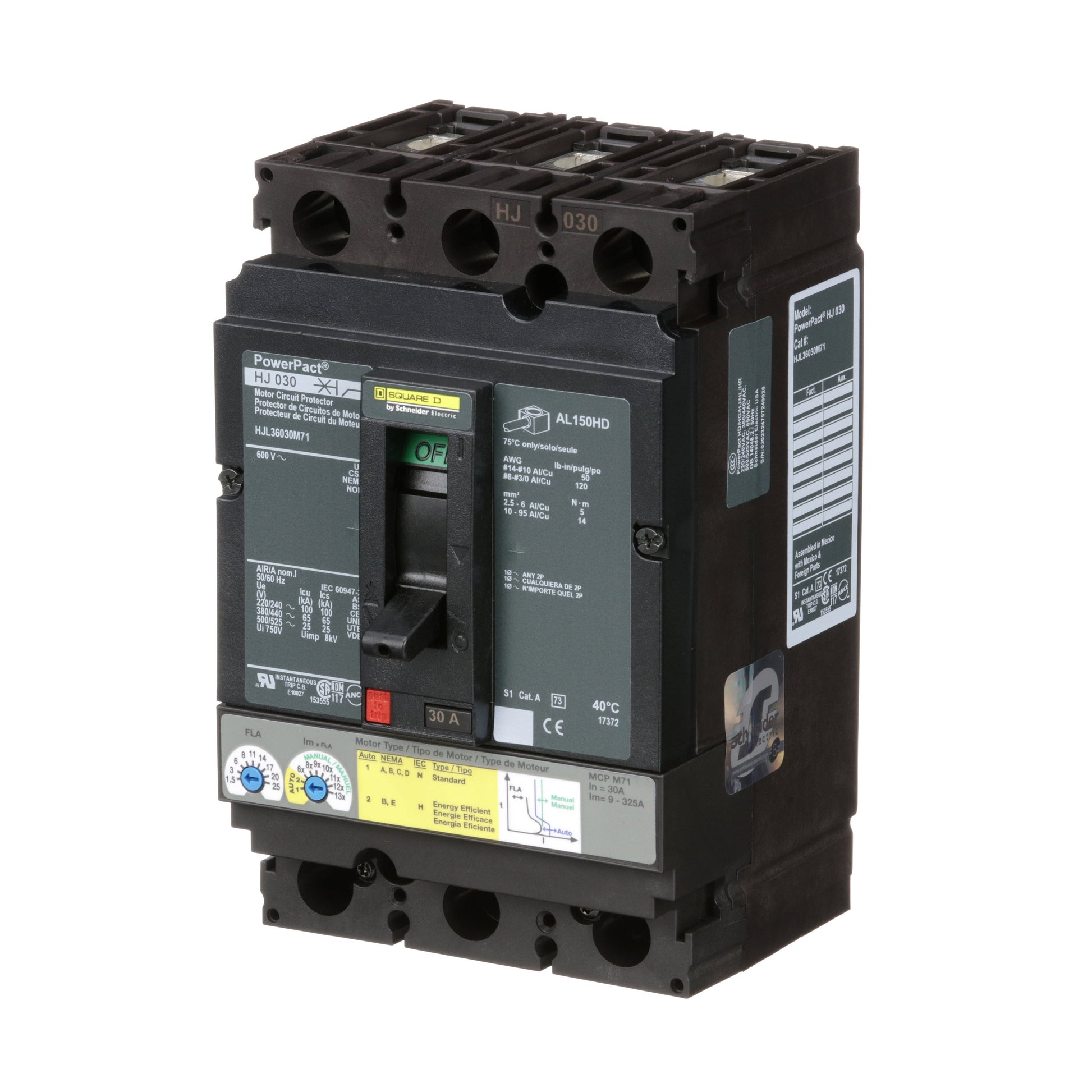

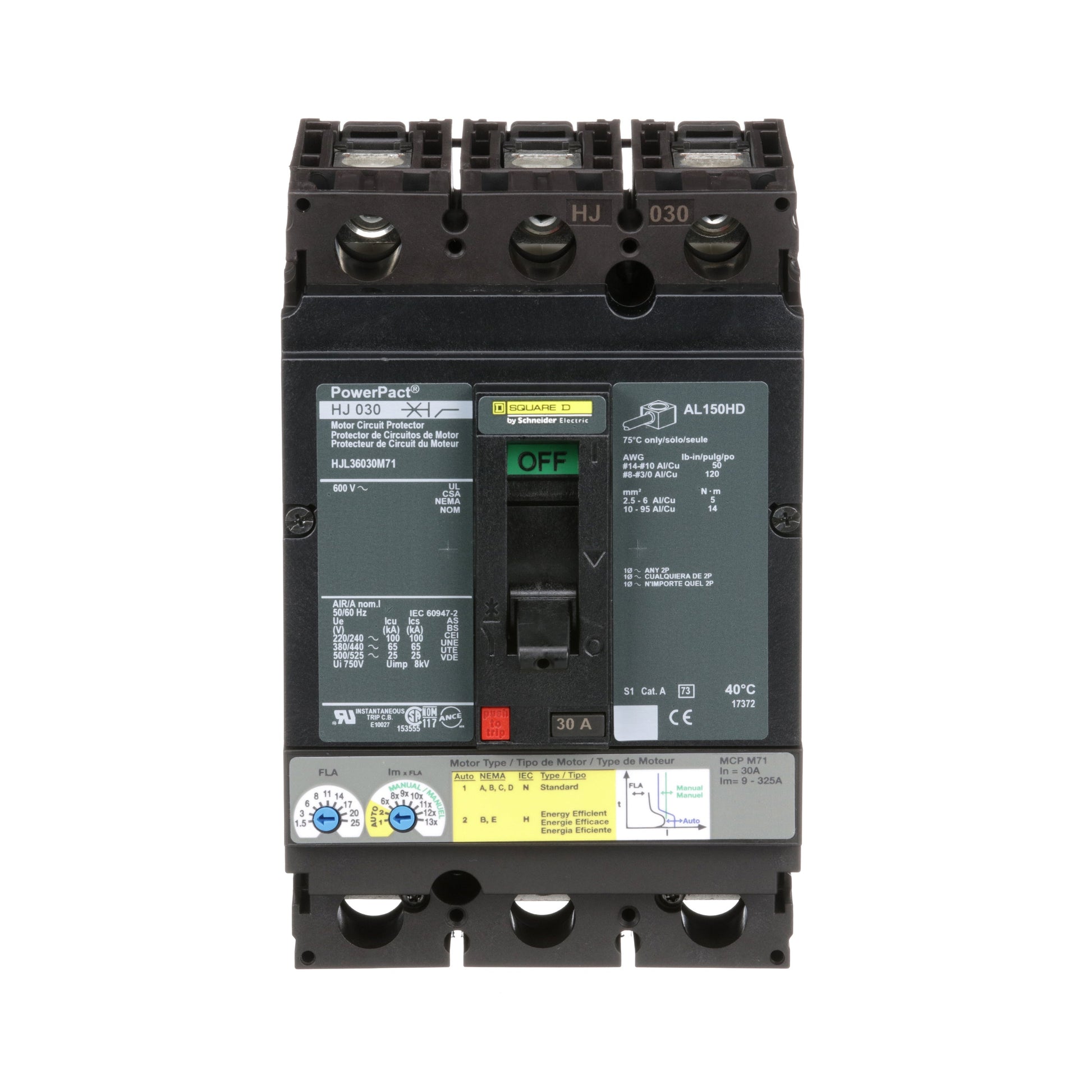

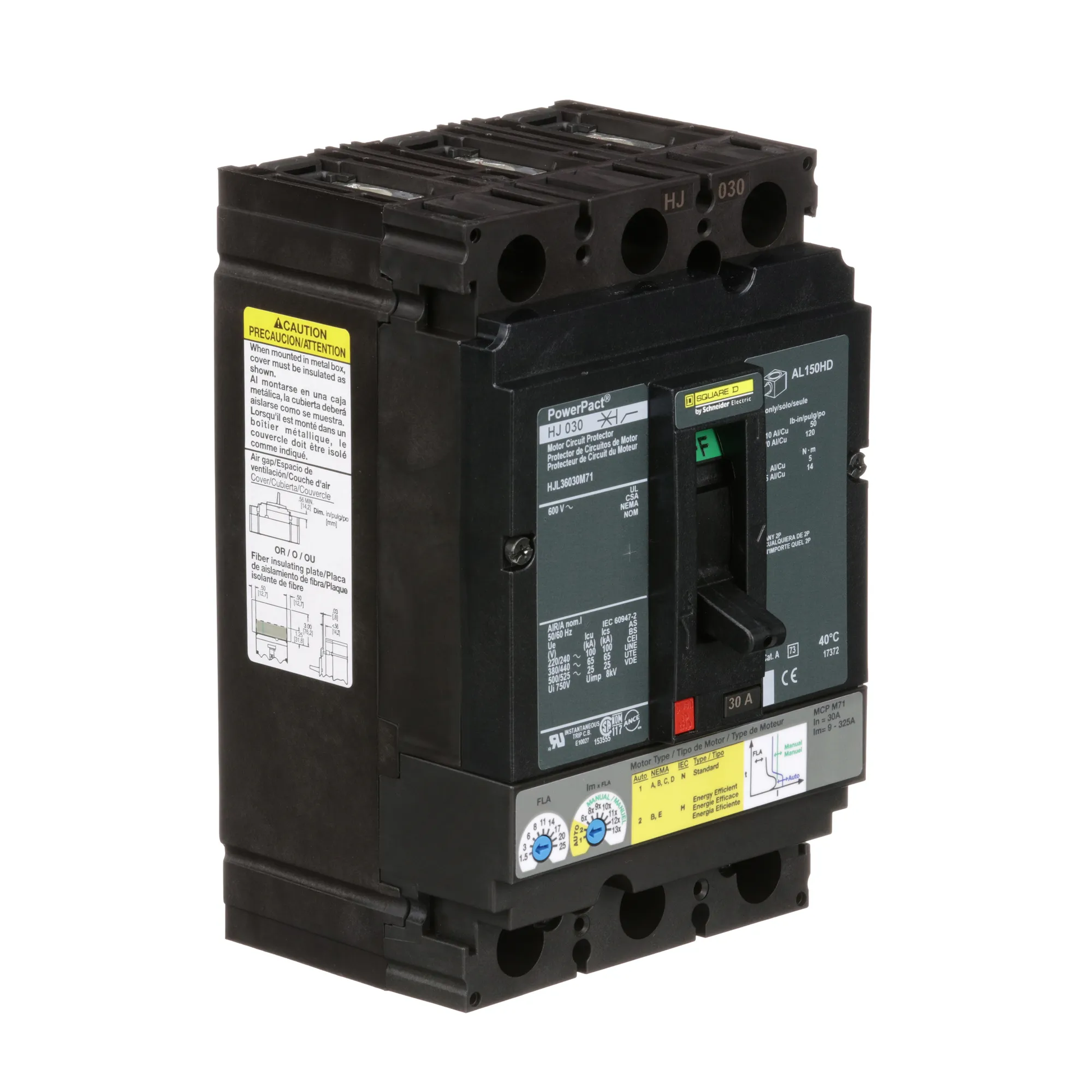

Product Description: The Square D HJL36030M71 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 30A rating and a 65kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Magnetic Only protection. It is suitable for motor circuit applications.

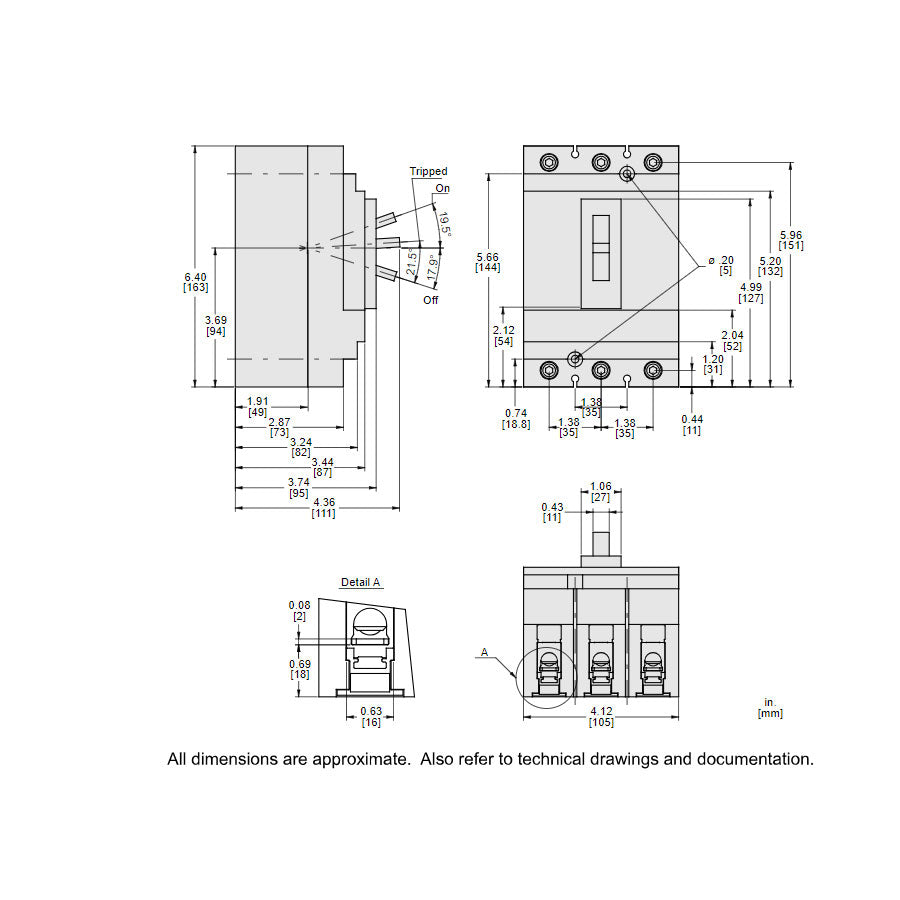

Key Features: ✔ Part Number: HJL36030M71 ✔ Manufacturer: Square D ✔ Category: Circuit Breaker ✔ Subcategory: Molded Case ✔ Family: Powerpact ✔ Type: HJL ✔ Voltage: 600 ✔ Amperage: 30 ✔ Phase: 3 ✔ Poles: 3 ✔ AIC rating: 65kA@480V ✔ Connection: Feed-Thru ✔ Functions: I - Instantaneous ✔ Terminal Connection: Lug ✔ Frame Size: J ✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al) ✔ Breaker Type: Motor Circuit Protector ✔ Protection: Magnetic Only ✔ UPC: 785901492948 ✔ GTIN: 00785901492948 ✔ Country of Origin: Mexico ✔ Dimensions: 4.12 in x 6.4 in ✔ Weight: 4.36 ✔ Standards: UL, CSA, NEMA, NOM, CE ✔ Certification: UL, CSA, NEMA, NOM, CE ✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
