Product Description:

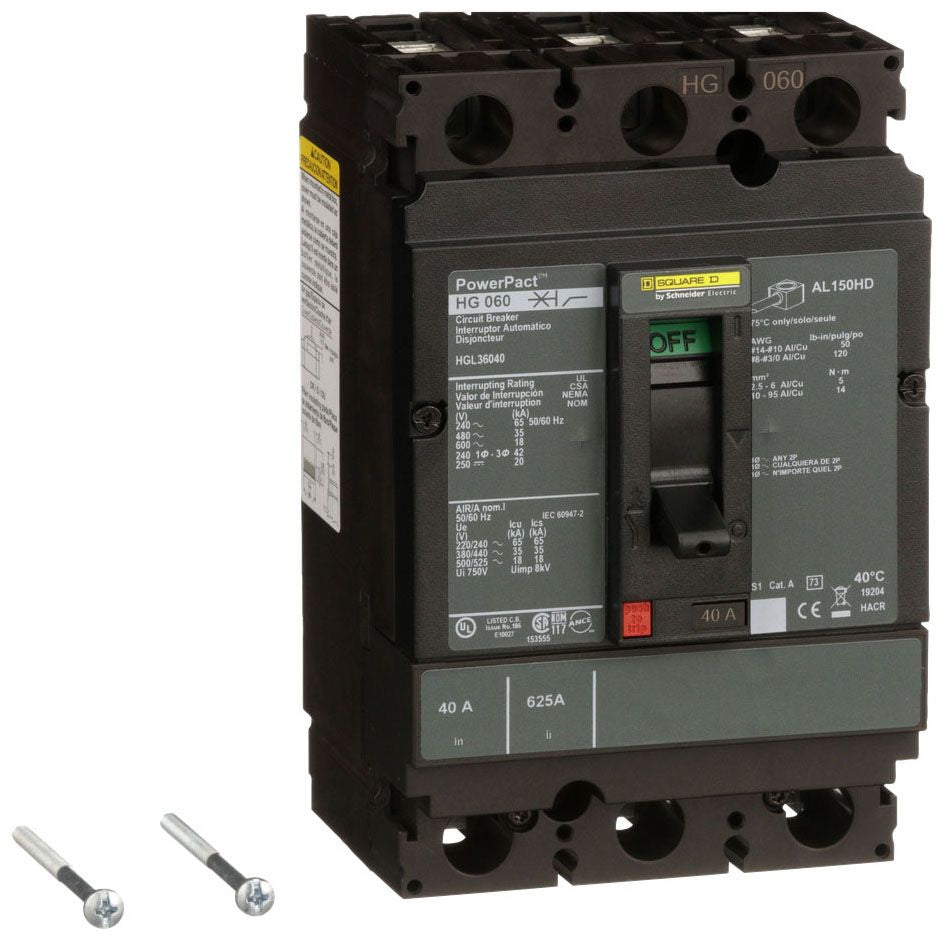

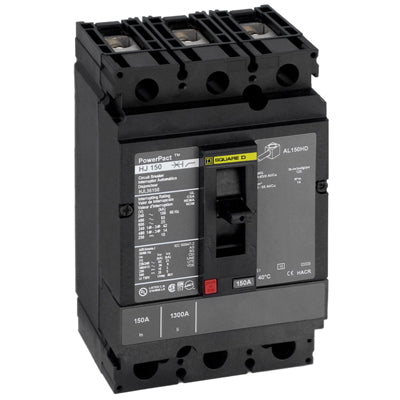

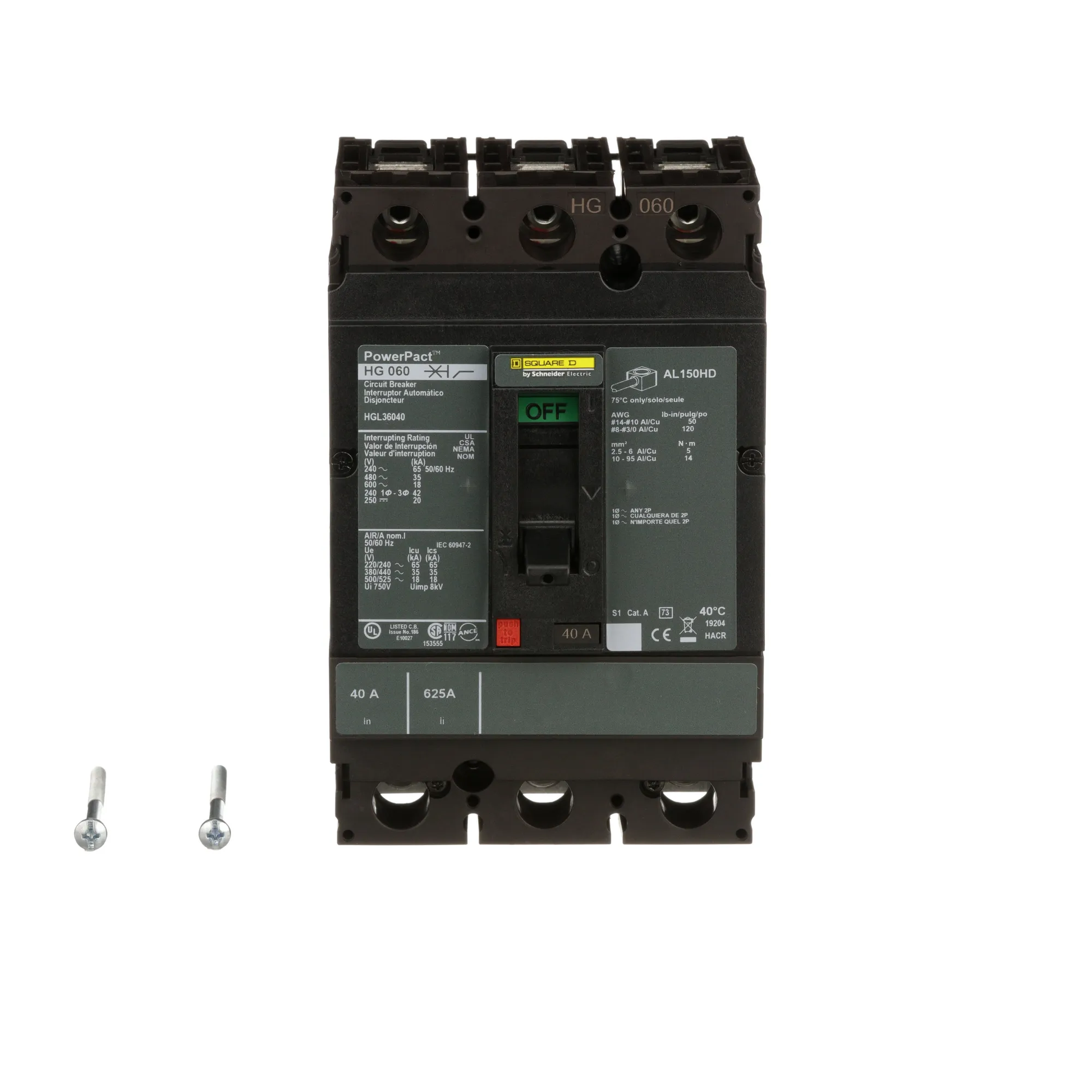

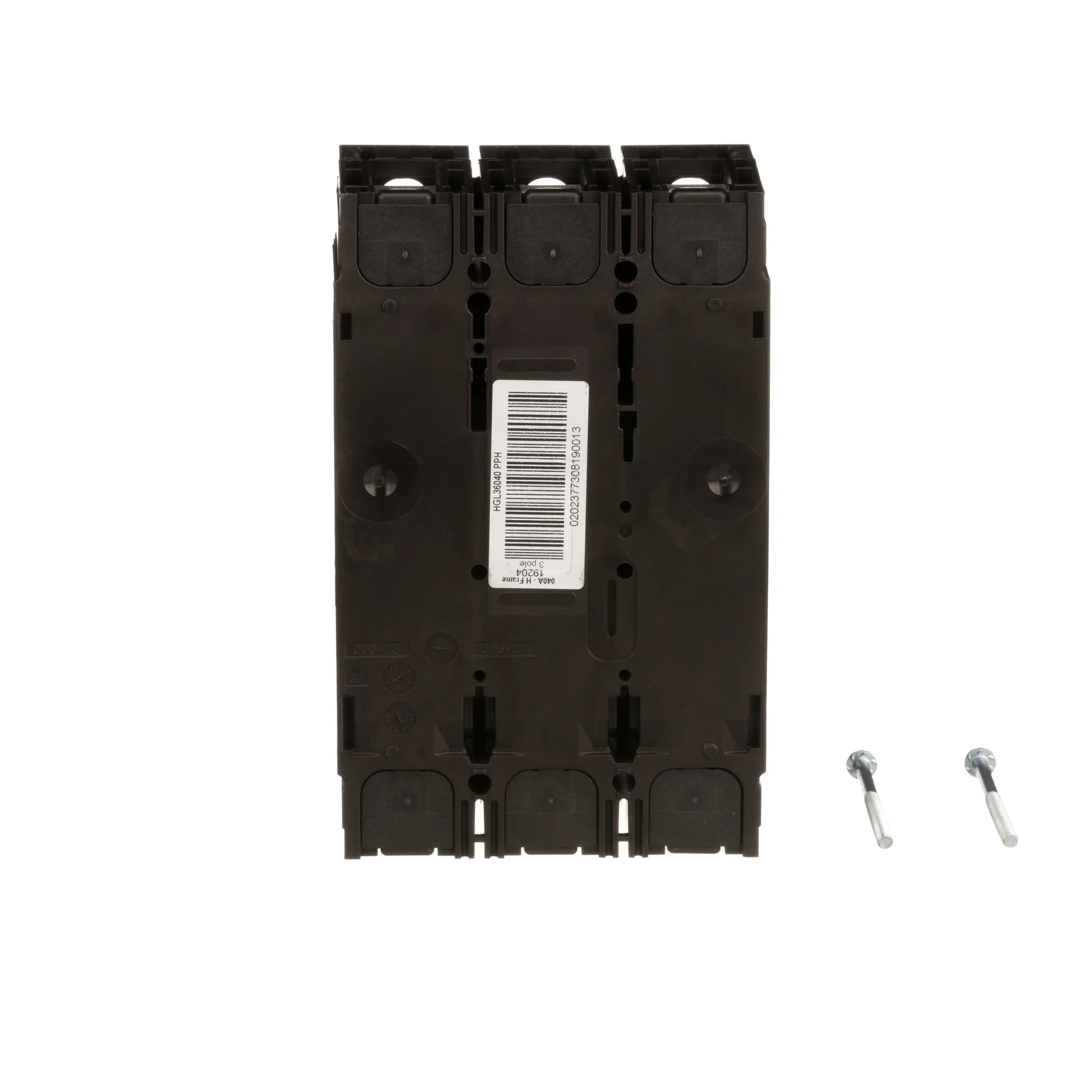

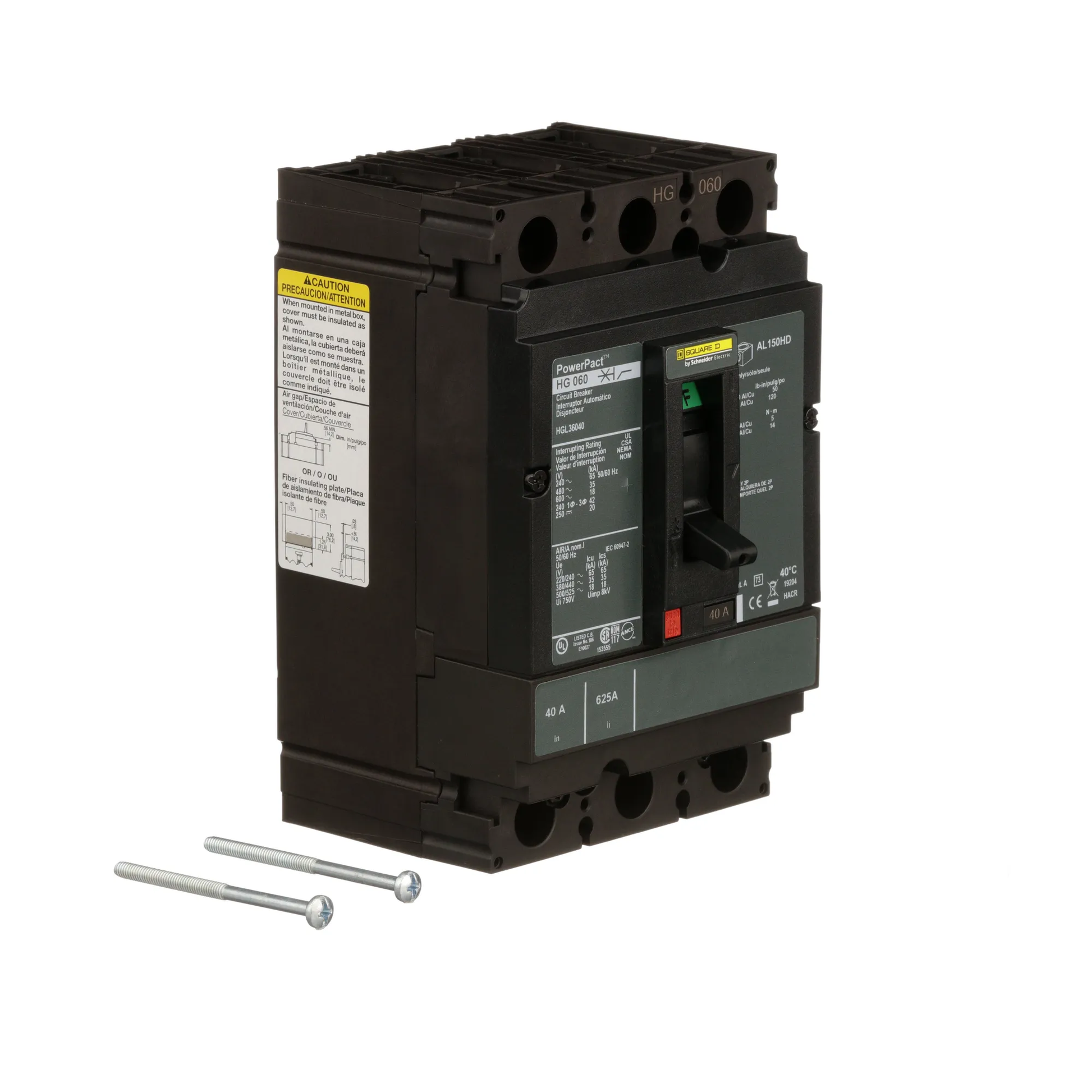

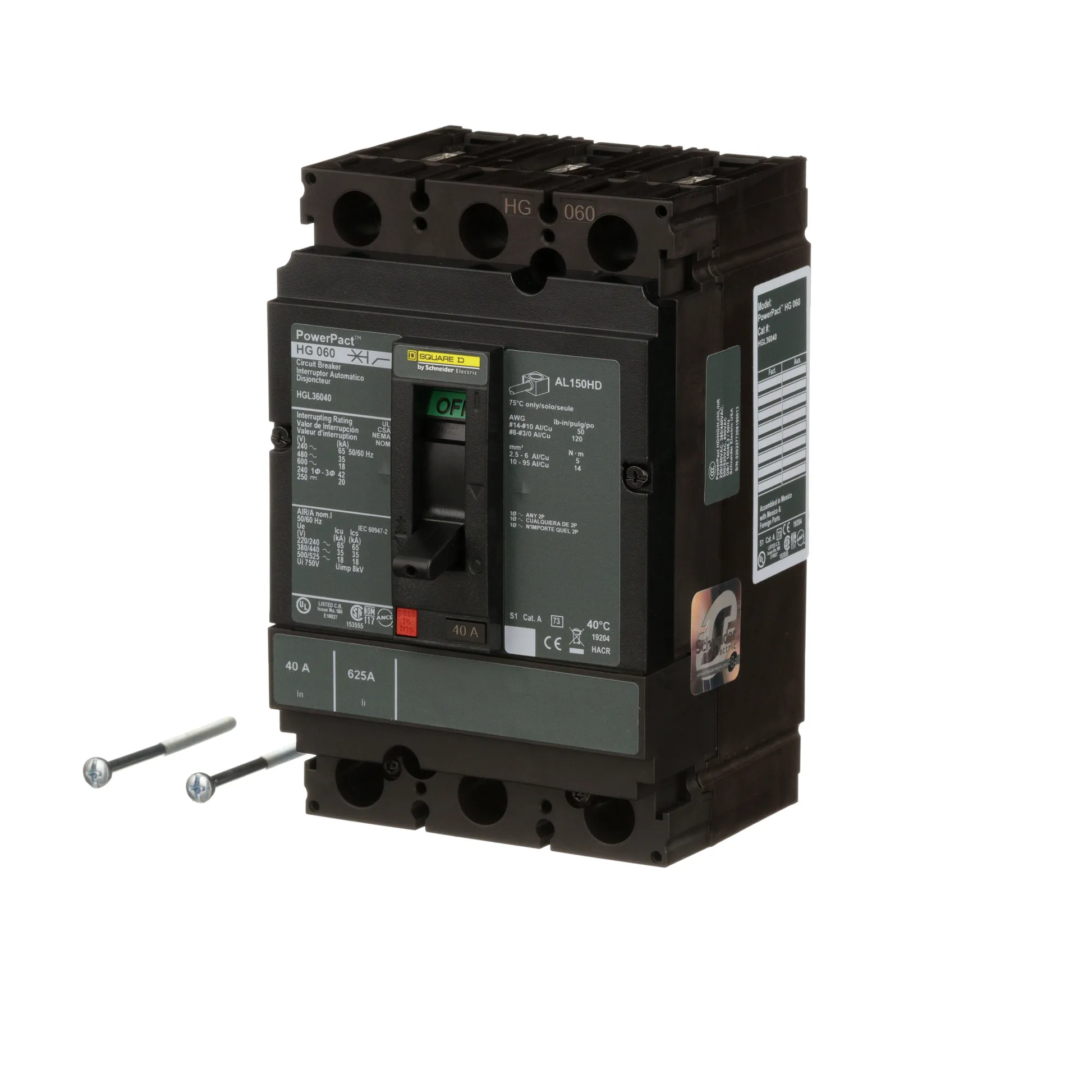

The Square D HJL36040 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 40A rating and a 65kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HJL36040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJL
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al), Max. 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901706557
✔ GTIN: 00785901706557
✔ Country of Origin: Mexico

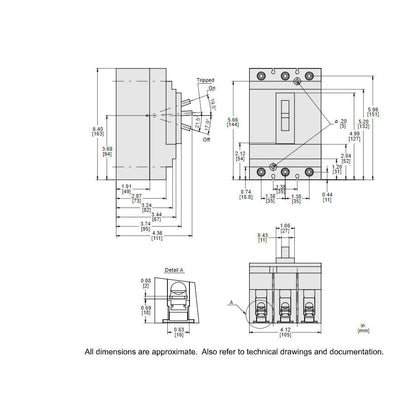

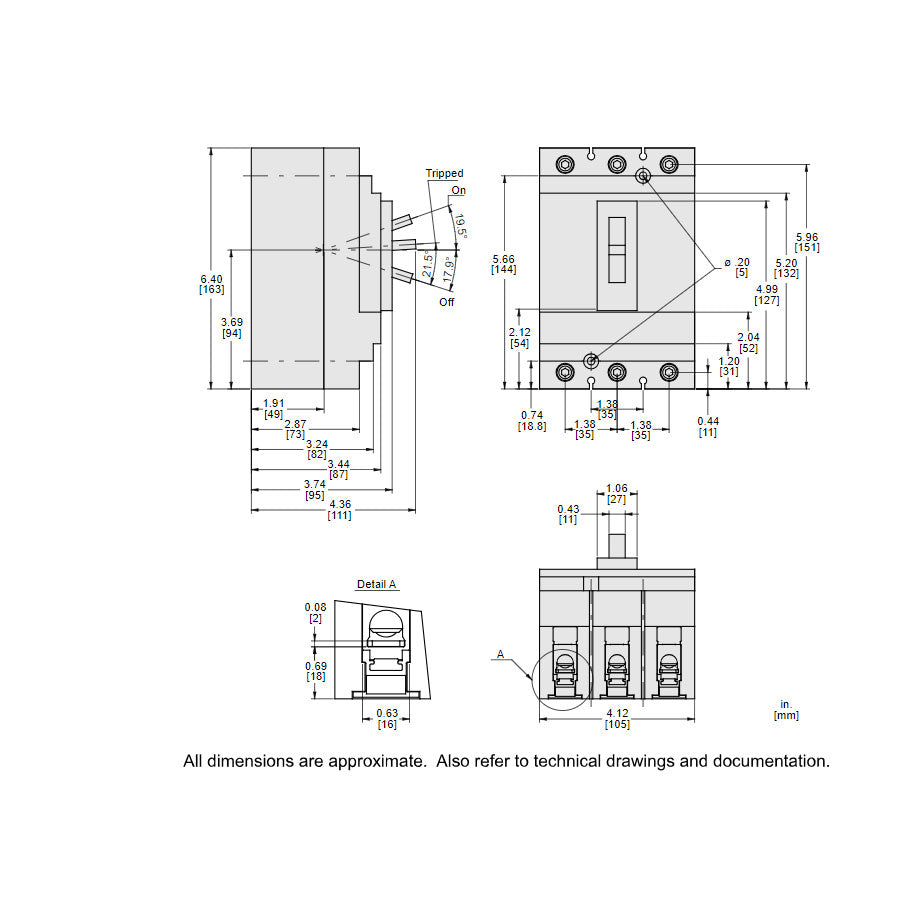

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.88
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
