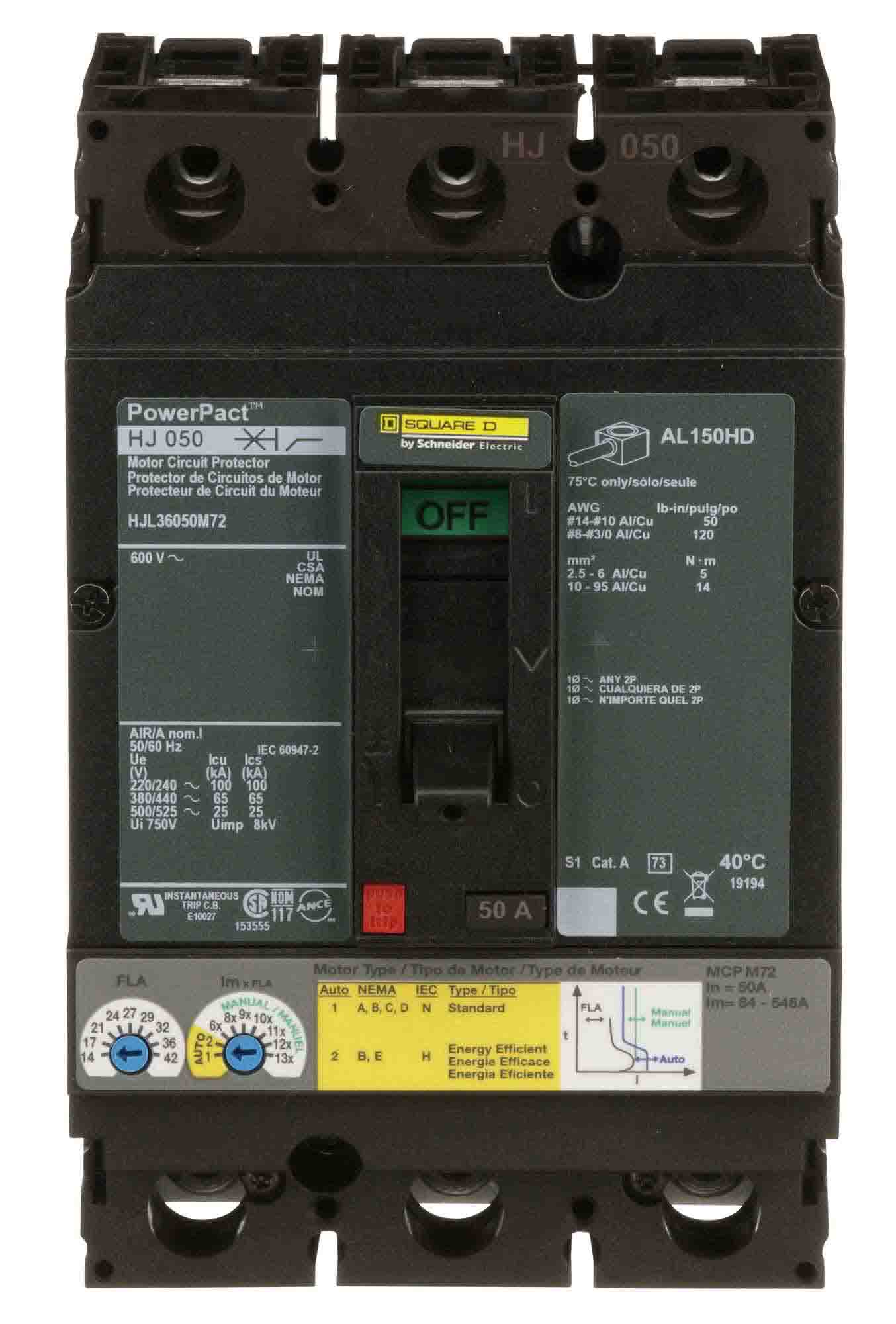

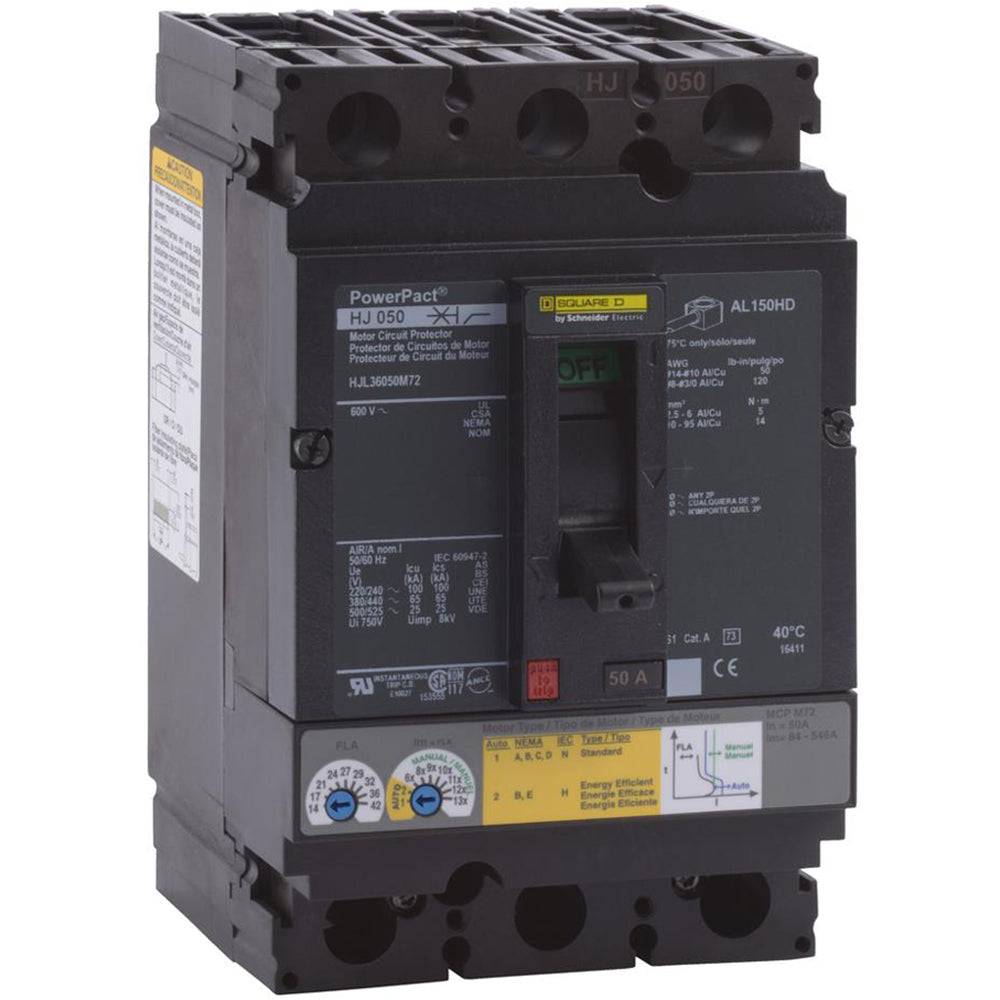

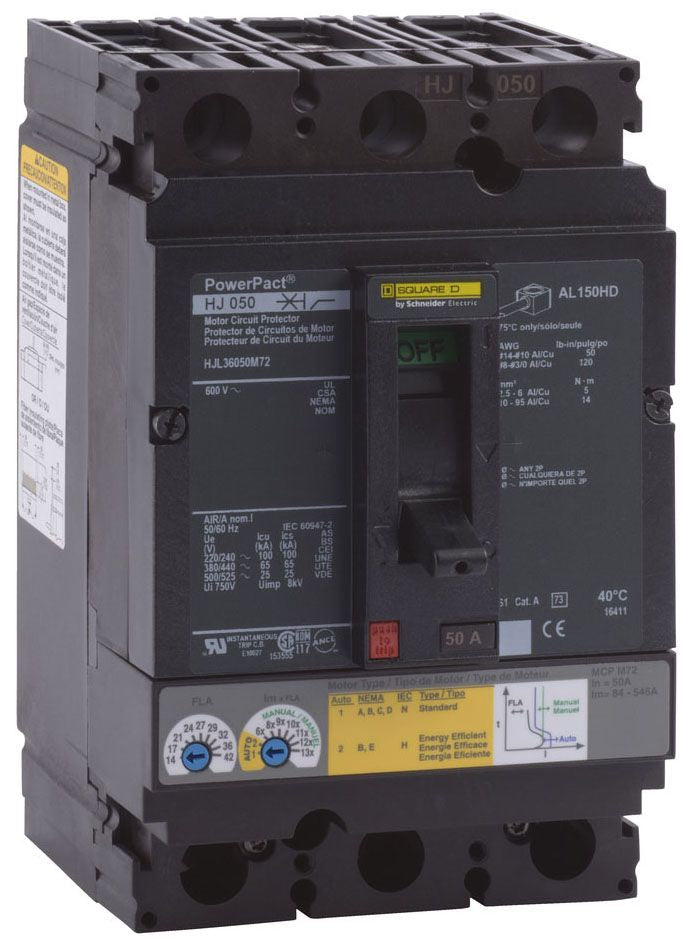

Square D HJL36050M72 Circuit Breaker | 600V 50A 3 Pole 65kA@480V Powerpact

Product Description:
The Square D HJL36050M72 is a robust molded case circuit breaker designed for high-performance applications. It features a 3-pole configuration with a 600 Volt, 50 amp rating and an impressive AIC rating of 65kA at 480V. This circuit breaker utilizes a Feed-Thru connection and provides magnetic-only protection, making it ideal for motor circuit protection.

Key Features:
✔ Part Number: HJL36050M72
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJL
✔ Voltage: 600
✔ Amperage: 50
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901591146
✔ GTIN: 00785901591146
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Breaker Type: Motor Circuit Protector
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 4.44
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
