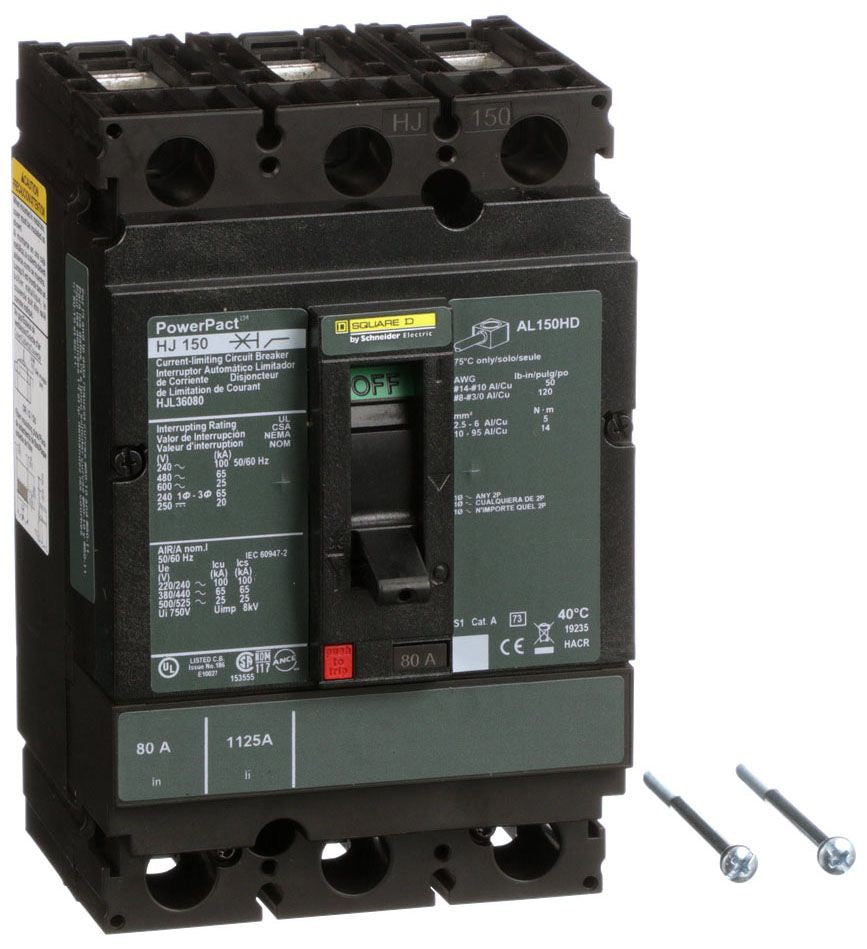

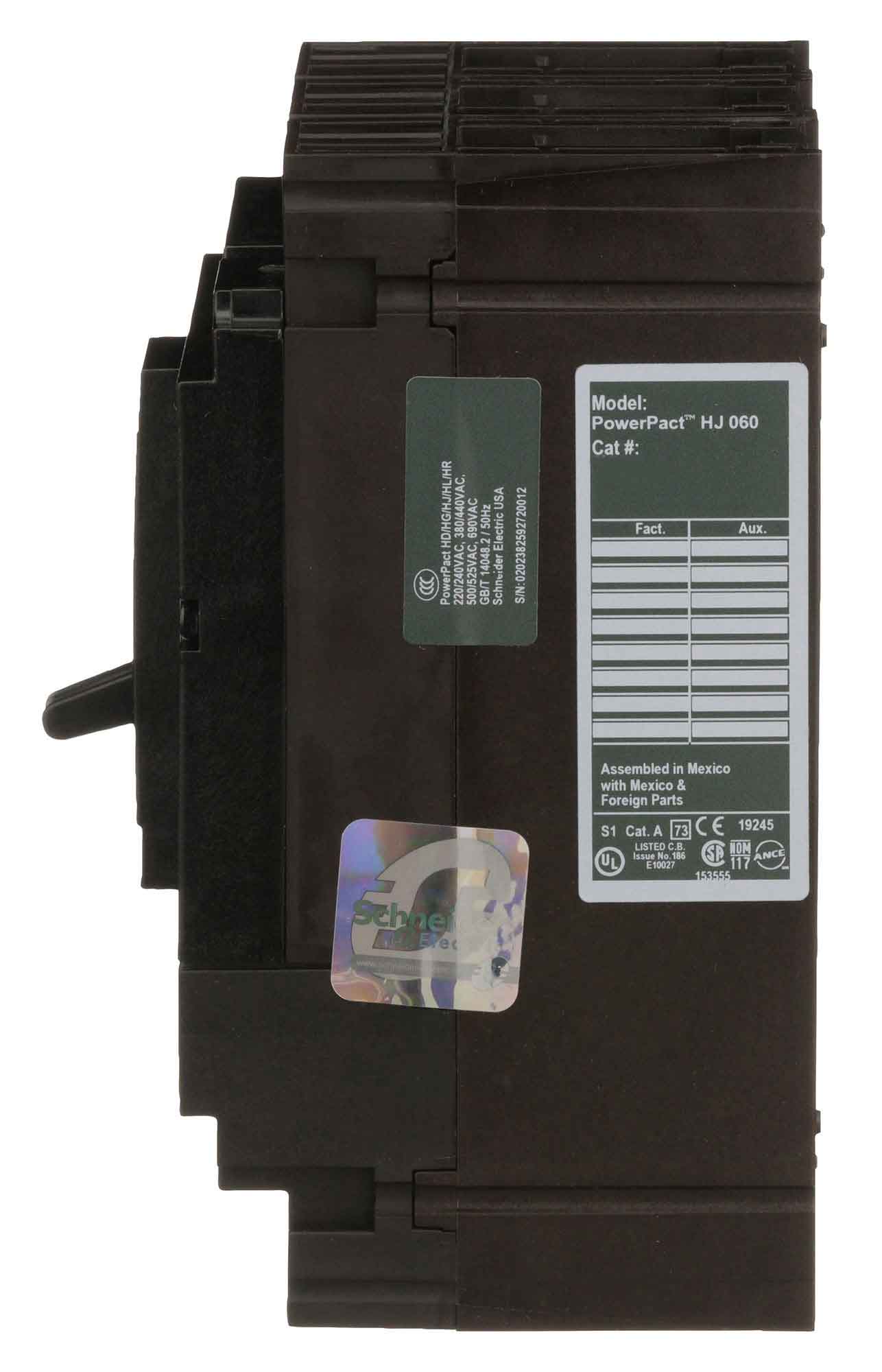

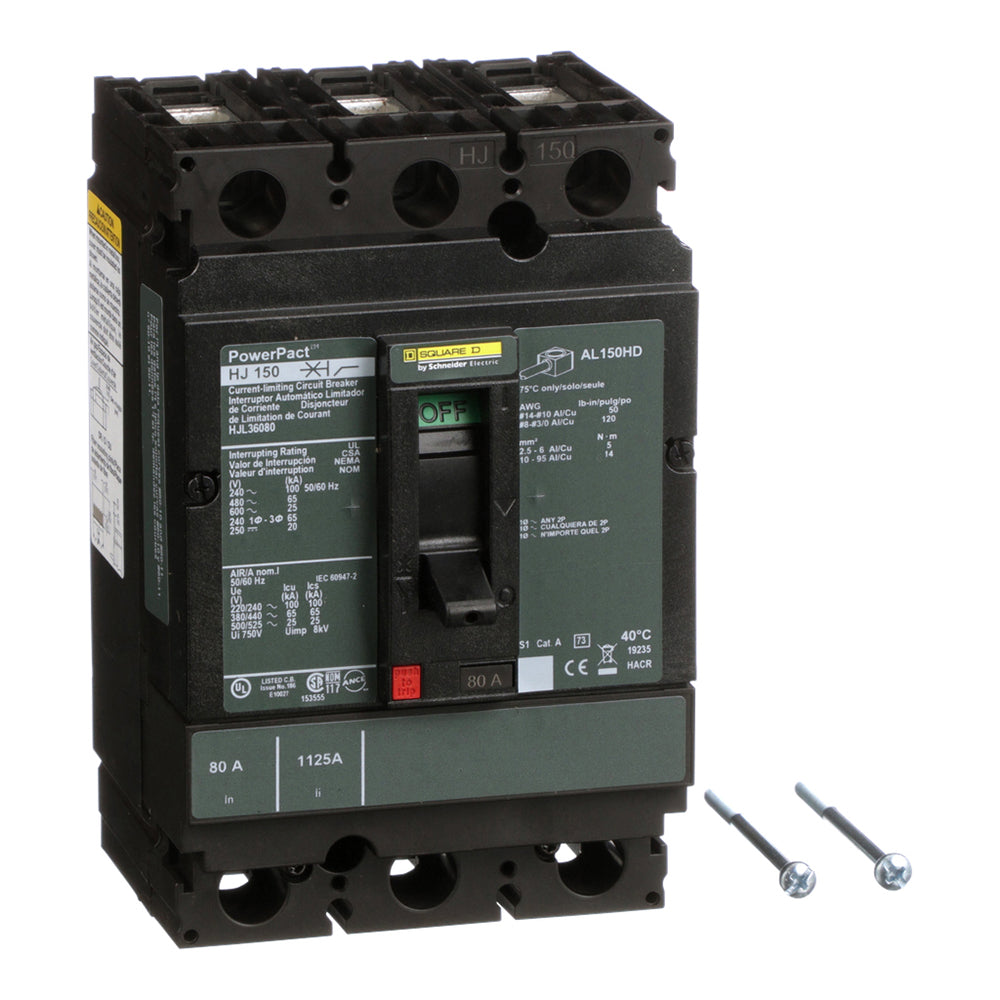

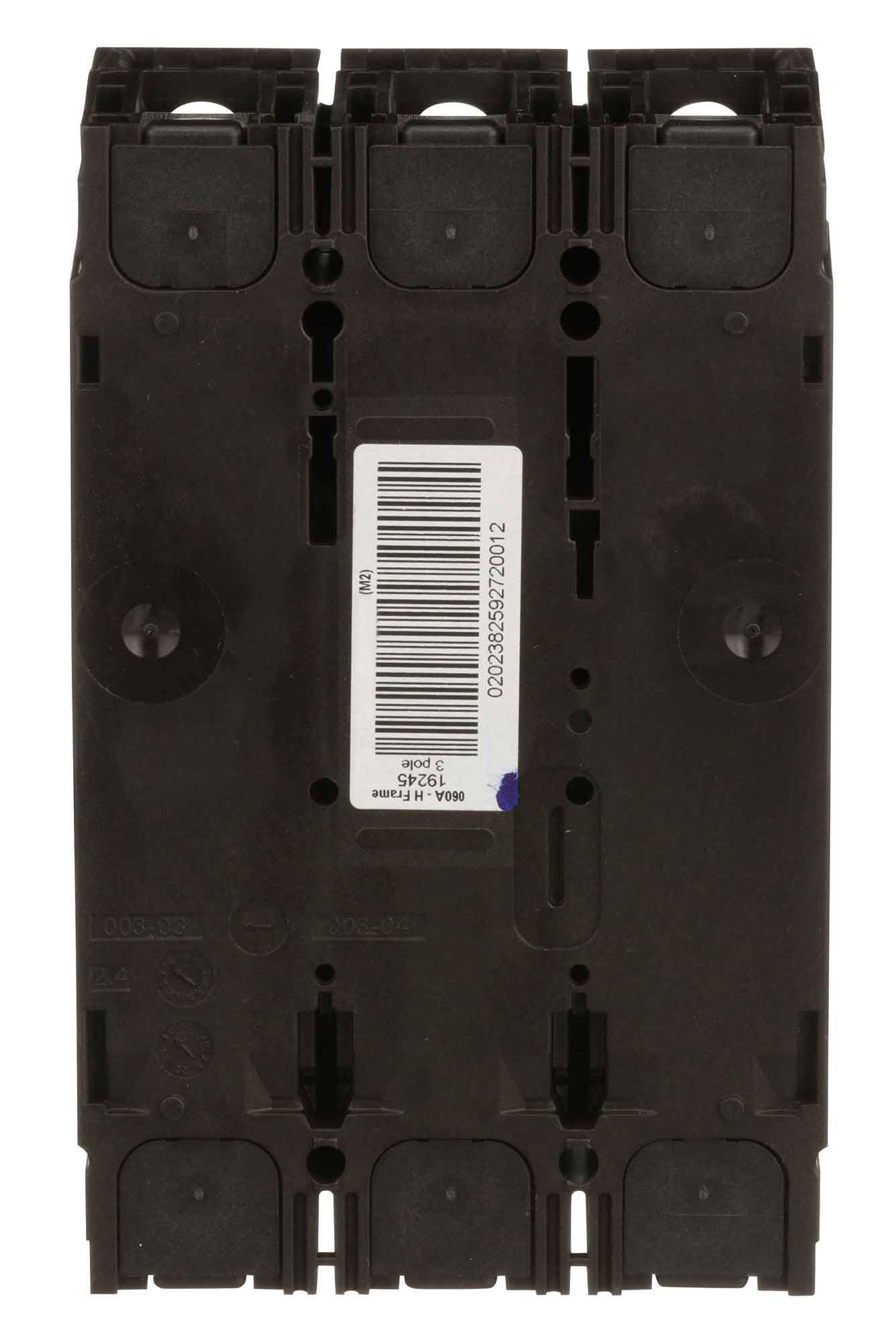

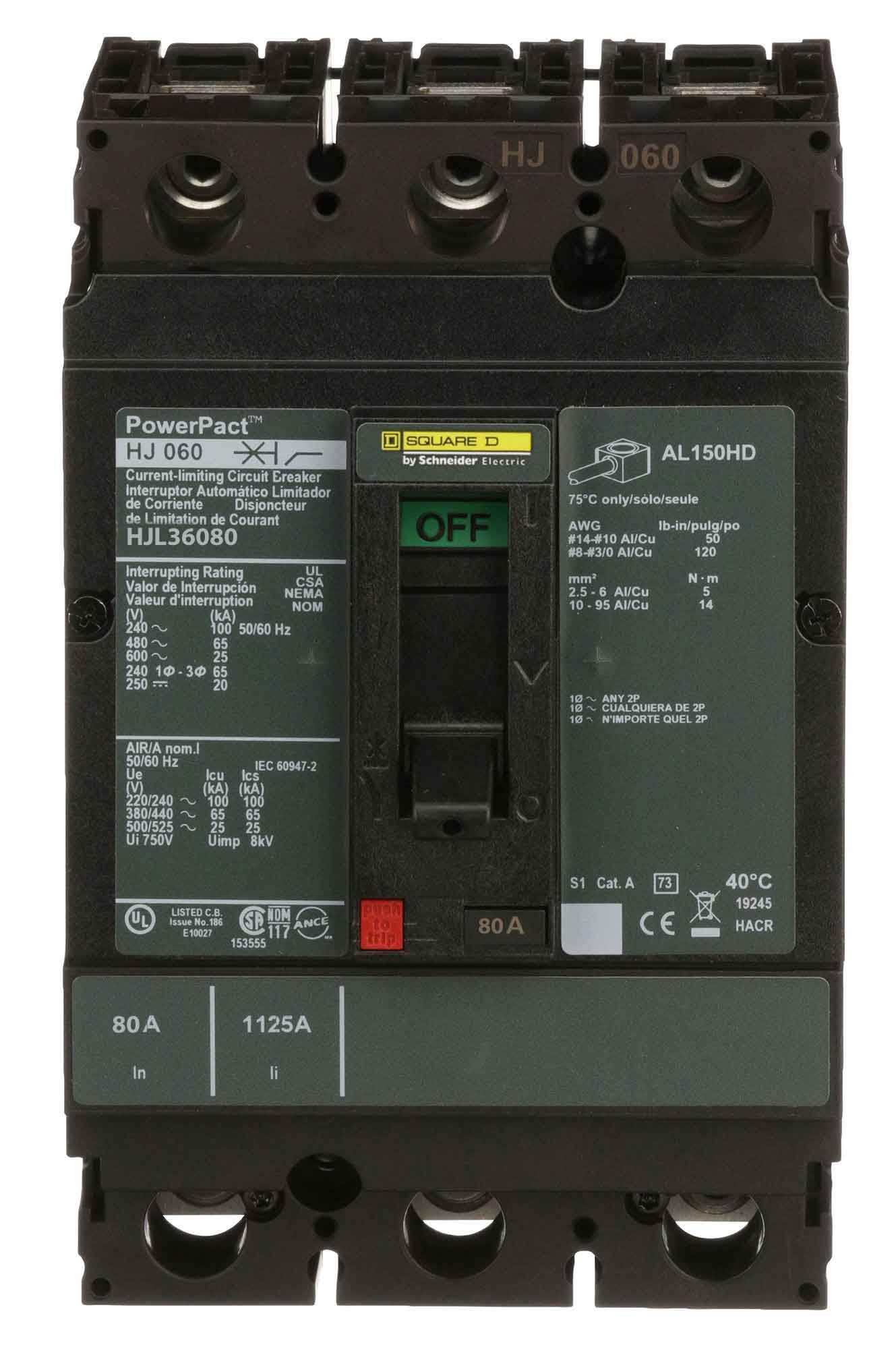

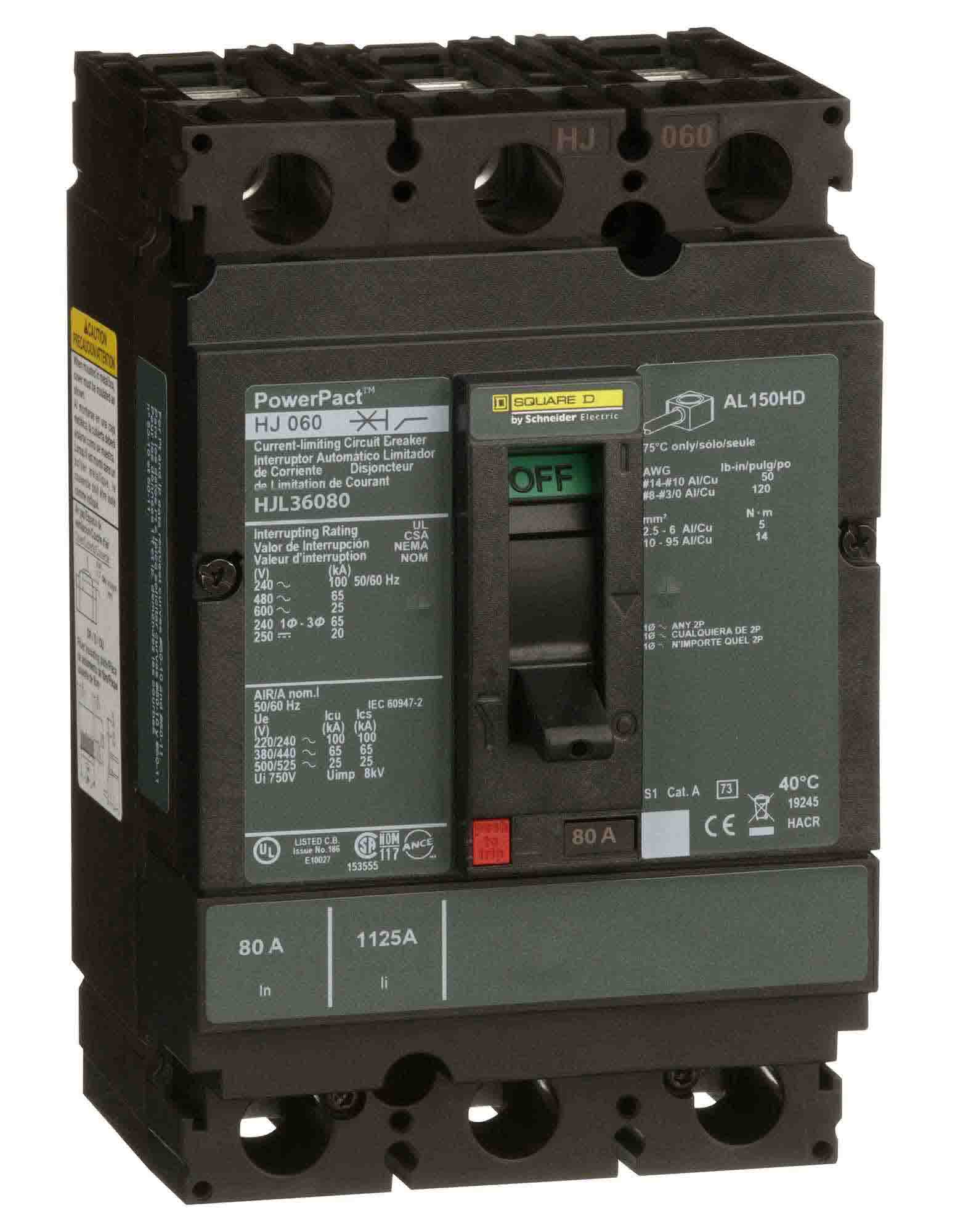

Square D HJL36080 Circuit Breaker | 600V 80A 3P 65kA@480V Feed-Thru Powerpact
Square D HJL36080 Circuit Breaker | 600V 80A 3P 65kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$1,160.21 USD
Regular price
$2,099.00 USD
Sale price
$1,160.21 USD
Unit price
per
Shipping calculated at checkout.
Stock:
4 in stock
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Couldn't load pickup availability
Product Description:
The Square D HJL36080 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 80A rating and a 65kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HJL36080
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJL
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901623205
✔ GTIN: 00785901623205
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.85
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
