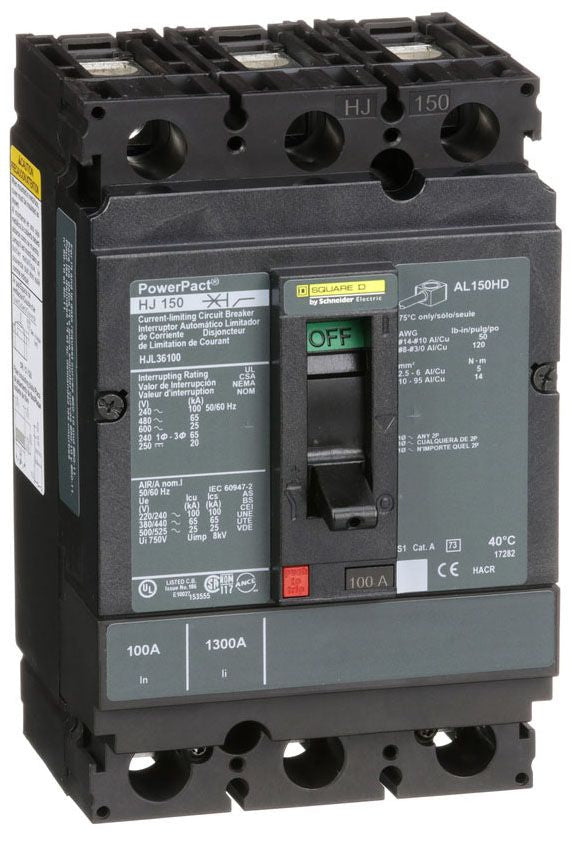

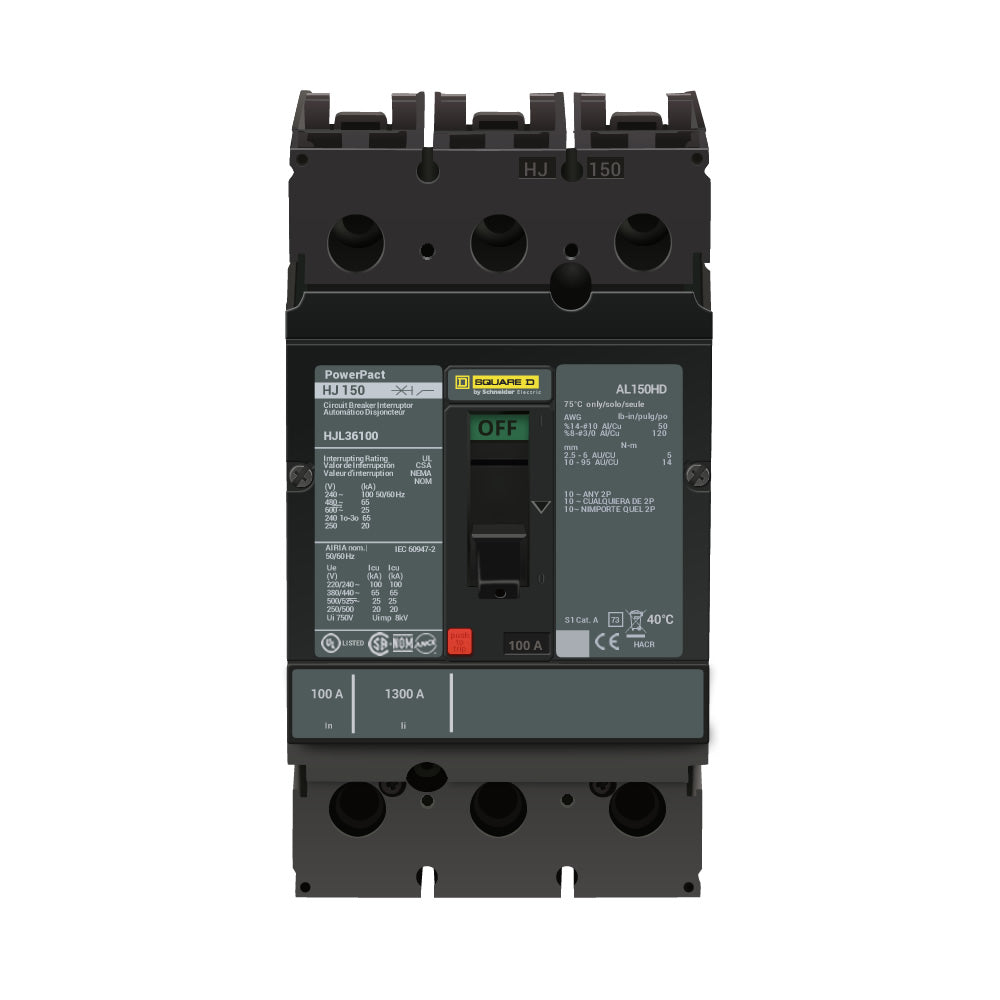

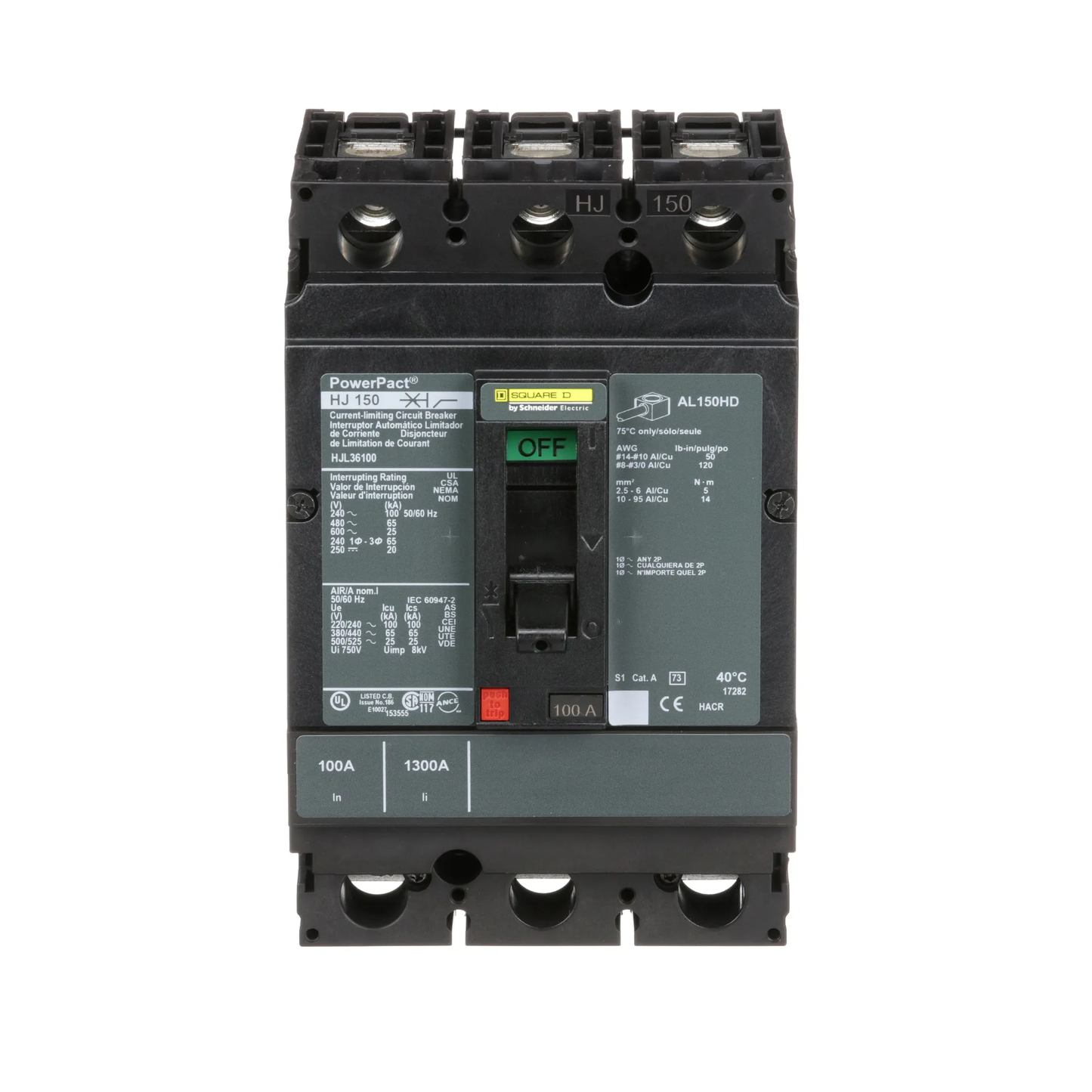

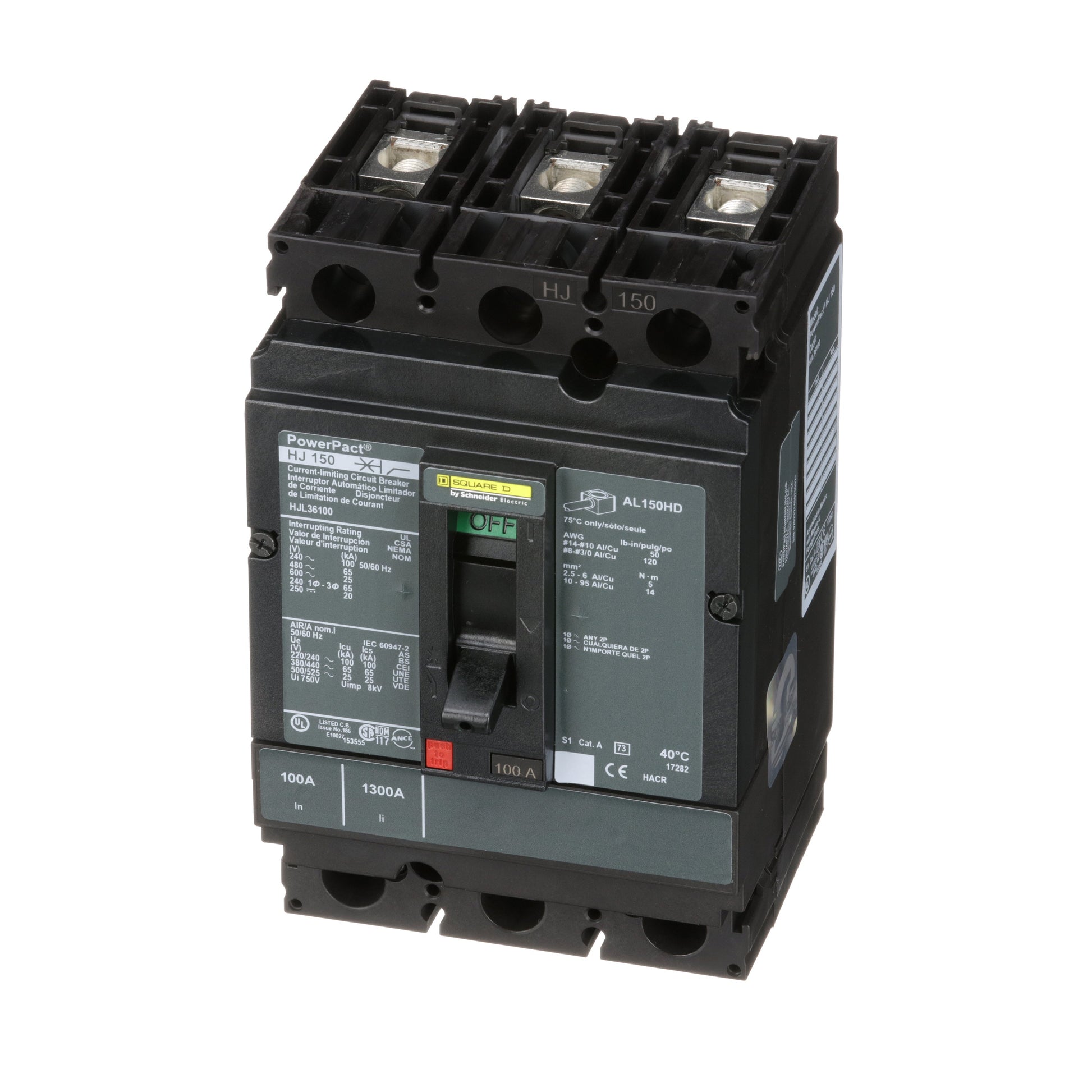

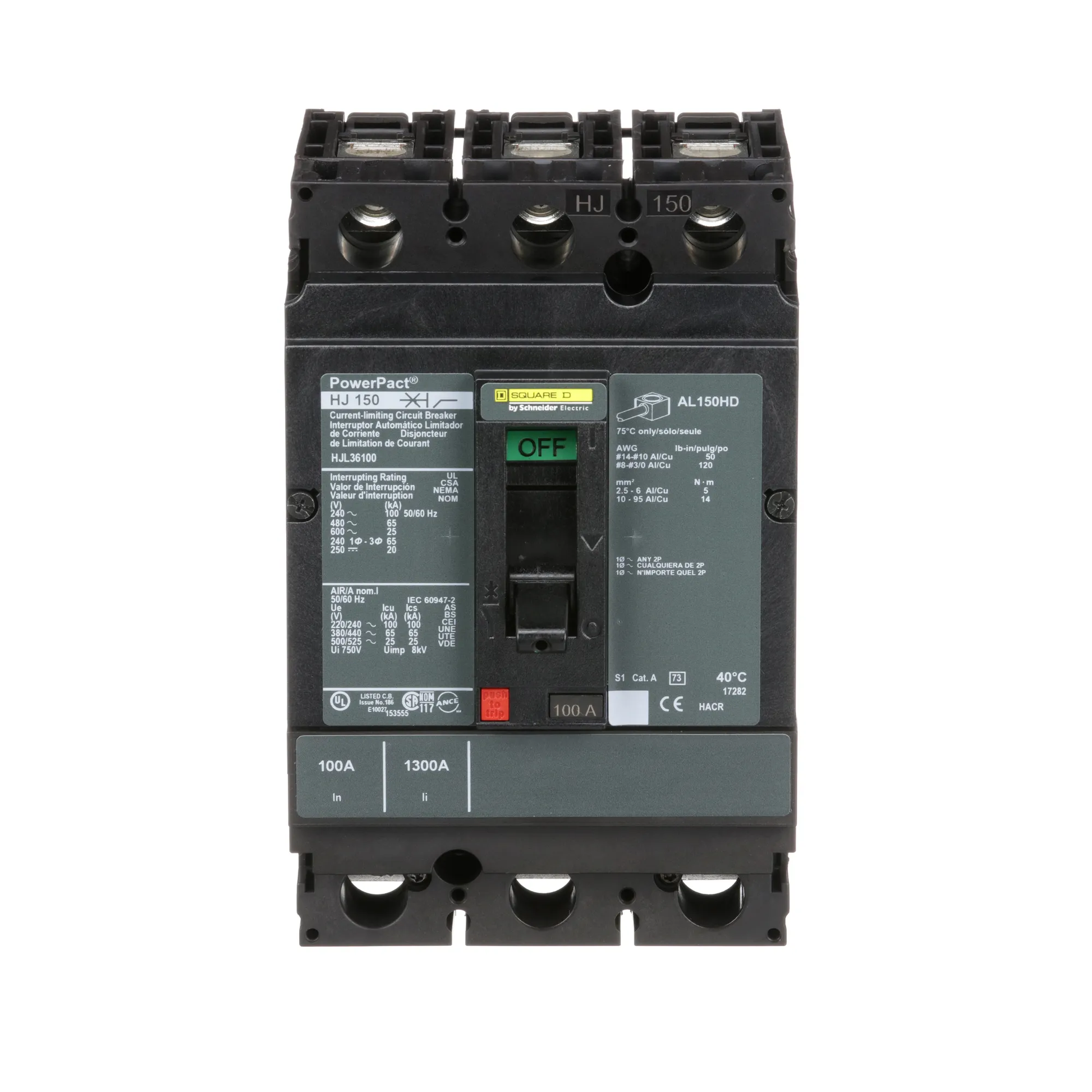

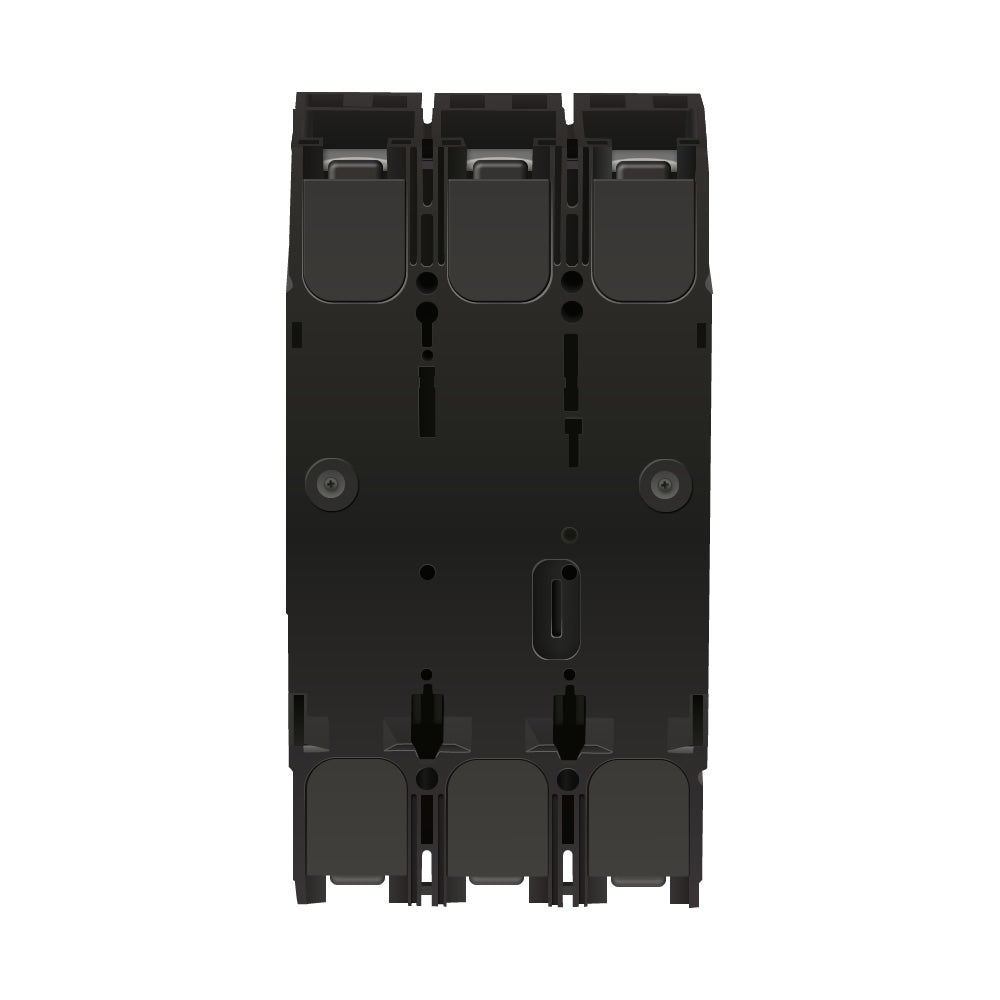

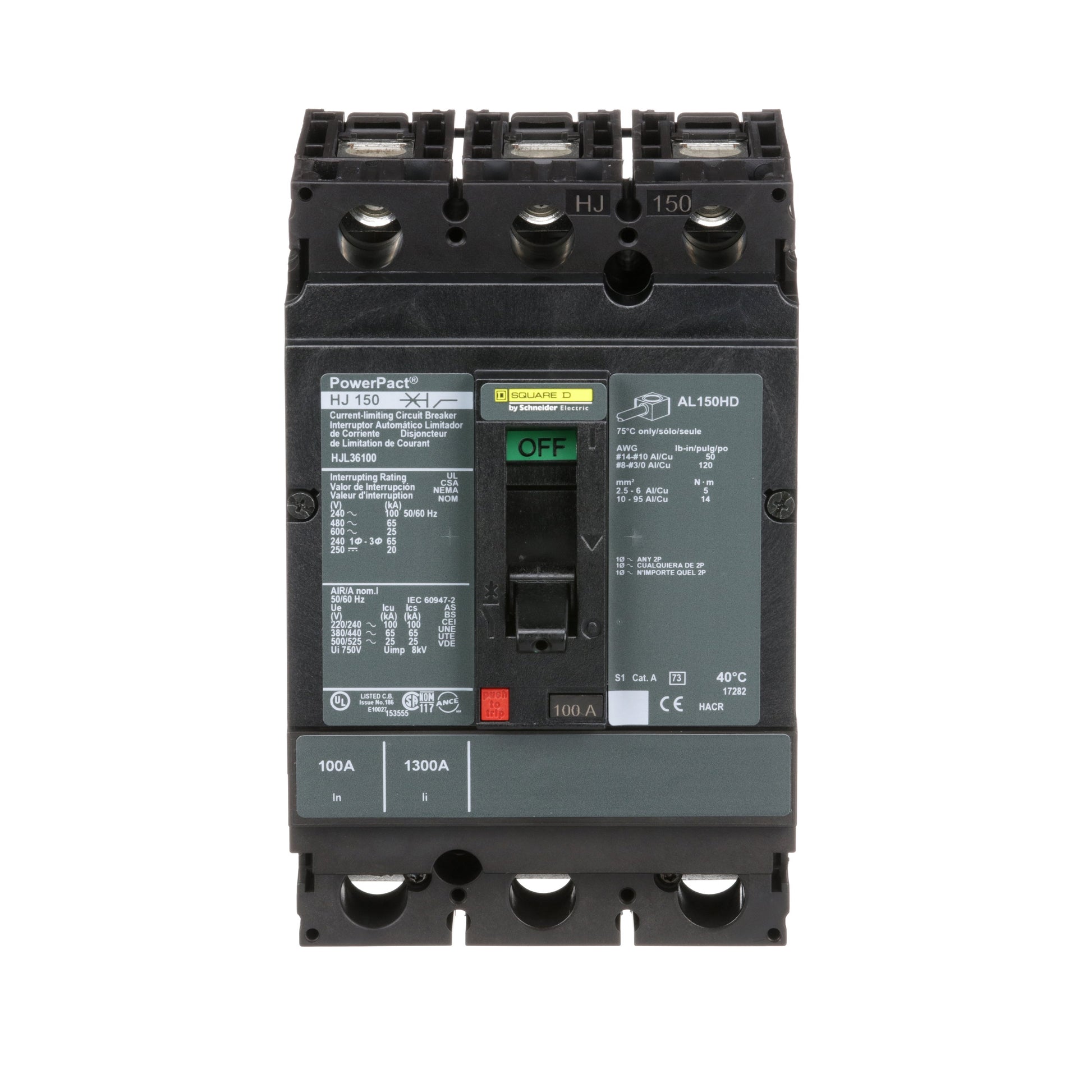

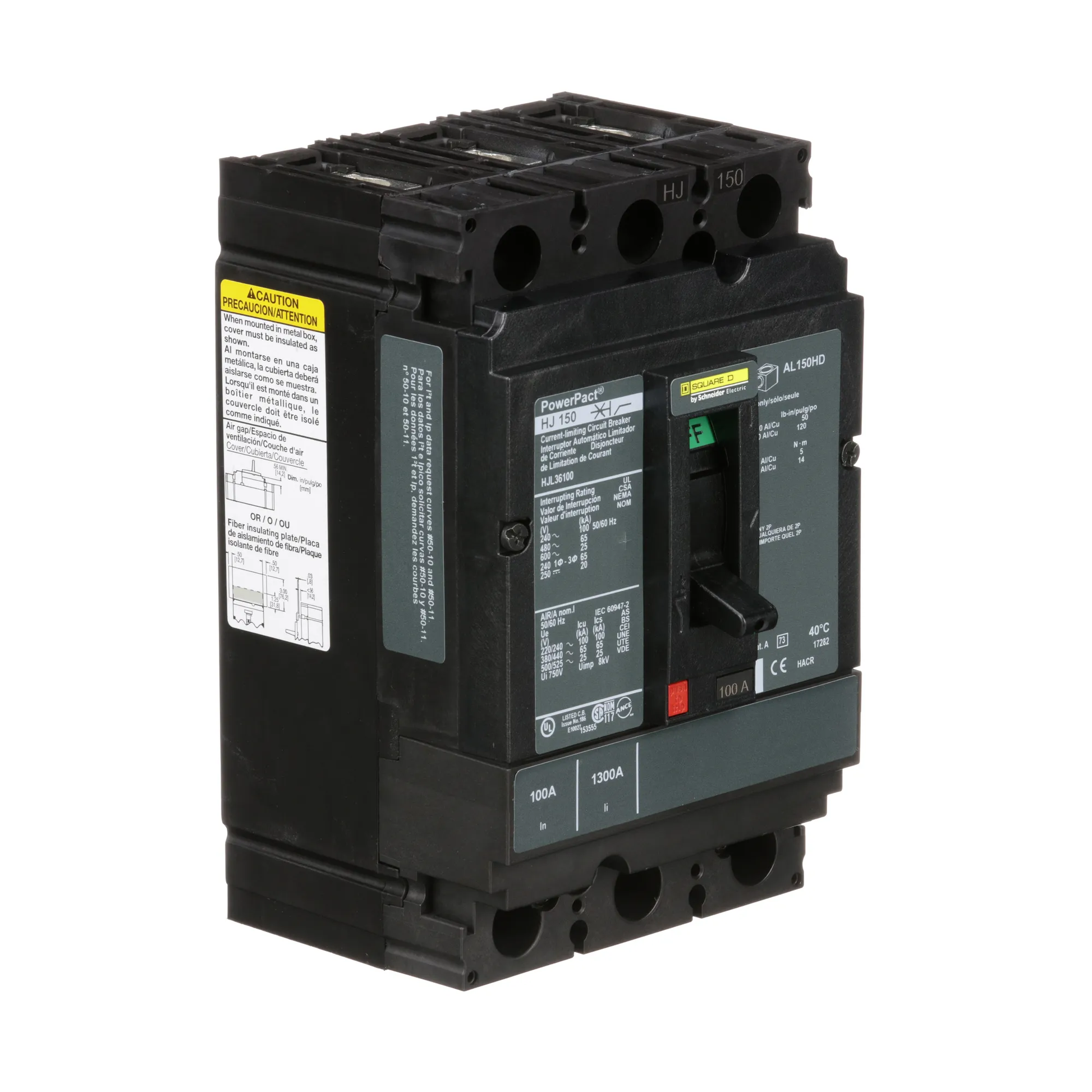

Square D HJL36100 Circuit Breaker | 600V 100A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D HJL36100 is a Powerpact family Molded Case Circuit Breaker. It is a 3-pole breaker rated for 100 amps at 600 volts, with an AIC rating of 65kA at 480V. This model features thermal magnetic protection and a feed-thru lug connection for reliable circuit interruption.

Key Features:
✔ Part Number: HJL36100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJL
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901955962
✔ GTIN: 00785901955962
✔ Country of Origin: Mexico

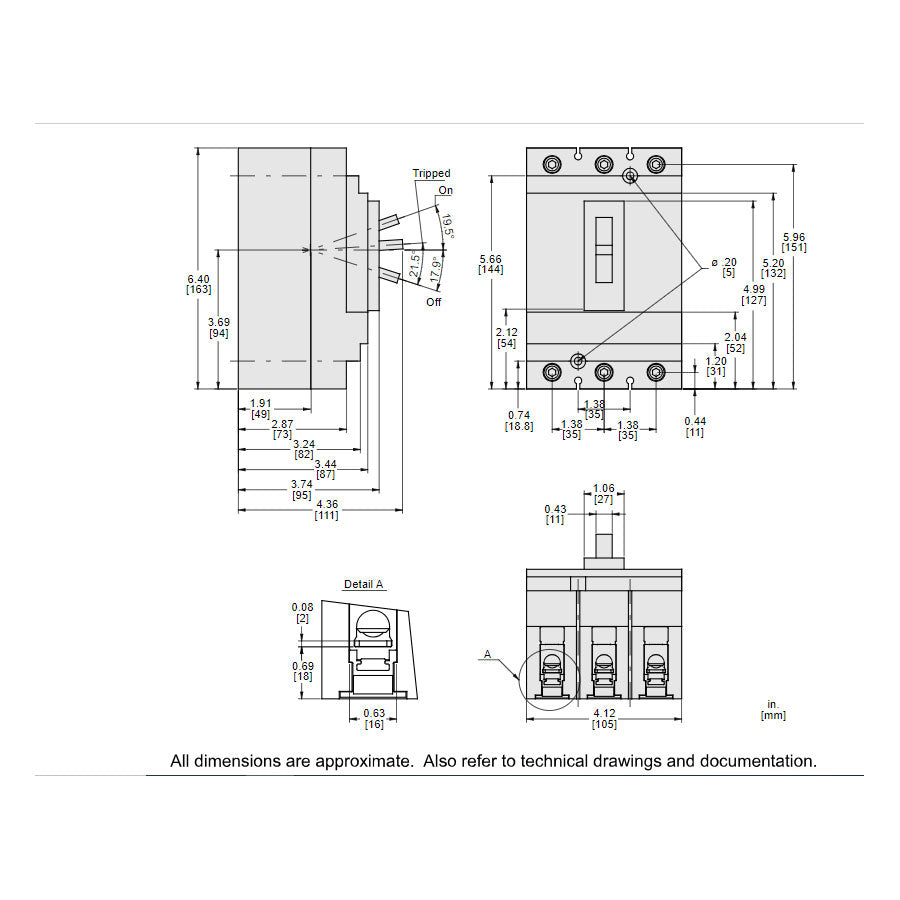

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.88
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
