Square D HLL36030 Circuit Breaker | Powerpact HLL 600V 30A

Product Description:

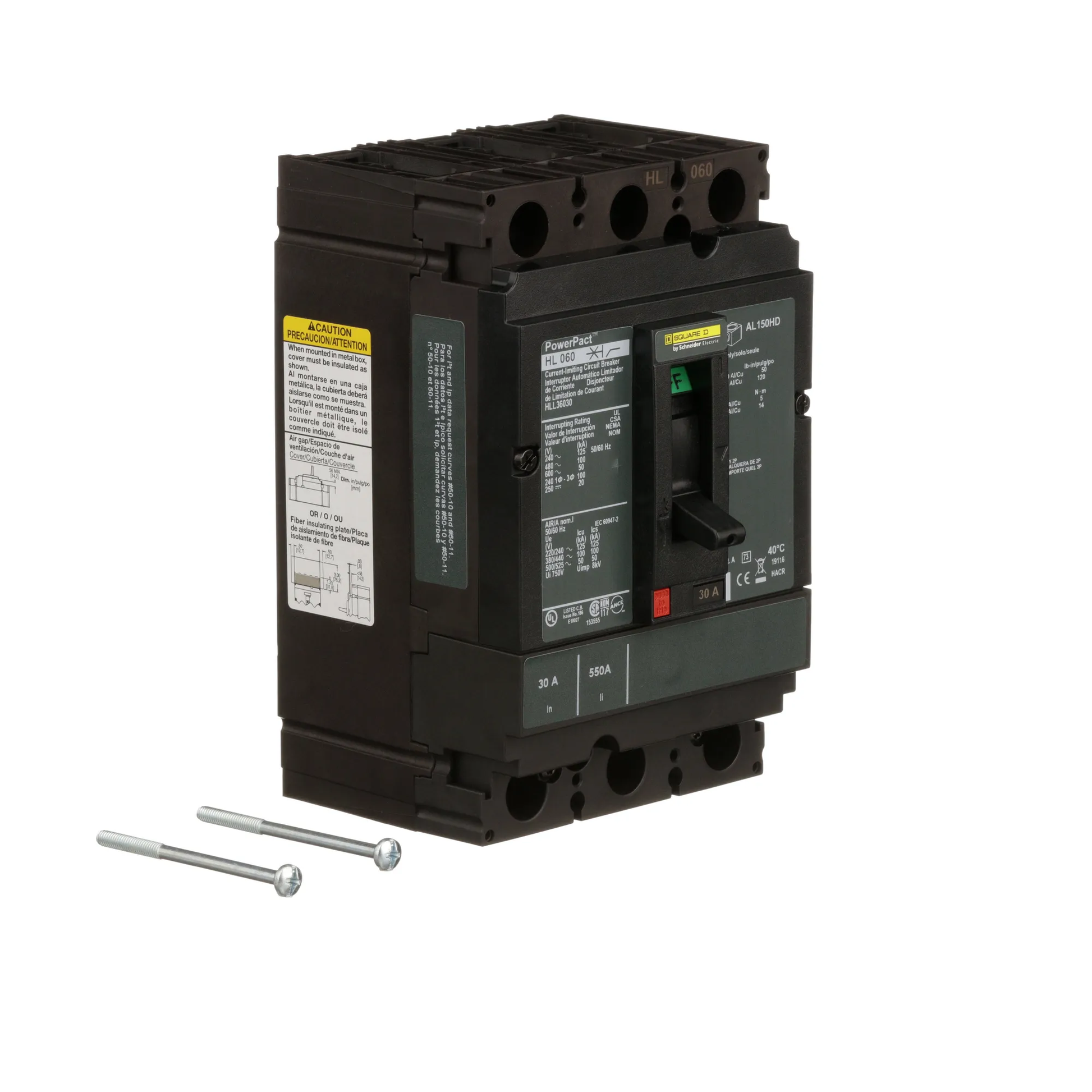

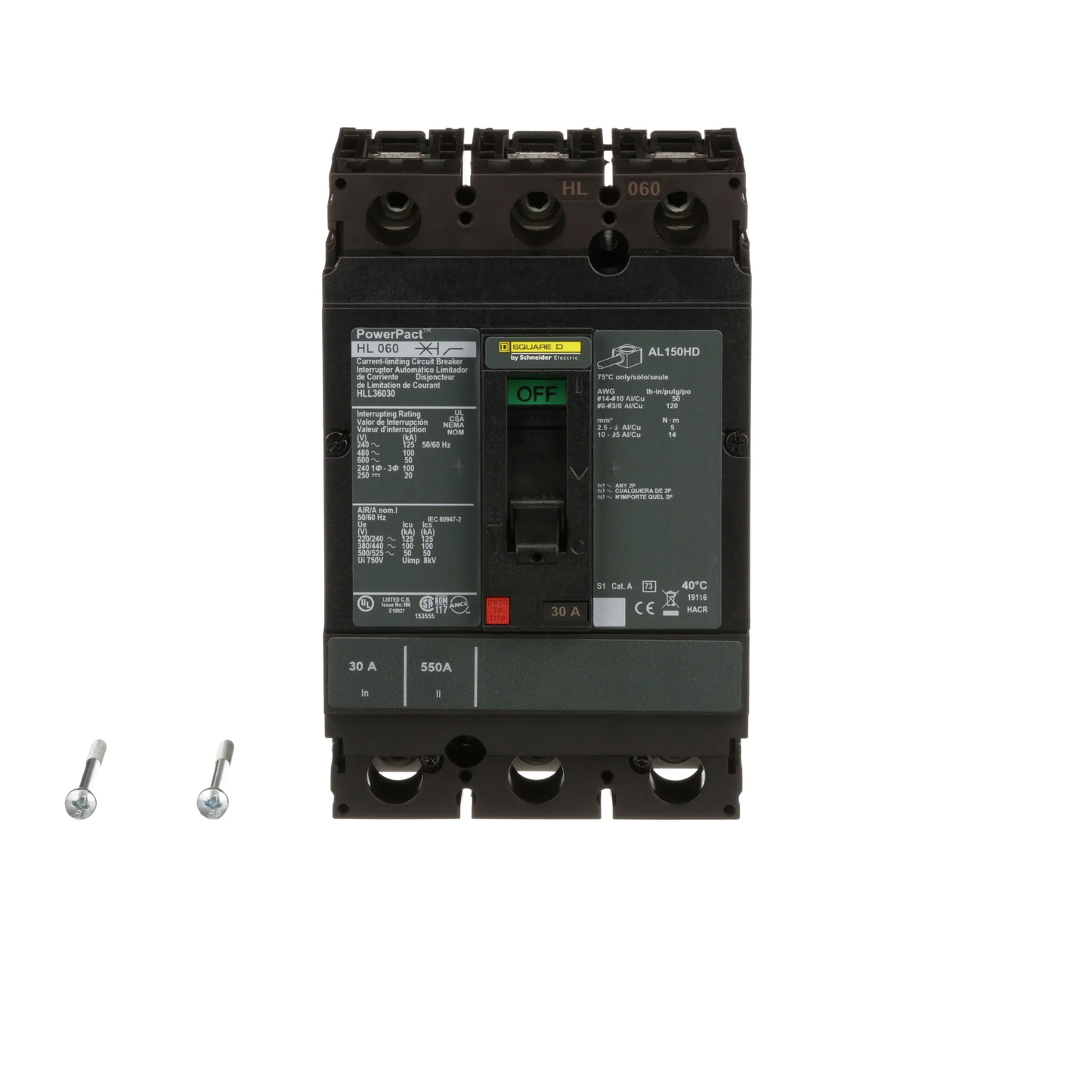

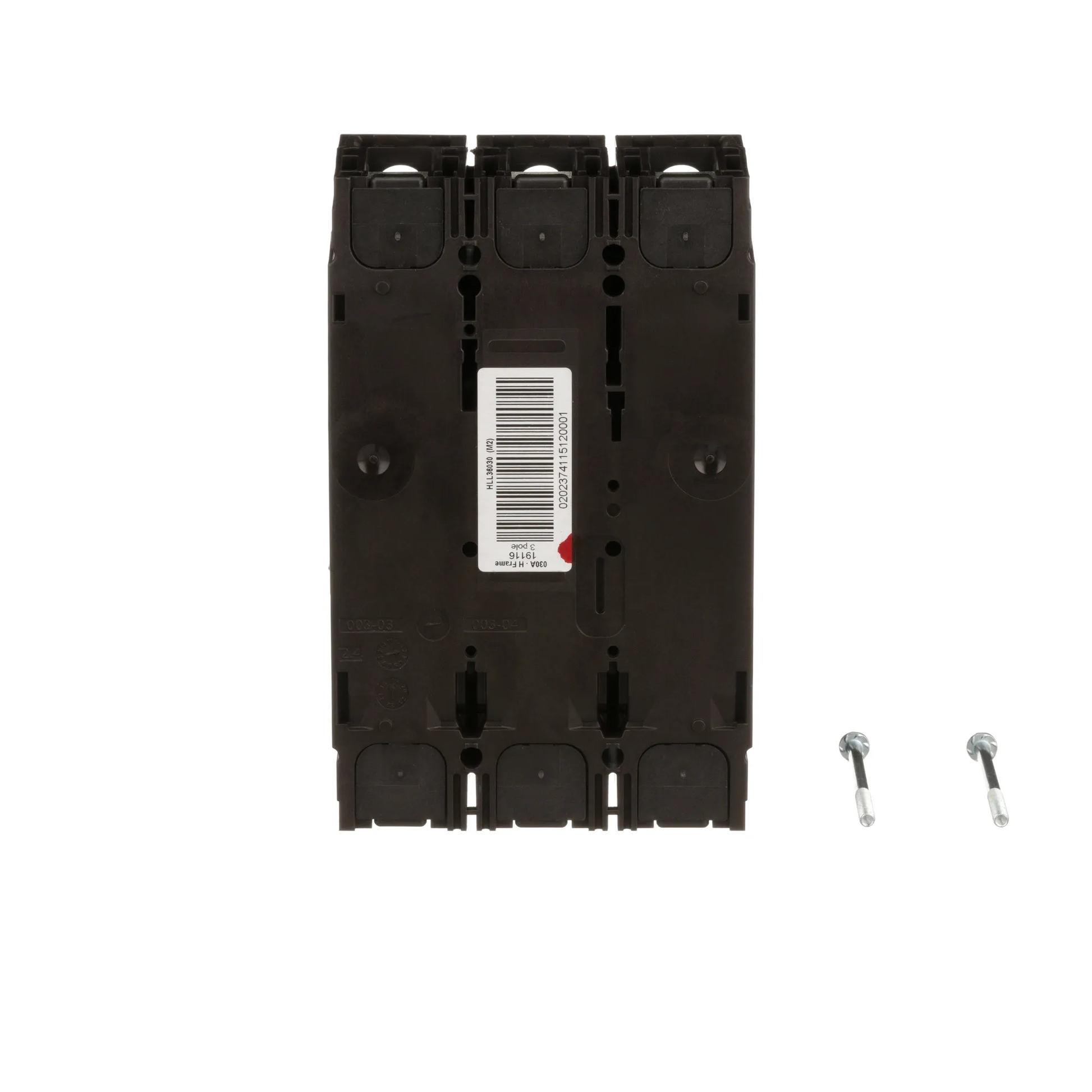

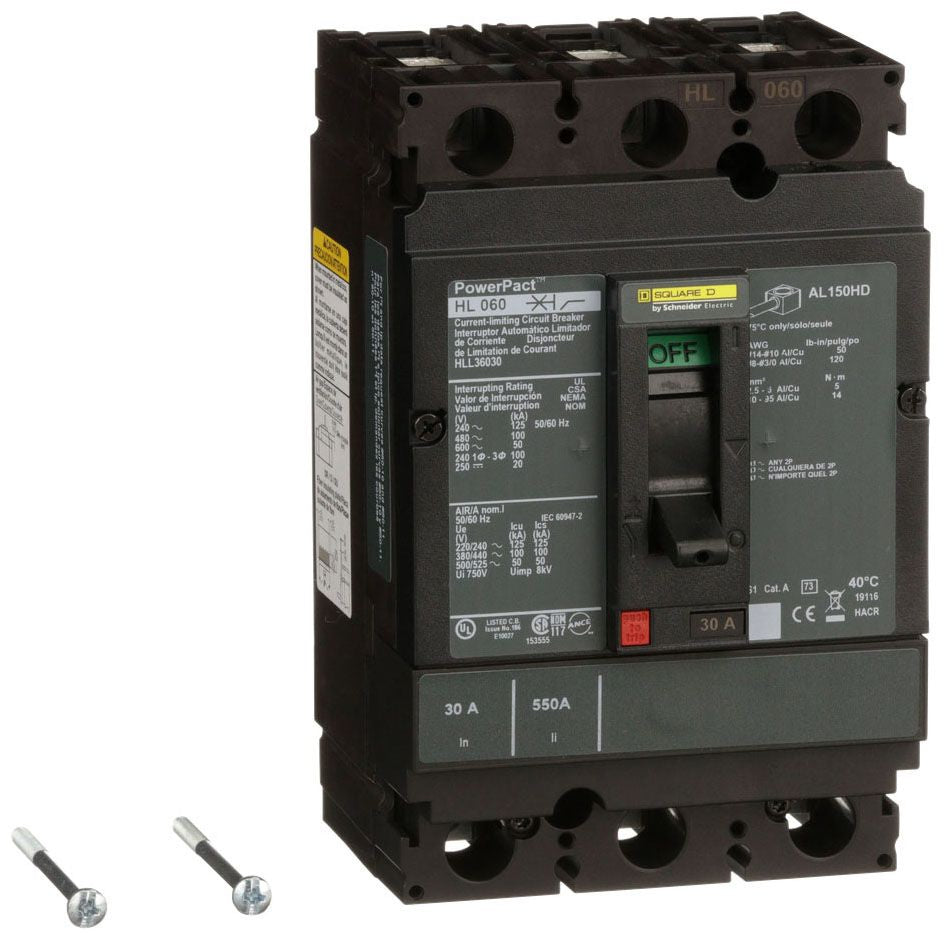

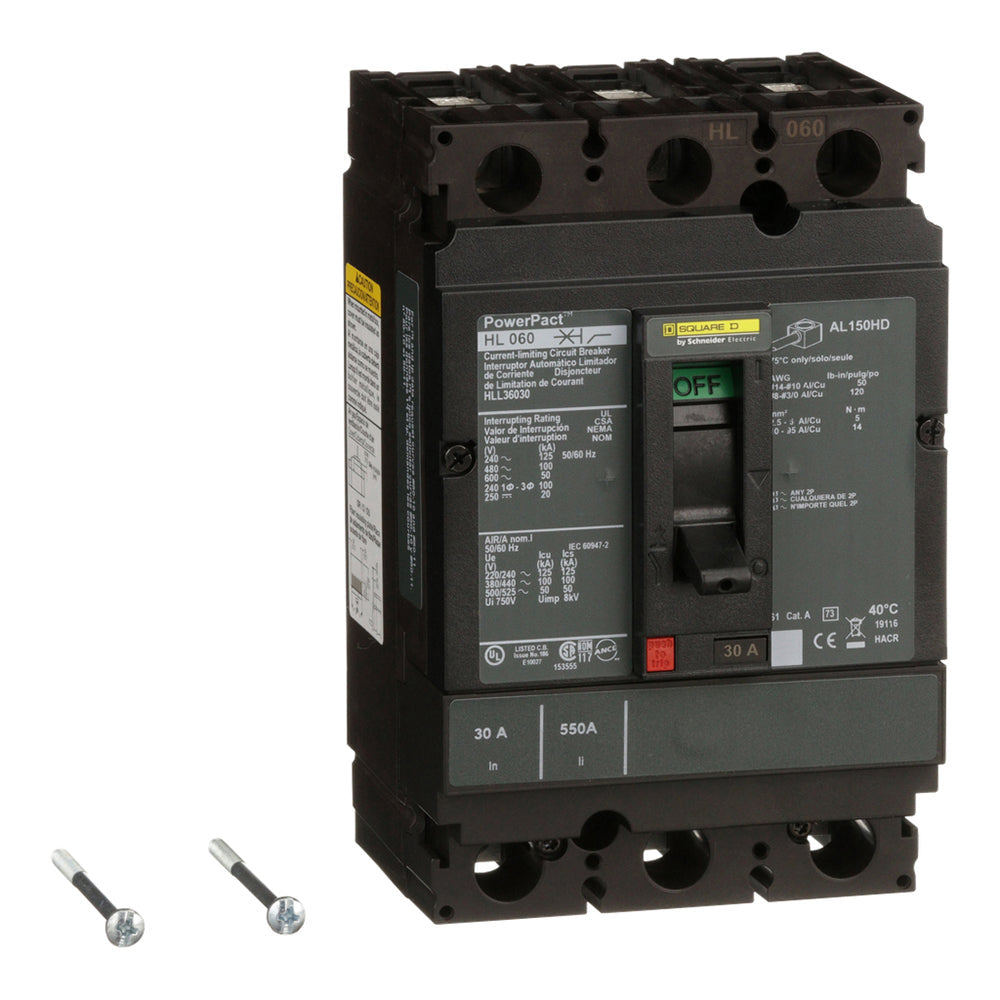

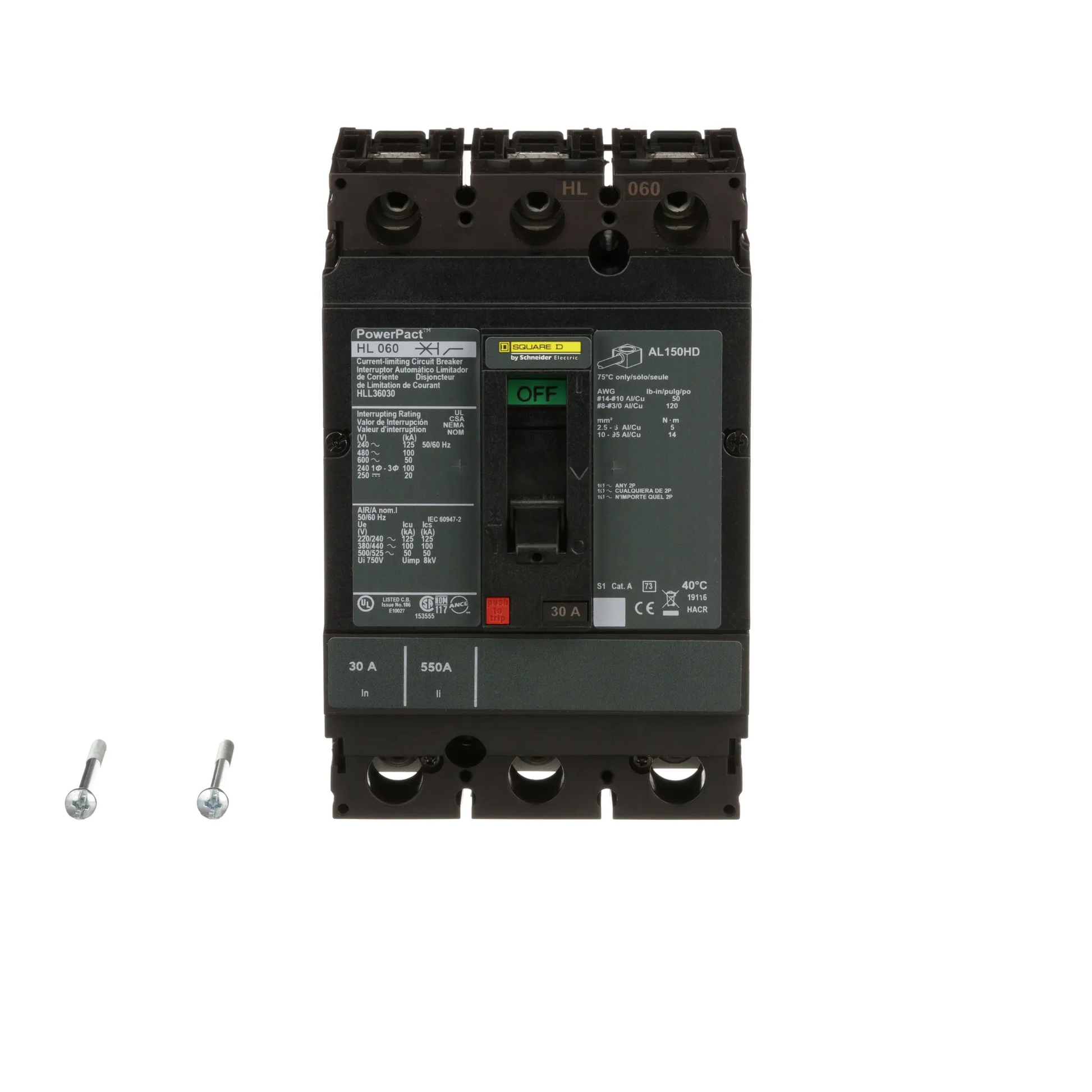

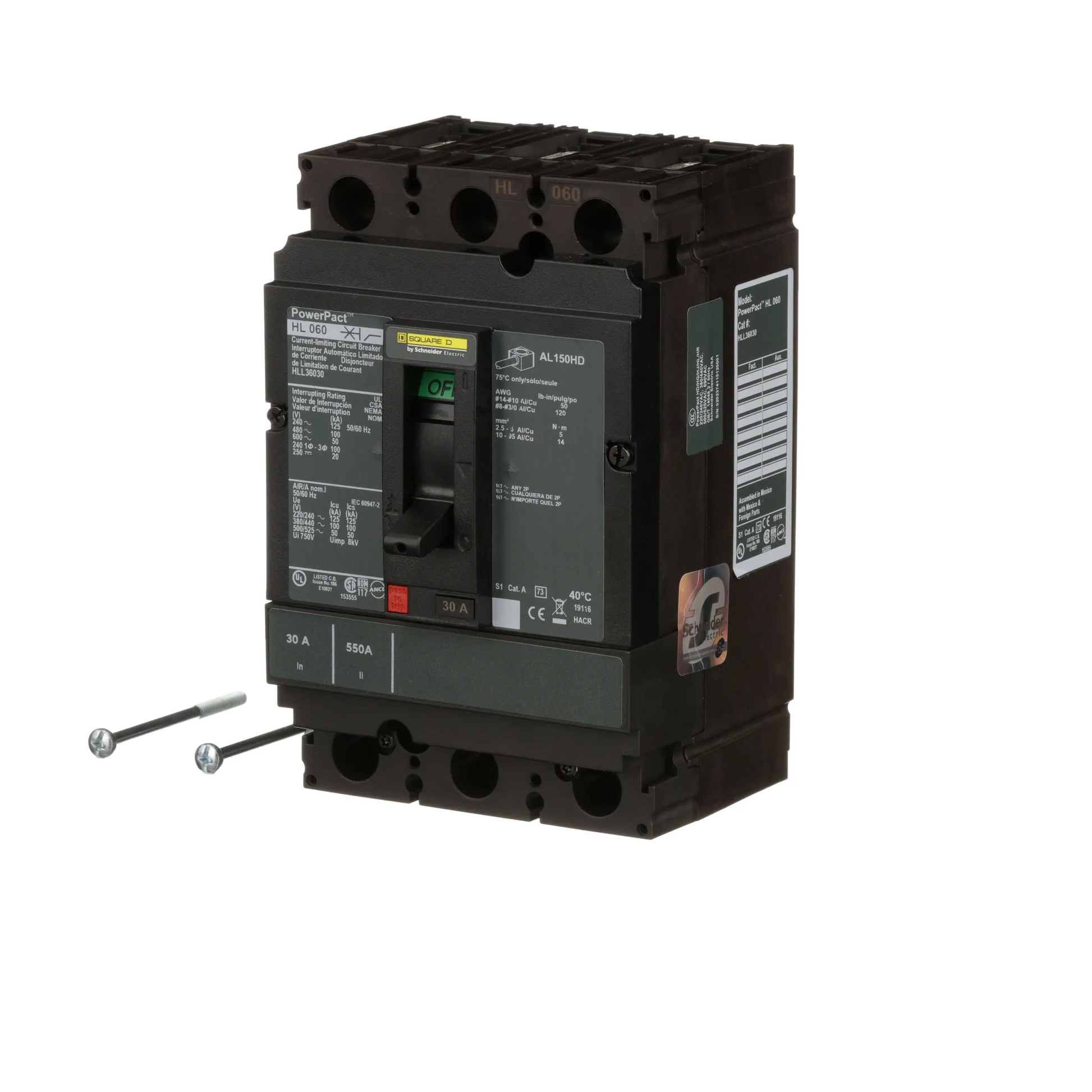

The Square D HLL36030 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 30A rating and a 100kA@480V AIC rating. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection for easy installation.

Key Features:
✔ Part Number: HLL36030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLL
✔ Voltage: 600V
✔ Amperage: 30A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ Min. Wire Size: 14 AWG (Cu/Al)
✔ Max. Wire Size: 3/0 AWG (Cu/Al)
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901433866
✔ GTIN: 00785901433866
✔ Country of Origin: Mexico
