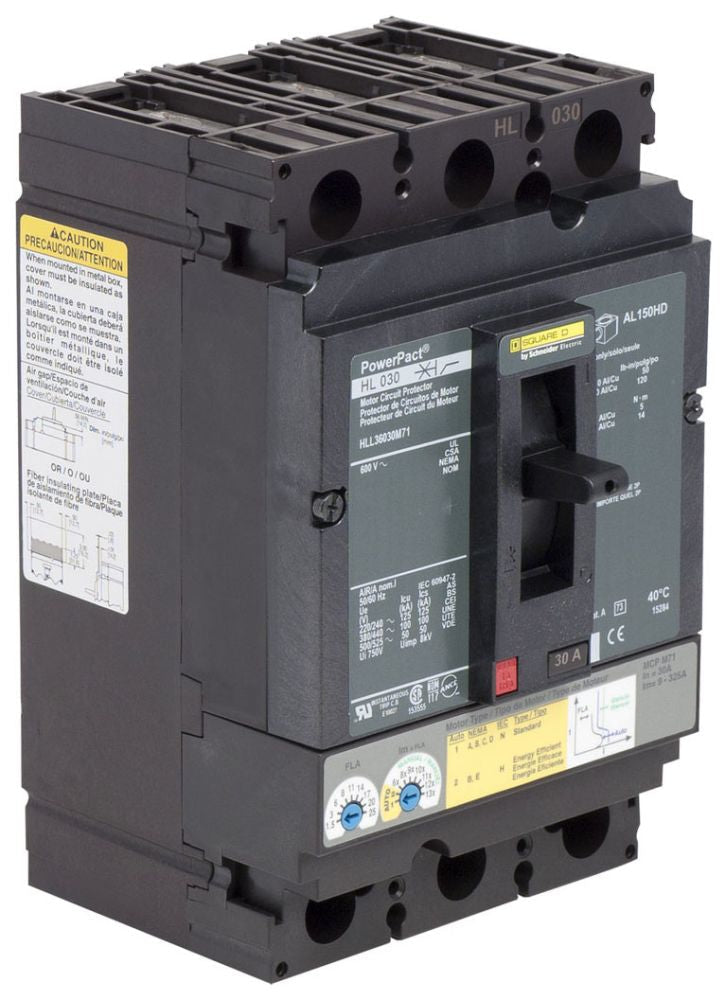

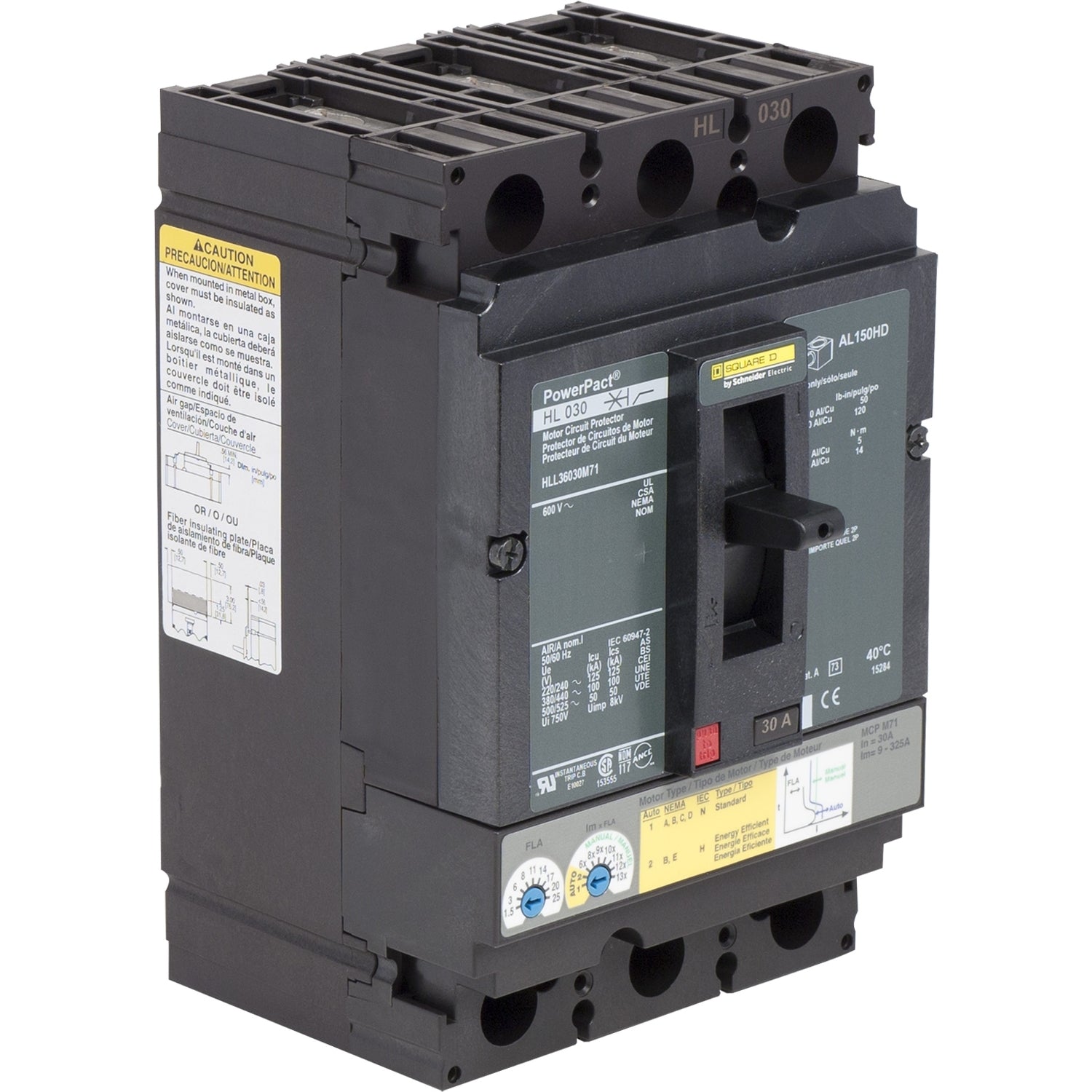

Square D HLL36030M71 Circuit Breaker | 600V 30A 3P 100kA@480V Feed-Thru Powerpact HLL

Product Description:
The Square D HLL36030M71 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 30 amp breaker rated for 600 Volts with an AIC rating of 100kA@480V. This model features a Feed-Thru connection and Magnetic Only protection for instantaneous response.

Key Features:
✔ Part Number: HLL36030M71
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLL
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Magnetic Only
✔ UPC: 785901632139
✔ GTIN: 00785901632139
✔ Country of Origin: Mexico

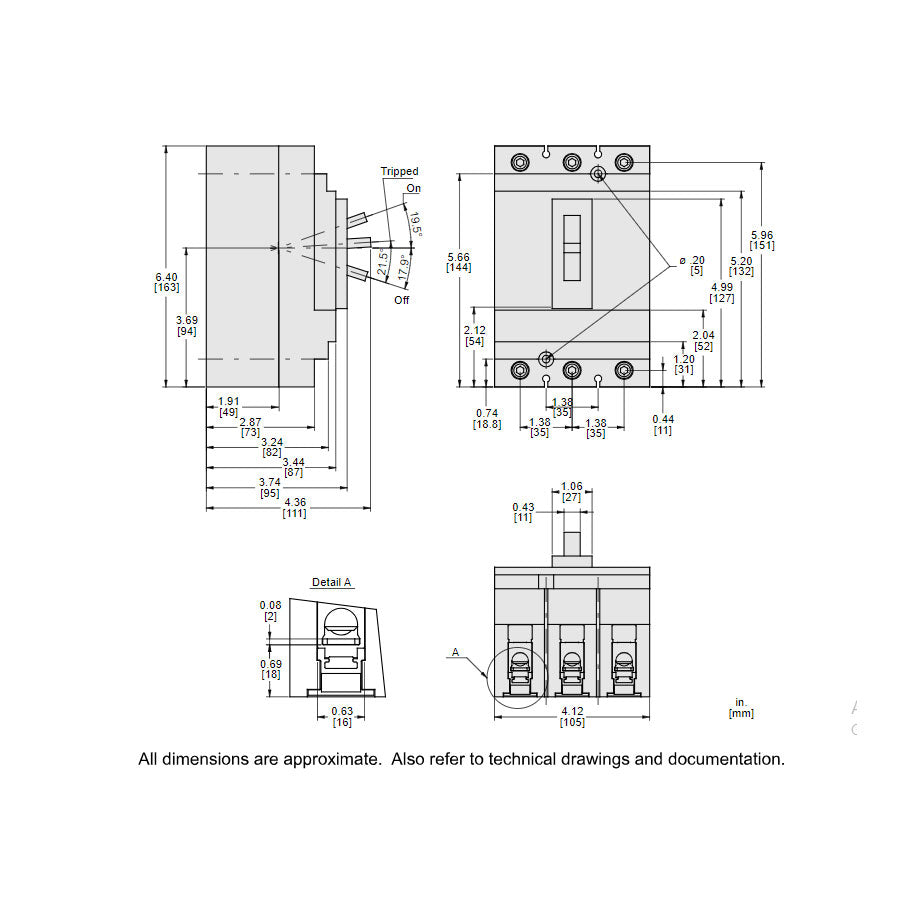

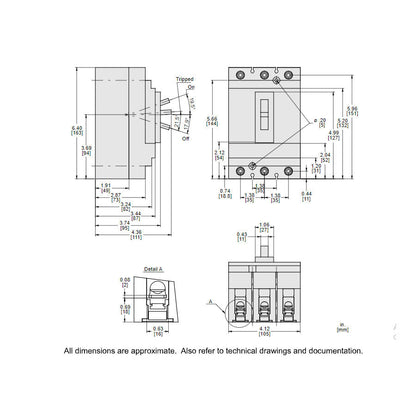

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.93
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
