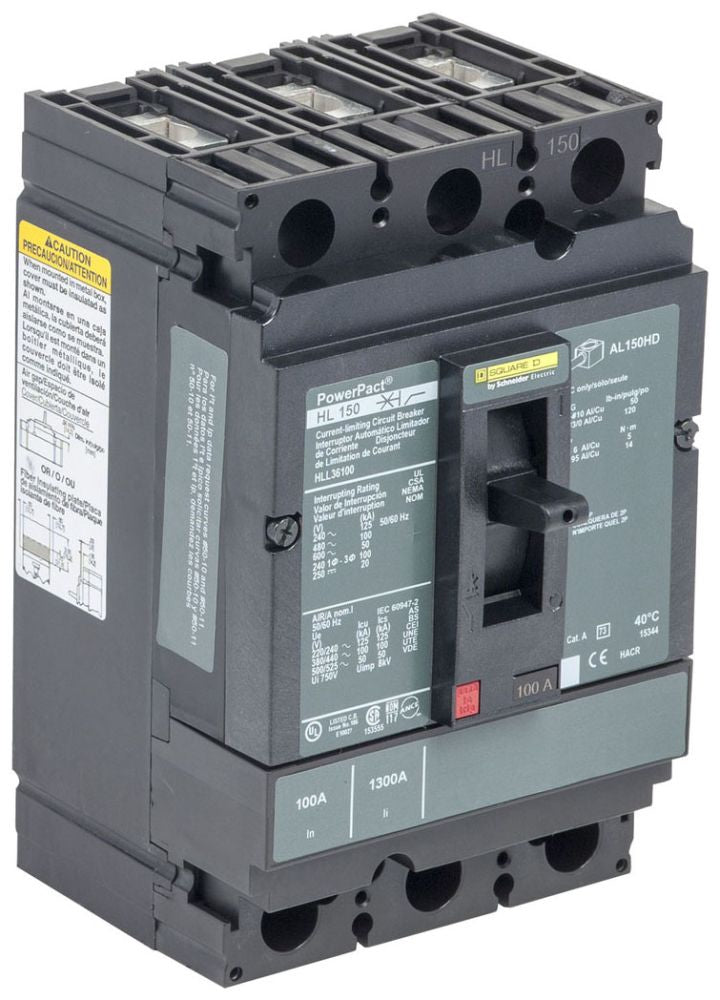

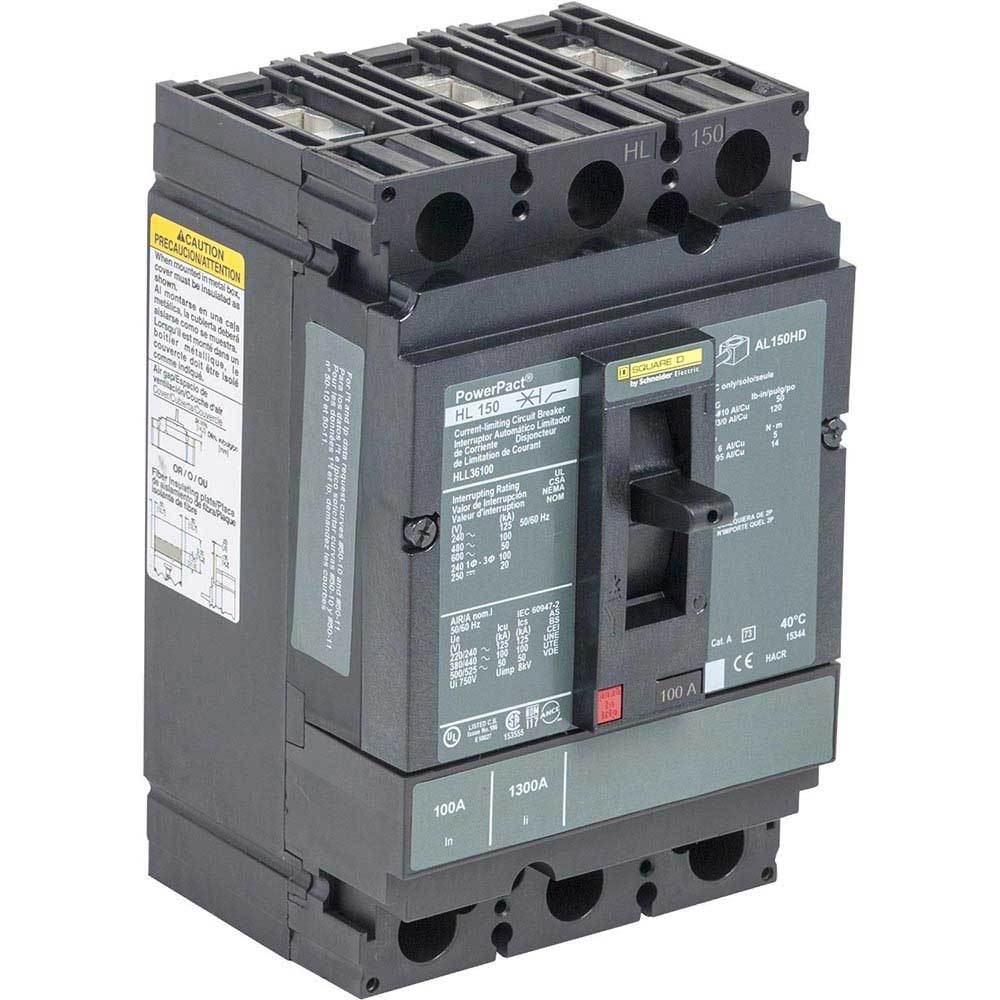

Square D HLL36090 Circuit Breaker | 600V 90A 3P 100kA@480V Feed-Thru Powerpact HLL
Square D HLL36090 Circuit Breaker | 600V 90A 3P 100kA@480V Feed-Thru Powerpact HLL
Price:
Sale
Sold out
Regular price
$1,048.02 USD
Regular price
$3,149.00 USD
Sale price
$1,048.02 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D HLL36090 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 90 amp breaker rated for 600 volts with an AIC rating of 100kA at 480V. This model features a feed-thru connection and provides thermal magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HLL36090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLL
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901683193
✔ GTIN: 00785901683193
✔ Country of Origin: Mexico

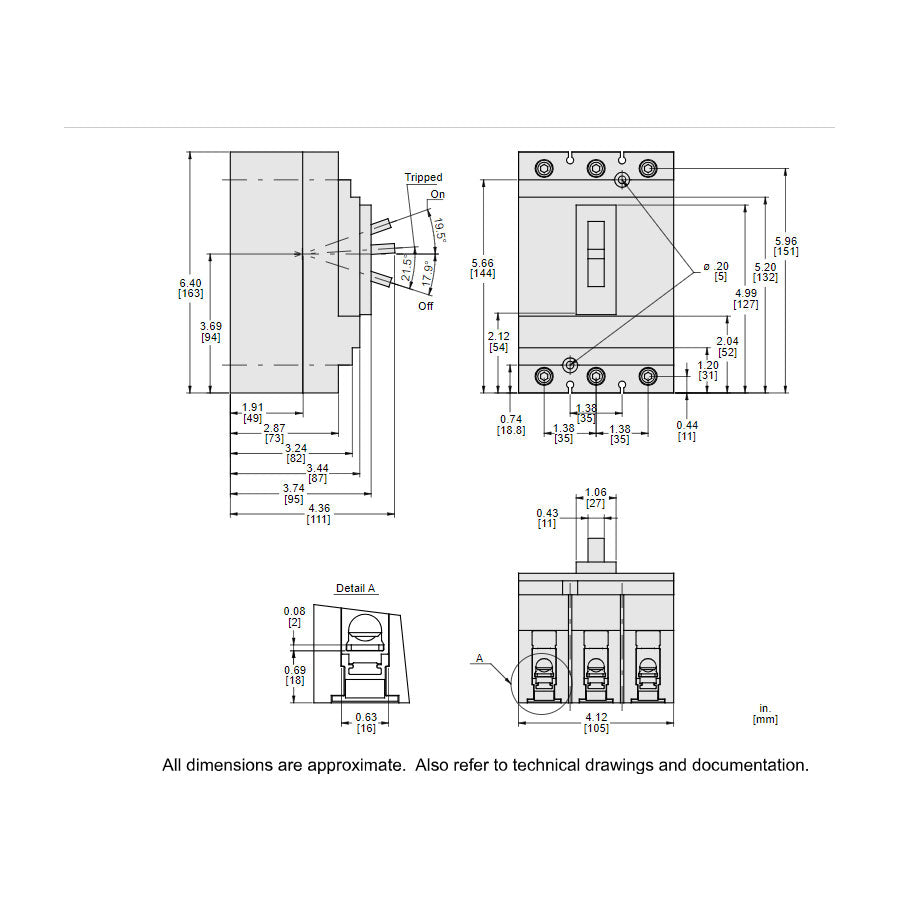

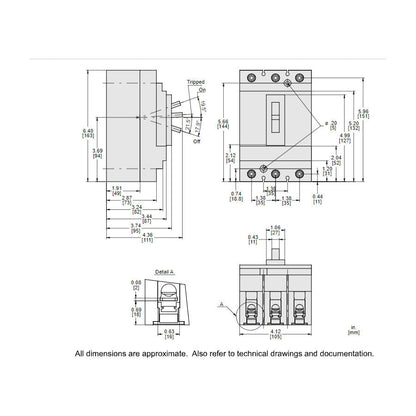

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.87
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
