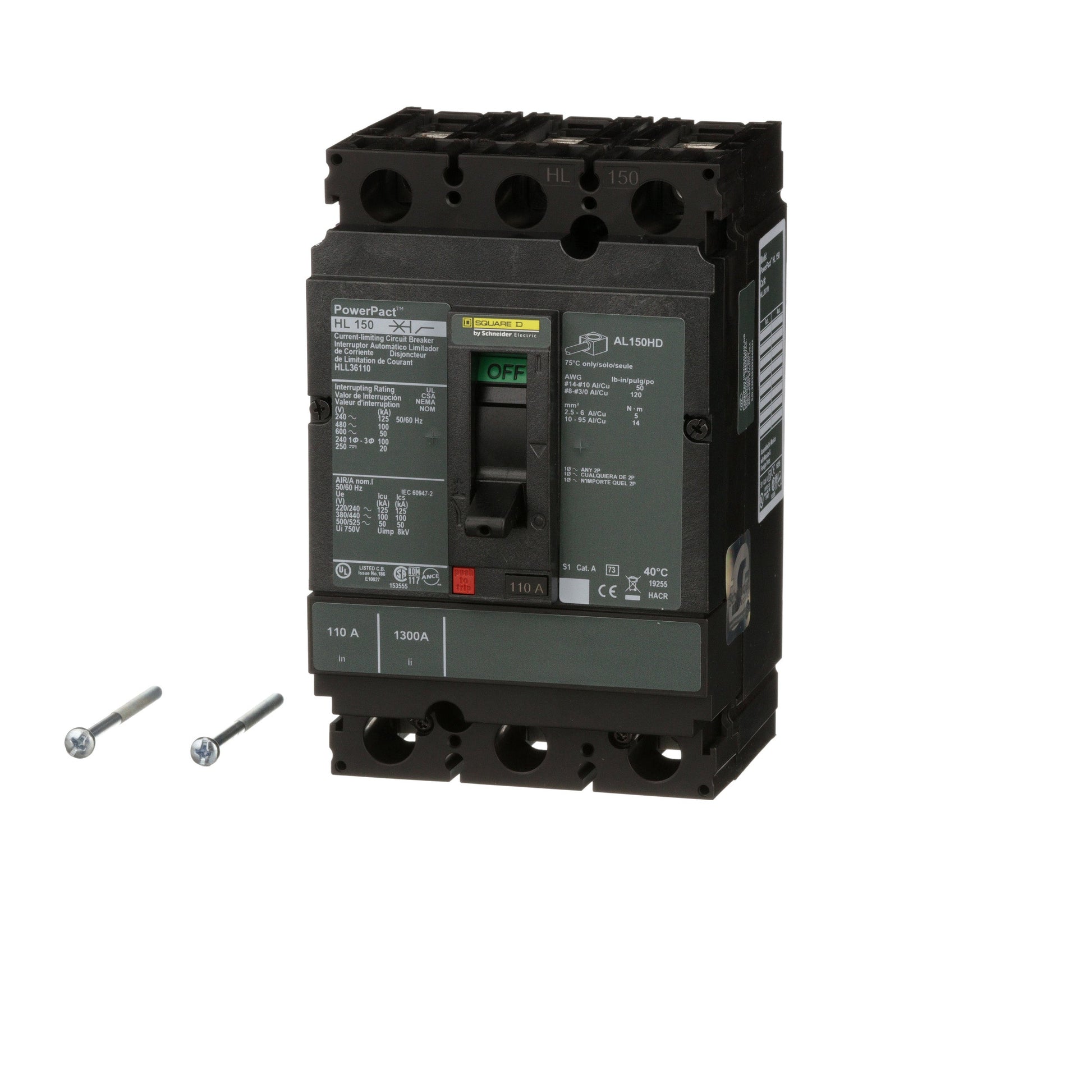

Square D HLL36110 Circuit Breaker | Powerpact HLL 600V 110A
Square D HLL36110 Circuit Breaker | Powerpact HLL 600V 110A
Price:
Sale
Sold out
Regular price
$2,480.09 USD
Regular price
$6,749.00 USD
Sale price
$2,480.09 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D HLL36110 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 110A rating and a 100kA@480V AIC rating. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection. It is suitable for a wide range of wire sizes and temperature conditions.
Key Features:
✔ Part Number: HLL36110
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLL
✔ Voltage: 600V
✔ Amperage: 110A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al), Max. Wire Size 3/0 AWG (Cu/Al)
✔ Temp Rating: 28-158 °F (-2-70 °C)
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901433781
✔ GTIN: 00785901000000
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.86 lbs
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
