Square D HLL36125 Circuit Breaker | 600V 125A 3P 100kA@480V Feed-Thru Powerpact HLL

Product Description:

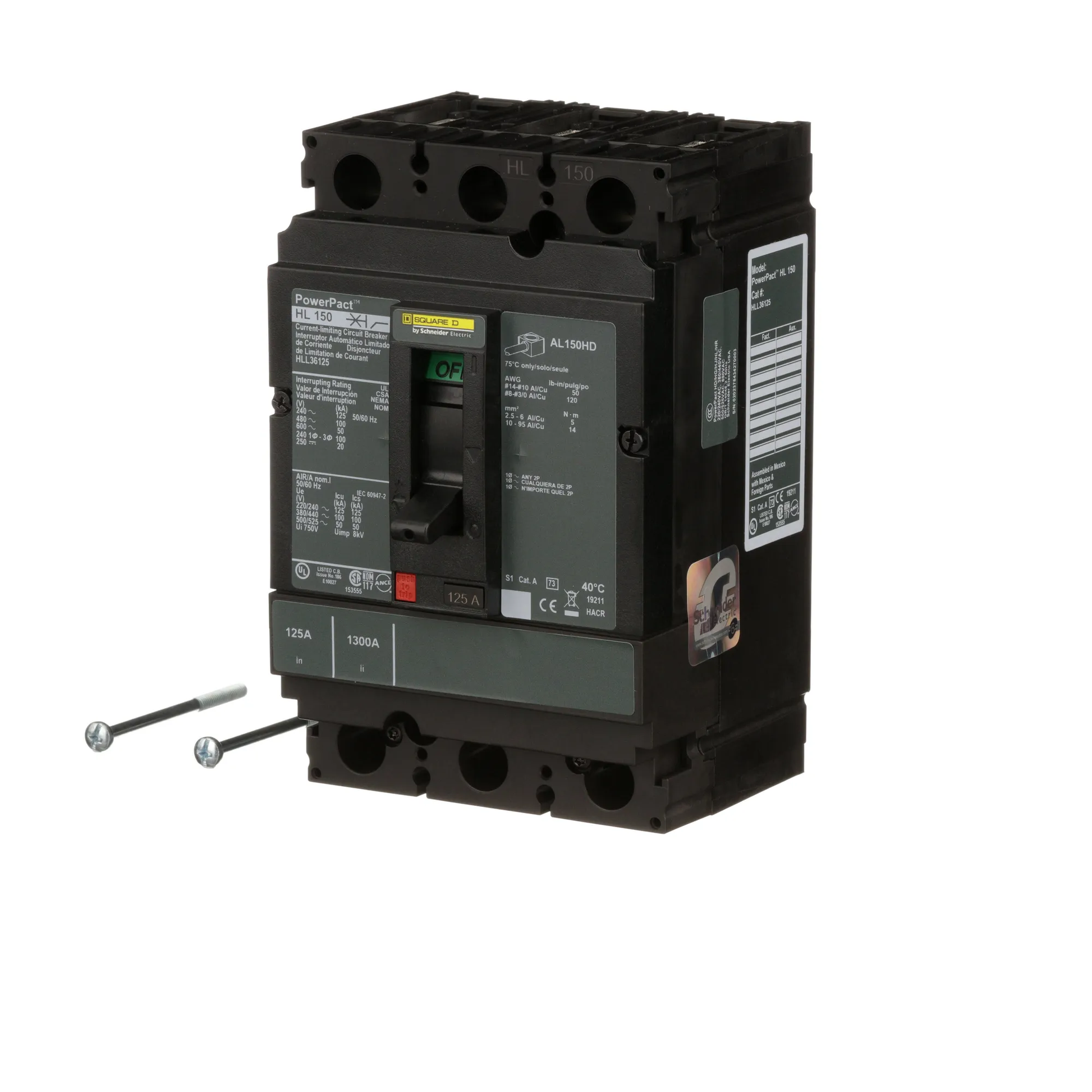

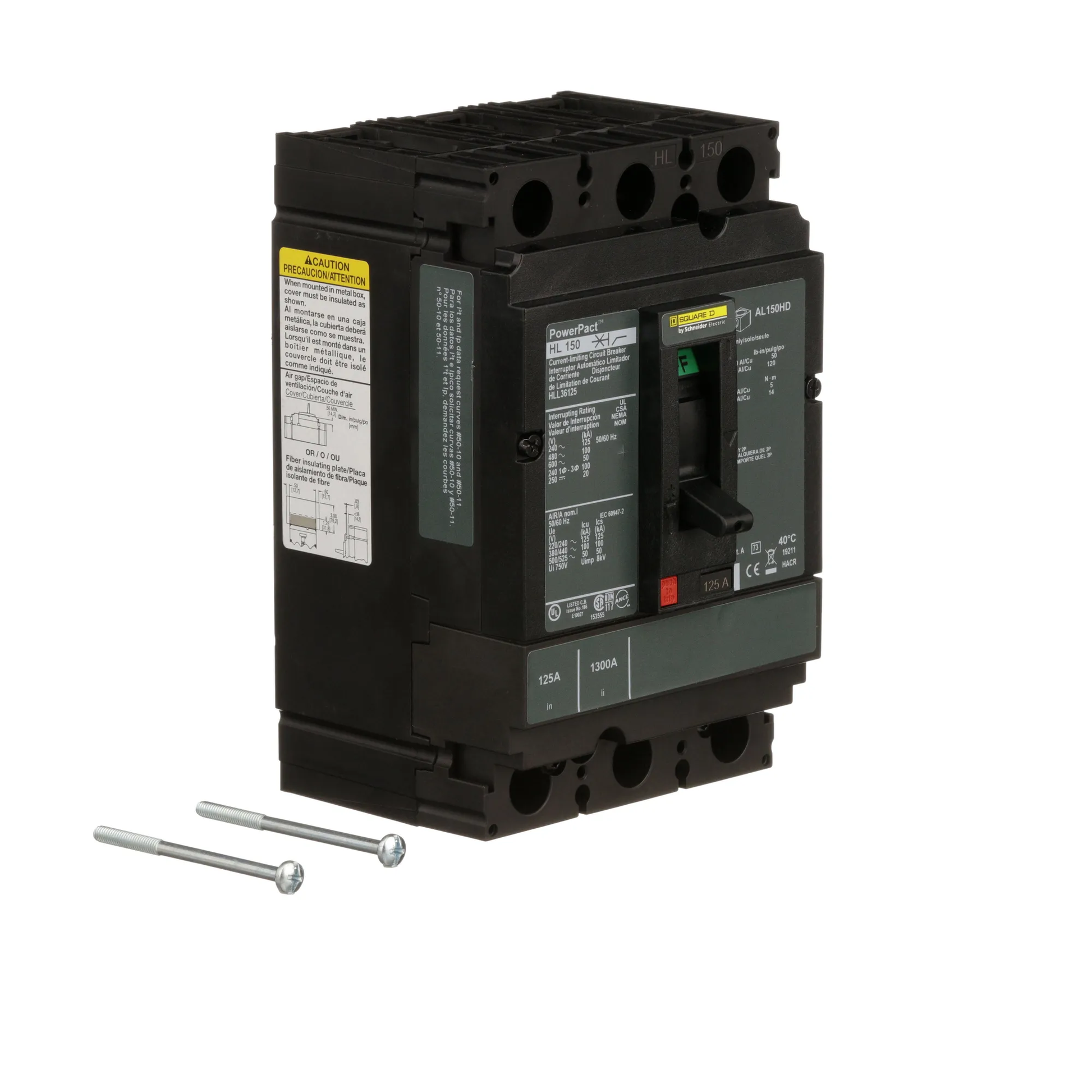

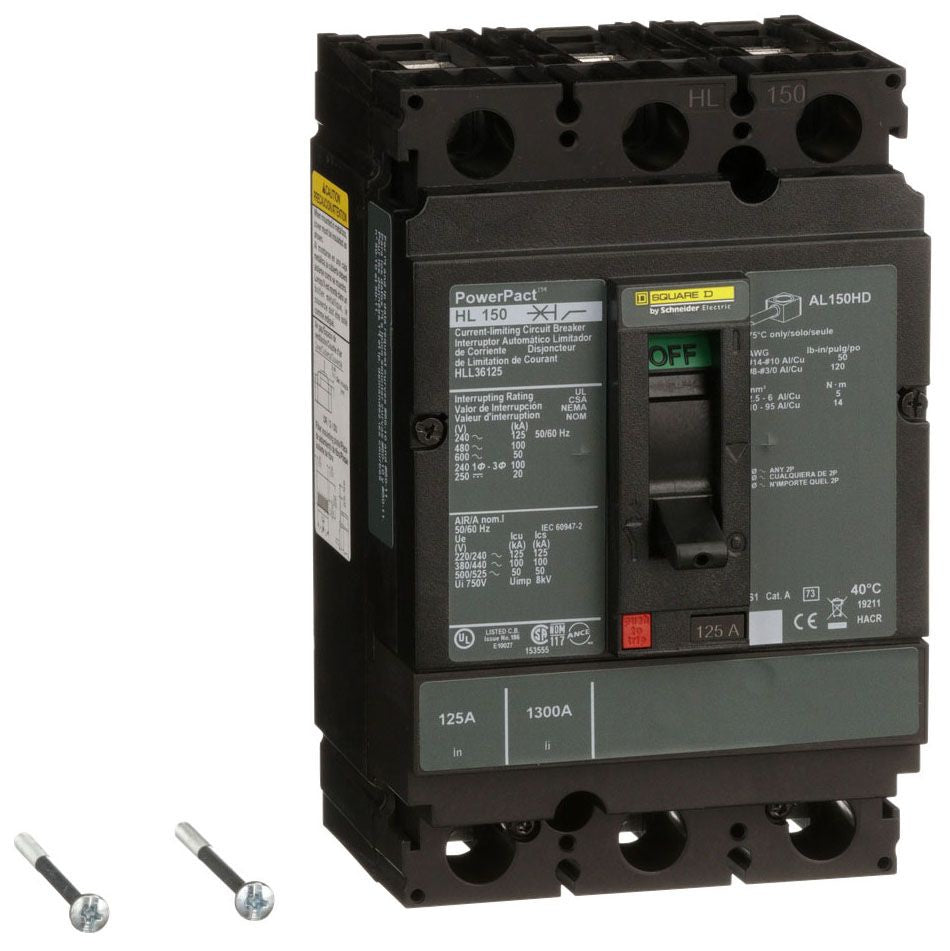

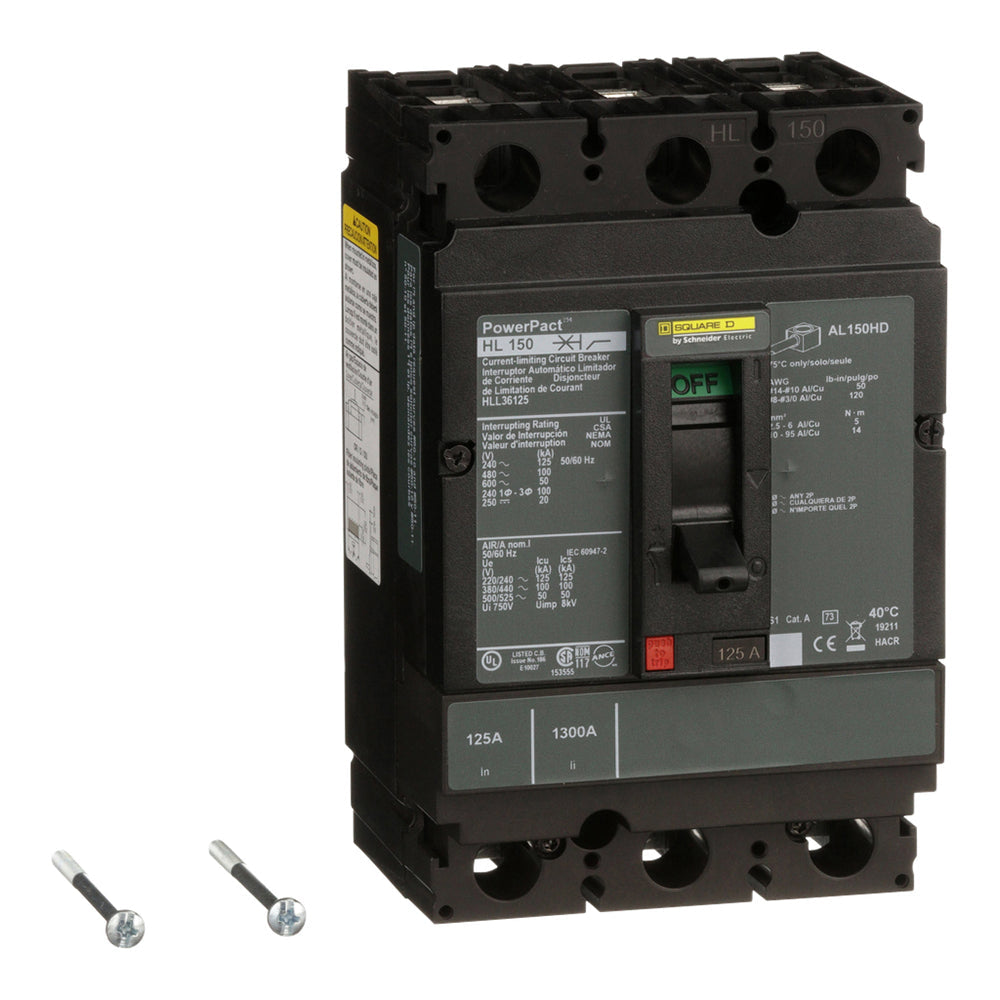

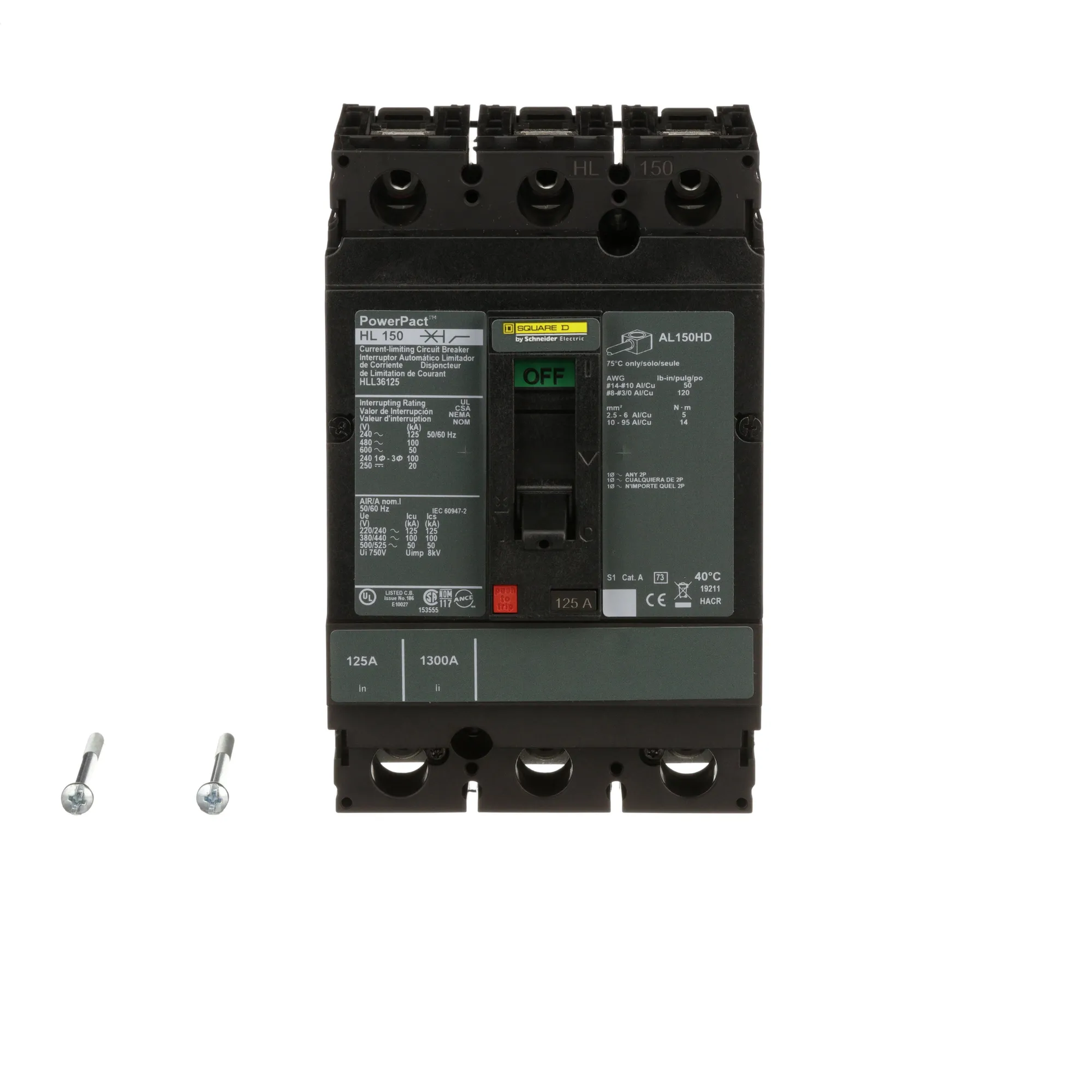

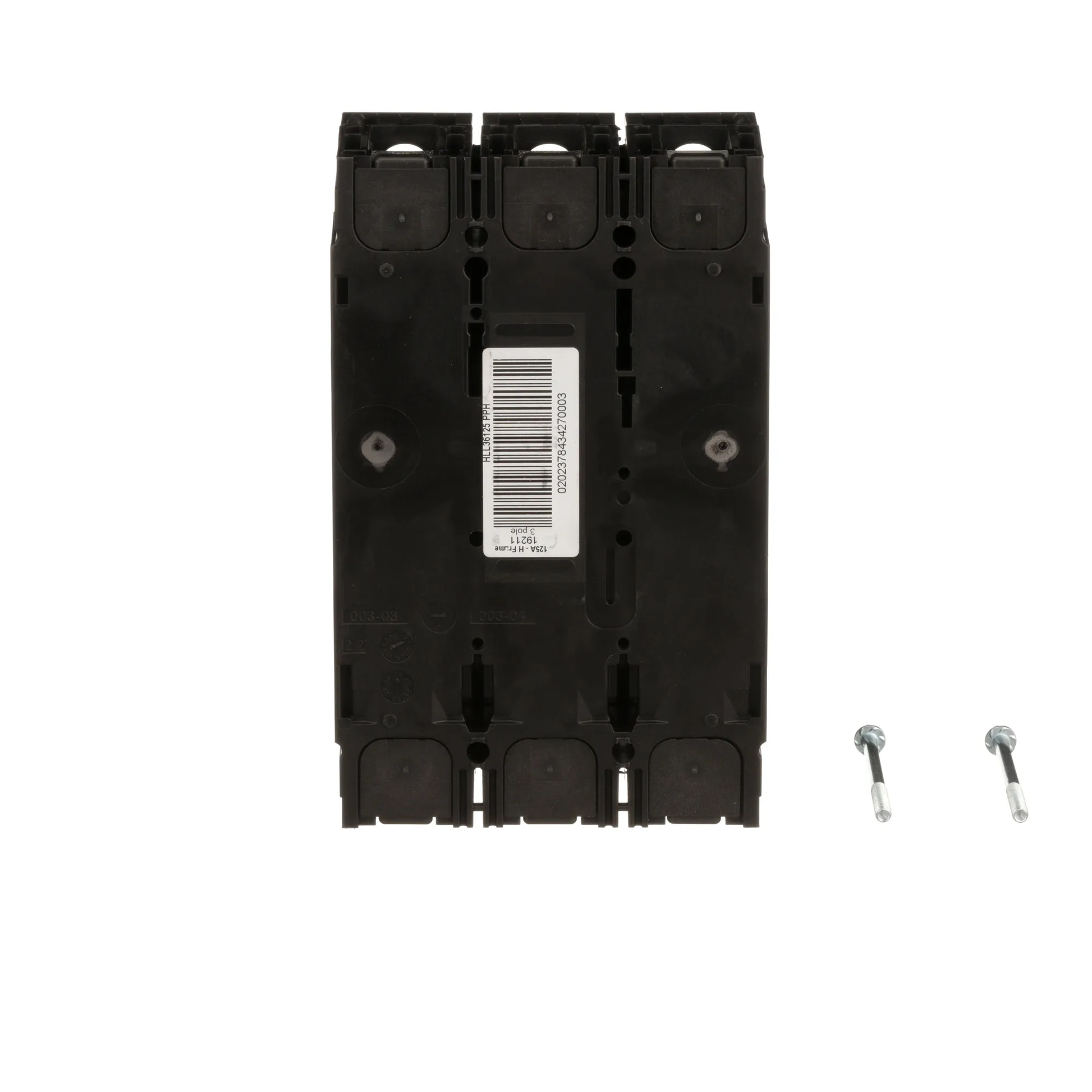

The Square D HLL36125 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 125 amp breaker rated for 600 Volts with an AIC rating of 100kA@480V. This model features a Feed-Thru connection and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: HLL36125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLL
✔ Voltage: 600
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901953043
✔ GTIN: 00785901953043
✔ Country of Origin: Mexico

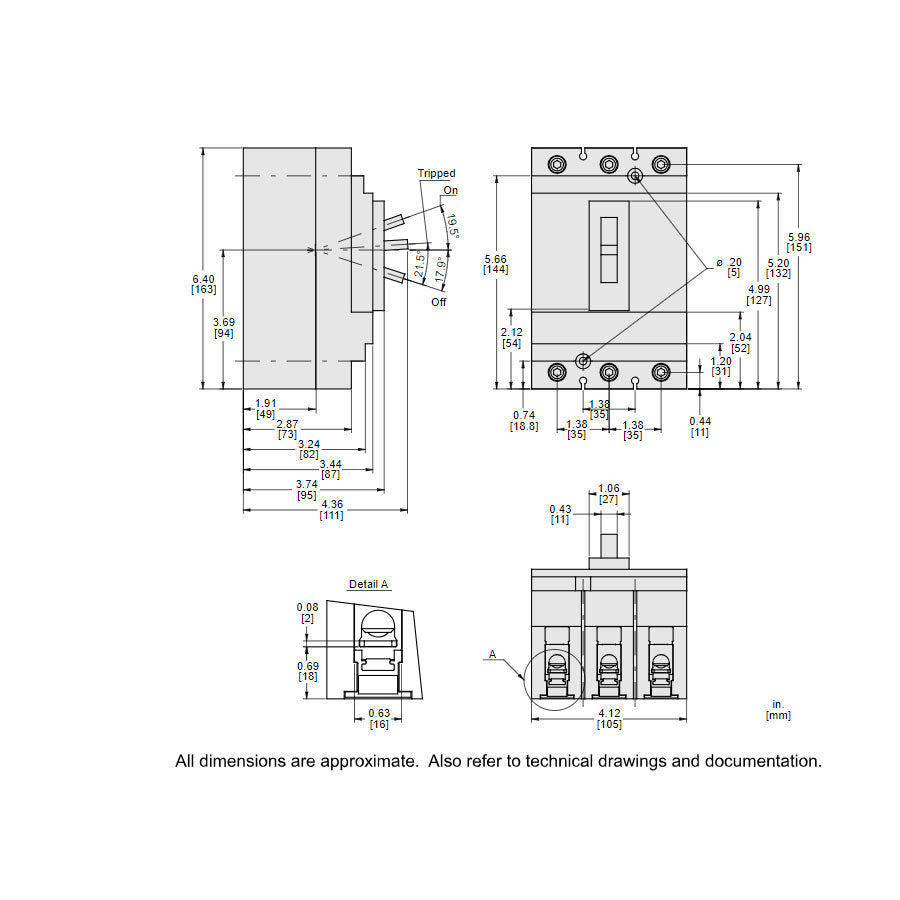

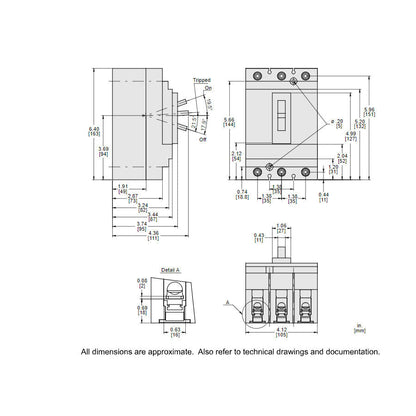

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.9
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
