Product Description:

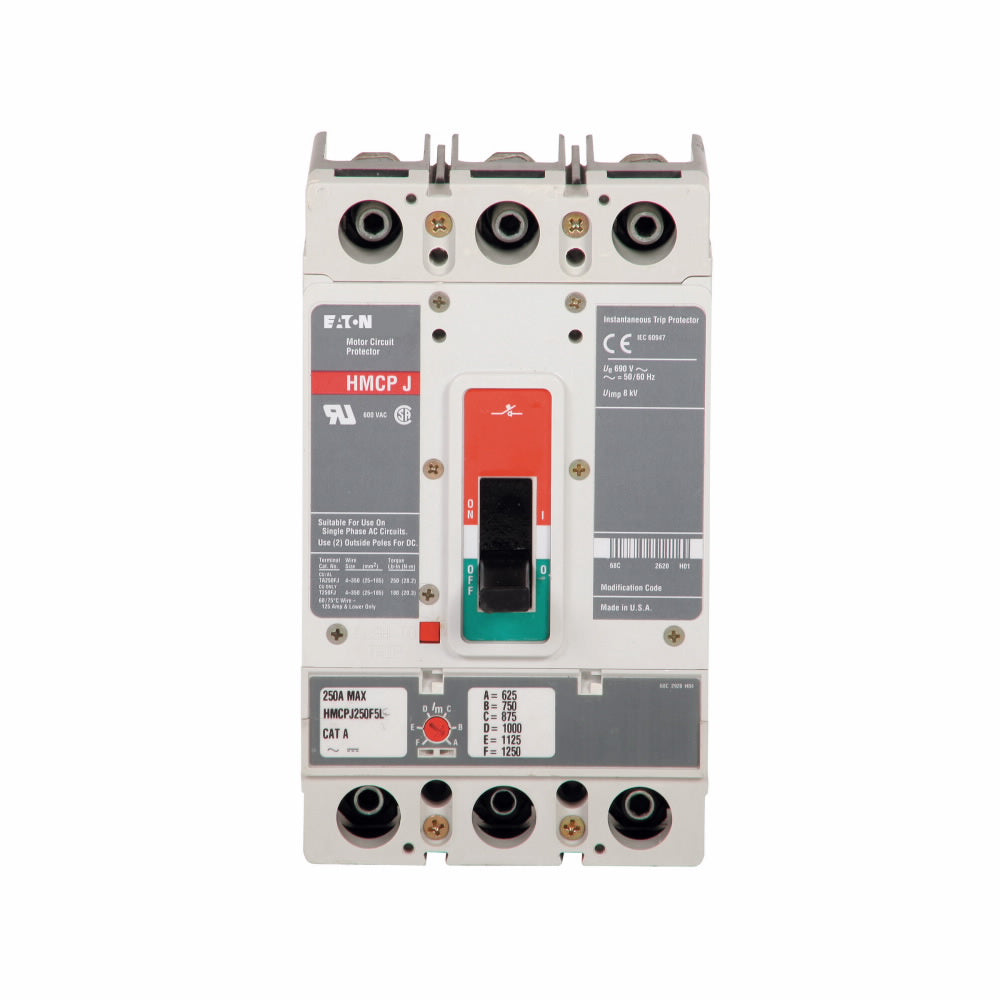

The Cutler Hammer HMCPJ250G5L is a Molded Case Circuit Breaker from the Series G family. It features a 3-pole design with a 600V, 250A rating and a 50kA@400V AIC rating. This breaker uses a bolt-on connection and offers magnetic-only protection for reliable performance.
Key Features:
✔ Part Number: HMCPJ250G5L
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series G
✔ Type: HMCPJ
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 50kA@400V
✔ Connection: Bolt-On
✔ Functions: I - Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Magnetic Only
✔ Phase Connection: ABC
✔ UPC: 782113704197
✔ GTIN: 00782113704197
✔ Country of Origin: Dominican Republic
✔ Dimensions: 4.13 in x 7 in
✔ Weight: 8
✔ Panel Type: Eaton Motor Starters, Rockwell Motor Starters
✔ Standards: CSA Certified, IEC Rated, UL Listed
✔ Certification: CSA Certified, IEC Rated, UL Listed
