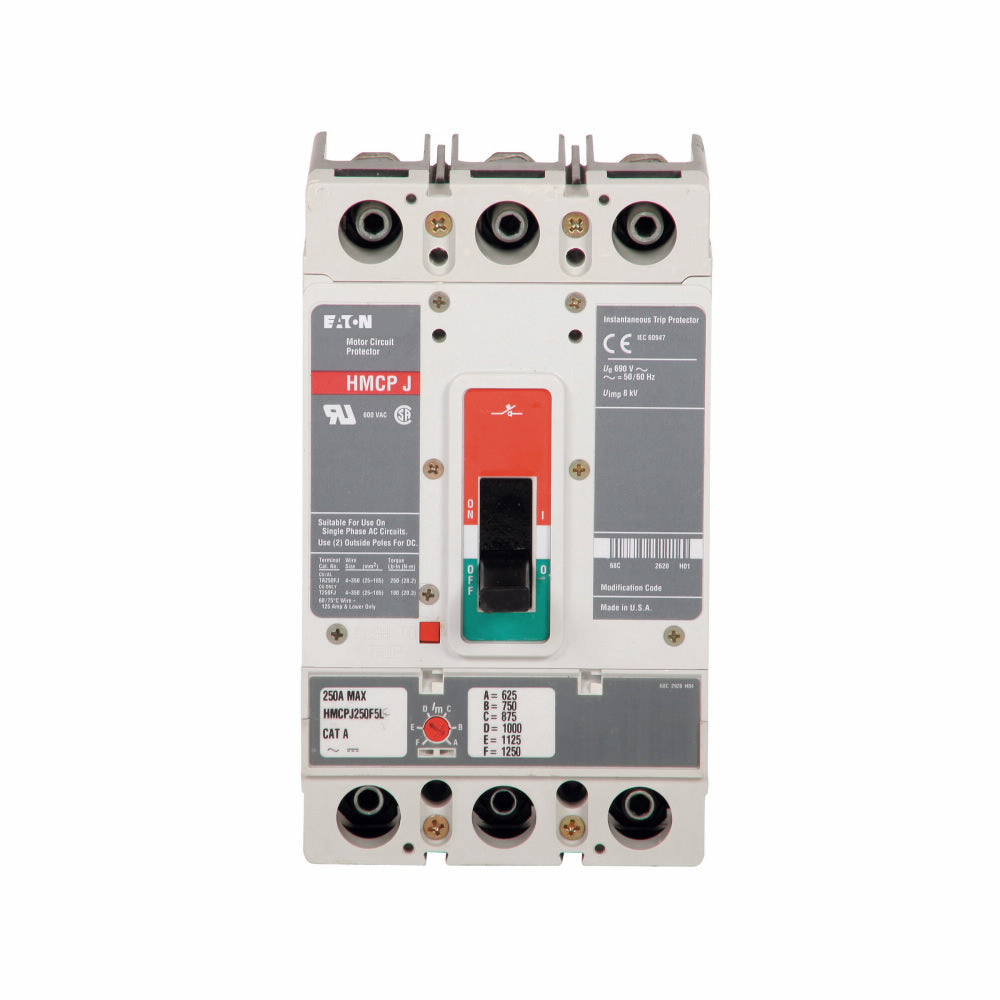

Images are for reference only
Cutler Hammer
Cutler Hammer HMCPJ250K5L Circuit Breaker | Series G HMCPJ 600V 250A
Cutler Hammer HMCPJ250K5L Circuit Breaker | Series G HMCPJ 600V 250A
Price:
Sale
Sold out
Regular price
$1,405.76 USD
Regular price
$2,756.00 USD
Sale price
$1,405.76 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Cutler Hammer HMCPJ250K5L is a Molded Case Circuit Breaker from the Series G family. It features a 3-pole design with a 600V, 250A rating and a 50kA@400V AIC rating. This breaker uses a Bolt-On connection and offers Magnetic Only protection. It is CSA Certified, IEC Rated, and UL Listed for safety compliance.
Key Features:
✔ Part Number: HMCPJ250K5L
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series G
✔ Type: HMCPJ
✔ Voltage: 600V
✔ Amperage: 250A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 50kA@400V
✔ Connection: Bolt-On
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ Min. Wire Size: 14 AWG
✔ Max. Wire Size: 1/0 AWG
✔ Breaker Type: Standard
✔ Temp Rating: -4°F to 158°F
✔ Certification: CSA Certified, IEC Rated, UL Listed
✔ UPC:
The Cutler Hammer HMCPJ250K5L is a Molded Case Circuit Breaker from the Series G family. It features a 3-pole design with a 600V, 250A rating and a 50kA@400V AIC rating. This breaker uses a Bolt-On connection and offers Magnetic Only protection. It is CSA Certified, IEC Rated, and UL Listed for safety compliance.
Key Features:
✔ Part Number: HMCPJ250K5L
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series G
✔ Type: HMCPJ
✔ Voltage: 600V
✔ Amperage: 250A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 50kA@400V
✔ Connection: Bolt-On
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ Min. Wire Size: 14 AWG
✔ Max. Wire Size: 1/0 AWG
✔ Breaker Type: Standard
✔ Temp Rating: -4°F to 158°F
✔ Certification: CSA Certified, IEC Rated, UL Listed
✔ UPC:
