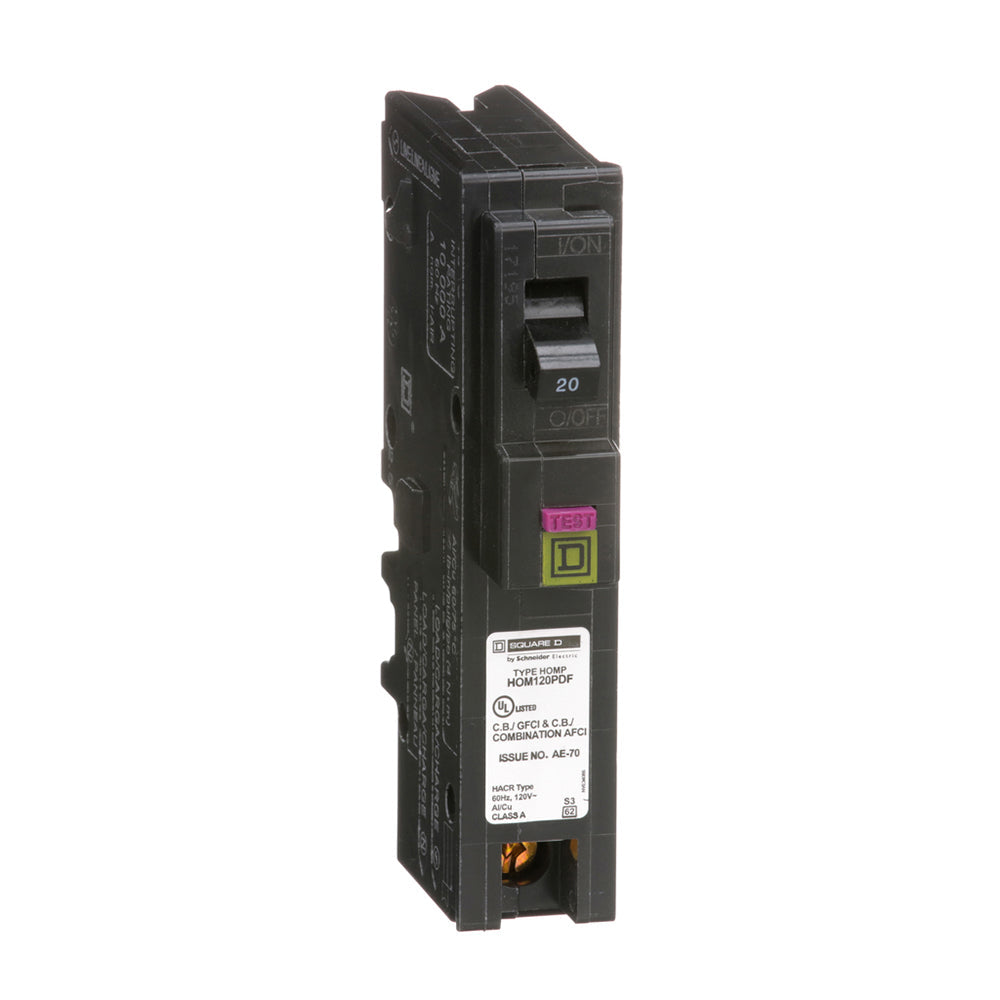

Square D HOM120PDF Circuit Breaker | 120V 20A 1P 10kAIC@120V HOMELINE

Product Description:
The Square D HOM120PDF is a Molded Case Circuit Breaker from the HOMELINE family. It features a 1 pole, 120 Volt, 20 amp rating with a 10kAIC@120V AIC rating. This breaker uses a Plug In connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: HOM120PDF
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kAIC@120V
✔ Connection: Plug In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Clamp Terminal
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al), 10 AWG (Cu)
✔ Breaker Type: Combination Arc-Fault And Ground Fault
✔ Protection: Thermal Magnetic
✔ UPC: 785901978343
✔ GTIN: 00785901978343
✔ Country of Origin: Mexico
✔ Dimensions: 1 in x 3.13 in
✔ Weight: 1
✔ Standards: UL Listed
✔ Certification: UL Listed
✔ Wire Size: 14 - 8 AWG for 1 cable(s) (Aluminium/Copper) 14 - 10 AWG for 2 cable(s) (Copper)
