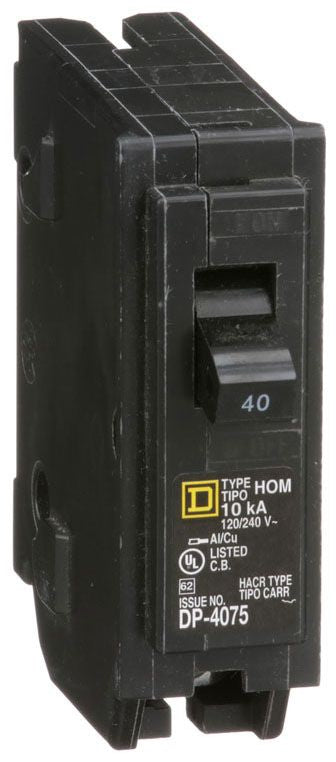

Square D HOM140 Circuit Breaker 120/240V 40A 1P 10kA@120V Plug-In HOMELINE

Product Description:
The Square D HOM140 is a Molded Case Circuit Breaker from the HOMELINE family. It is a 1-pole, 40 amp breaker rated for 120/240 volts with a 10kA AIC rating at 120V. This model uses a plug-in connection and provides thermal magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: HOM140
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901065241
✔ GTIN: 00785901065241
✔ Country of Origin: Mexico
✔ Dimensions: 1 in x 3.13 in x 3.13 in
✔ Weight: 0.35
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
