Product Description:

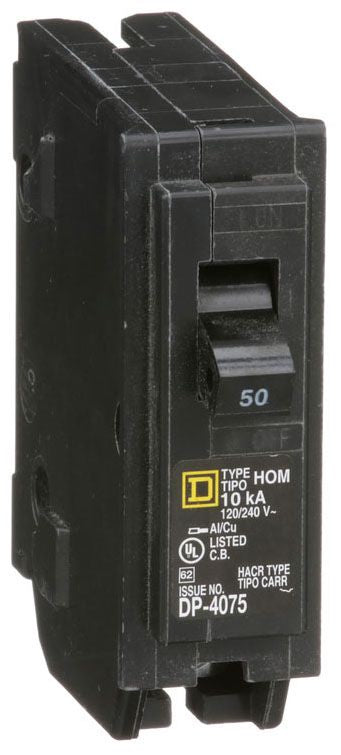

The Square D HOM150 is a Molded Case Circuit Breaker from the HOMELINE family. It is a 1-pole breaker rated for 120/240 VAC and 50 amps, with a 10kA@120V AIC rating. It features Plug-In connection and Thermal Magnetic protection. This breaker is CSA Certified, HACR, and UL Listed.
Key Features:
✔ Part Number: HOM150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240 VAC
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 8 AWG, Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Certification: CSA Certified, HACR, UL Listed
✔ UPC: 785901065258
