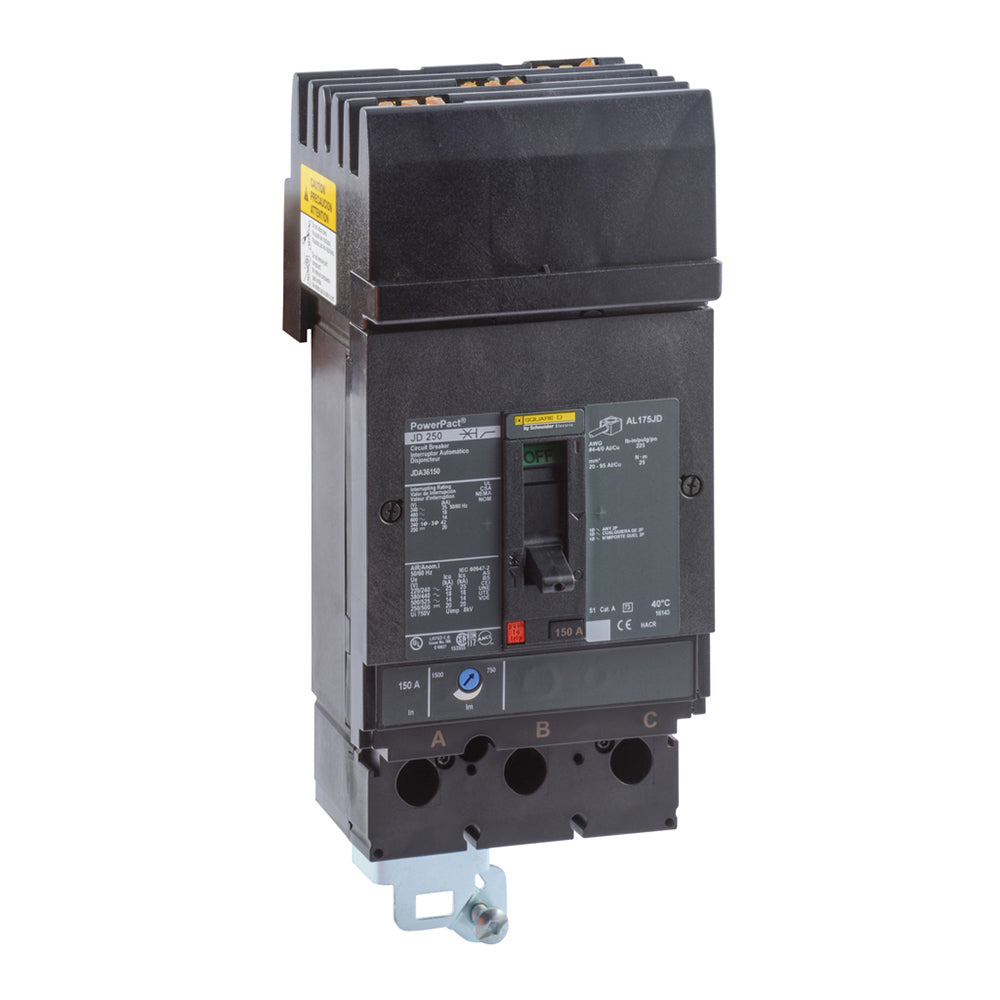

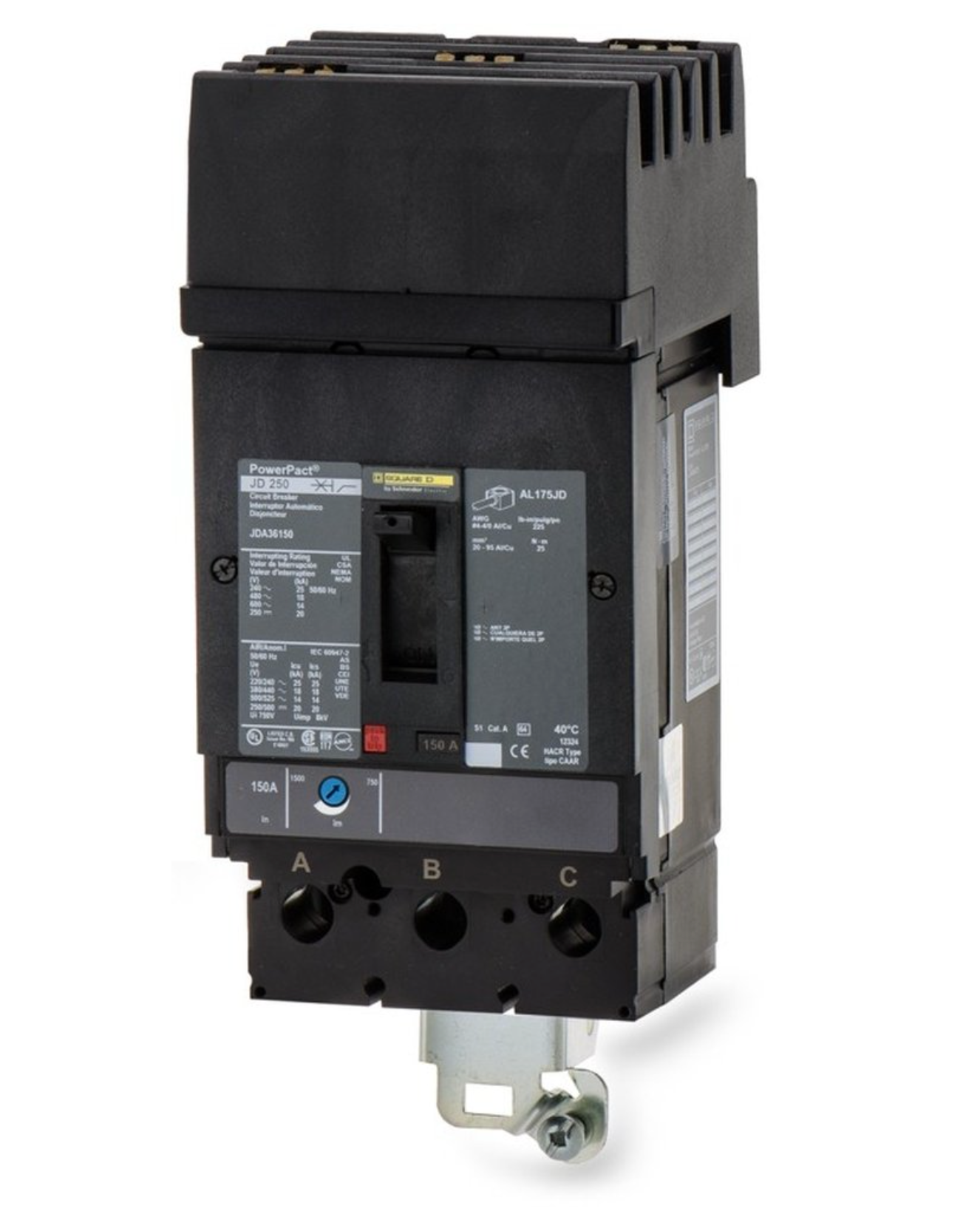

Square D JDA36150 Circuit Breaker | Powerpact JDA 600V 150A
Square D JDA36150 Circuit Breaker | Powerpact JDA 600V 150A
Price:
Sale
Sold out
Regular price
$1,187.63 USD
Regular price
$2,867.00 USD
Sale price
$1,187.63 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D JDA36150 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JDA36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDA
✔ Voltage: 600V
✔ Amperage: 150A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: D
✔ Wire Size: 4 AWG (Min), 4/0 AWG (Max)
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901558422
✔ GTIN: 00785901558422
✔ Country of Origin: Mexico
The Square D JDA36150 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JDA36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDA
✔ Voltage: 600V
✔ Amperage: 150A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: D
✔ Wire Size: 4 AWG (Min), 4/0 AWG (Max)
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901558422
✔ GTIN: 00785901558422
✔ Country of Origin: Mexico
