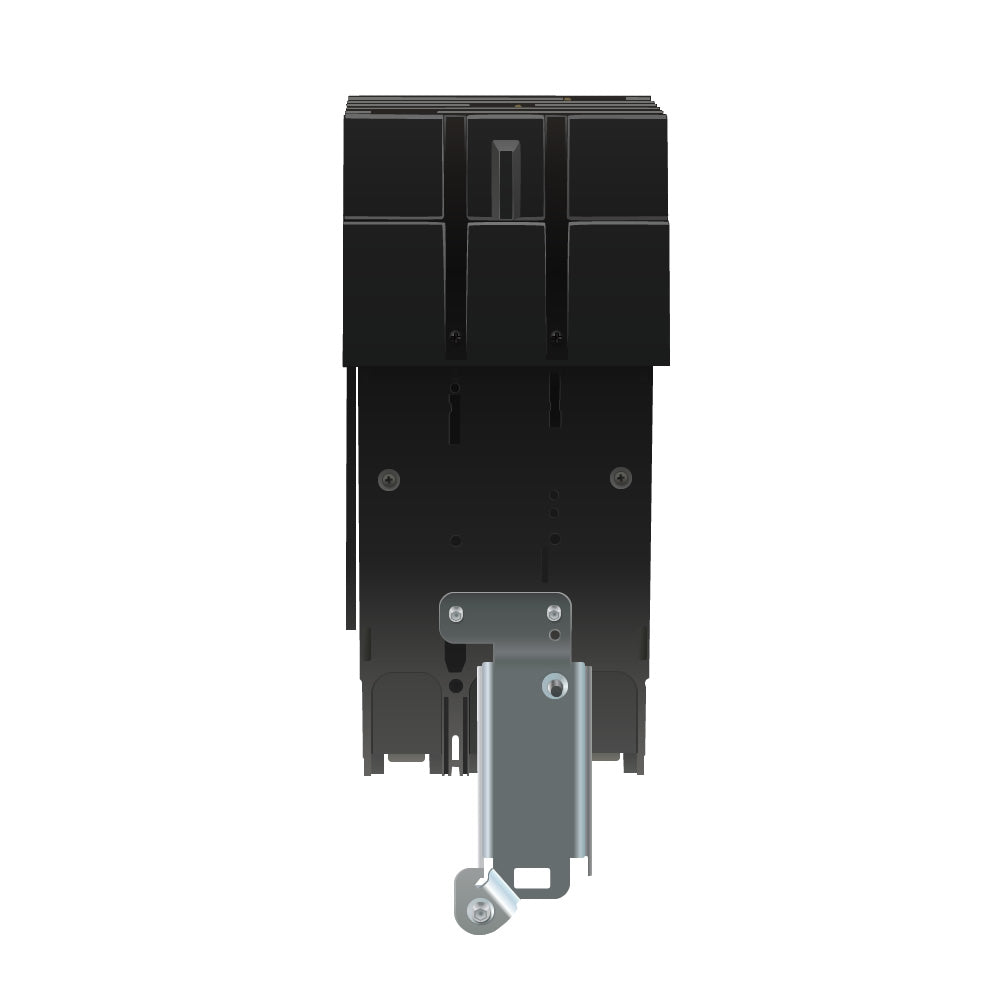

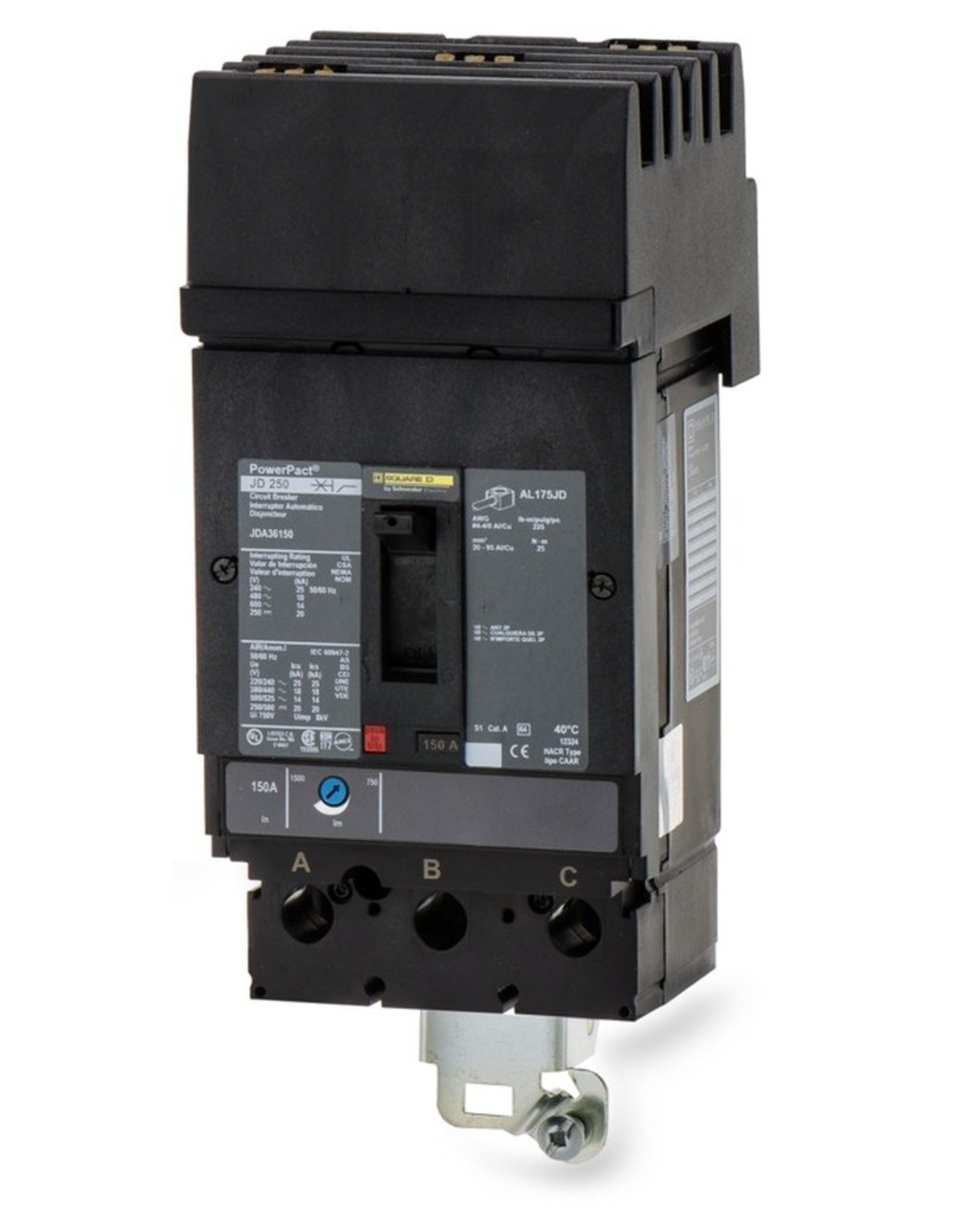

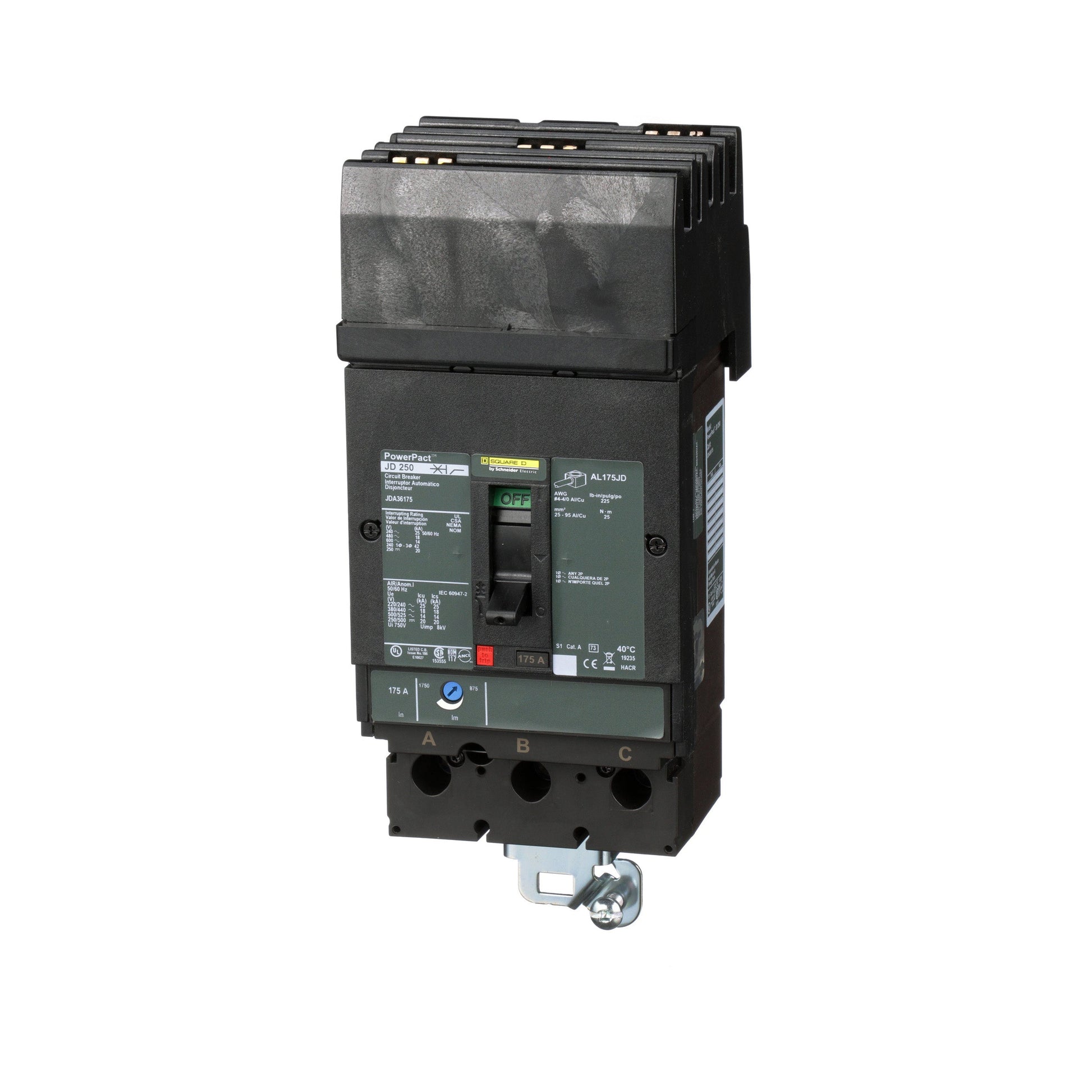

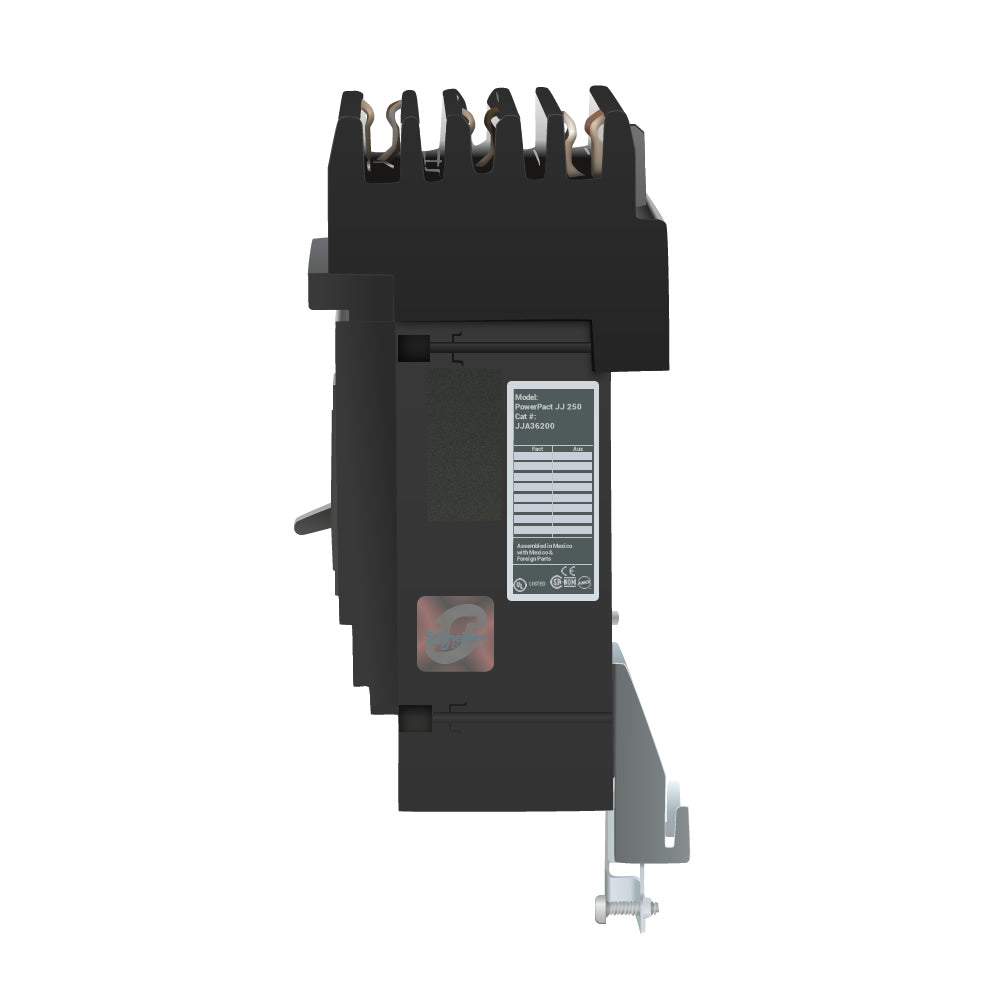

Square D JDA36175 Circuit Breaker | 600V 175A 3P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JDA36175 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 175A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: JDA36175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDA
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: D
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901700678
✔ GTIN: 00785901700678
✔ Country of Origin: Mexico

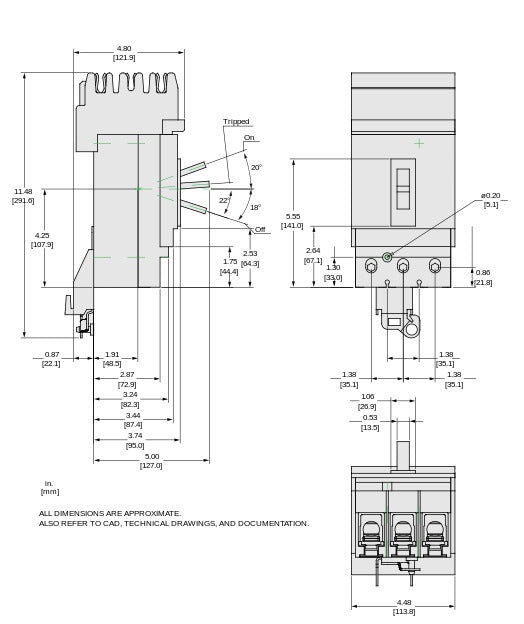

✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 5
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
