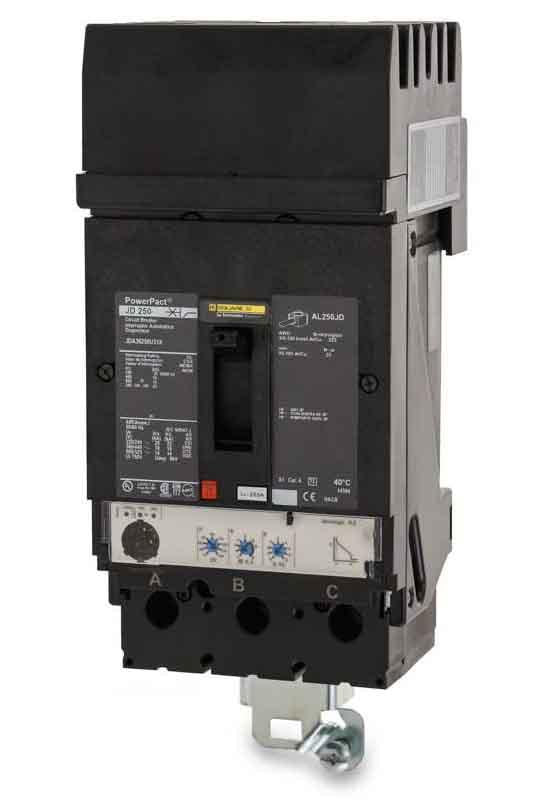

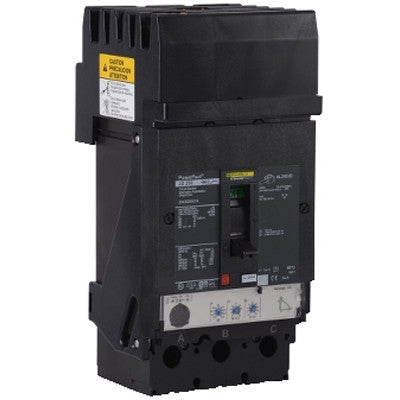

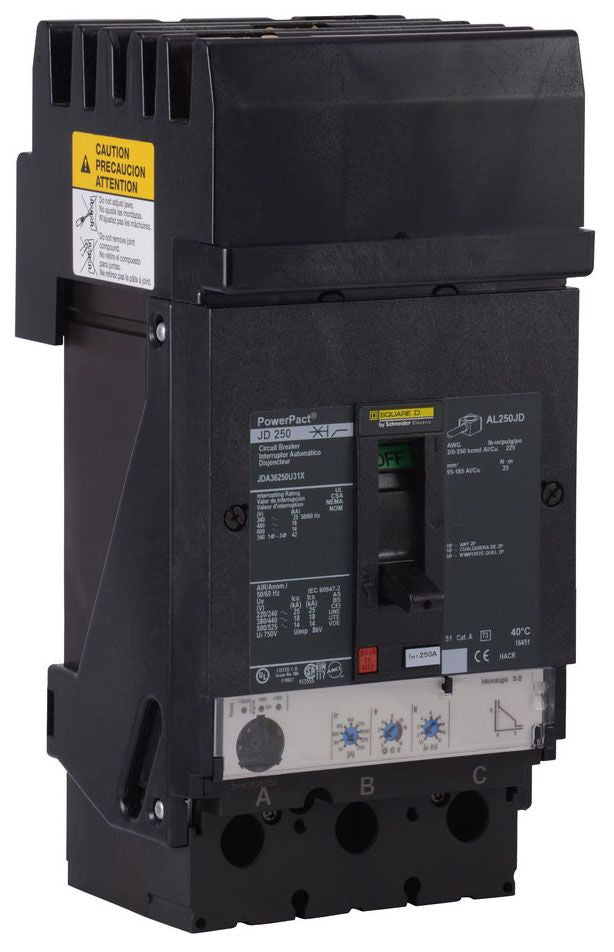

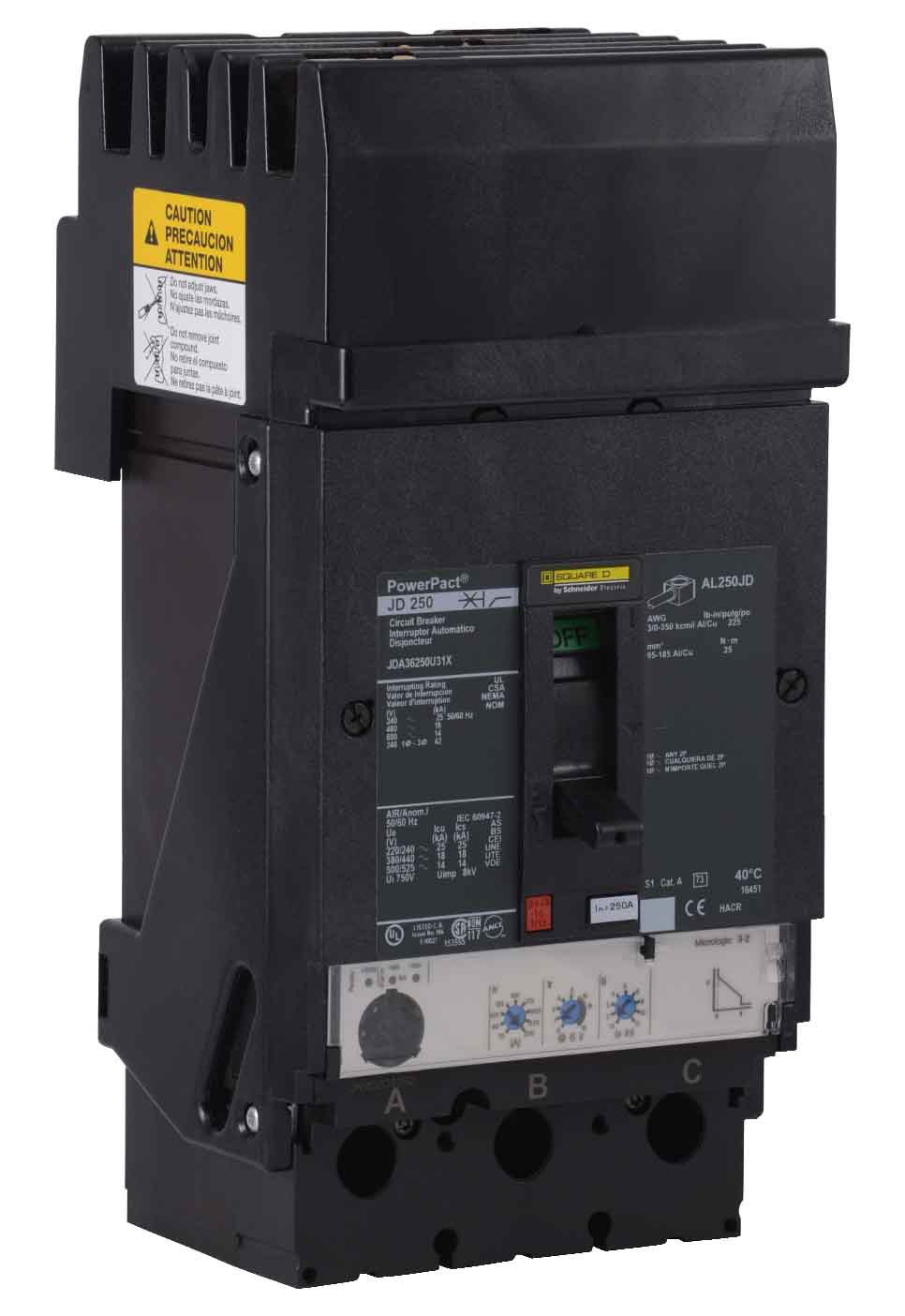

Square D JDA36250U31X Circuit Breaker | 600V 250A 3P 18kA@480V I-Line Plug-In Powerpact

Product Description:
The Square D JDA36250U31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 250 amp breaker rated for 600 volts with an 18kA interrupting capacity at 480V. This unit features solid state protection and uses an I-Line Style Plug-In connection for easy installation.

Key Features:
✔ Part Number: JDA36250U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: BC
✔ UPC: 785901127222
✔ GTIN: 00785901127222
✔ Country of Origin: Mexico
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 3.25
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
