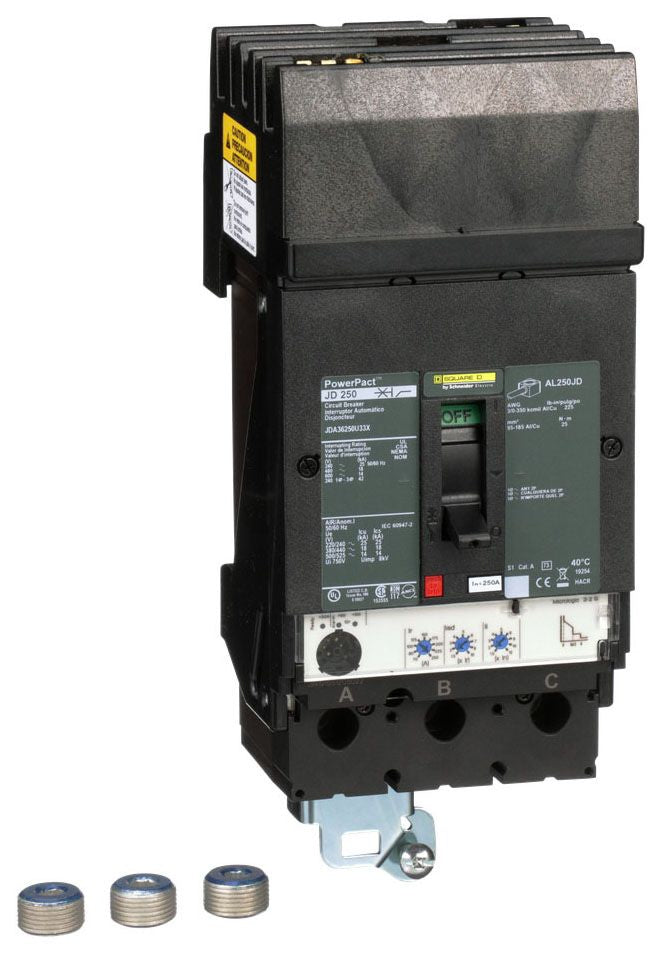

Square D JDA36250U33X Circuit Breaker | 600V 250A 3P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JDA36250U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance. It is ideal for industrial and commercial electrical systems.

Key Features:
✔ Part Number: JDA36250U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: J
✔ Wire Size: Min. 3/0 AWG (Cu/Al), Max. 350 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: CA
✔ UPC: 785901133735
✔ GTIN: 00785901133735
✔ Country of Origin: Mexico
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 3.28
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
