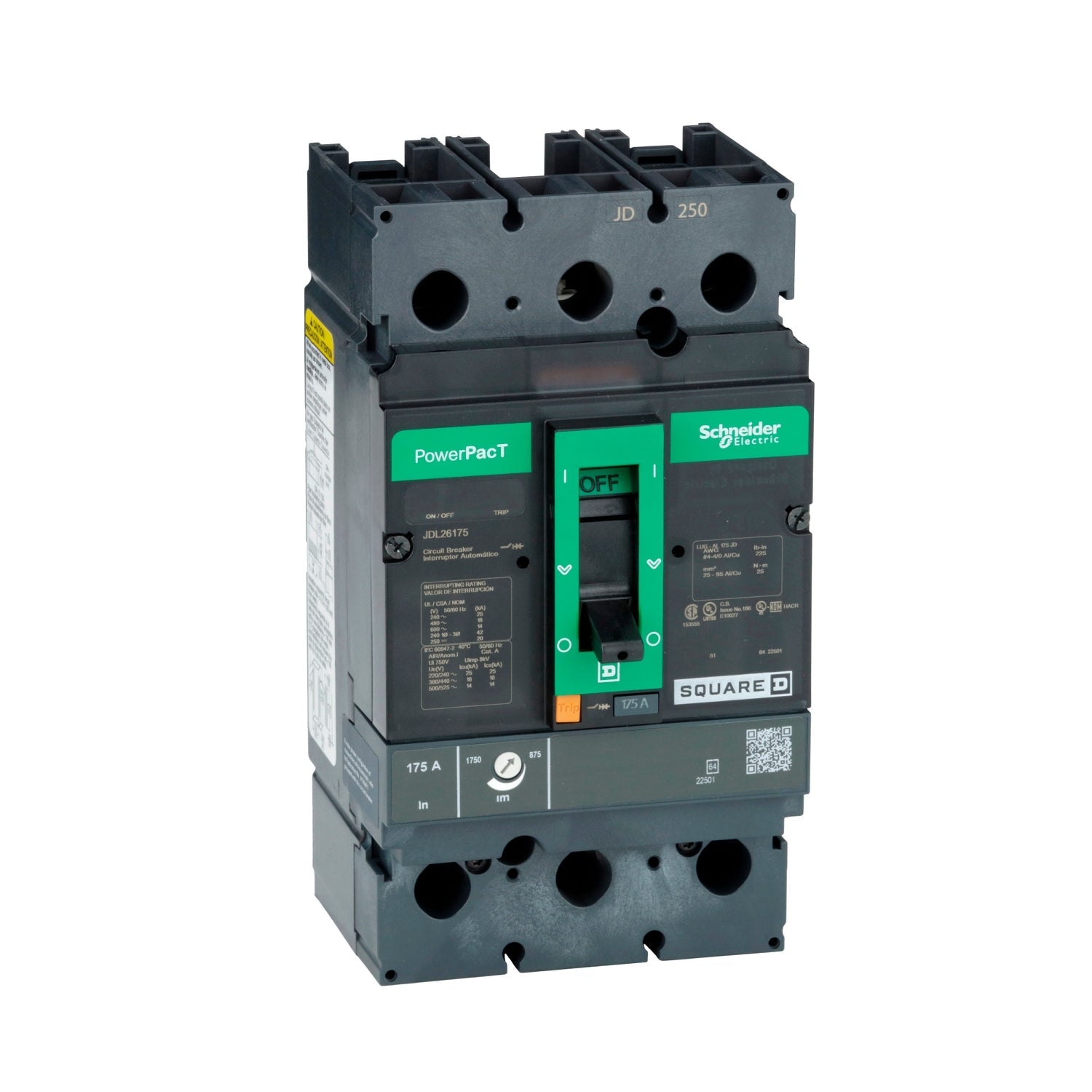

Square D JDL26175 Circuit Breaker | 600V 175A

Product Description:
The Square D JDL26175 is a 2-pole molded case circuit breaker with a 600V rating and 175A capacity. It features an 18kA@480V AIC rating and uses a Feed-Thru connection. This breaker includes Thermal Magnetic protection for reliable performance. It is designed for use with AWG 4 to 4/0 aluminum or copper wiring.

Key Features:
✔ Part Number: JDL26175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Voltage: 600V
✔ Amperage: 175A
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
✔ UPC: 785901461906
✔ GTIN: 00785901000000
✔ Country of Origin: Mexico
✔ Dimensions: 2.74 in x 7.52 in
✔ Weight: 2.14 lbs
✔ Certification: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
