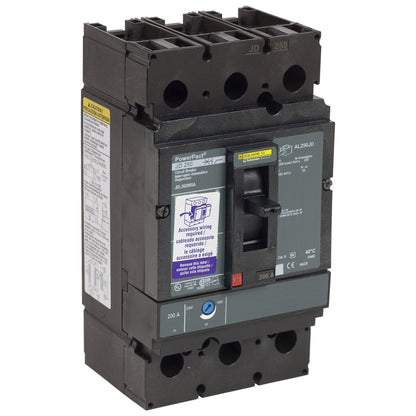

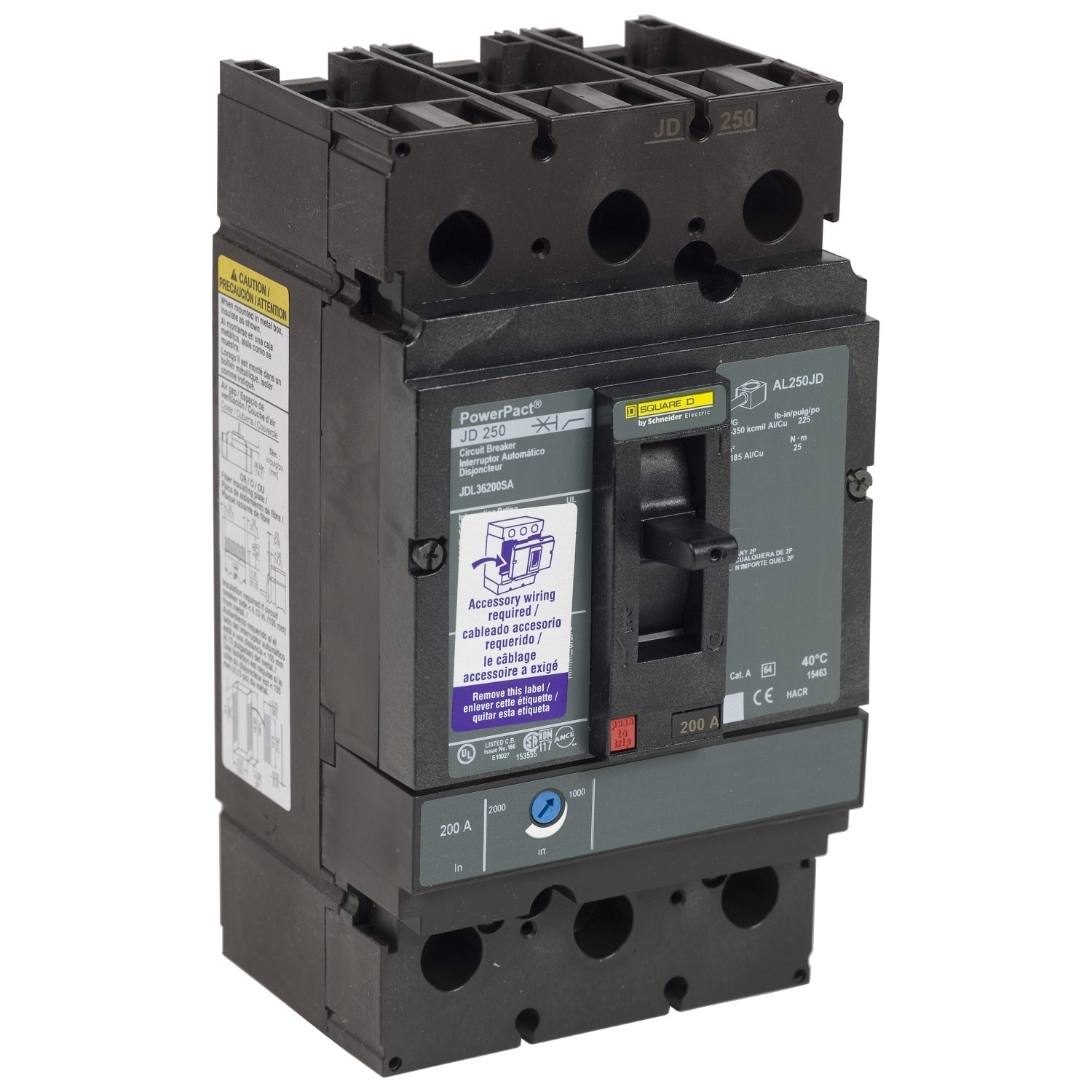

Square D JDL36175SA Circuit Breaker | 600V 175A 3P 18kA@480V Feed-Thru Powerpact

Product Description:
The Square D JDL36175SA is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 175A rating and an AIC rating of 18kA@480V. This breaker includes thermal magnetic protection and a feed-thru connection. It is complete with a 110/130Vac shunt trip for added functionality.

Key Features:
✔ Part Number: JDL36175SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDL
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ Wire Size: Min. 4 AWG (Cu/Al), Max. 4/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901835752
✔ GTIN: 00785901835752
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.39
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
