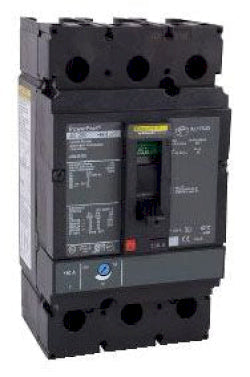

Square D JDM36225 Circuit Breaker | 600V 225A 3P 18kA@480V Bolt-On Powerpact JDM

Product Description:
The Square D JDM36225 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 225A rating and an 18kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance. It is suitable for industrial and commercial electrical applications.

Key Features:
✔ Part Number: JDM36225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDM
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901512660
✔ GTIN: 00785901512660
✔ Country of Origin: United States
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 2.27
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
