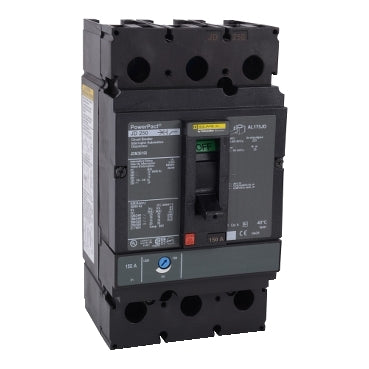

Square D JDM36250 Circuit Breaker | 600V 250A 3P Powerpact
Square D JDM36250 Circuit Breaker | 600V 250A 3P Powerpact
Price:
Sale
Sold out
Regular price
$0.00 USD
Regular price
$3,749.00 USD
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low inventory, please call (855) 875-5050 for stock check
This ships in 1-2 business days
This ships in 1-2 business days
Couldn't load pickup availability
Product Description:
The Square D PowerPact JDM molded case circuit breaker is designed for three-phase electrical protection in commercial and industrial applications. It provides 250A thermal-magnetic protection at a voltage rating of 600V, with long-time and instantaneous functions. The bolt-on breaker features a three-pole configuration, lug and terminal nut connections, and an 18kA AIC rating at 480V.
Key Features:
Manufacturer: Schneider Electric
Brand: Square D
Item Category: 1
Item Subcategory: Molded Case
Family: PowerPact
Type: JDM
Voltage Rating: 600V
Current Rating: 250A
Phase: 3
Poles: 3
AIC rating: 18kA@480V
Connection: Bolt-On
Functions: LI - Long-Time and Instantaneous
Terminal Connection: Lug, Terminal Nut
Frame Size: J
Temp Rating: 28°F to 158°F (-2°C to 70°C)
MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
Protection: Thermal Magnetic
Phase Connection: ABC
The Square D PowerPact JDM molded case circuit breaker is designed for three-phase electrical protection in commercial and industrial applications. It provides 250A thermal-magnetic protection at a voltage rating of 600V, with long-time and instantaneous functions. The bolt-on breaker features a three-pole configuration, lug and terminal nut connections, and an 18kA AIC rating at 480V.
Key Features:
Manufacturer: Schneider Electric
Brand: Square D
Item Category: 1
Item Subcategory: Molded Case
Family: PowerPact
Type: JDM
Voltage Rating: 600V
Current Rating: 250A
Phase: 3
Poles: 3
AIC rating: 18kA@480V
Connection: Bolt-On
Functions: LI - Long-Time and Instantaneous
Terminal Connection: Lug, Terminal Nut
Frame Size: J
Temp Rating: 28°F to 158°F (-2°C to 70°C)
MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
Protection: Thermal Magnetic
Phase Connection: ABC
- Accessories
- Related Products
| Part | Manufacturer | Sub Category |
|---|---|---|
| s37424 | Schneider Electric | Parts And Accessories |
| s29451 | Schneider Electric | Bell Alarm |
| s29450 | Schneider Electric | Auxiliary |
| al250jd | Schneider Electric | Lug Terminal Kit |
| s29393 | Schneider Electric | Shunt Trip |
| s29410 | Schneider Electric | Under Voltage Release |
| al400l61k3 | Schneider Electric | Lug Terminal Kit |
