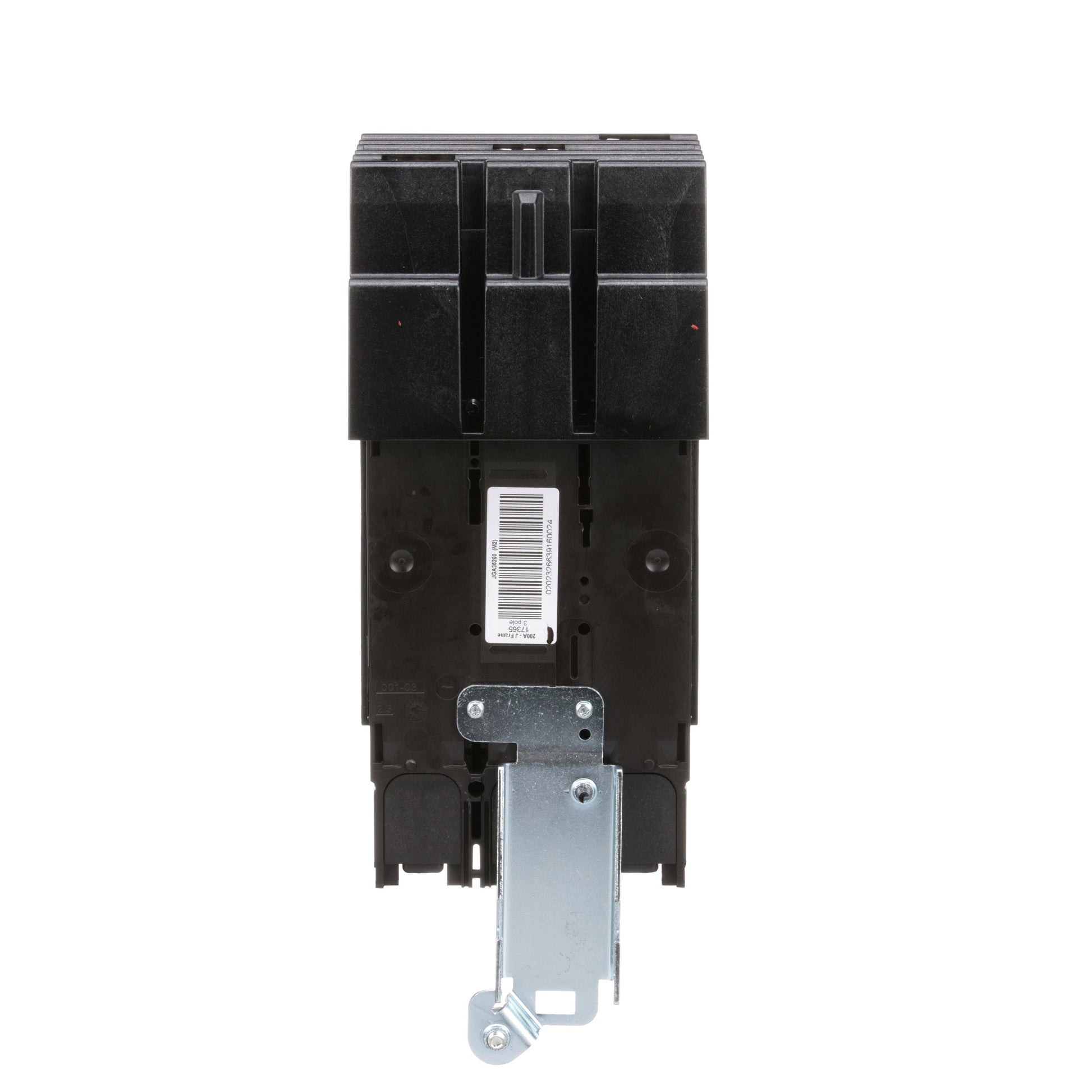

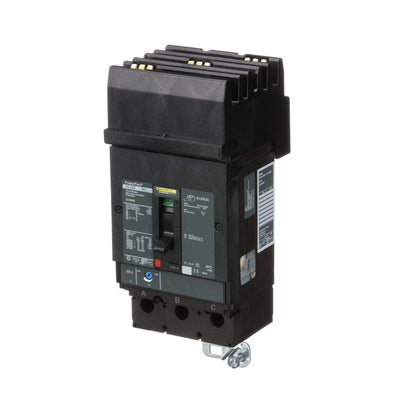

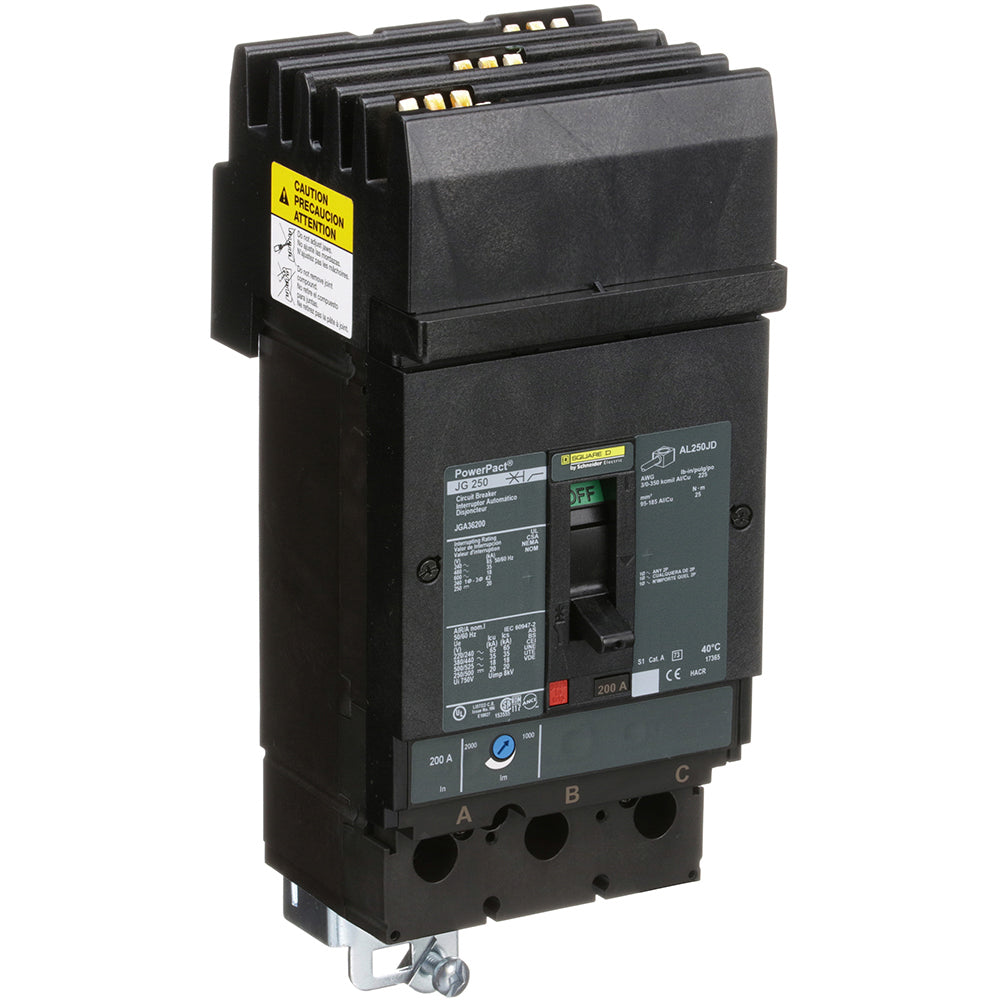

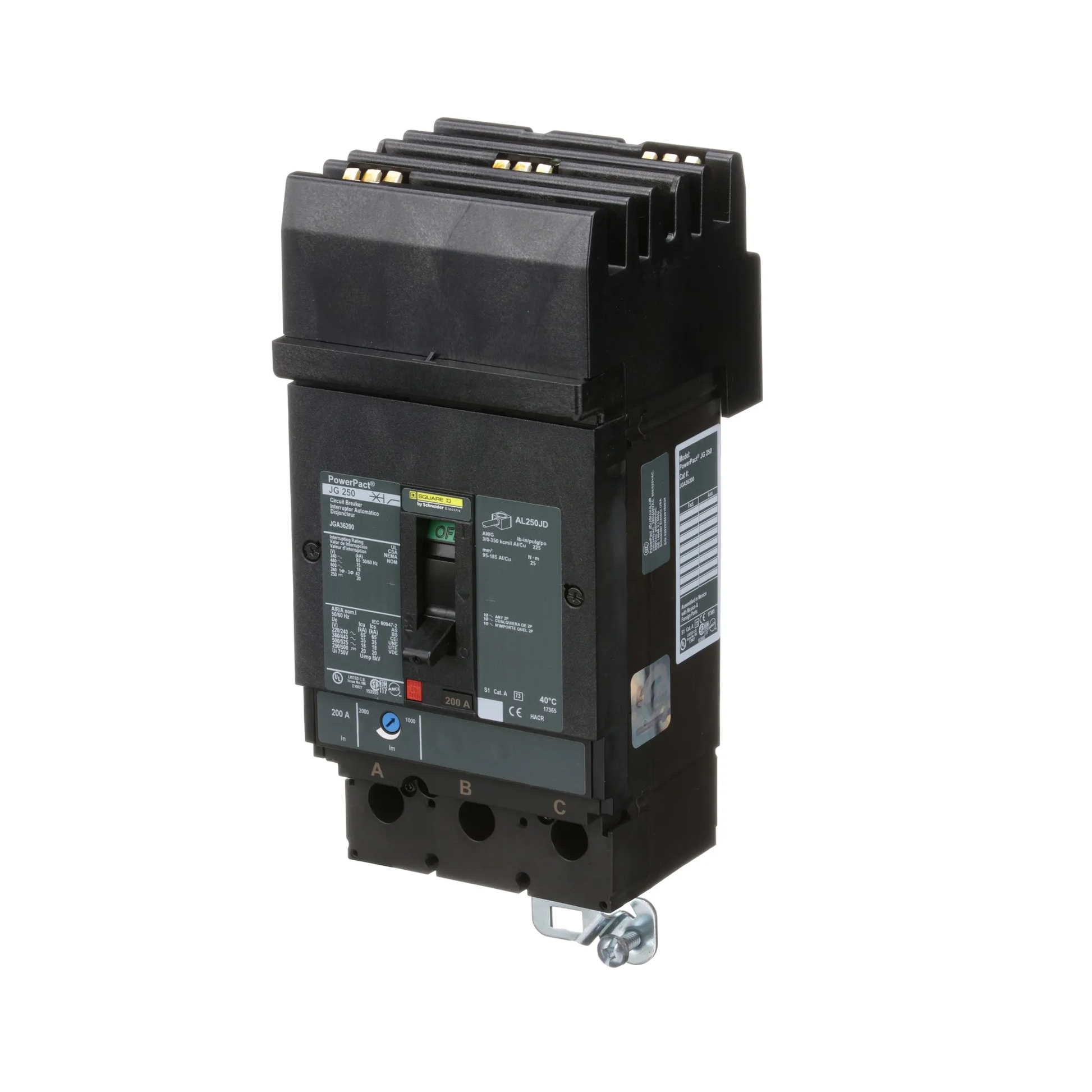

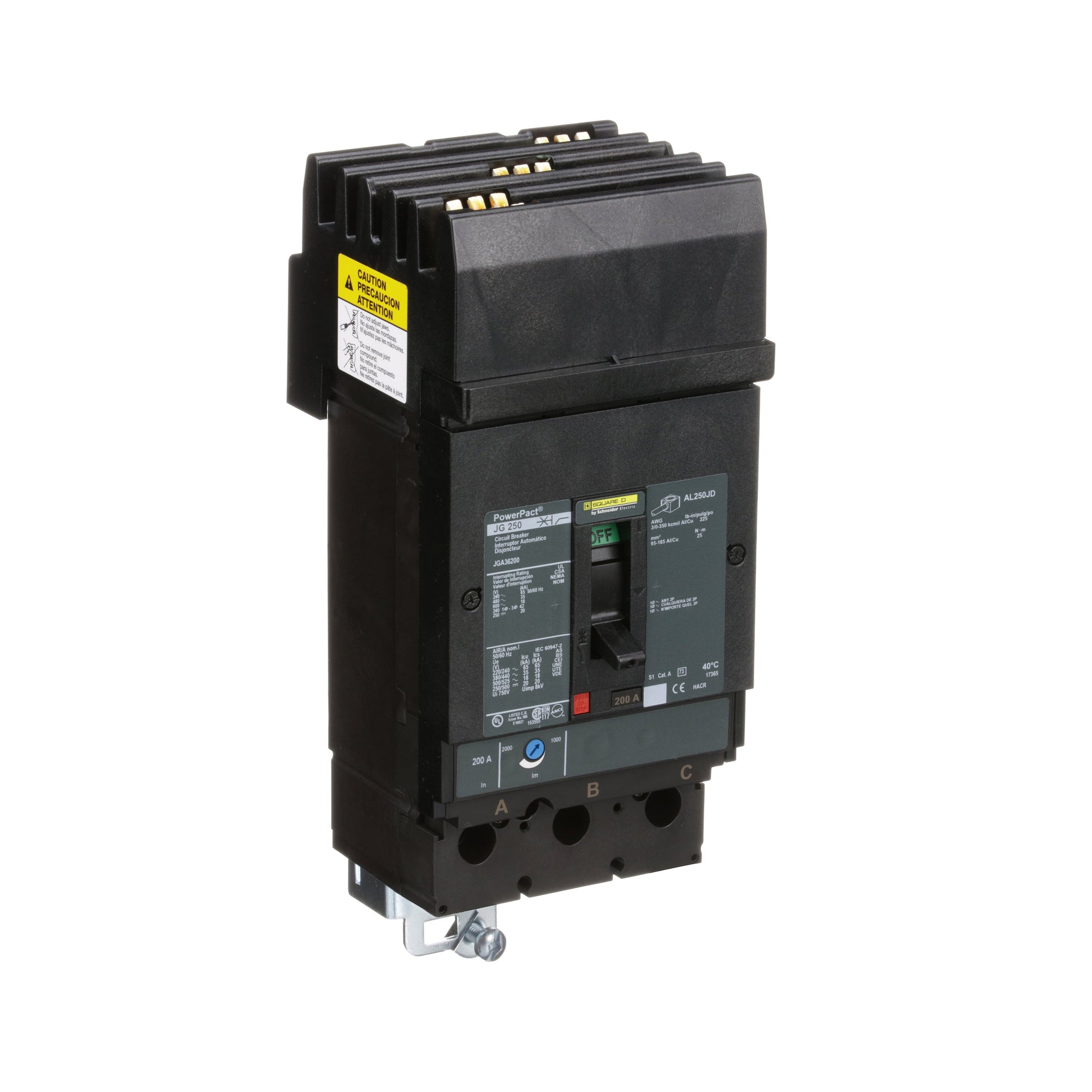

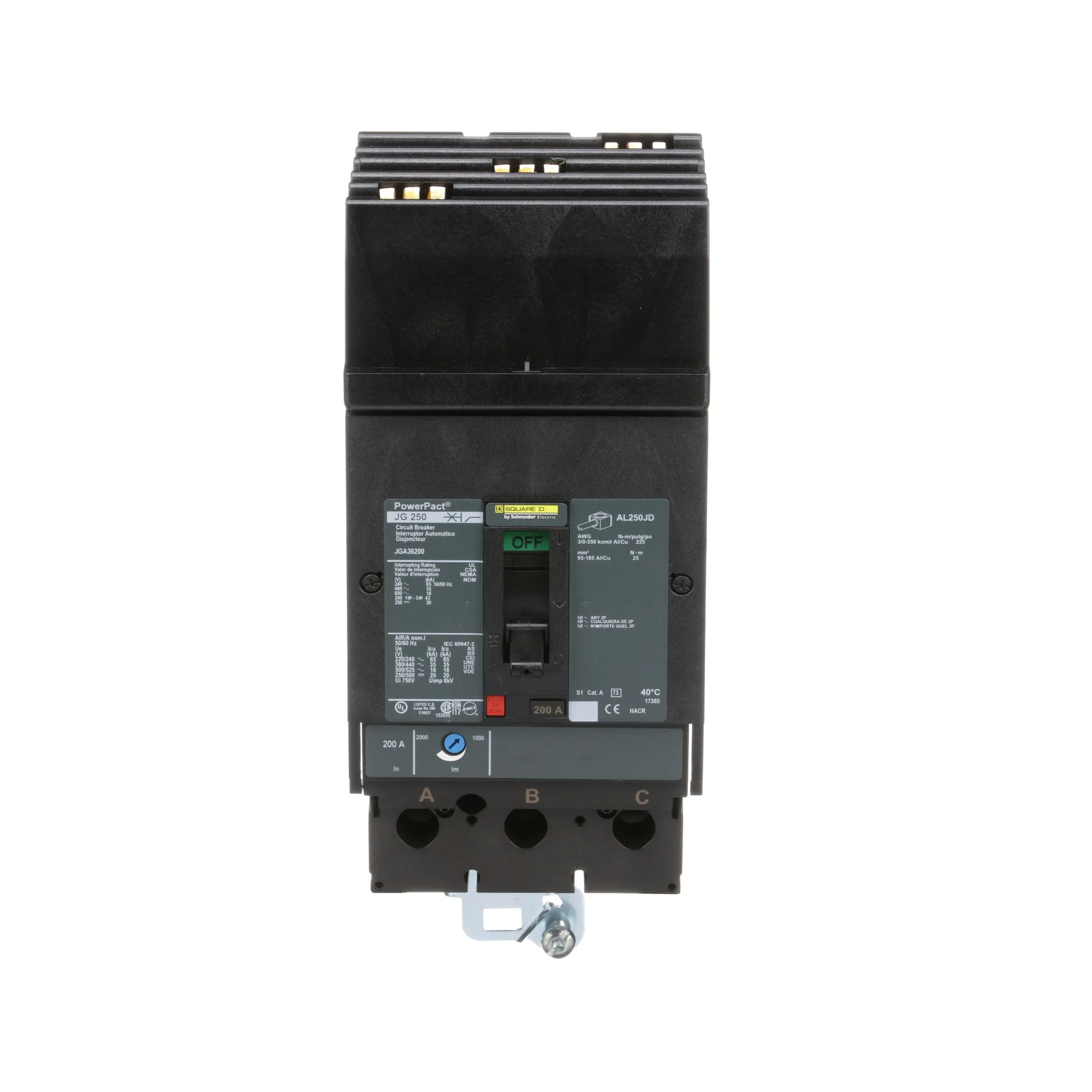

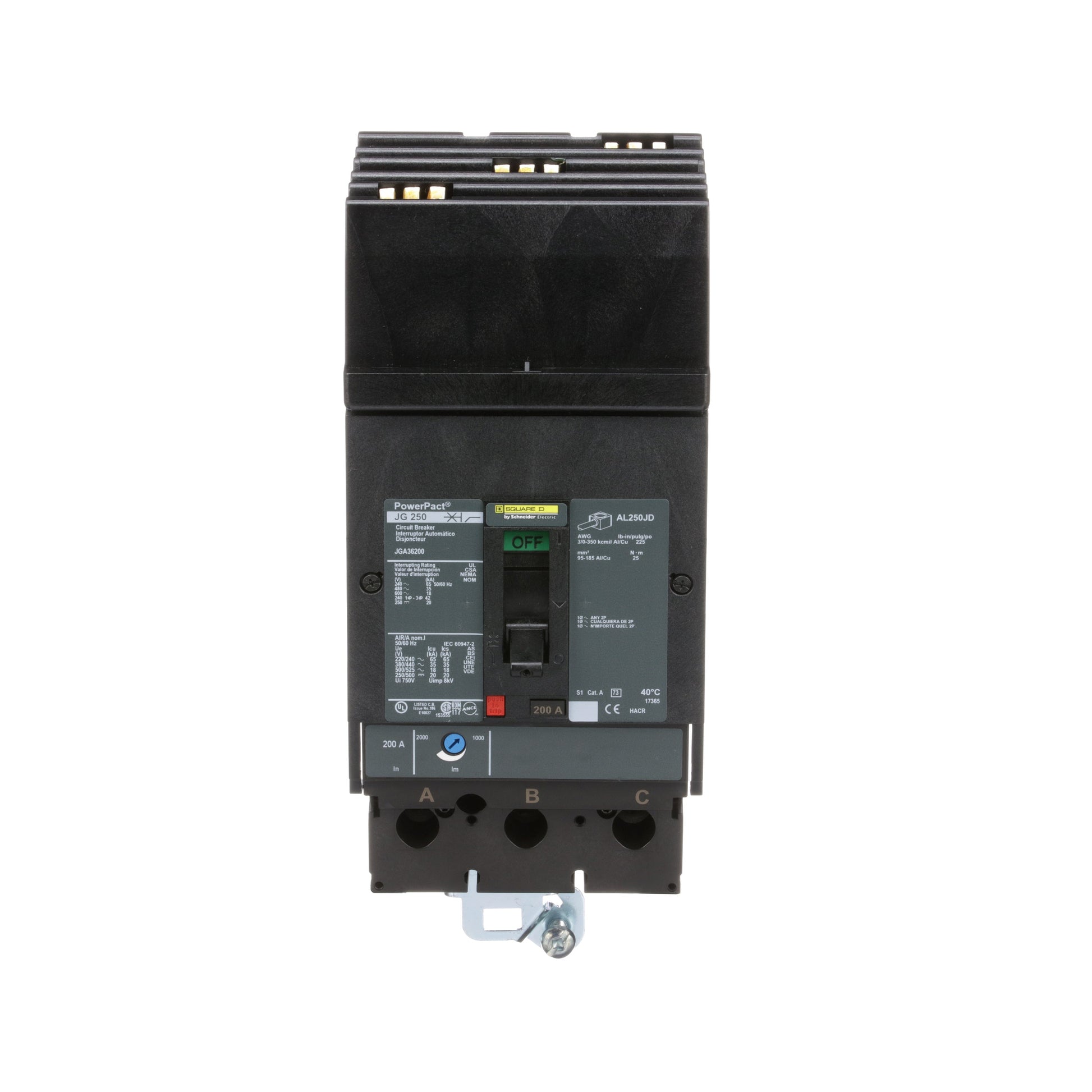

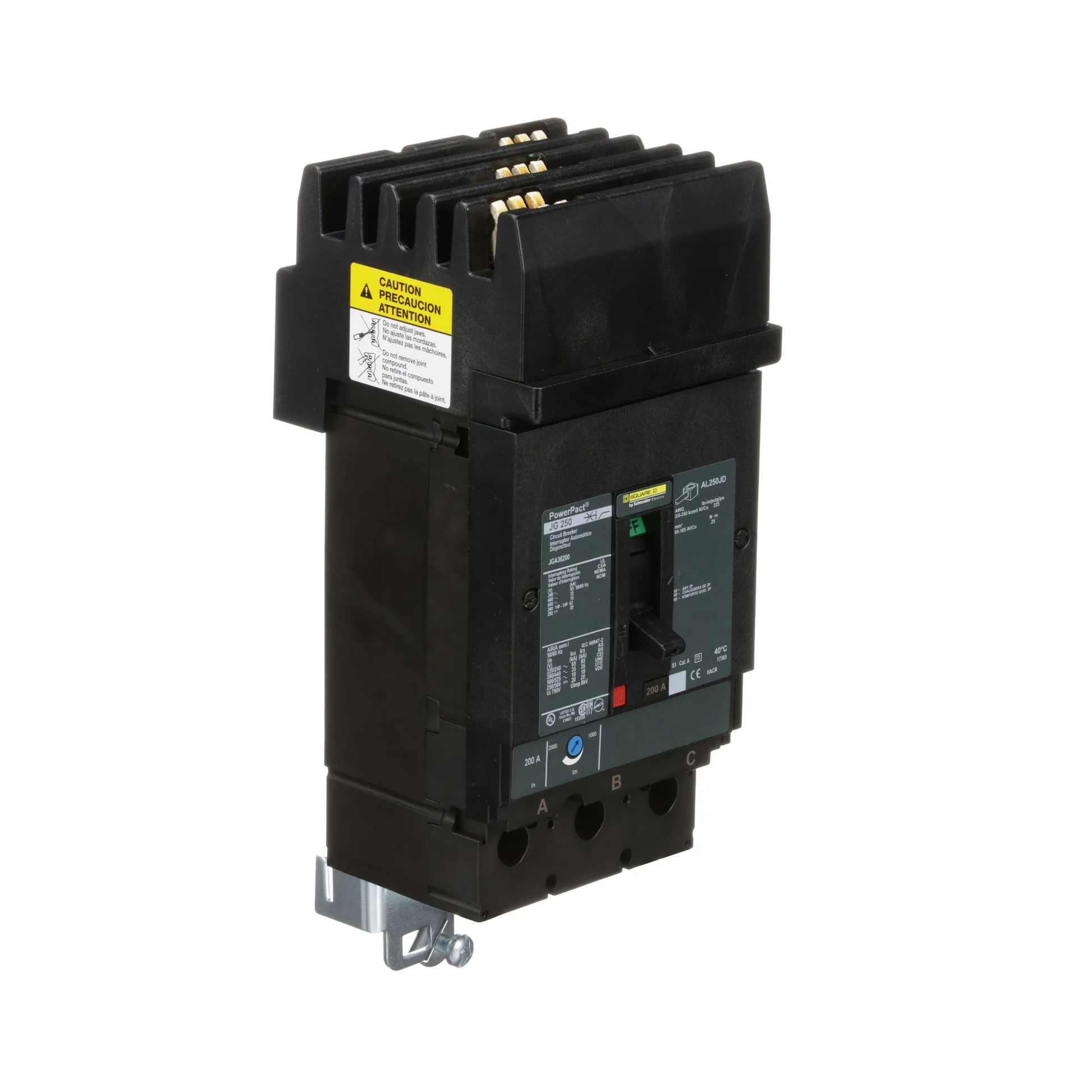

Square D JGA36200 Circuit Breaker | 600V 200A 3P 35kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JGA36200 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 200 amp rating and 600V voltage capacity. This breaker includes Thermal Magnetic protection and an AIC rating of 35kA@480V. It uses an I-Line Style Plug-In connection for easy installation.

Key Features:
✔ Part Number: JGA36200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGA
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ MCM Size: Min. Wire Size 3 AWG Max. Wire Size 350 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901430735
✔ GTIN: 00785901430735
✔ Country of Origin: Mexico

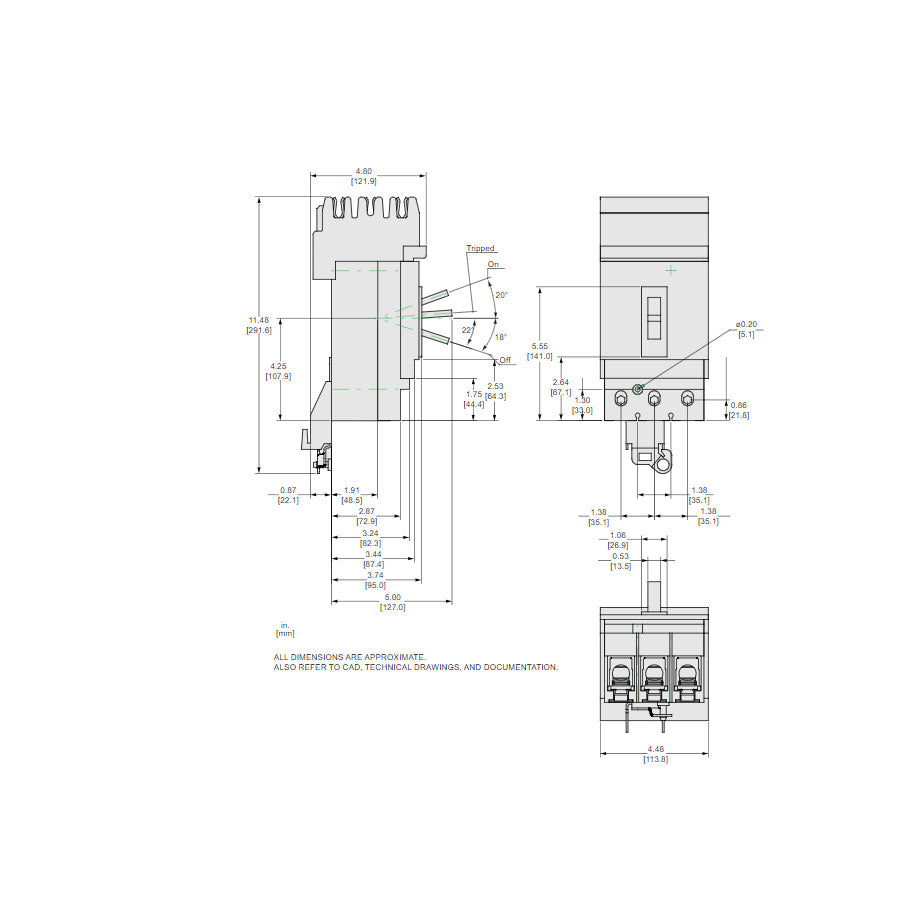

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 3.2 lb
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, UL Listed
✔ Certification: CCC, CE, CSA, IEC, UL Listed
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
