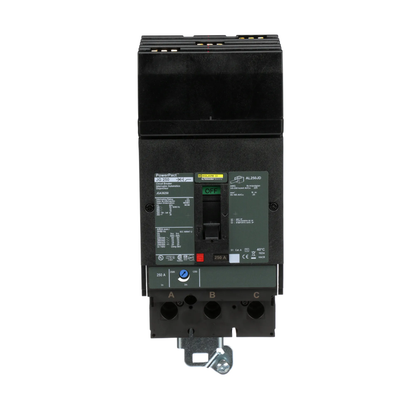

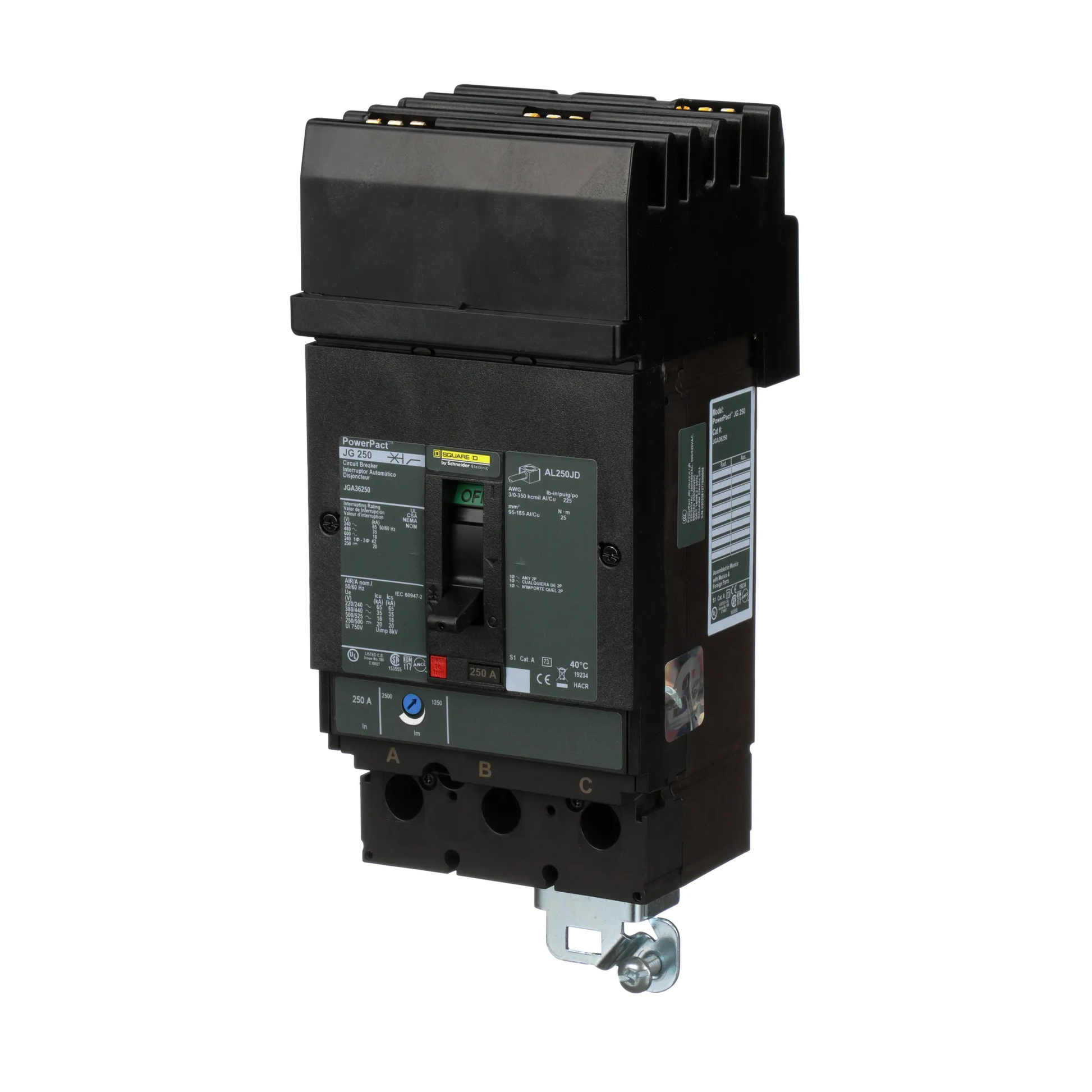

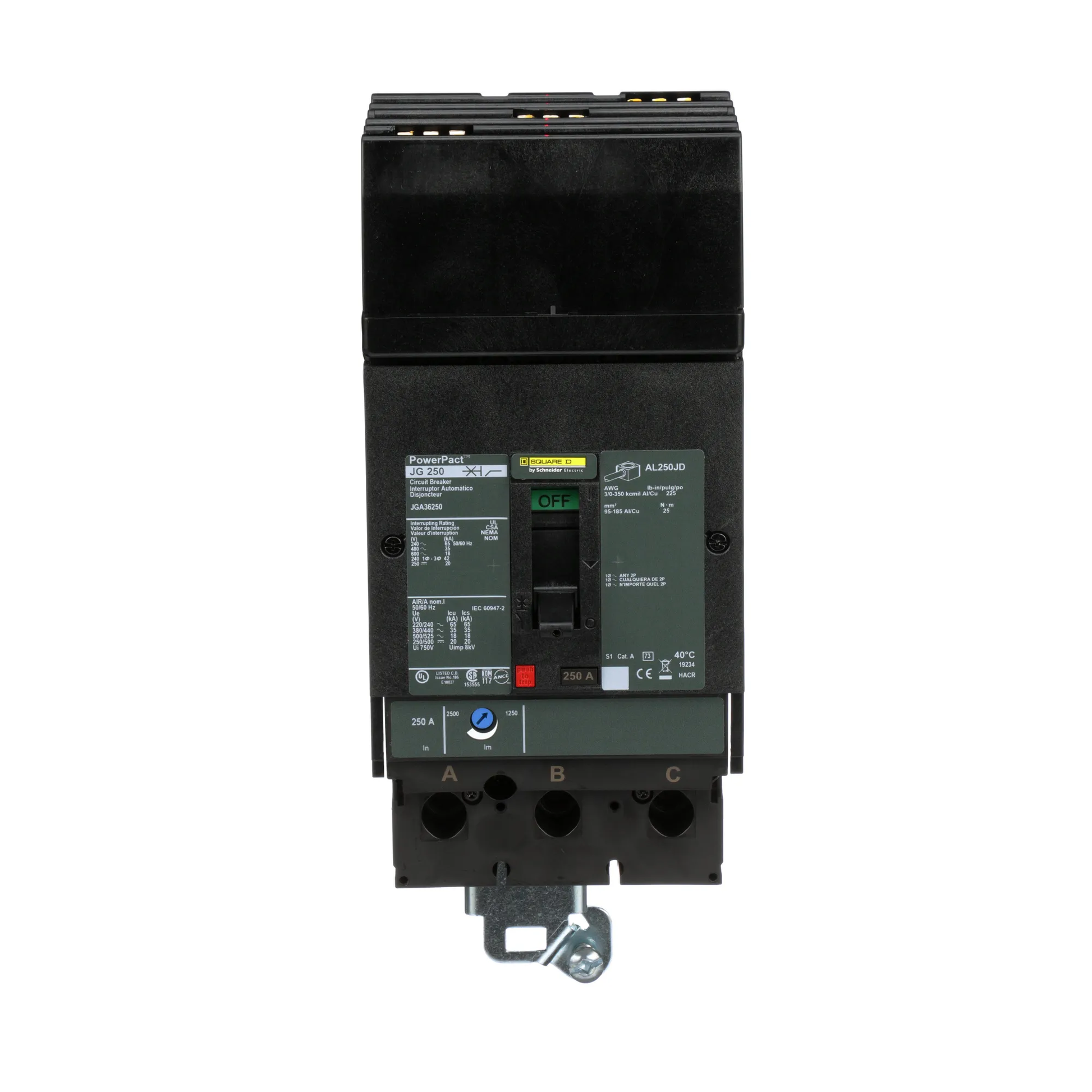

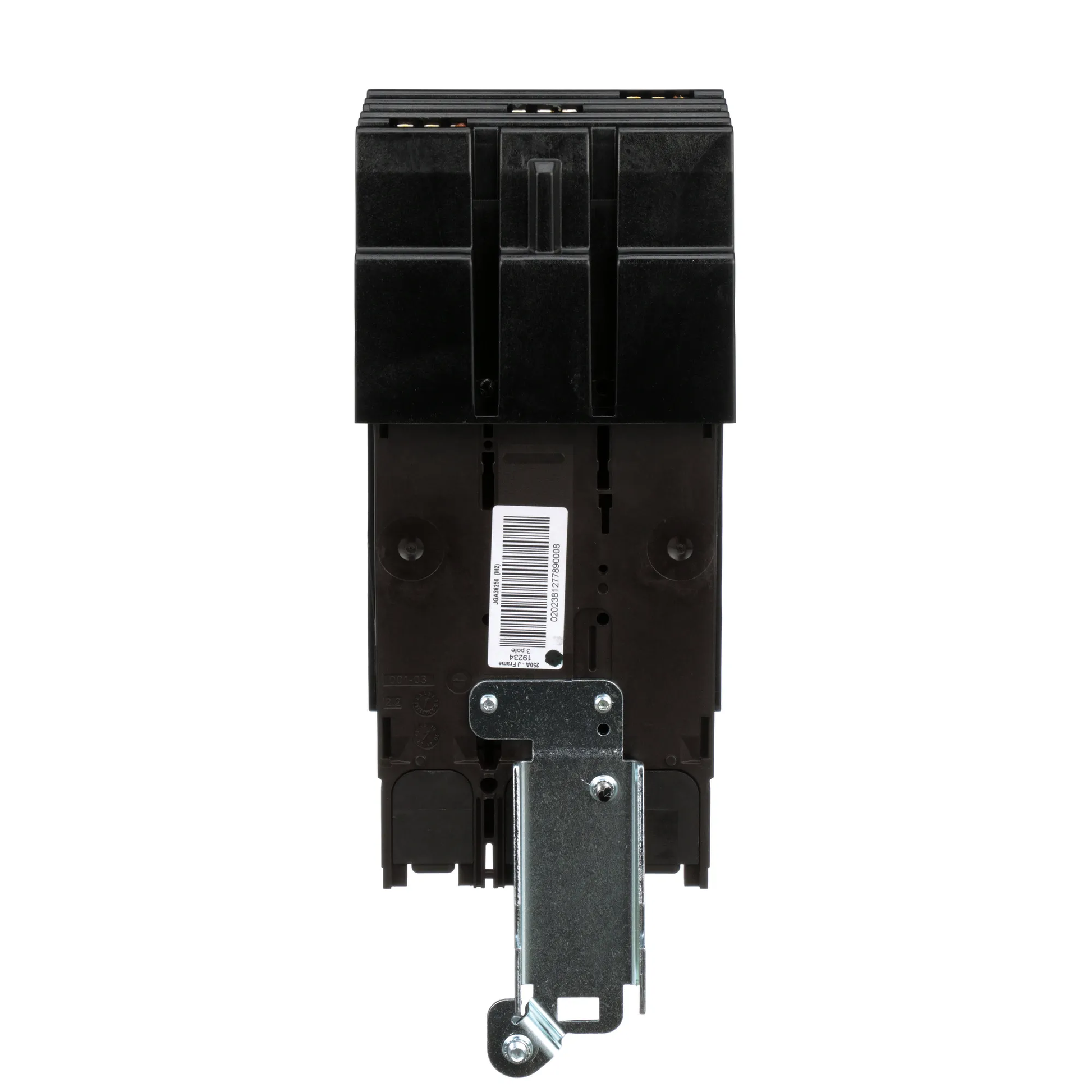

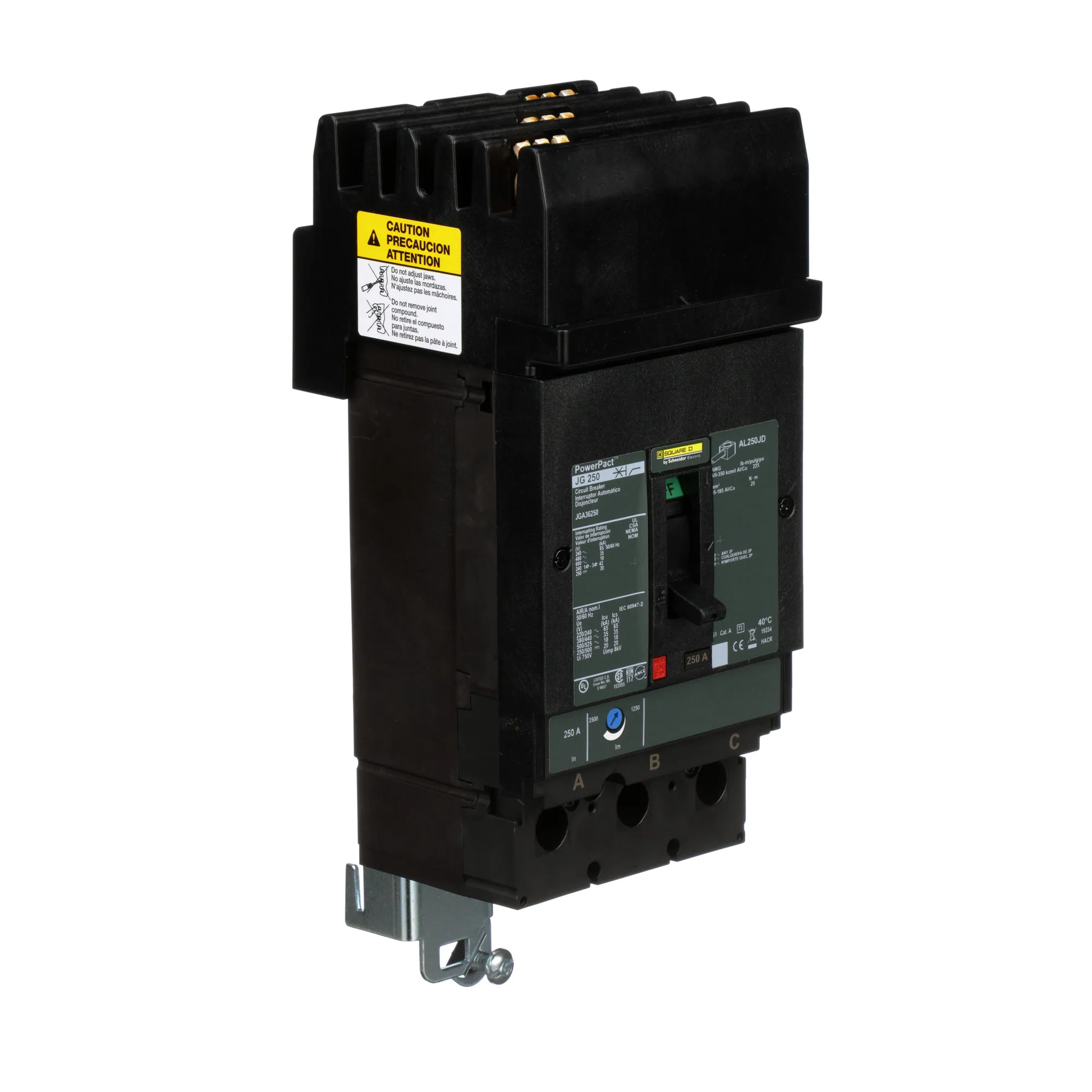

Square D JGA36250 Circuit Breaker | 600V 250A 3P 35kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JGA36250 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 250 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This unit features a plug-in I-Line connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: JGA36250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V

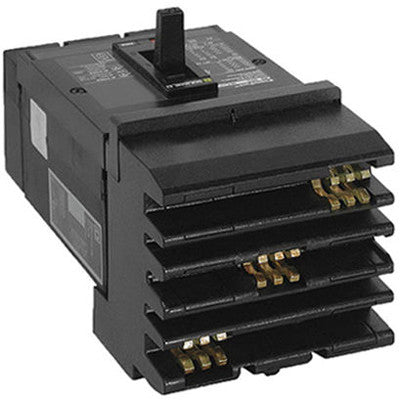

✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ MCM Size: Min. Wire Size 3 AWG Max. Wire Size 350 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901939139
✔ GTIN: 00785901939139
✔ Country of Origin: Mexico

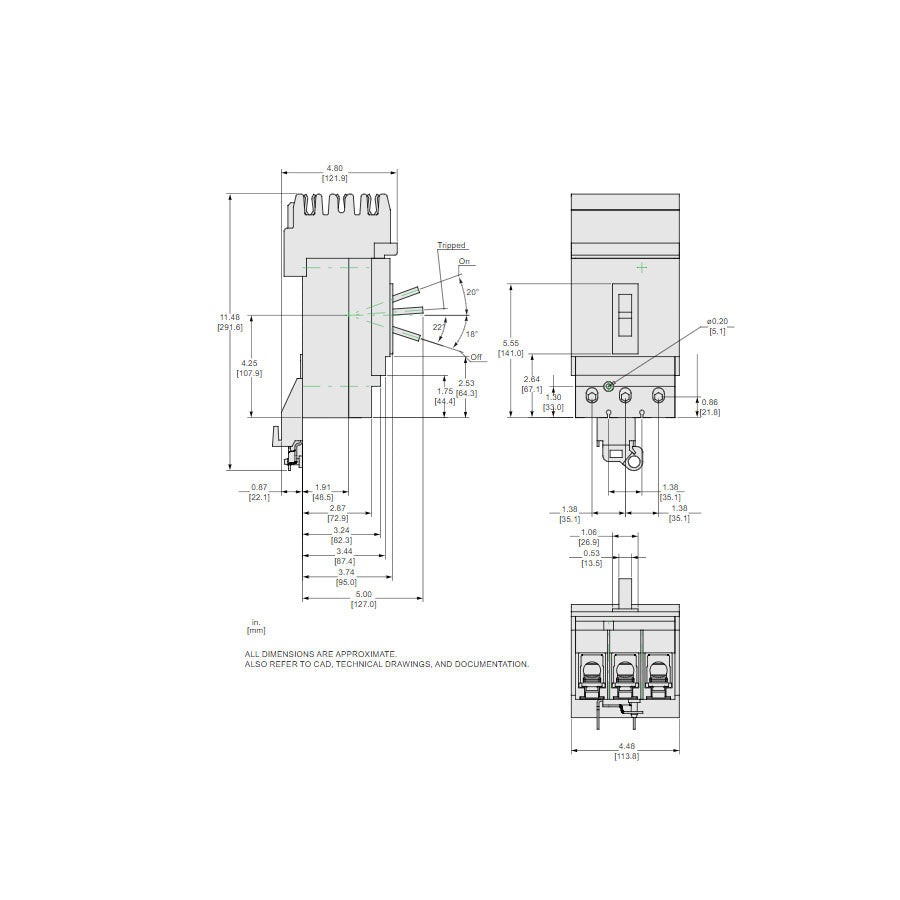

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.99 lb
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, UL Listed
✔ Certification: CCC, CE, CSA, IEC, UL Listed
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
