Square D JGL26150 Circuit Breaker | 600V 150A 2P 35kA@480V Feed-Thru Powerpact JGL

Product Description:

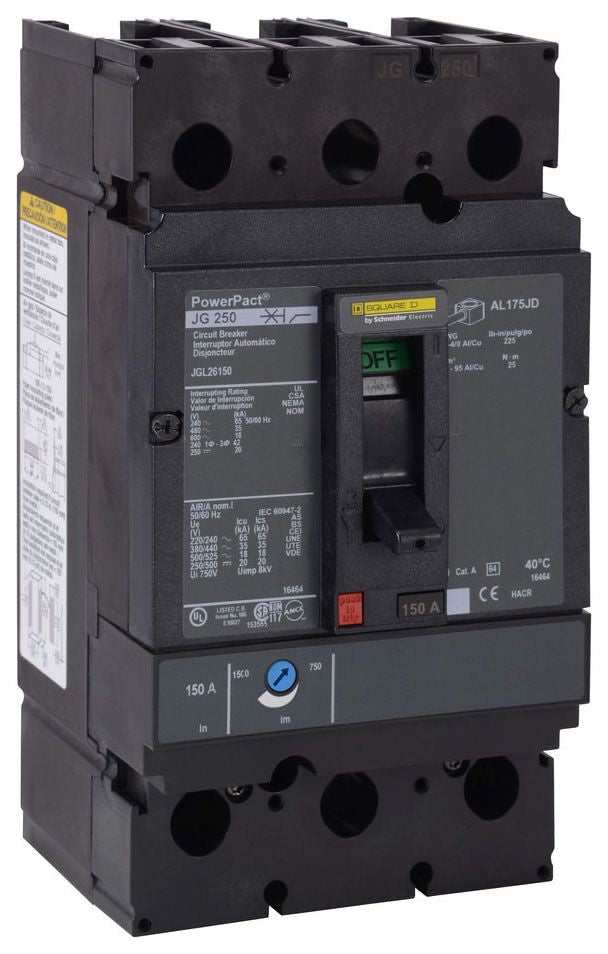

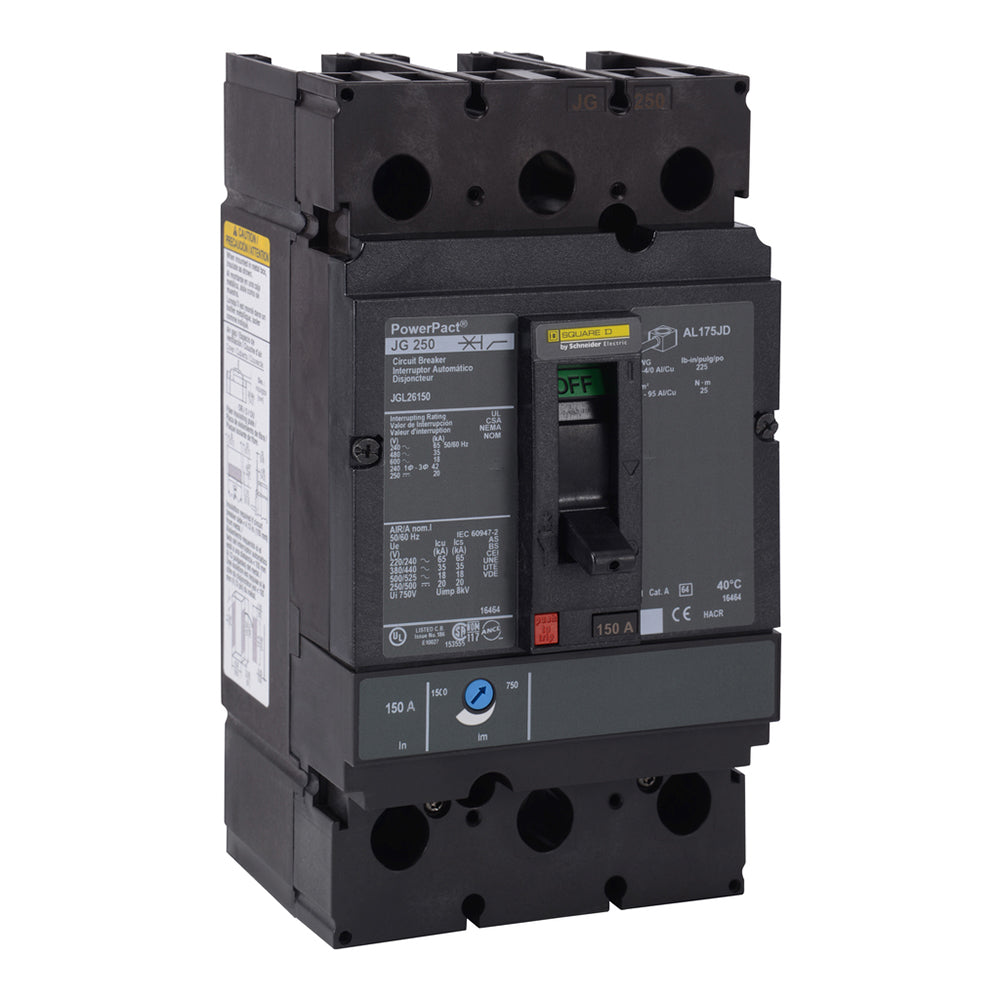

The Square D JGL26150 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 150 amp breaker rated for 600 volts with an AIC rating of 35kA@480V. This model features a Feed-Thru connection and provides Thermal Magnetic protection. It is designed for use in I Line Panelboards.

Key Features:
✔ Part Number: JGL26150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 150
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ MCM Size: Min. Wire Size 3 AWG Max. Wire Size 350 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901883753
✔ GTIN: 00785901883753
✔ Country of Origin: United States
✔ Dimensions: 2.74 in x 7.52 in
✔ Weight: 2.12
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, UL Listed
✔ Certification: CCC, CE, CSA, IEC, UL Listed
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
