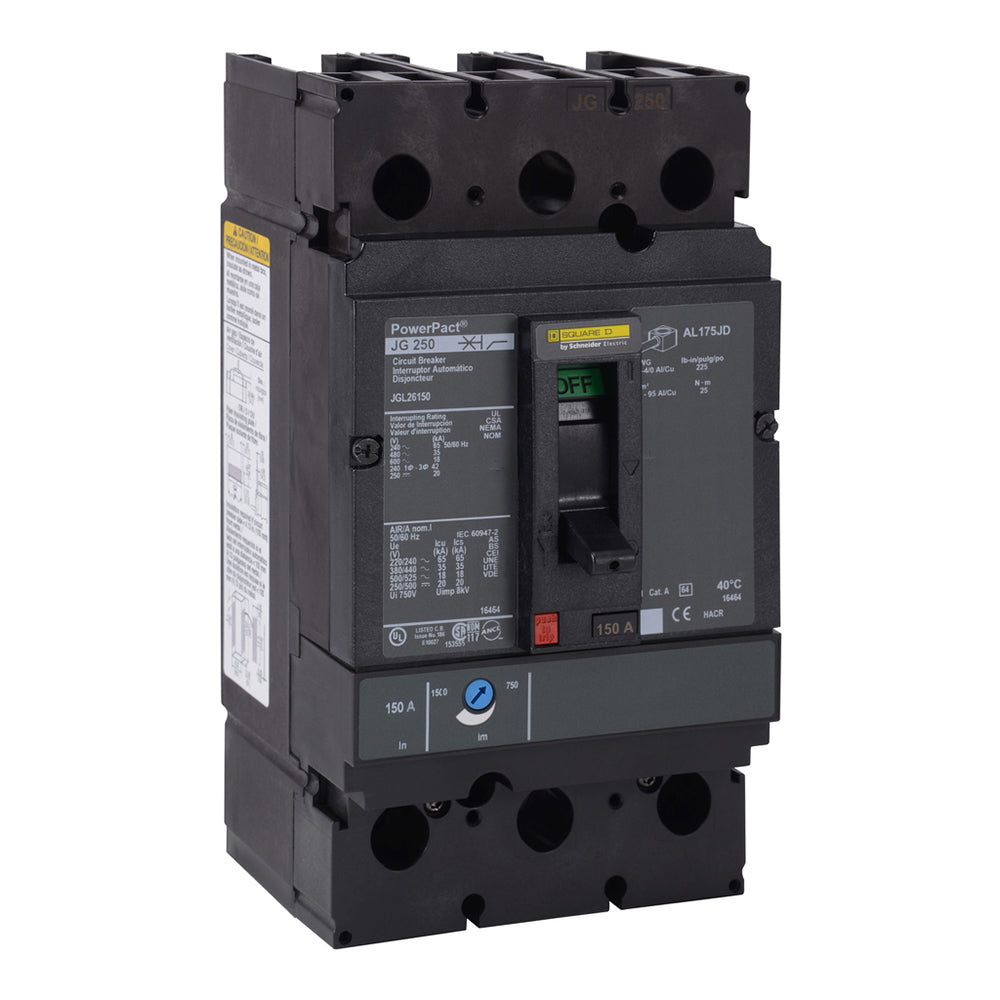

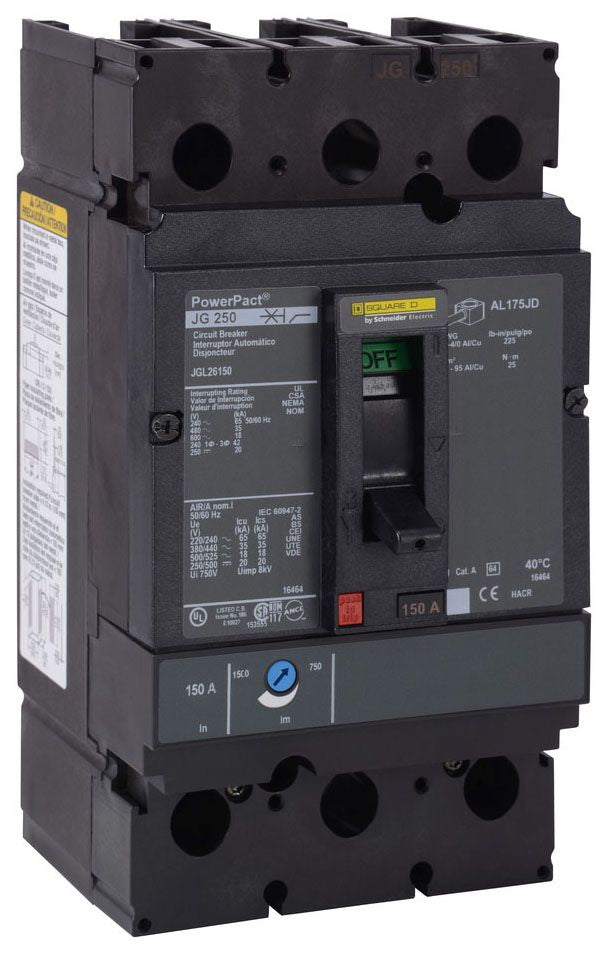

Square D JGL26175 Circuit Breaker | 600V 175A 2P 35kA@480V Bolt-On Powerpact
Square D JGL26175 Circuit Breaker | 600V 175A 2P 35kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$2,169.17 USD
Regular price
$3,212.00 USD
Sale price
$2,169.17 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low inventory, please call (855) 875-5050 for stock check
Couldn't load pickup availability
Product Description:
The Square D JGL26175 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V rating and 175A capacity, offering 35kA@480V AIC protection. This thermal magnetic breaker uses a bolt-on connection and is compatible with I Line Panelboards. It meets multiple industry standards including UL, CSA, and CE.
Key Features:
✔ Part Number: JGL26175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 175
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ Wire Size: Min. 3 AWG Max. 350 MCM
✔ Protection: Thermal Magnetic
✔ UPC: 785901683162
✔ GTIN: 00785901683261
✔ Country of Origin: United States
✔ Dimensions: 7.52 x 5.38 x 5.64 in
✔ Weight: 2.11
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, UL Listed
The Square D JGL26175 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V rating and 175A capacity, offering 35kA@480V AIC protection. This thermal magnetic breaker uses a bolt-on connection and is compatible with I Line Panelboards. It meets multiple industry standards including UL, CSA, and CE.
Key Features:
✔ Part Number: JGL26175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 175
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ Wire Size: Min. 3 AWG Max. 350 MCM
✔ Protection: Thermal Magnetic
✔ UPC: 785901683162
✔ GTIN: 00785901683261
✔ Country of Origin: United States
✔ Dimensions: 7.52 x 5.38 x 5.64 in
✔ Weight: 2.11
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, UL Listed
