Square D

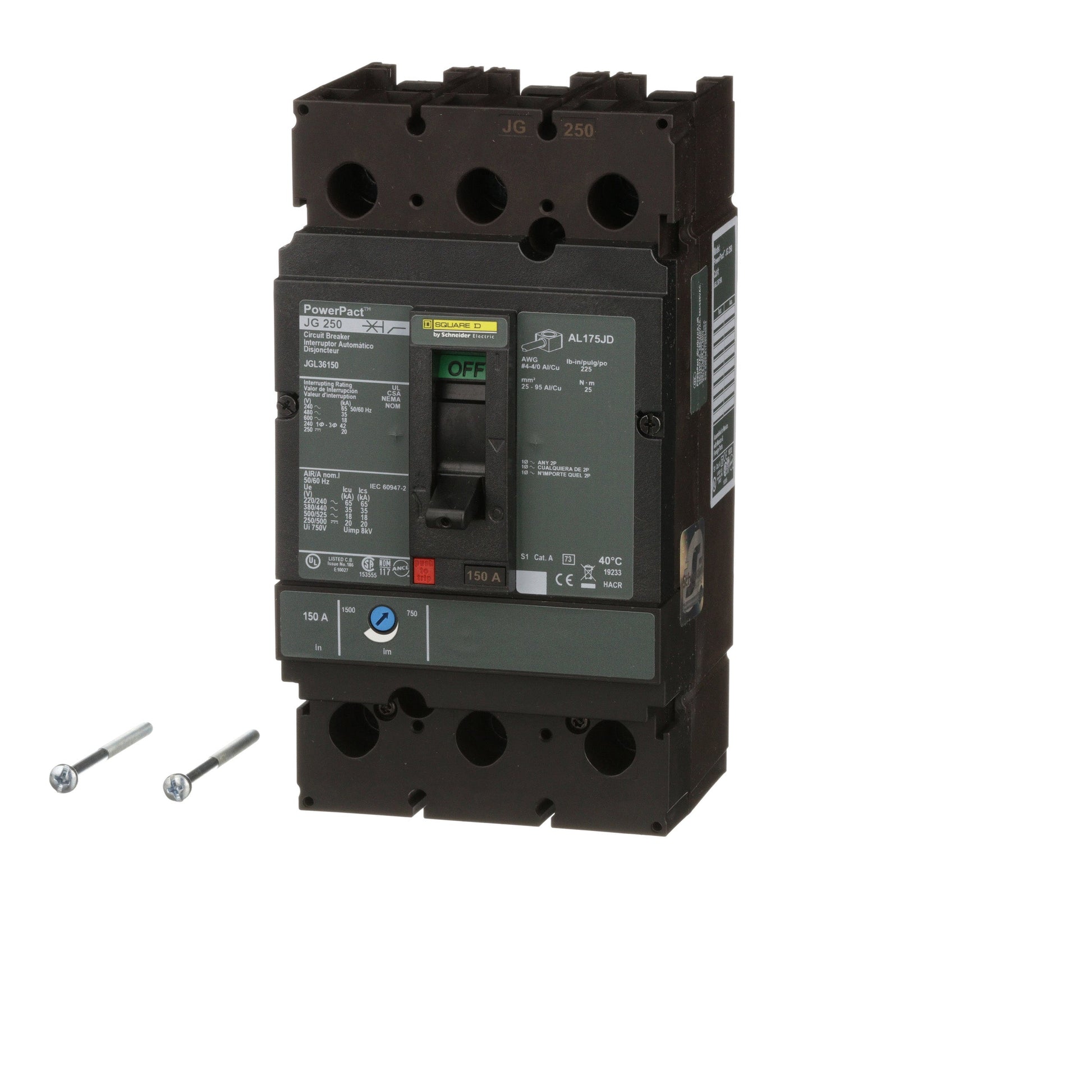

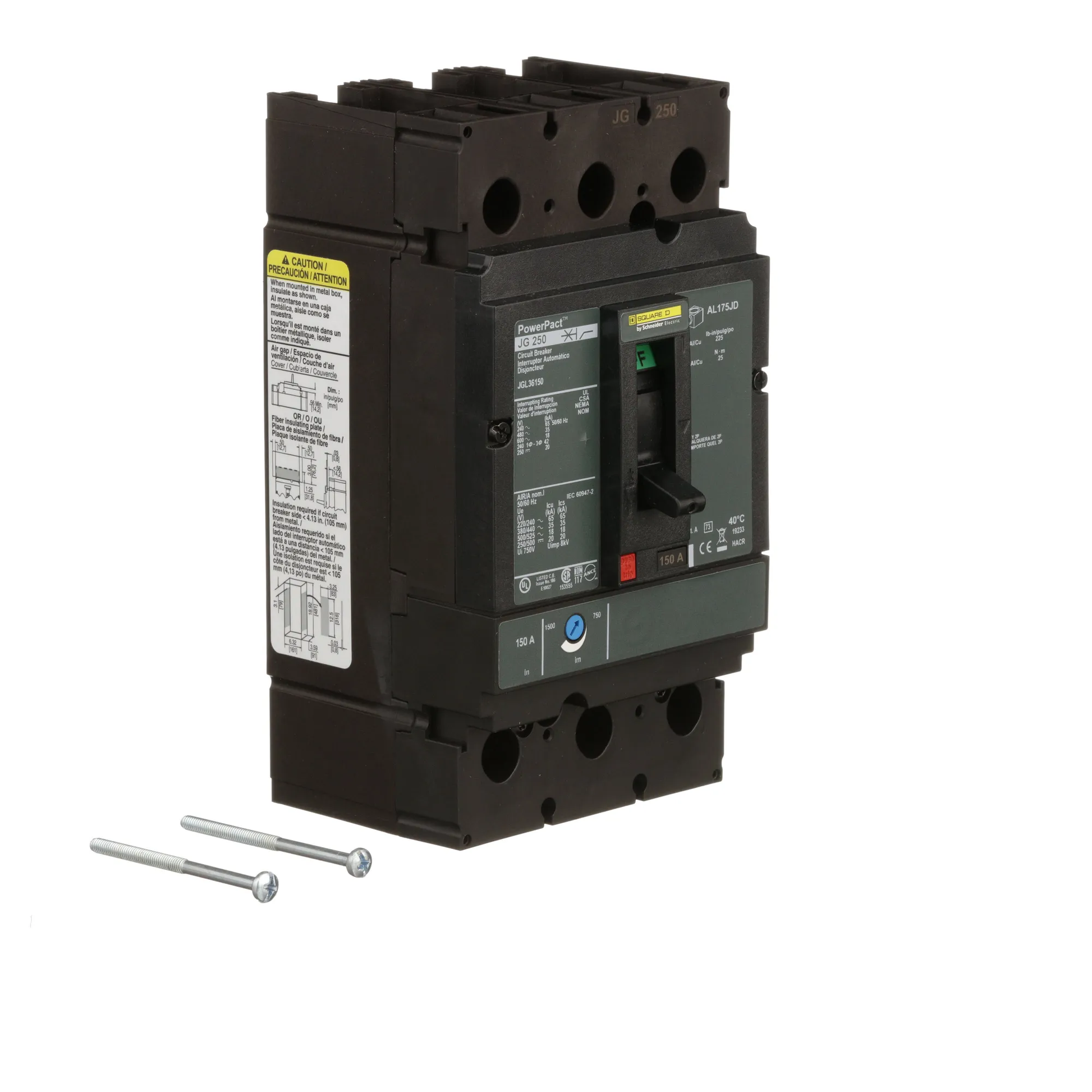

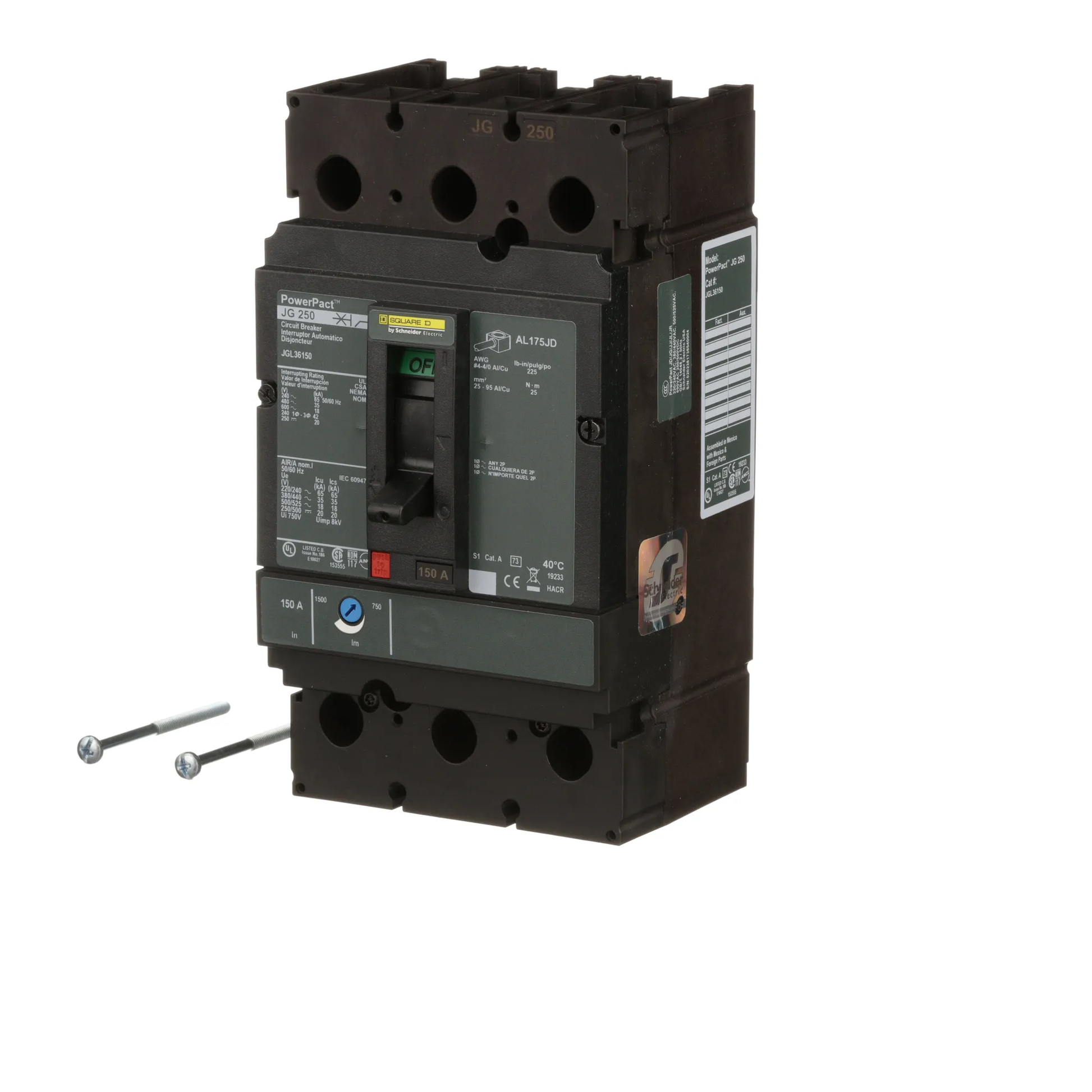

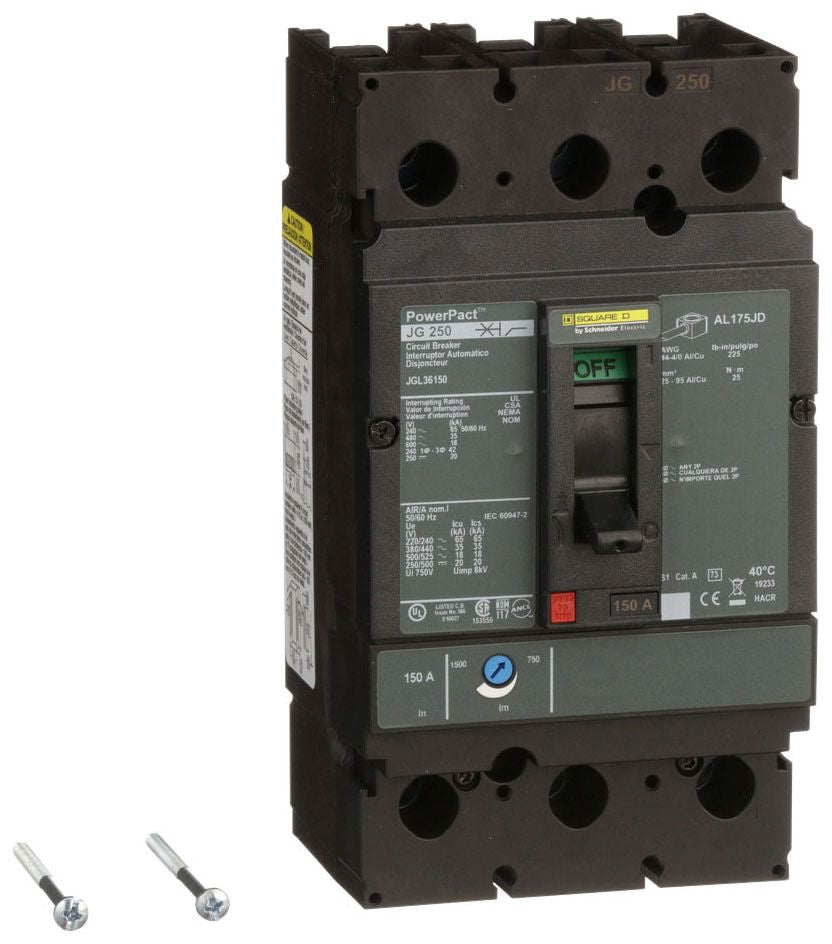

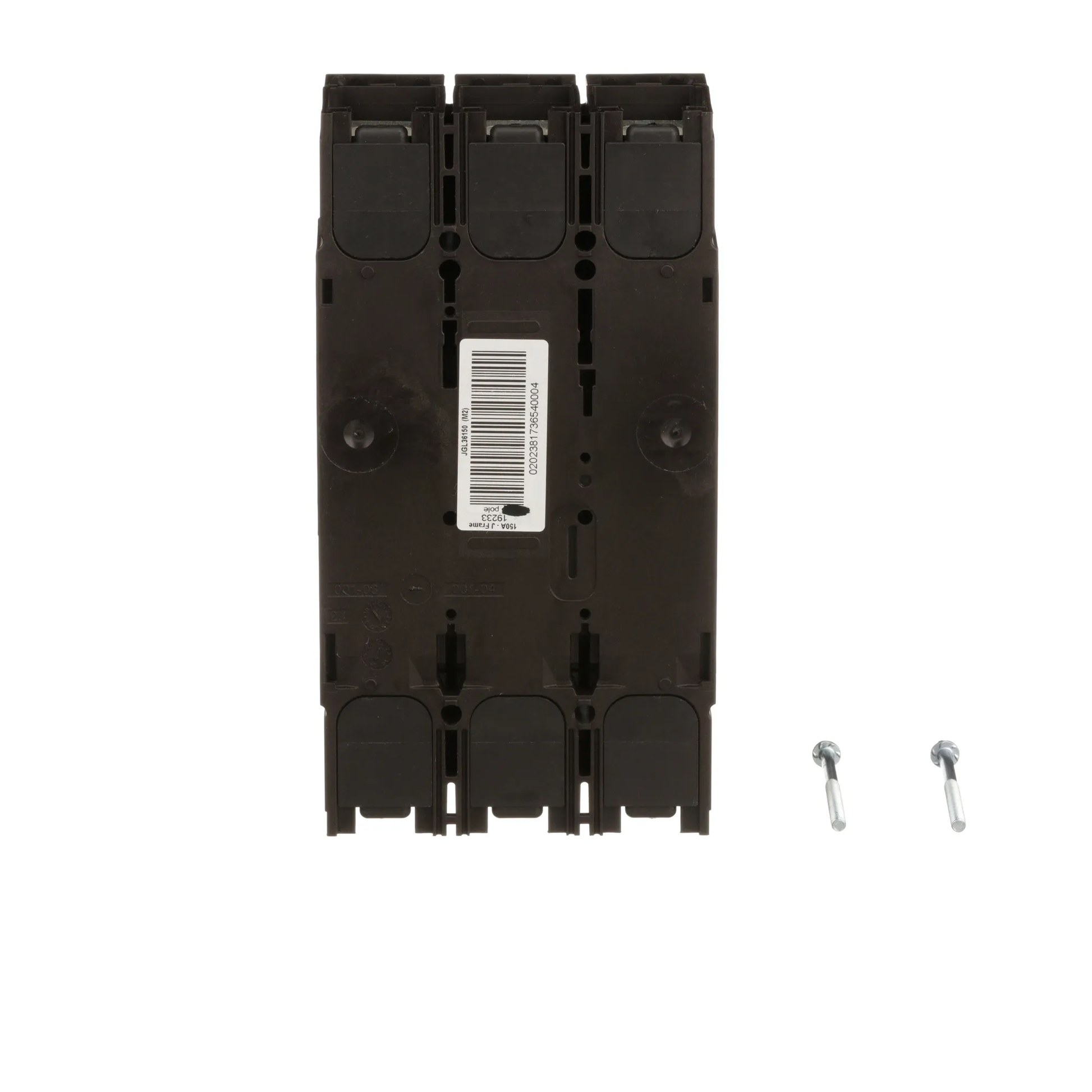

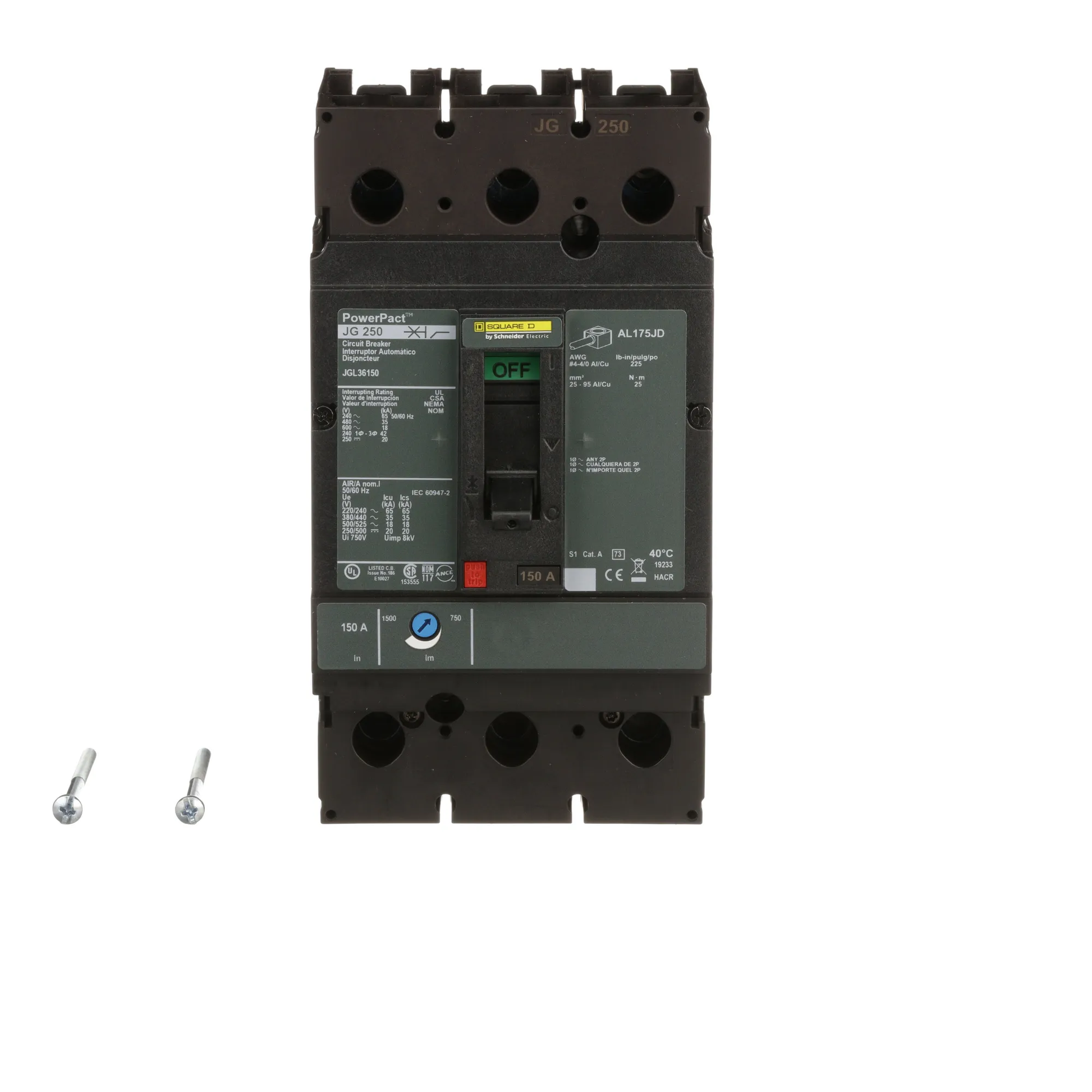

Square D JGL36150 Circuit Breaker | 600V 150A 3P 35kA@480V Bolt-On Powerpact JGL
Square D JGL36150 Circuit Breaker | 600V 150A 3P 35kA@480V Bolt-On Powerpact JGL
Price:
Sale
Sold out
Regular price
$1,482.70 USD
Regular price
$3,779.00 USD
Sale price
$1,482.70 USD
Unit price
per
Shipping calculated at checkout.
Stock:
2 in stock
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Couldn't load pickup availability
Product Description:
The Square D JGL36150 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 150 amp breaker rated for 600 volts with a 35kA interrupting capacity at 480V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is designed for use in I Line Panelboards and meets multiple industry standards.
Key Features:
✔ Part Number: JGL36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 4 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901883739
✔ GTIN: 00785901883739
✔ Country of Origin: Mexico

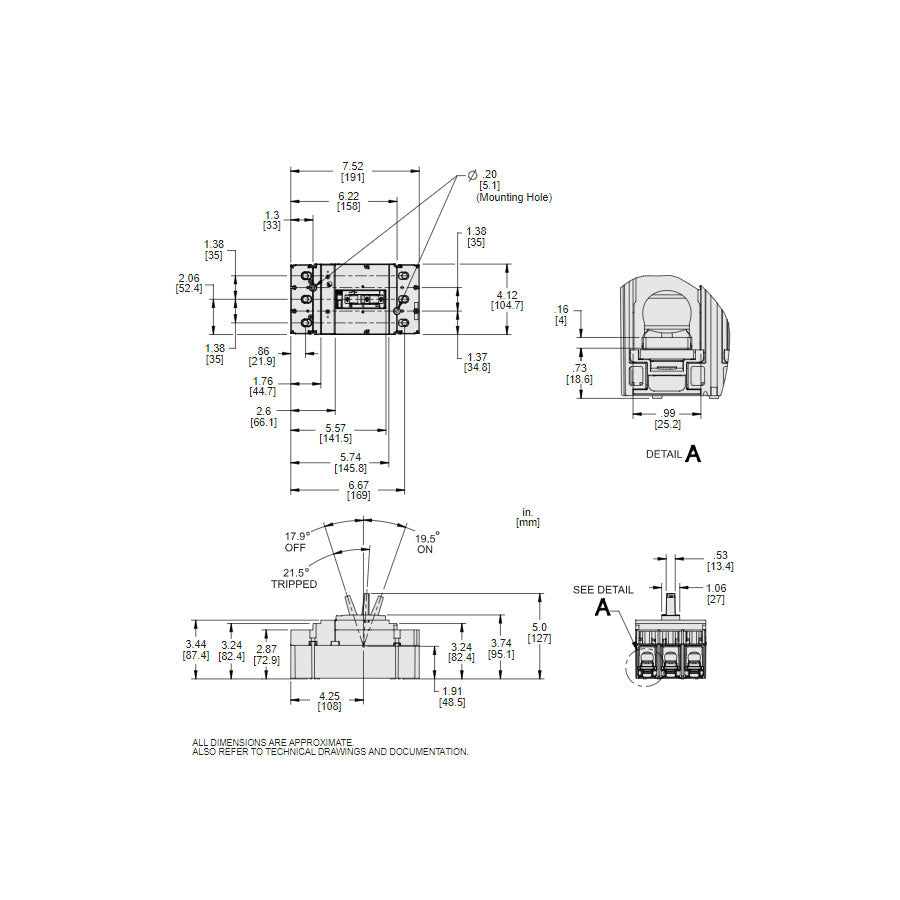

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.21
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, UL Listed
✔ Certification: CCC, CE, CSA, IEC, UL Listed
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
The Square D JGL36150 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 150 amp breaker rated for 600 volts with a 35kA interrupting capacity at 480V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is designed for use in I Line Panelboards and meets multiple industry standards.
Key Features:
✔ Part Number: JGL36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 4 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901883739
✔ GTIN: 00785901883739
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.21
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, UL Listed
✔ Certification: CCC, CE, CSA, IEC, UL Listed
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
