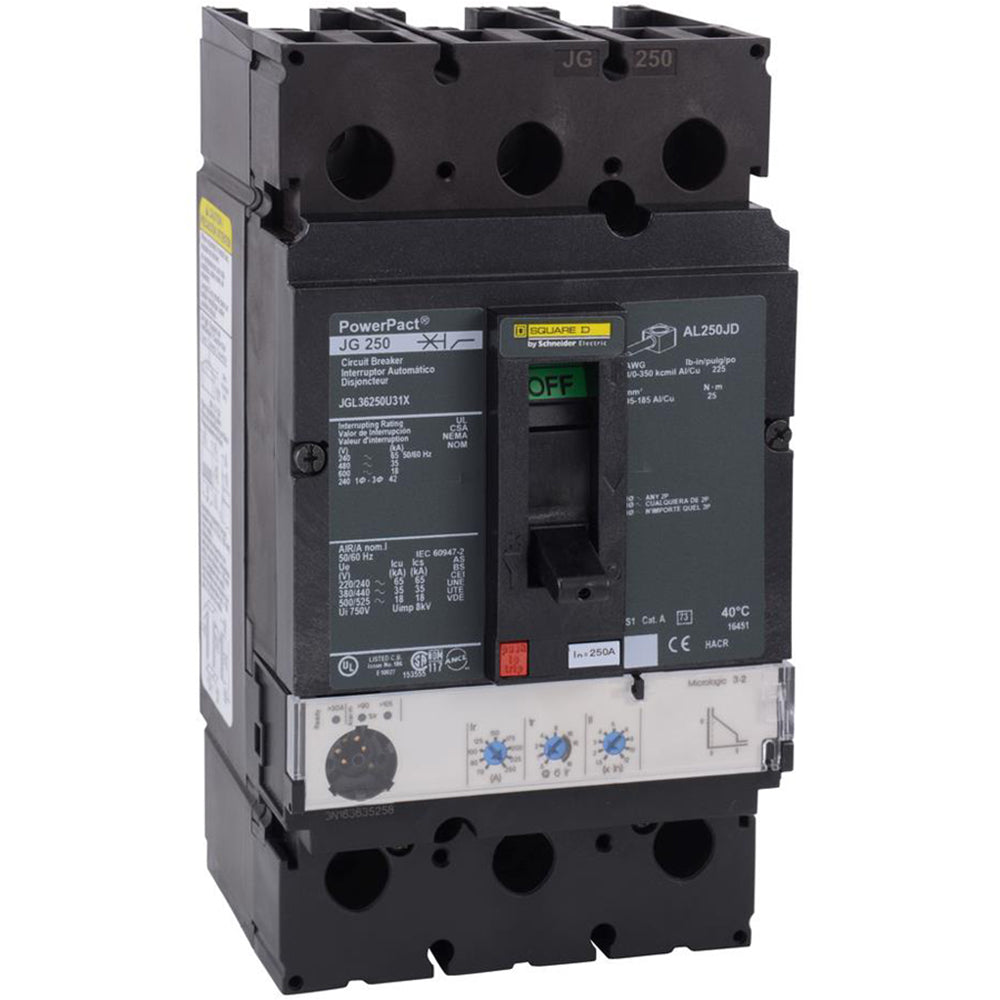

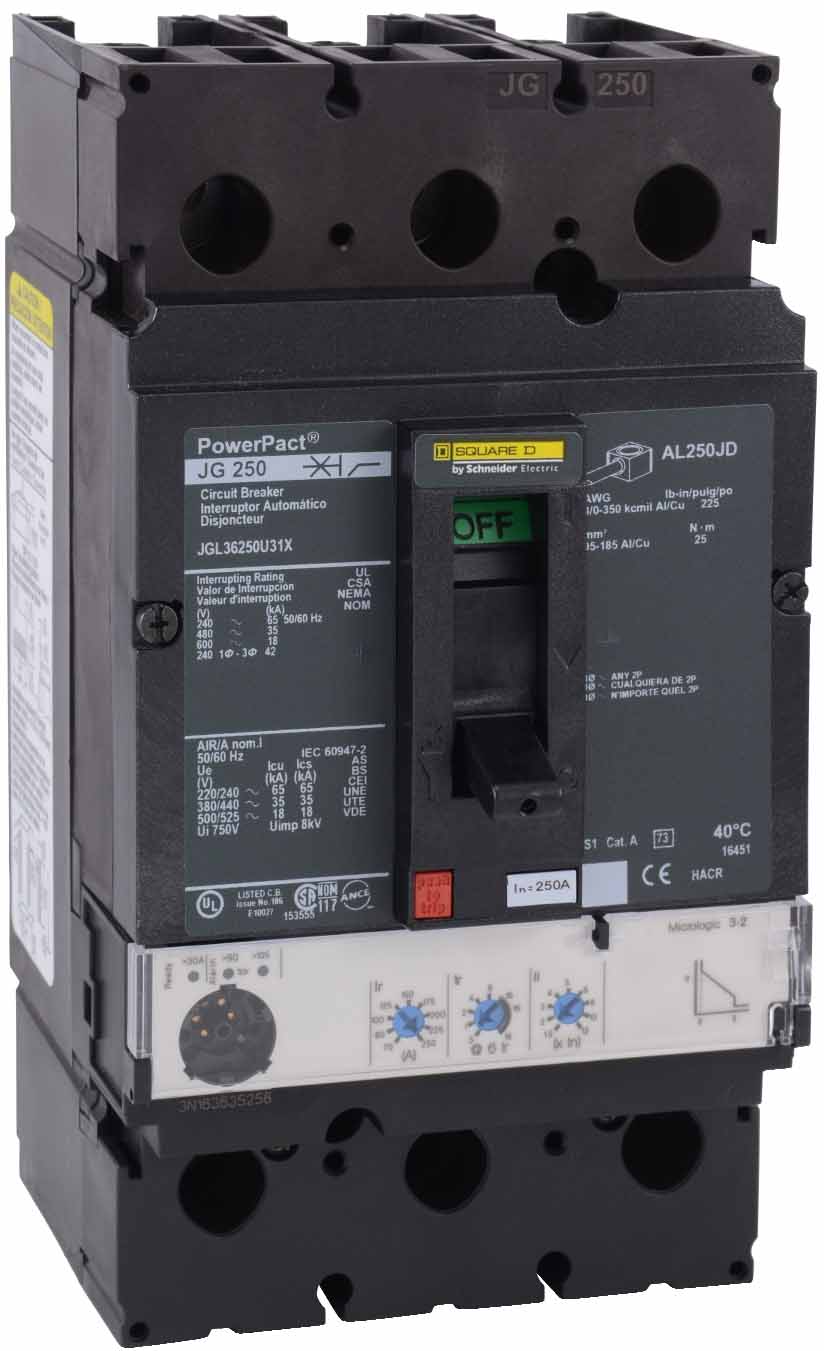

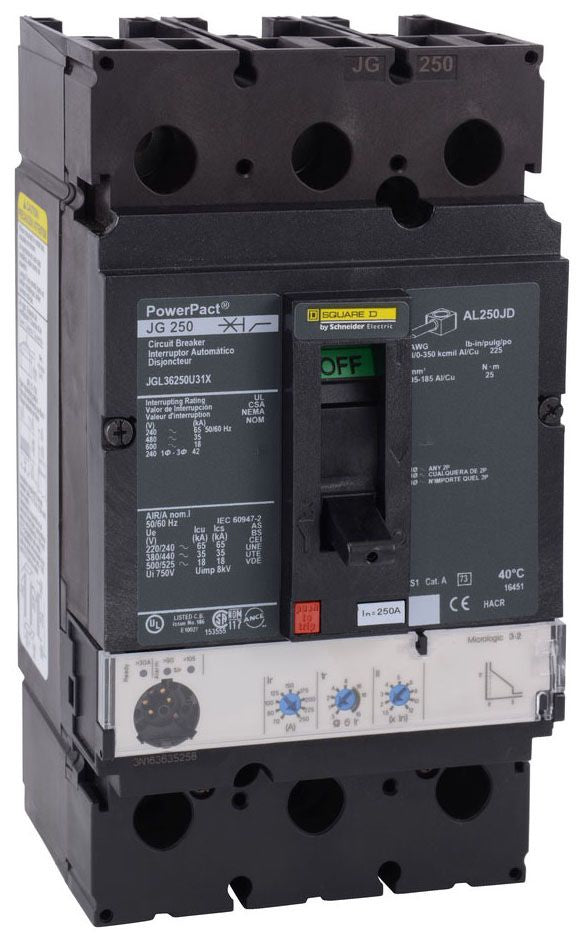

Square D JGL36250U31X Circuit Breaker | 600V 250A 3P 35kA@480V Feed-Thru Powerpact
Square D JGL36250U31X Circuit Breaker | 600V 250A 3P 35kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$2,013.84 USD
Regular price
$4,006.00 USD
Sale price
$2,013.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 9 left
Couldn't load pickup availability
Product Description:
The Square D JGL36250U31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: JGL36250U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 250A/J
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Micrologic Standard W LI Functionality
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901125990
✔ GTIN: 00785901125990
✔ Country of Origin: Mexico

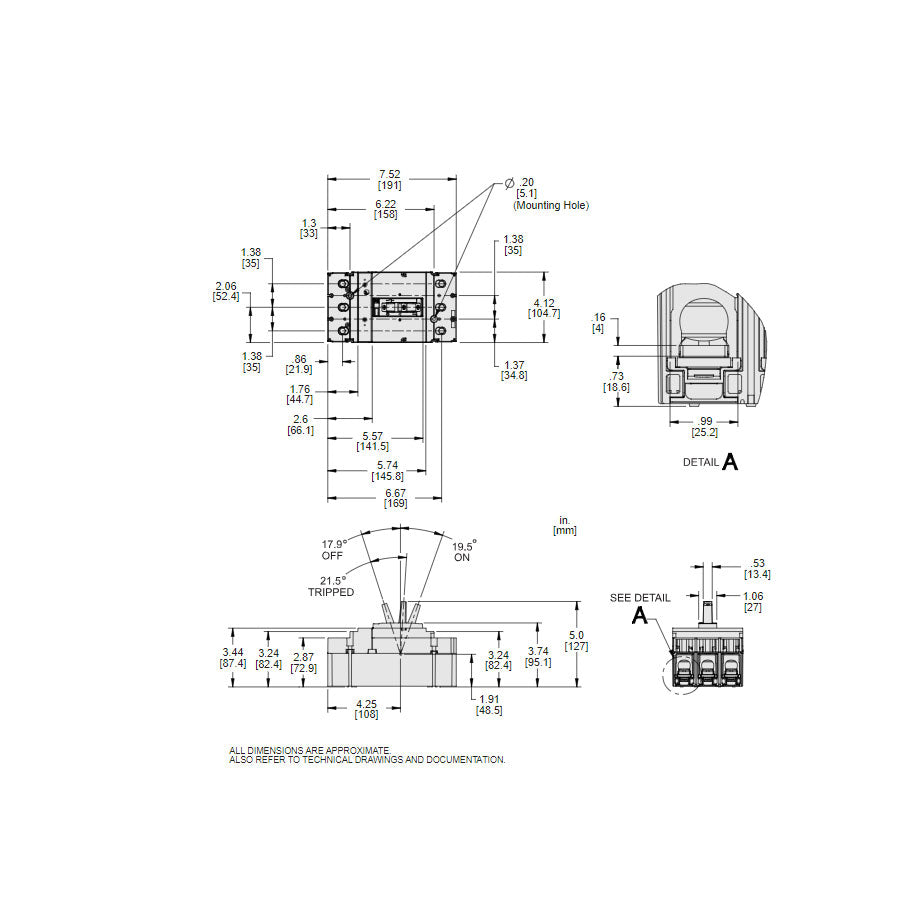

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.35
✔ Standards: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Certification: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
The Square D JGL36250U31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: JGL36250U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 250A/J
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Micrologic Standard W LI Functionality
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901125990
✔ GTIN: 00785901125990
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.35
✔ Standards: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Certification: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
