Square D JGL36250U33X Circuit Breaker | 600V 250A 3P 35kA@480V Feed-Thru Powerpact

Product Description:

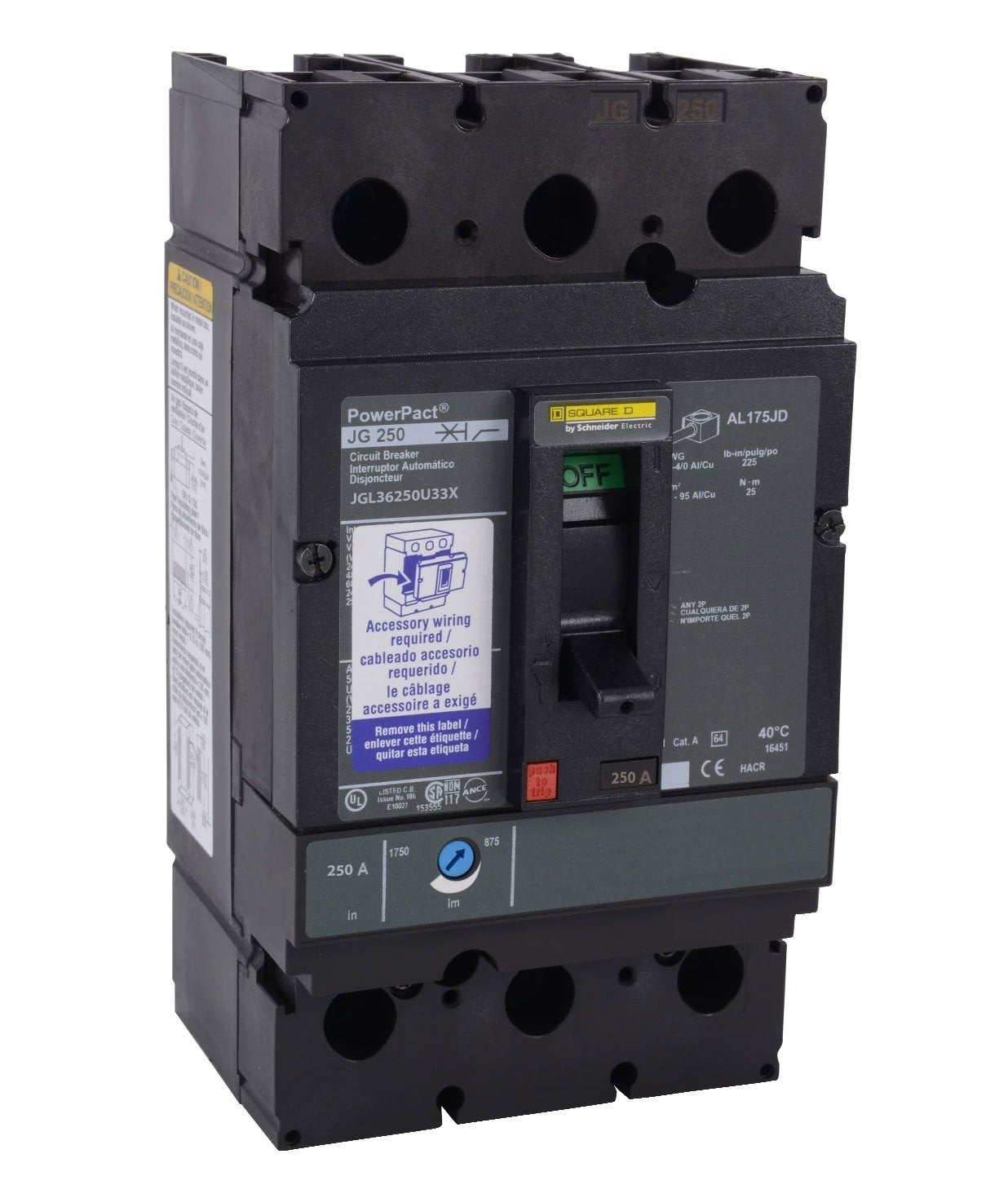

The Square D JGL36250U33X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 250 amp rating with a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Solid State protection for reliable performance.

Key Features:
✔ Part Number: JGL36250U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Solid State
✔ UPC: 785901506829
✔ GTIN: 00785901506829
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.35
✔ Certification: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
