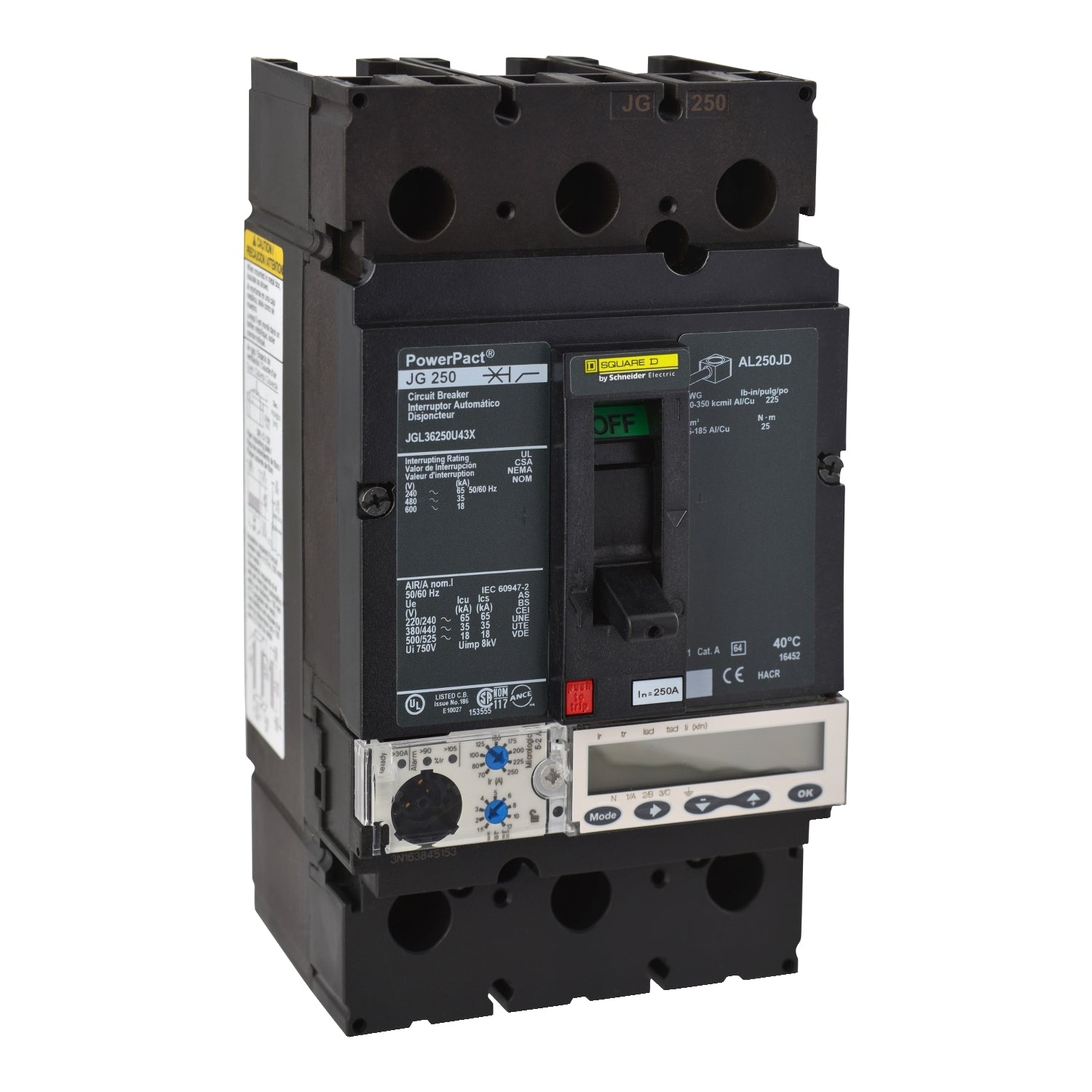

Square D JGL36250U43X Circuit Breaker | 600V 250A

Product Description:
The Square D JGL36250U43X is a 3-pole Molded Case Circuit Breaker rated for 600V and 250A. It features a Feed-Thru connection and solid-state protection with an AIC rating of 35kA@480V. Designed for industrial and commercial applications, it includes LSI (Long-Time, Short-Time, and Instantaneous) protection functions.

Key Features:
✔ Part Number: JGL36250U43X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Voltage: 600V
✔ Amperage: 250A
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Protection: Solid State
✔ UPC: 785901983903
✔ GTIN: 00785902000000
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.27 lbs
✔ Certification: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
