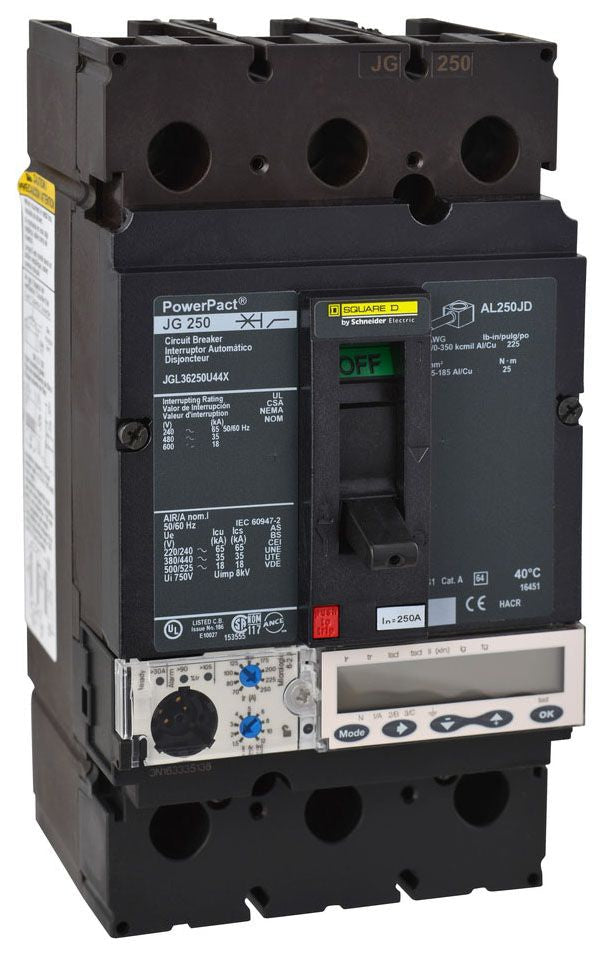

Square D JGL36250U44X Molded Case Circuit Breaker | 600V 250A 3P 35kA@480V Feed-Thru Powerpact

Product Description:
The Square D JGL36250U44X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 250 amps, with an AIC rating of 35kA at 480V. This unit features solid state protection and a feed-thru connection for reliable performance.

Key Features:
✔ Part Number: JGL36250U44X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Terminal Connection: Box Lug
✔ Frame Size: 250A/J
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Micrologic Ammeter W LSIG Functionality
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901165774
✔ GTIN: 00785901165774
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.27
✔ Standards: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Certification: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
