Square D JGM36175 Circuit Breaker | 600V 175A 3P 35kA@480V Bolt-On Powerpact JGM

Product Description:

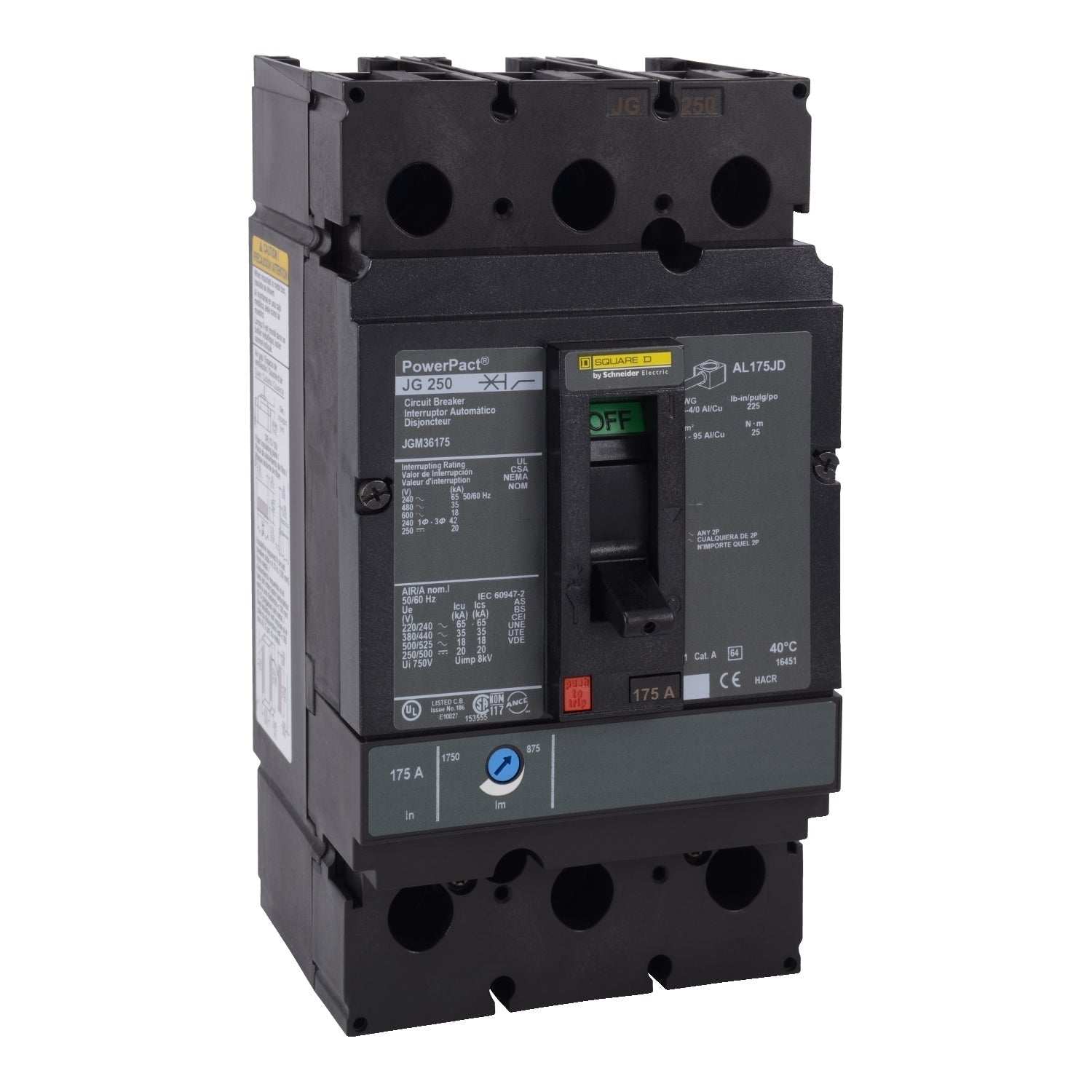

The Square D JGM36175 is a Molded Case Circuit Breaker from the Powerpact family. This 3-pole breaker is rated for 600 Volts and 175 amps, with a 35kA@480V AIC rating. It features Bolt-On connections and Thermal Magnetic protection for reliable performance. Designed for industrial and commercial electrical systems, it ensures safety and efficiency.

Key Features:
✔ Part Number: JGM36175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGM
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901596814

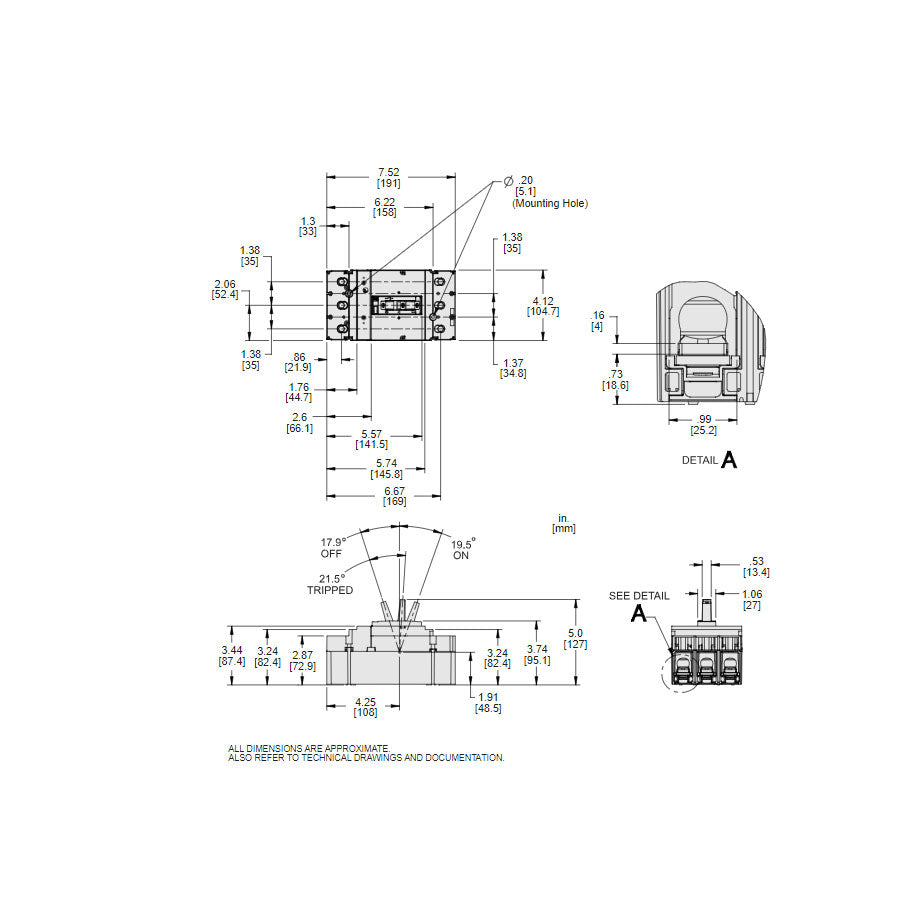

✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 5
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
