Product Description:

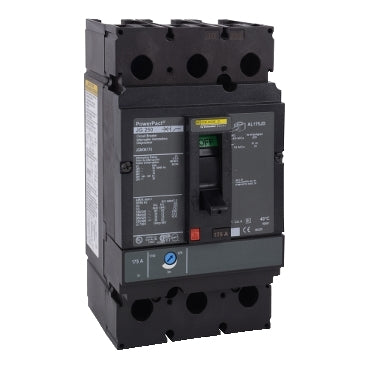

The Square D JGM36225 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 225A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JGM36225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGM
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Depth 3.39 in (86 mm) Width 4.09 in (104 mm) Height 7.52 in (191 mm)
✔ Weight: 5
