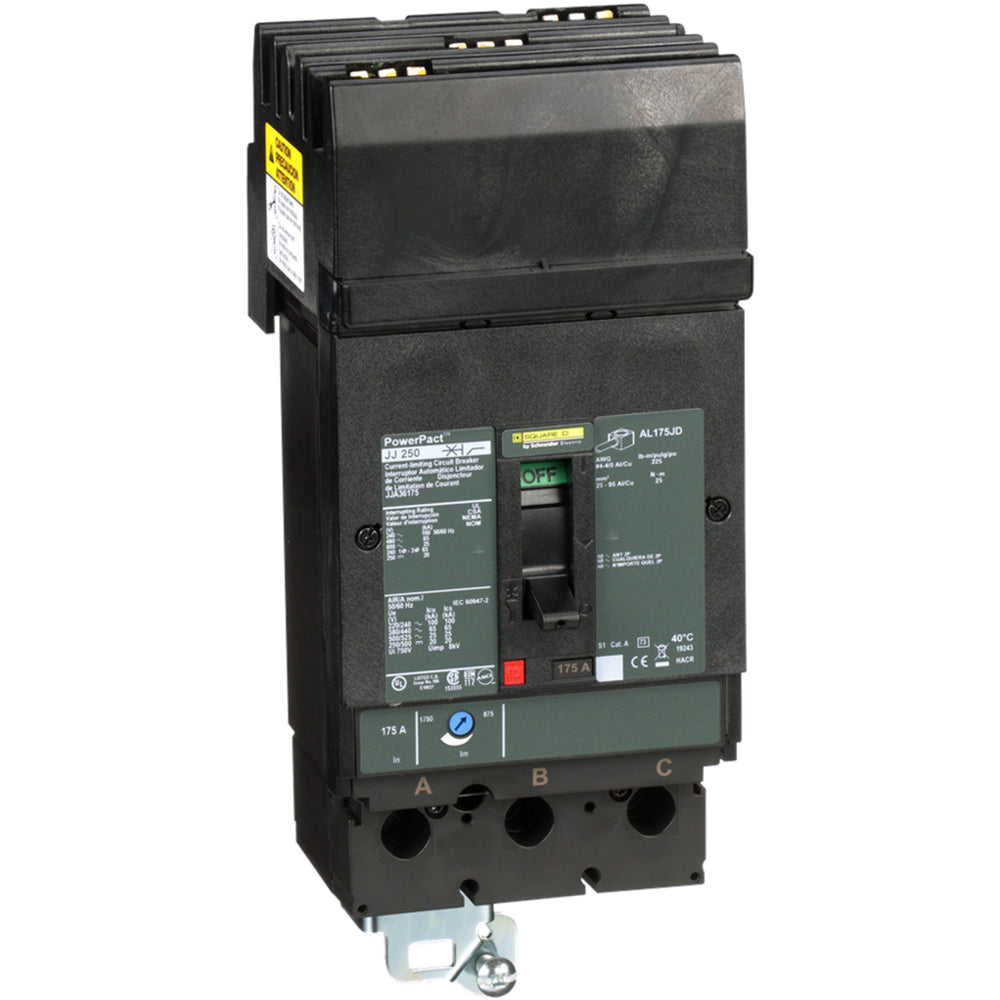

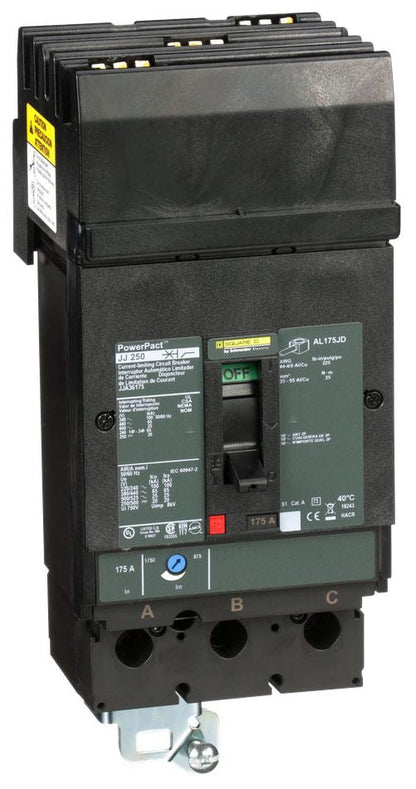

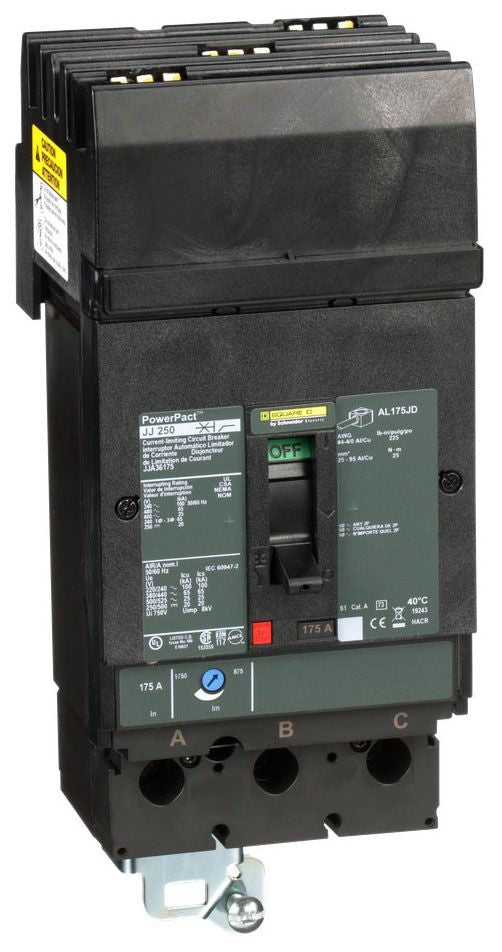

Square D JJA36175 Circuit Breaker | 600V 175A 3P 65kA@480V I-Line Plug-In Powerpact

Product Description:
The Square D JJA36175 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 175 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This unit features an I-Line Style Plug-In connection and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: JJA36175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJA
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901700715
✔ GTIN: 00785901700715
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 3.5
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
