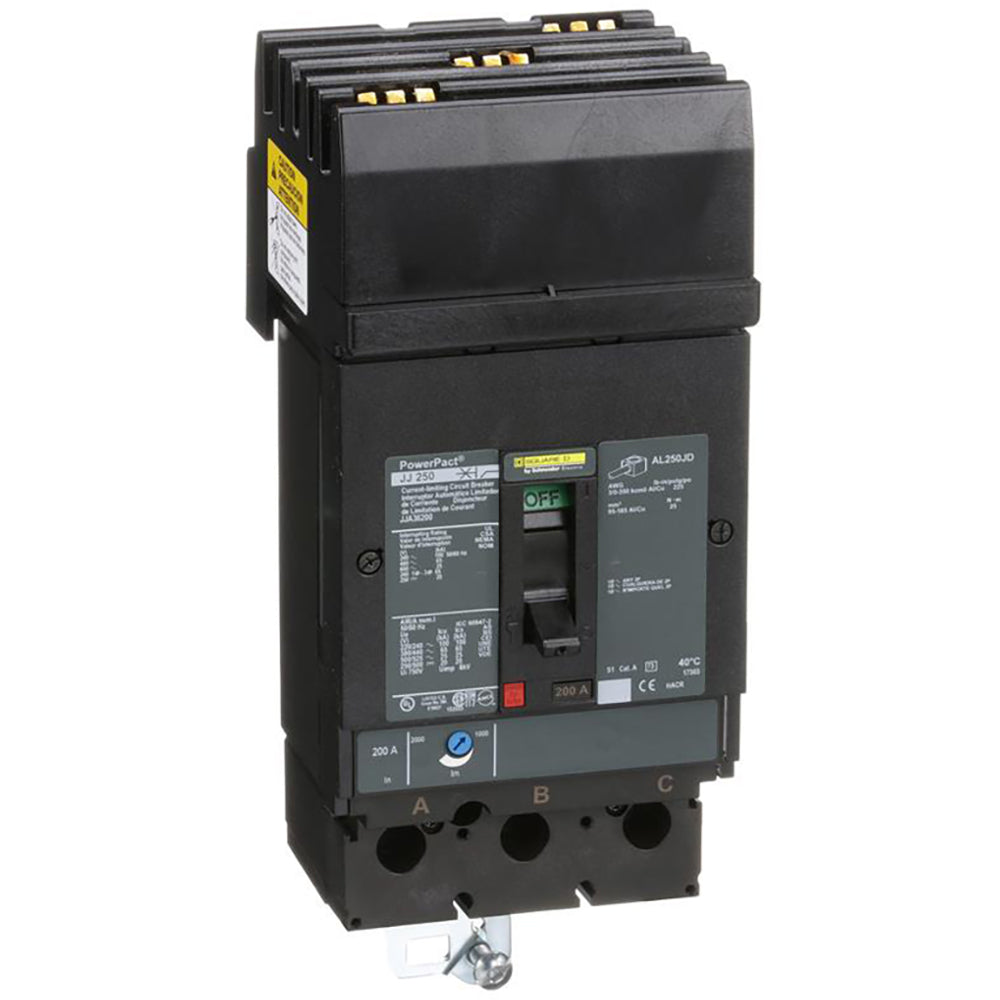

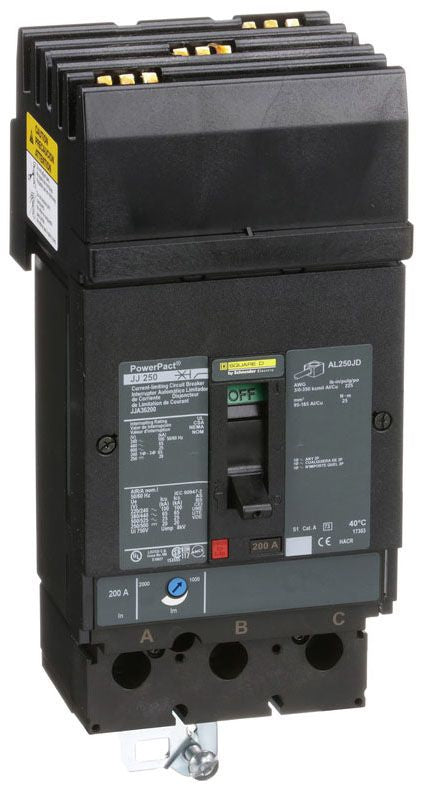

Square D JJA36200 Circuit Breaker | 600V 200A 3P 65kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JJA36200 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 200A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection. It is ideal for industrial and commercial electrical systems.

Key Features:
✔ Part Number: JJA36200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJA
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/J
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 350 kcmil
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901939245
✔ GTIN: 00785901939245
✔ Country of Origin: Mexico

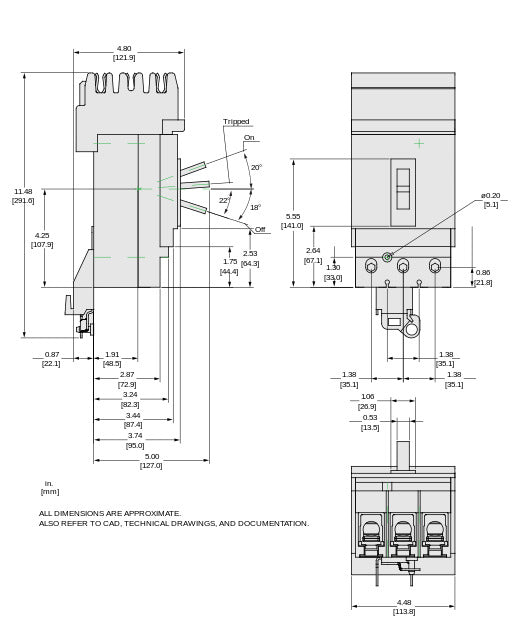

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 5.3 lb
✔ Standards: CSA Certified, IEC 60947-2, NEMA, NOM-003-SCFI-2000, UL Listed
✔ Certification: CSA Certified, IEC 60947-2, NEMA, NOM-003-SCFI-2000, UL Listed
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
