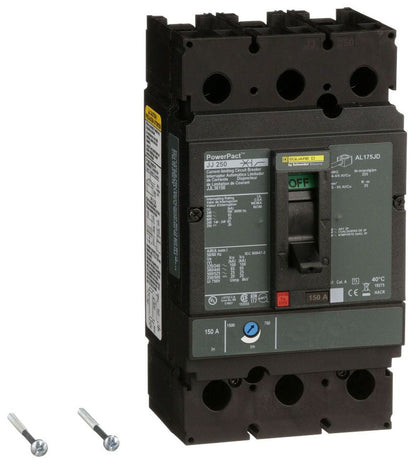

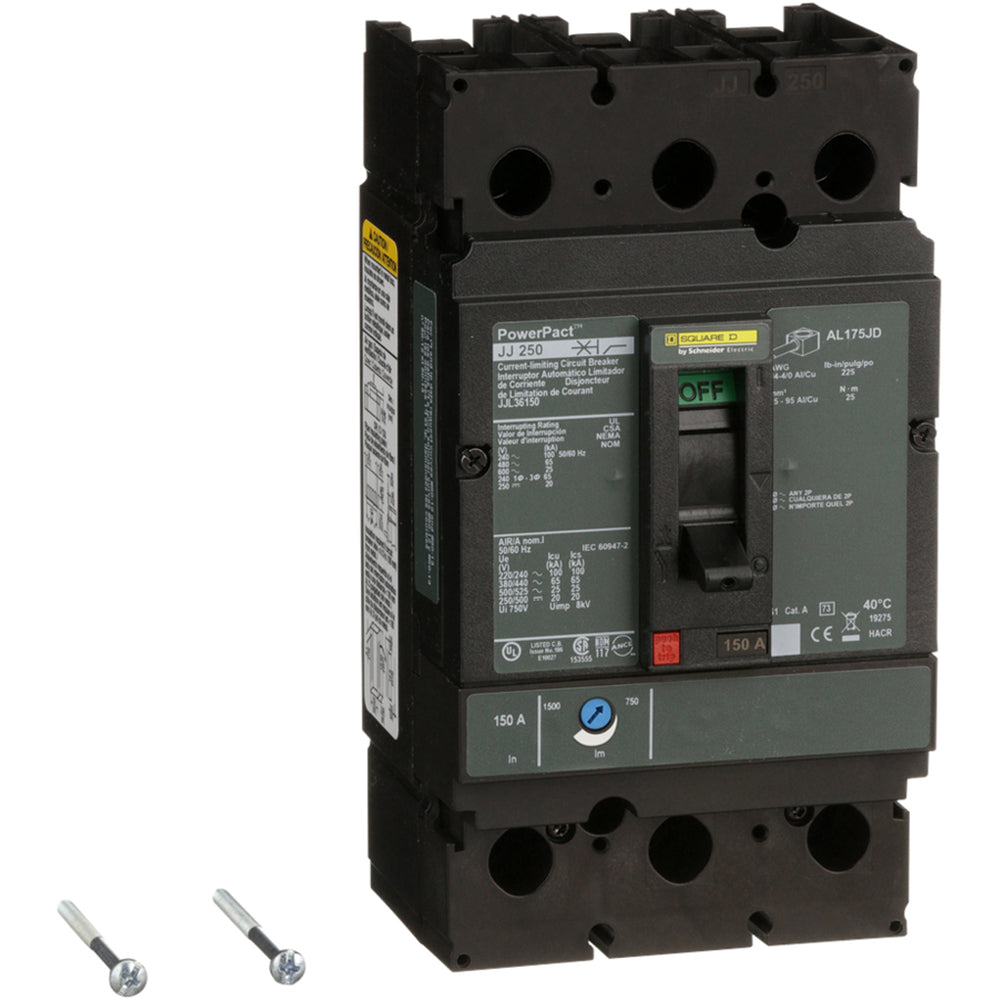

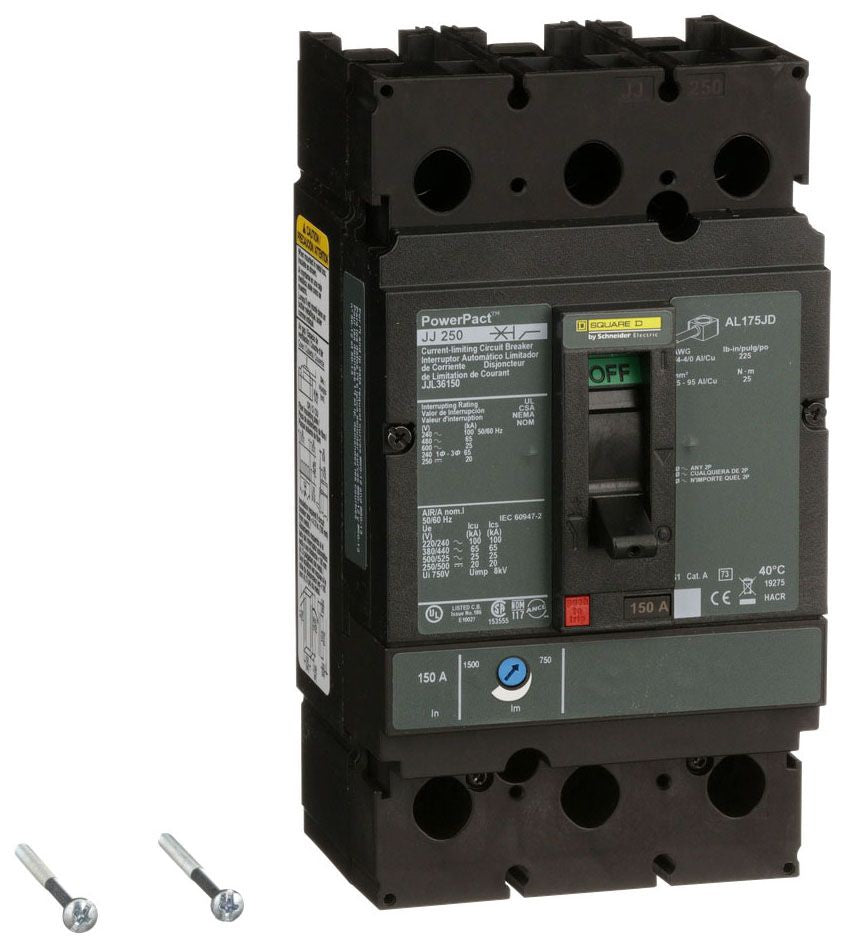

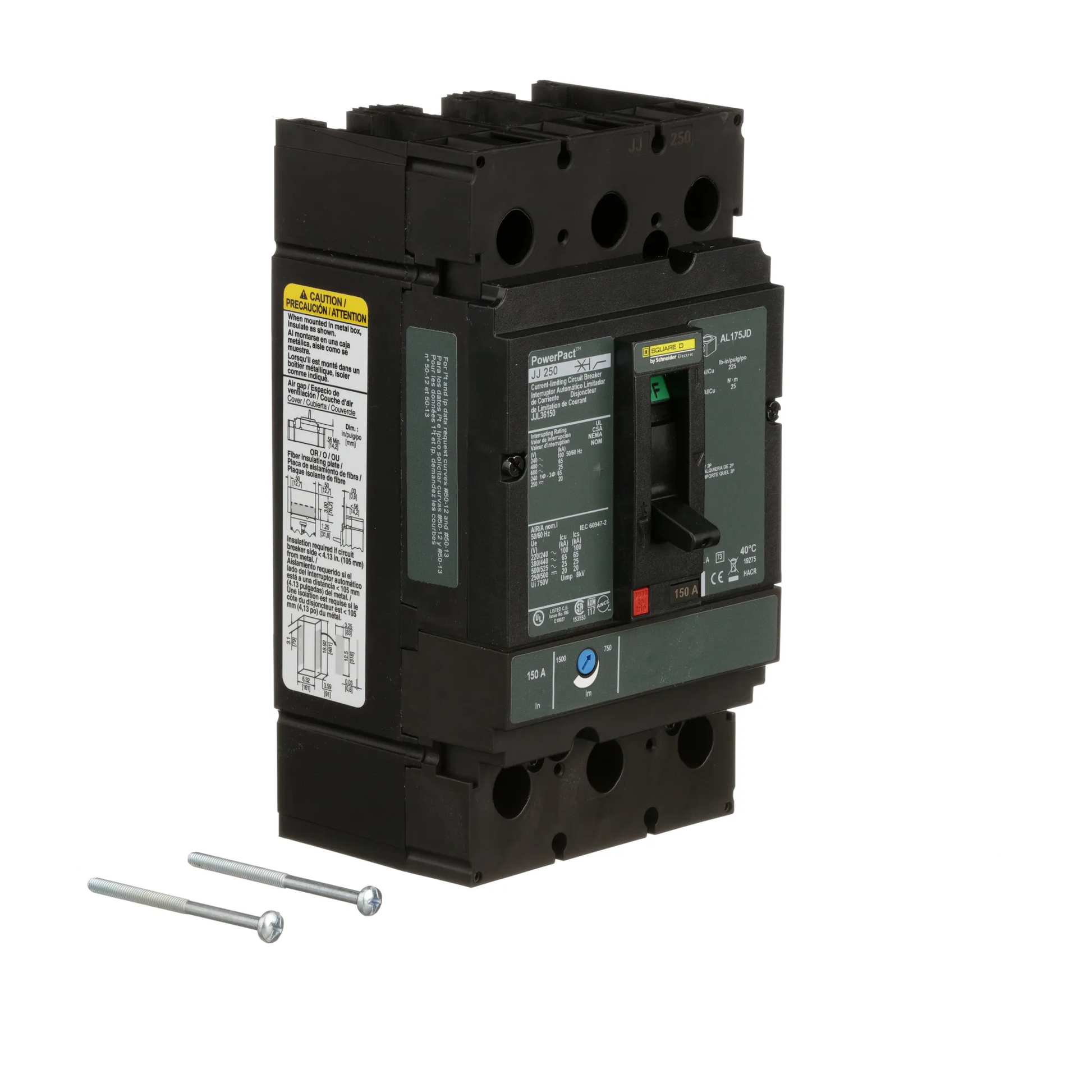

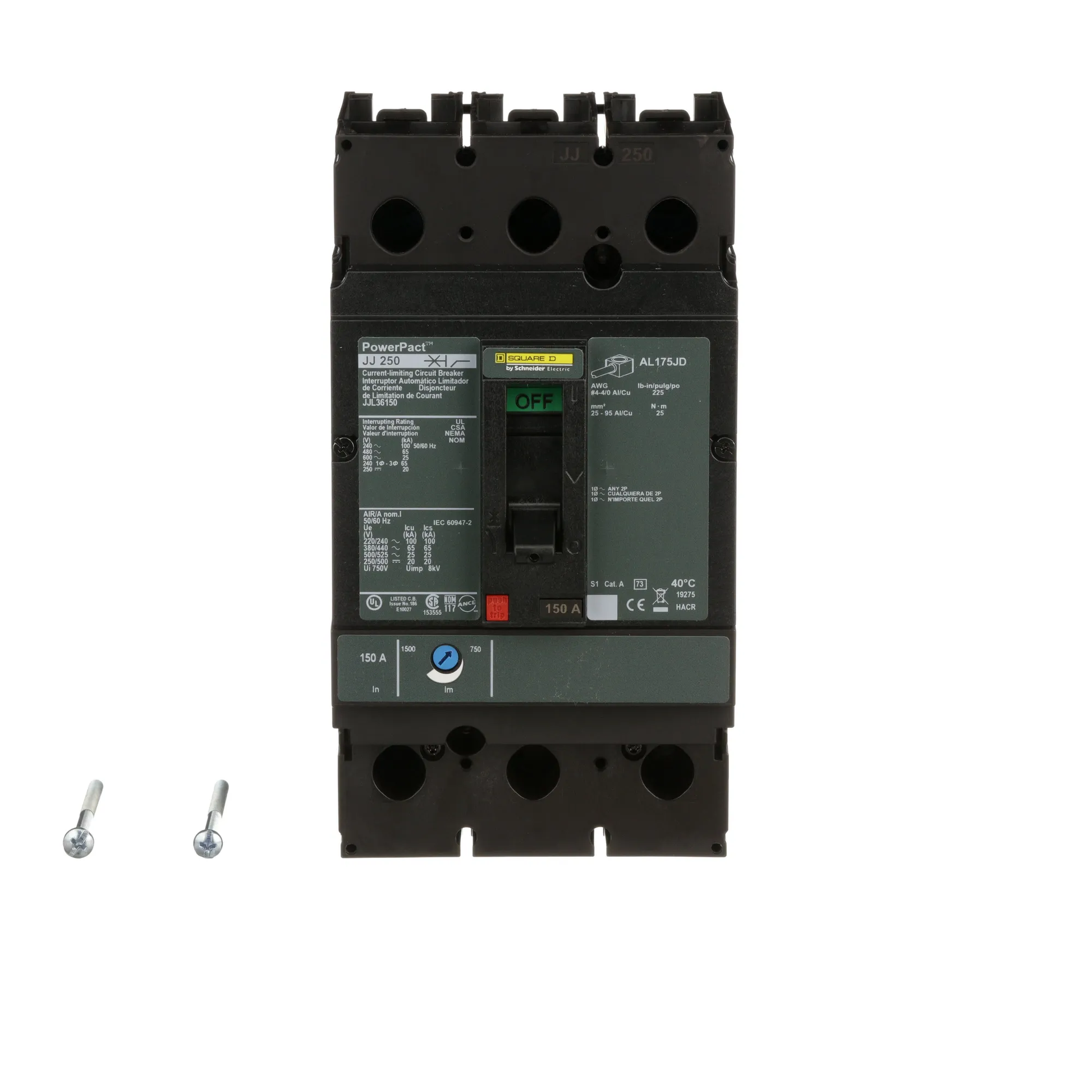

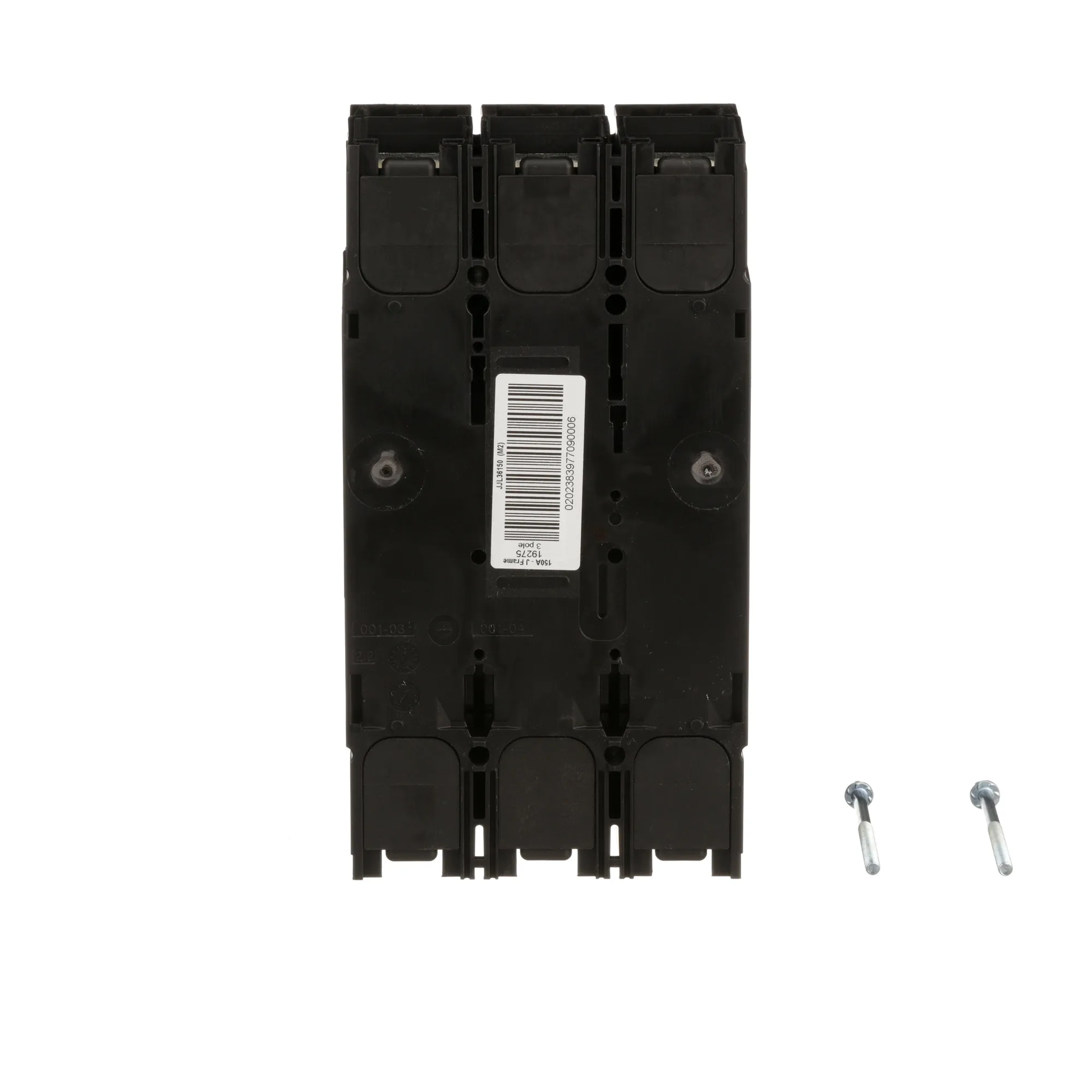

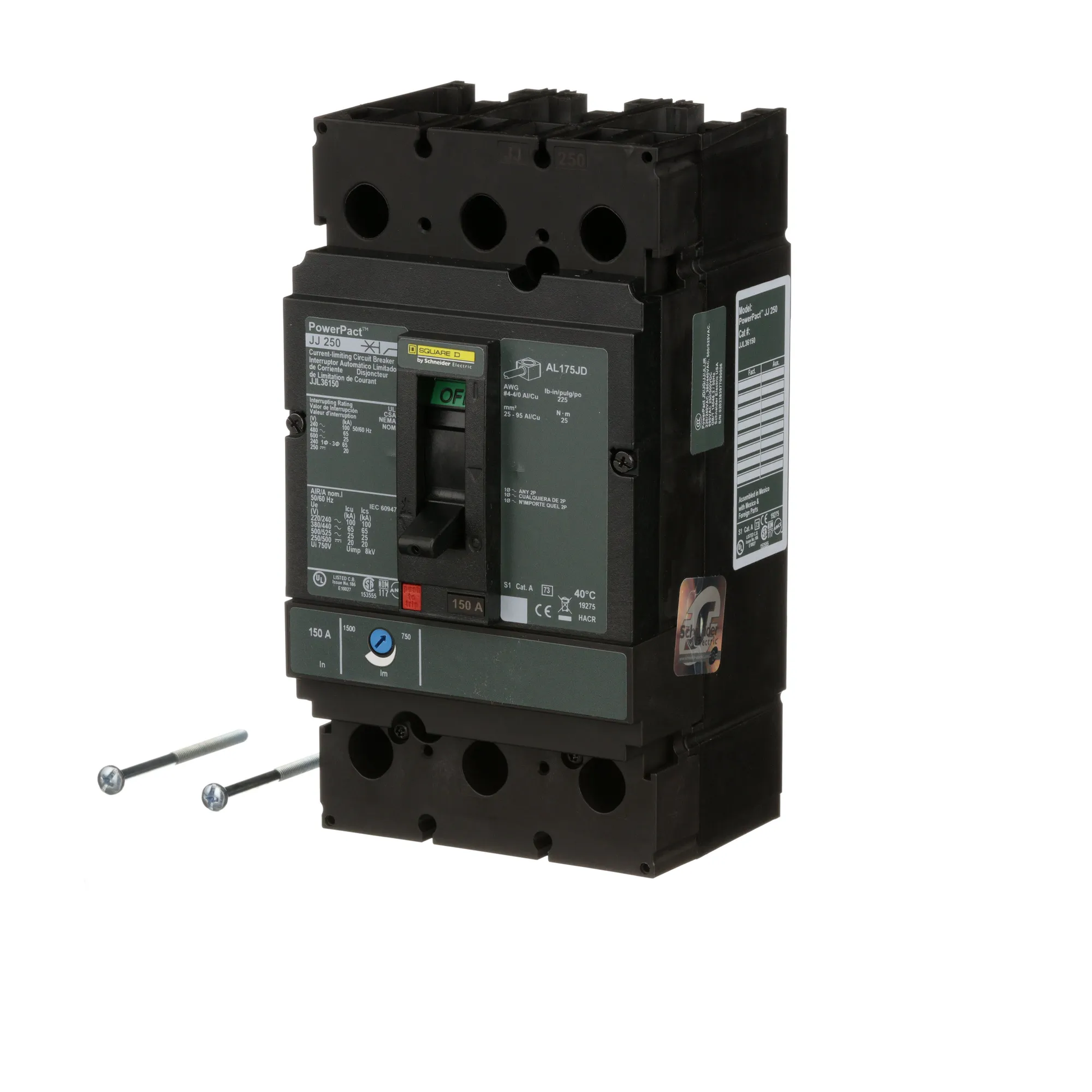

Square D JJL36150 Circuit Breaker | 600V 150A 3P 65kA@480V Feed-Thru Powerpact
Square D JJL36150 Circuit Breaker | 600V 150A 3P 65kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$1,718.09 USD
Regular price
$5,432.00 USD
Sale price
$1,718.09 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Square D JJL36150 is a Powerpact family Molded Case Circuit Breaker designed for robust electrical protection. It is a 3-pole, 150 amp breaker rated for 600 Volts with a 65kA@480V AIC rating. This model features Feed-Thru connections and Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JJL36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 150
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: BA
✔ UPC: 785901955931
✔ GTIN: 00785901955931
✔ Country of Origin: Mexico

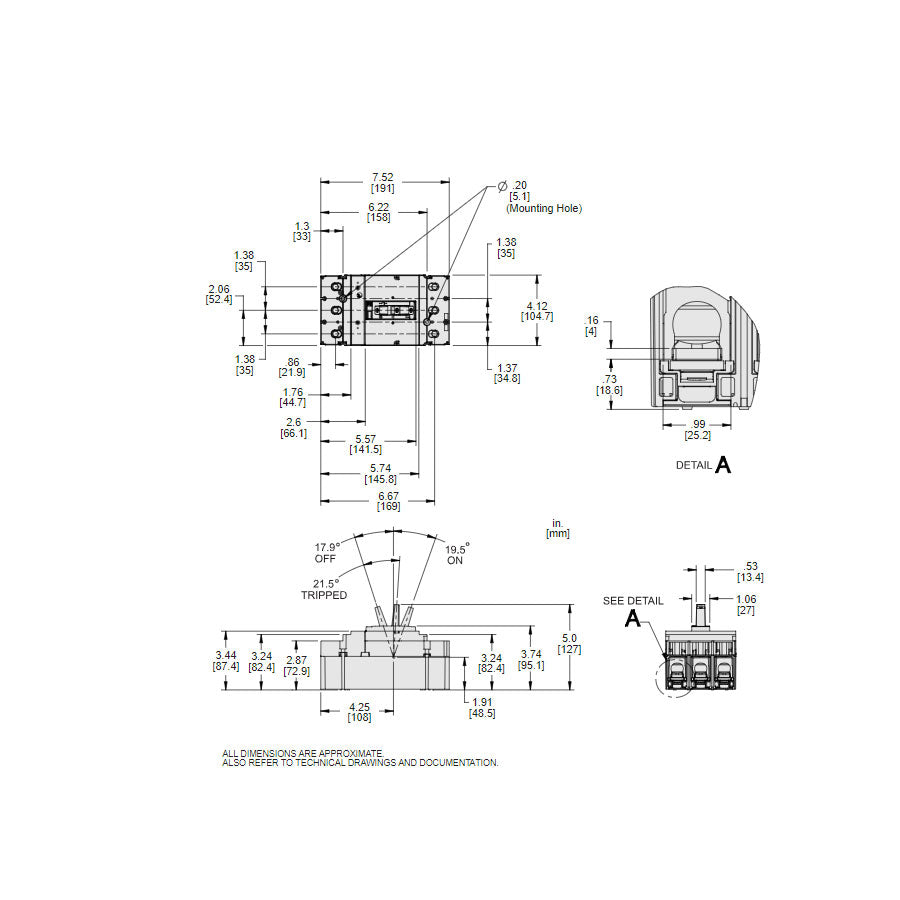

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.18
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
The Square D JJL36150 is a Powerpact family Molded Case Circuit Breaker designed for robust electrical protection. It is a 3-pole, 150 amp breaker rated for 600 Volts with a 65kA@480V AIC rating. This model features Feed-Thru connections and Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JJL36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 150
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: BA
✔ UPC: 785901955931
✔ GTIN: 00785901955931
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.18
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
