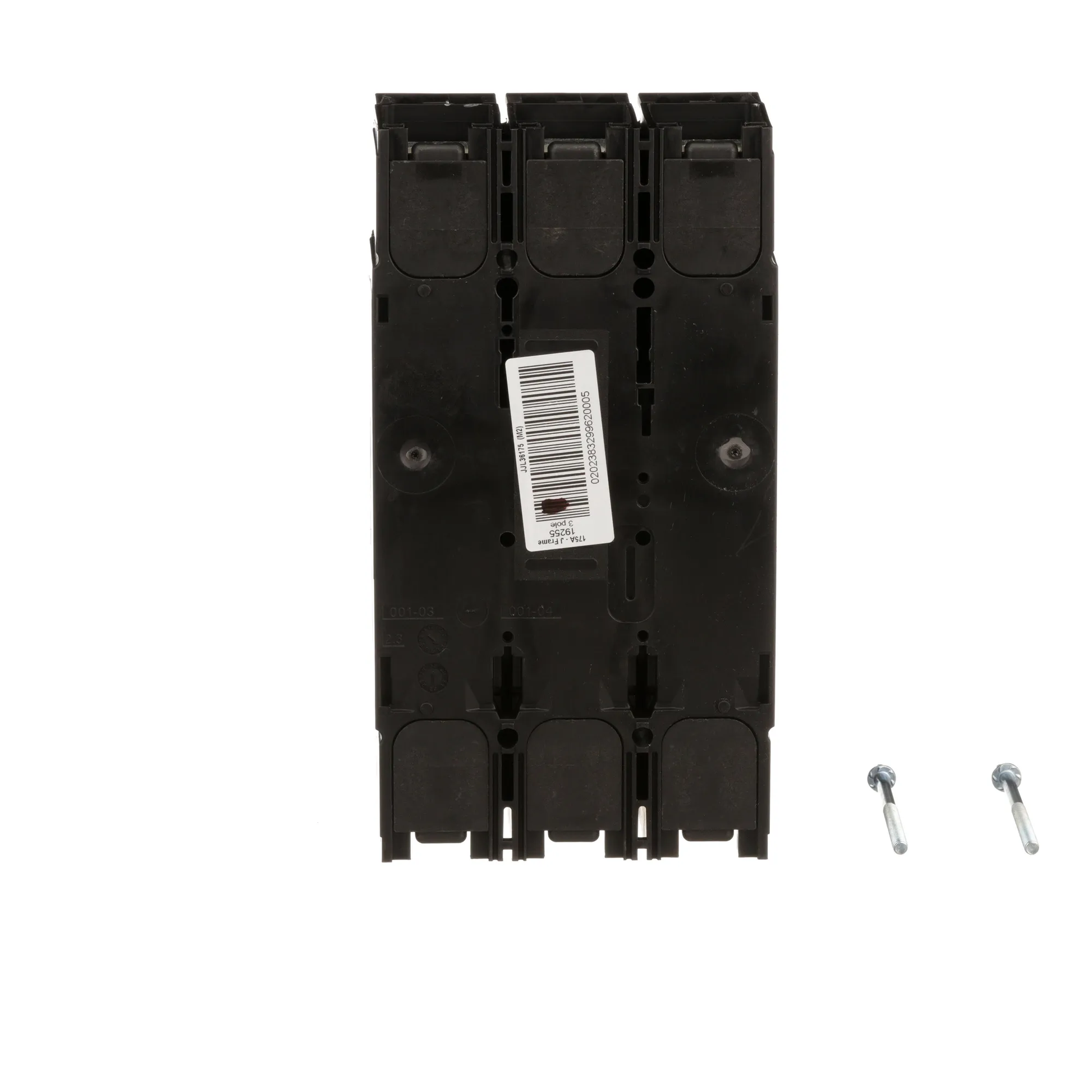

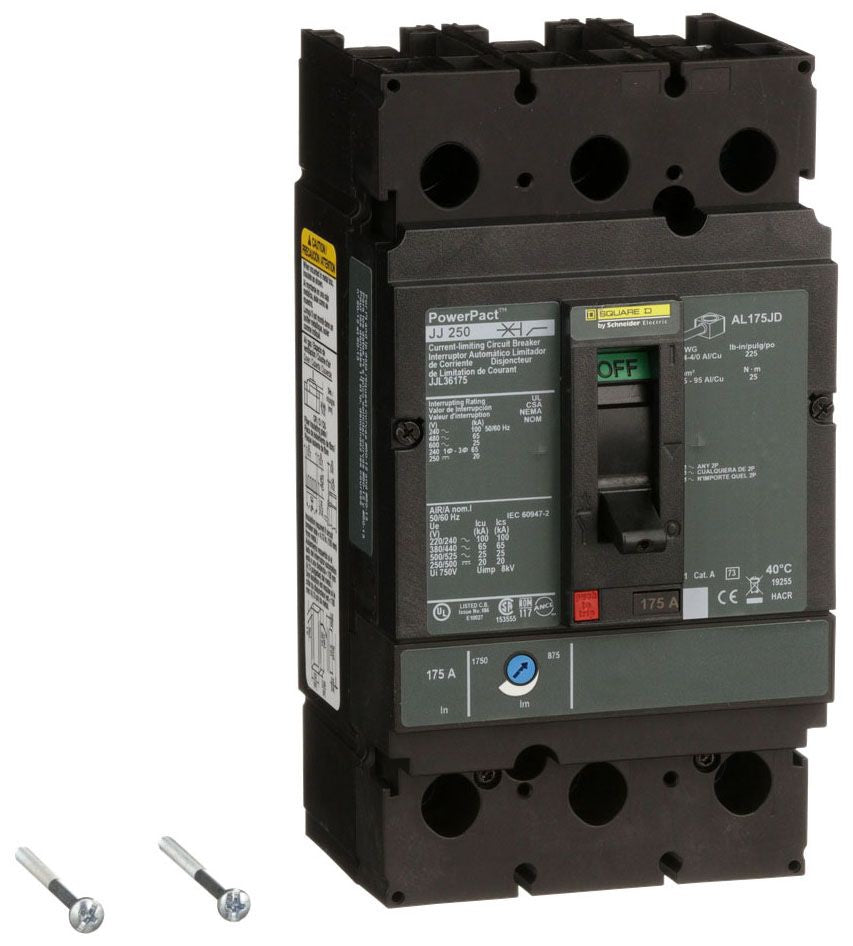

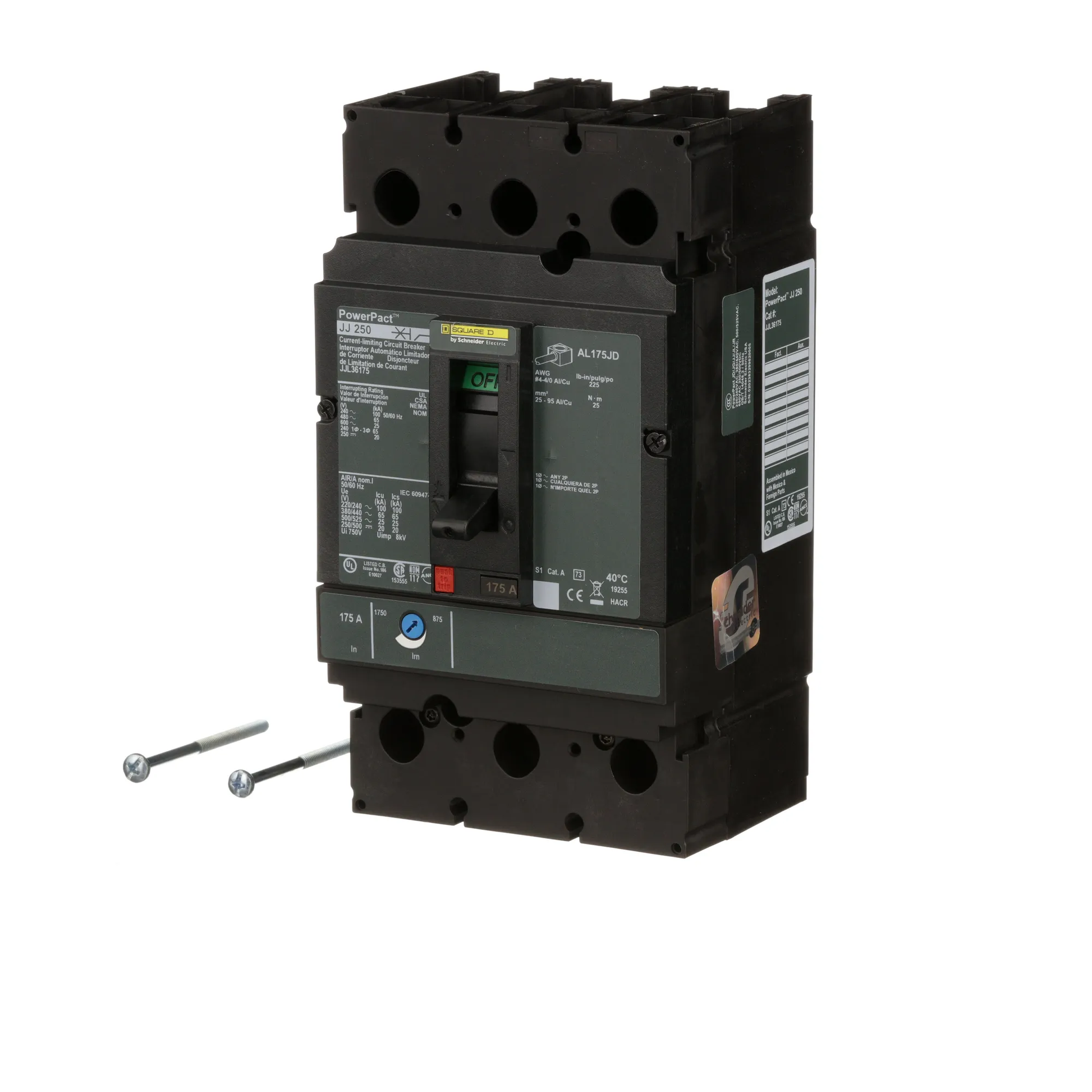

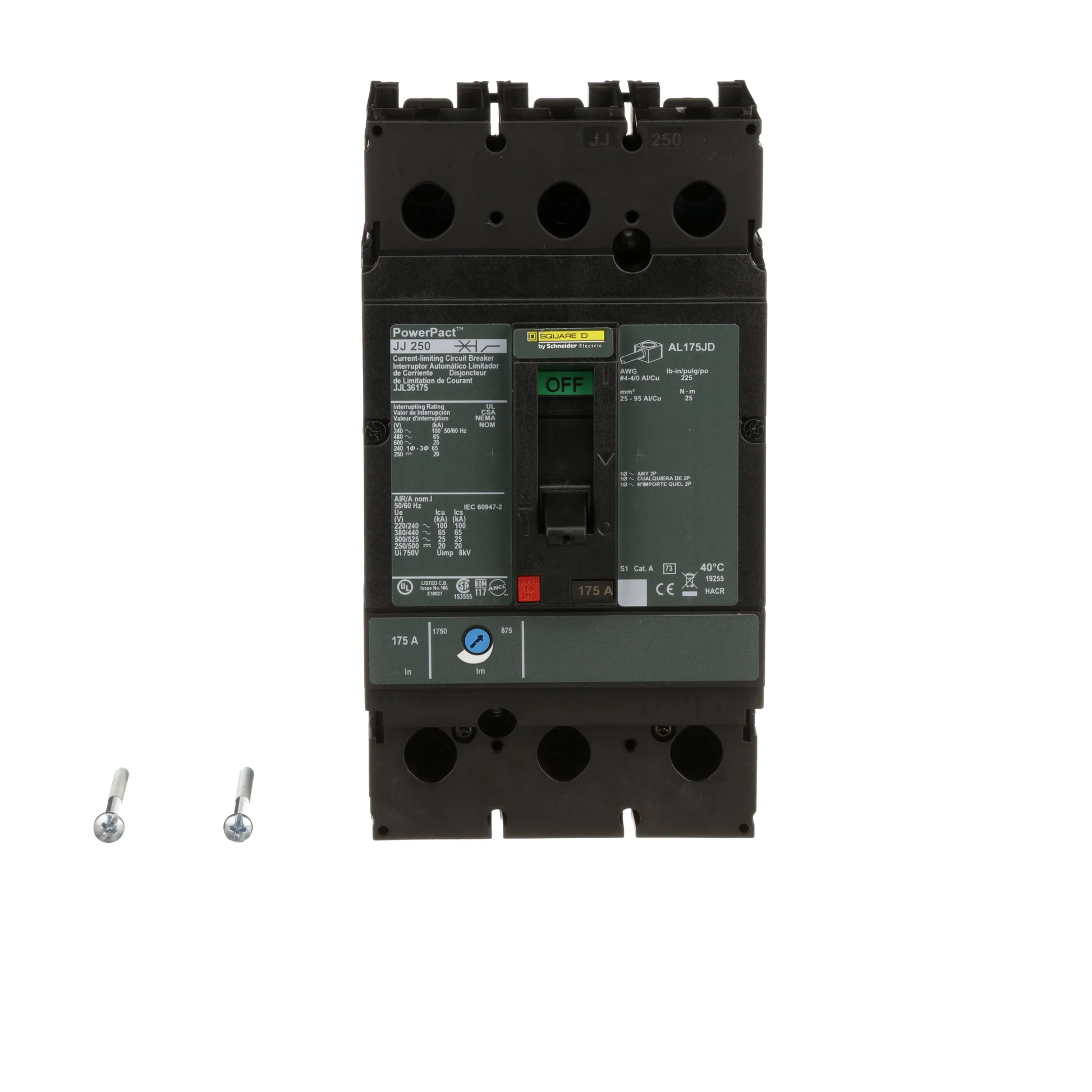

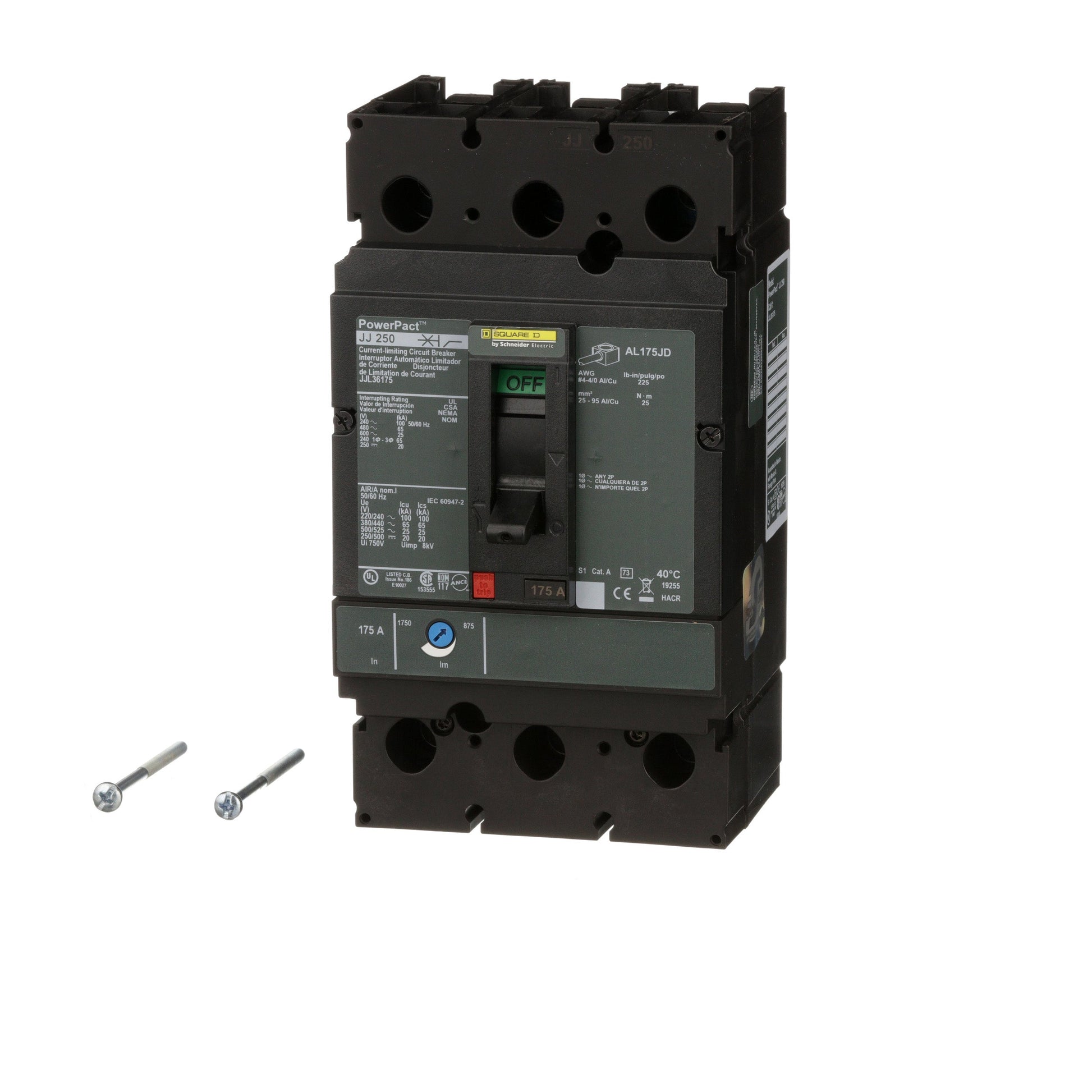

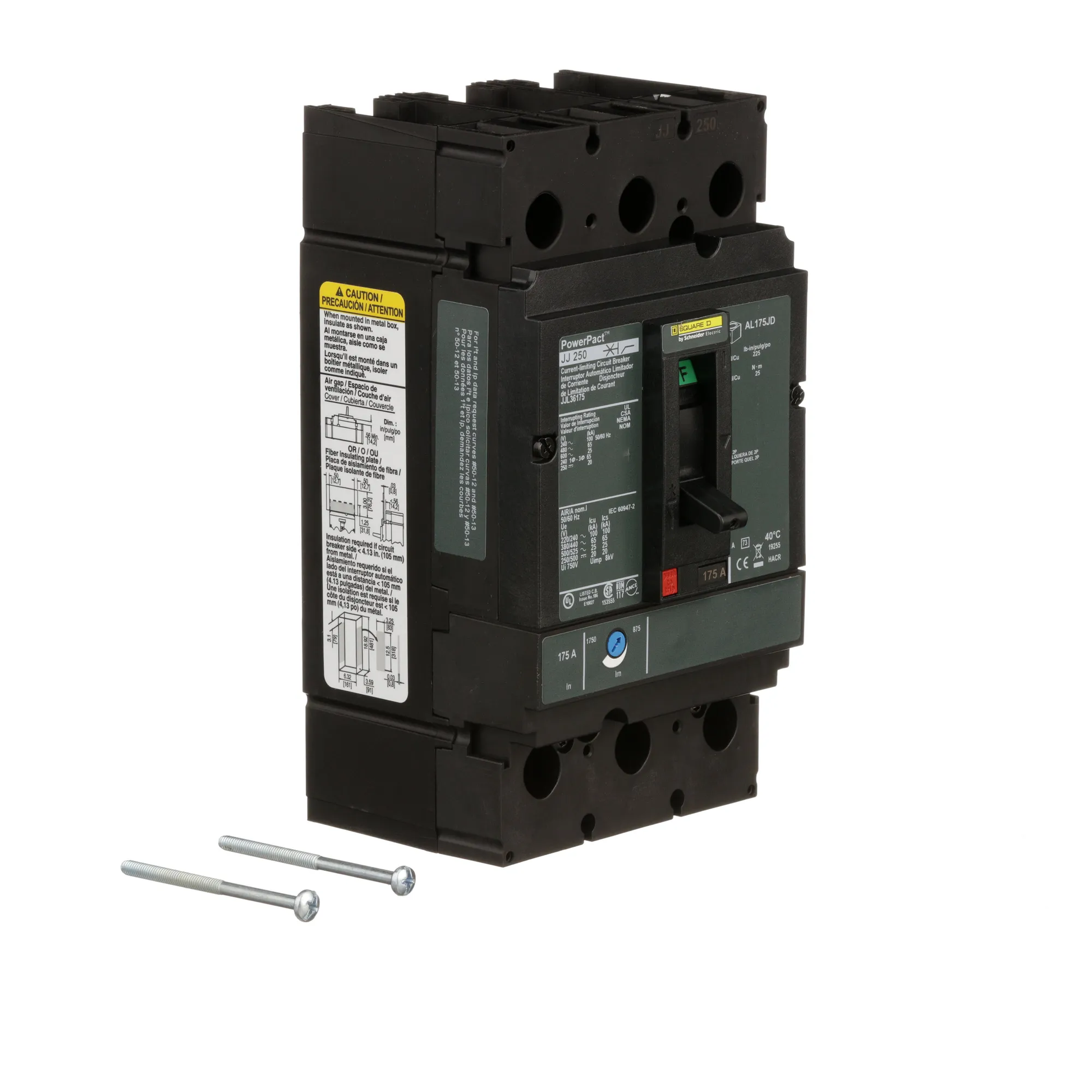

Square D JJL36175 Circuit Breaker | 600V 175A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D JJL36175 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 175 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This circuit breaker features a Feed-Thru connection and provides Thermal Magnetic protection for reliable operation.

Key Features:
✔ Part Number: JJL36175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: CB
✔ UPC: 785901955948
✔ GTIN: 00785901955948
✔ Country of Origin: Mexico

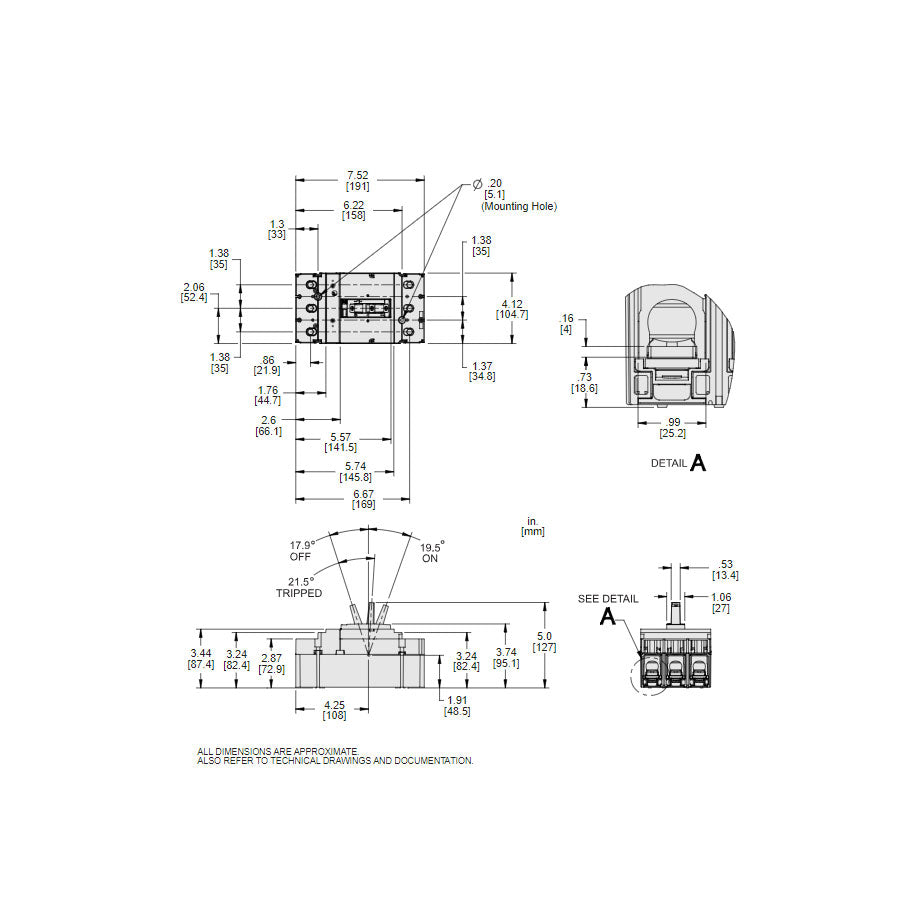

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 3.07
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
