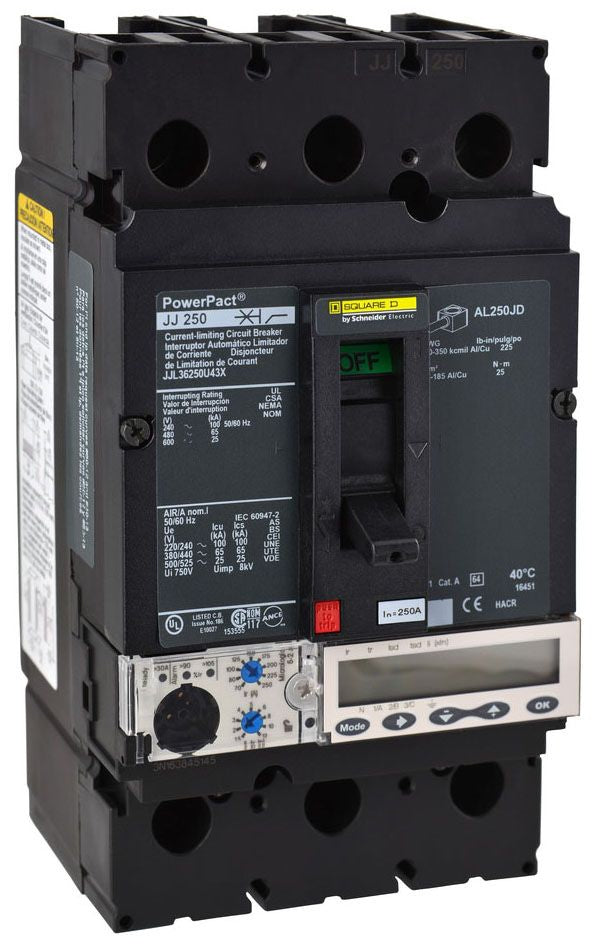

Square D JJL36250U43X Molded Case Circuit Breaker | 600V 250A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D JJL36250U43X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 250 amps, with an AIC rating of 65kA at 480V. This model features a Feed-Thru connection and solid state protection for reliable performance.

Key Features:
✔ Part Number: JJL36250U43X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901518730
✔ GTIN: 00785901518730
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.36
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
