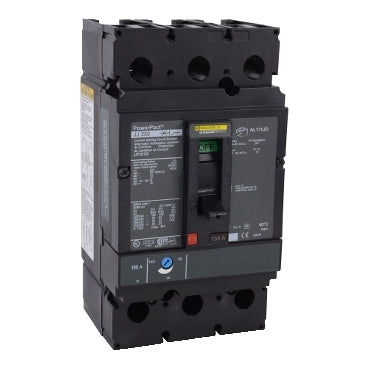

Square D JJP36150 Circuit Breaker | 600V 150A 3P 65kA@480V Bolt-On Powerpact

Product Description:
The Square D JJP36150 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and a 65kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: JJP36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJP
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: J
✔ Wire Size: Min. 4 AWG (Cu/Al), Max. 4/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 060648740572
✔ GTIN: 03606487405726
✔ Country of Origin: United States
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 5
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
