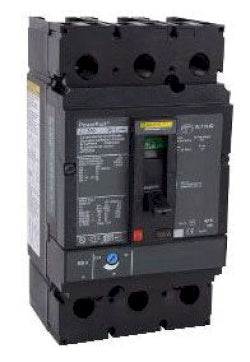

Square D JJP36200 Circuit Breaker | 600V 200A 3P 65kA@480V Bolt-On Powerpact

Product Description:
The Square D JJP36200 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 200 amp breaker rated for 600 volts with an AIC rating of 65kA at 480V. This unit features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: JJP36200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJP
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901660941
✔ GTIN: 00785901660941
✔ Country of Origin: Mexico
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 2.19
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
