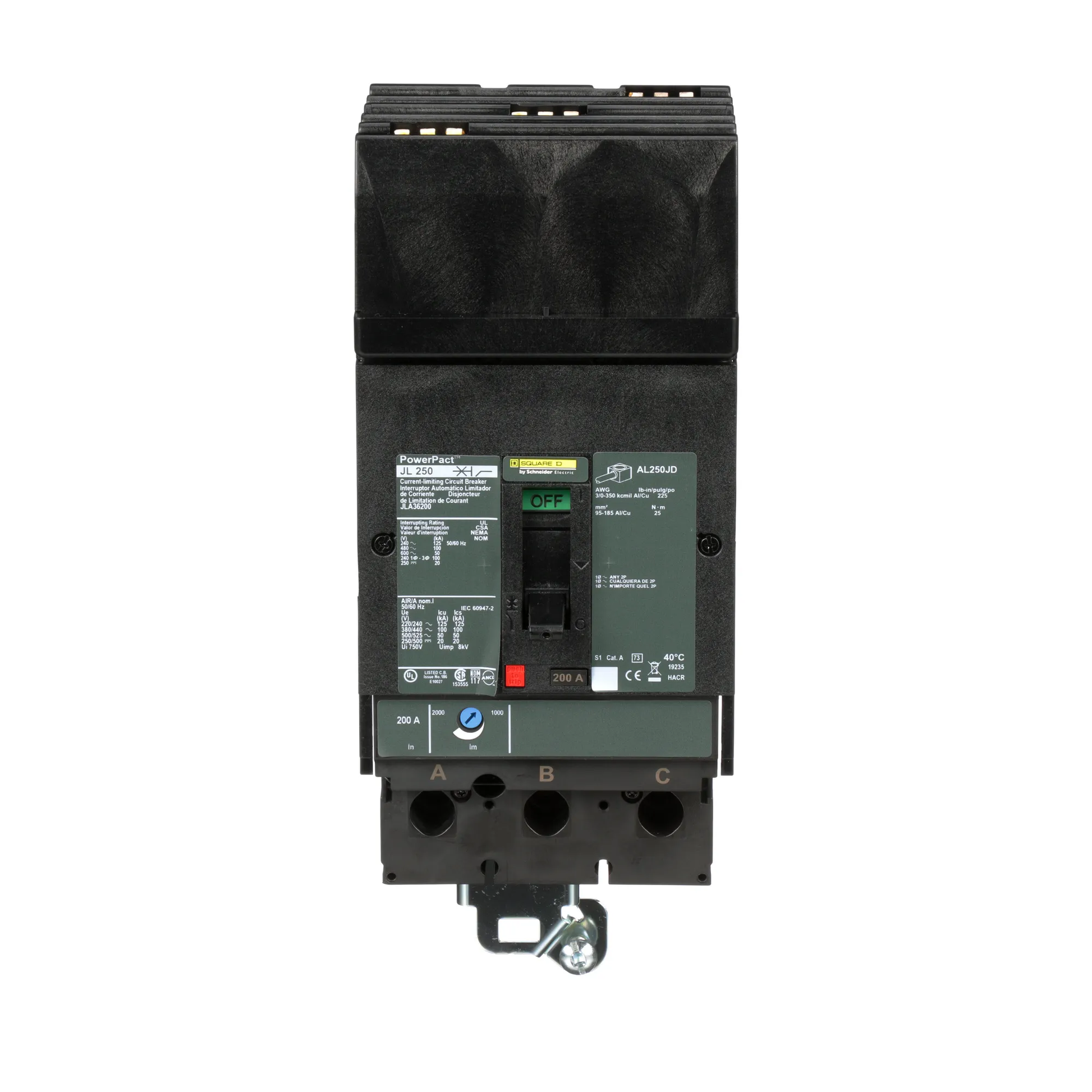

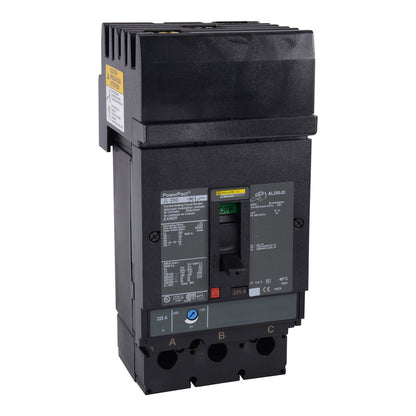

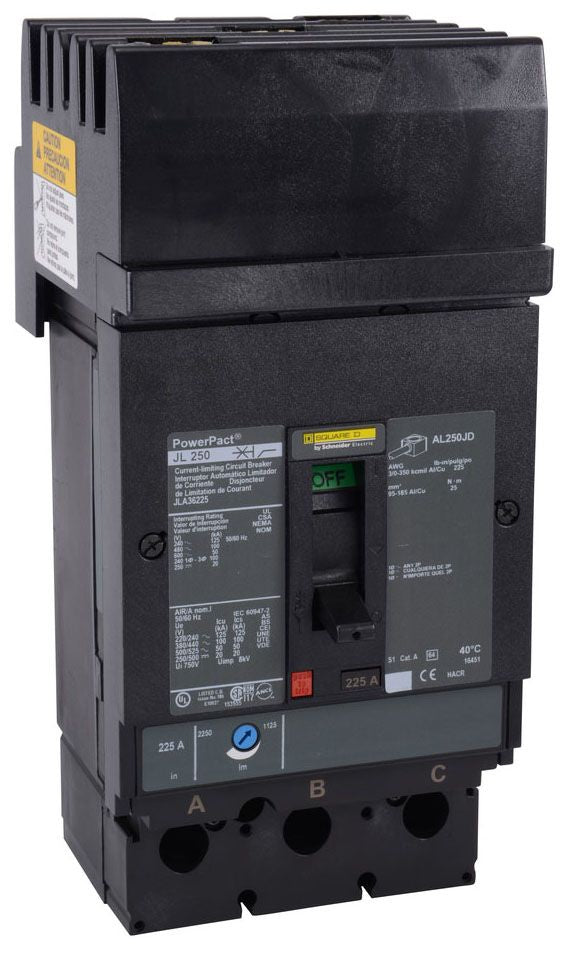

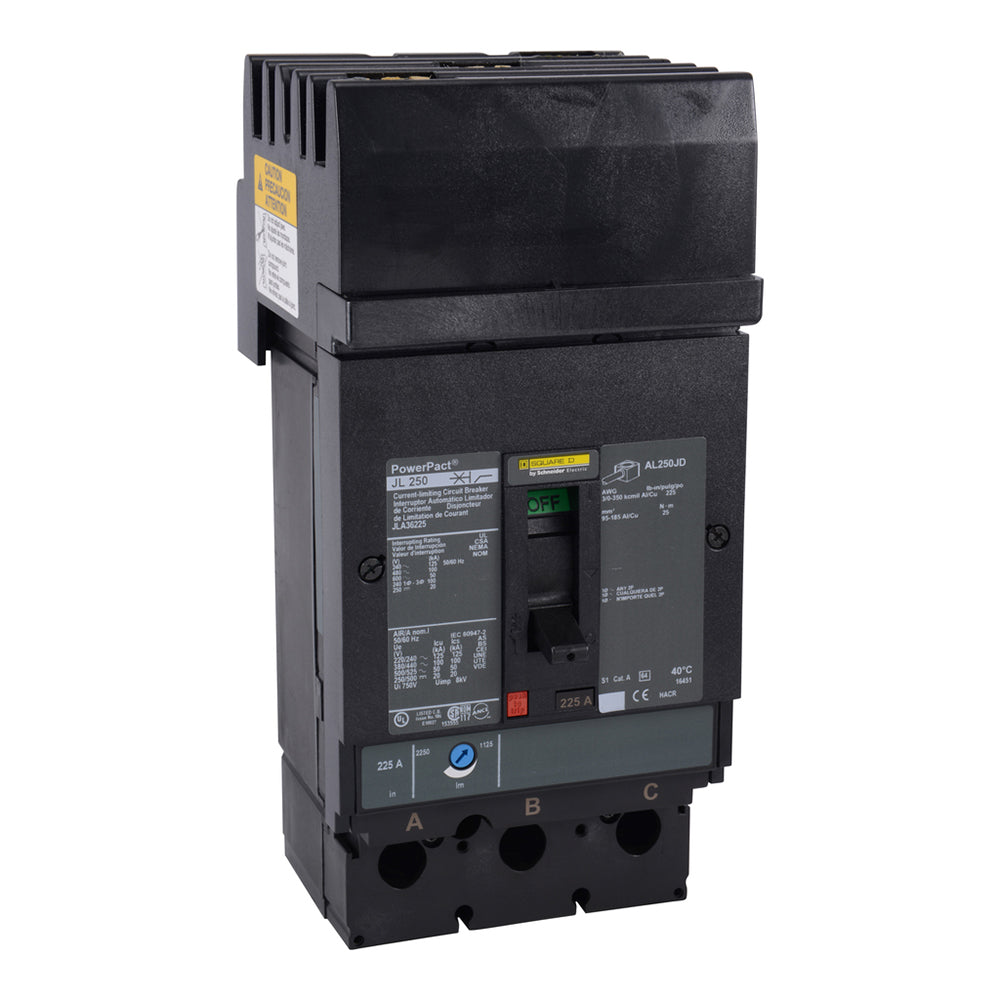

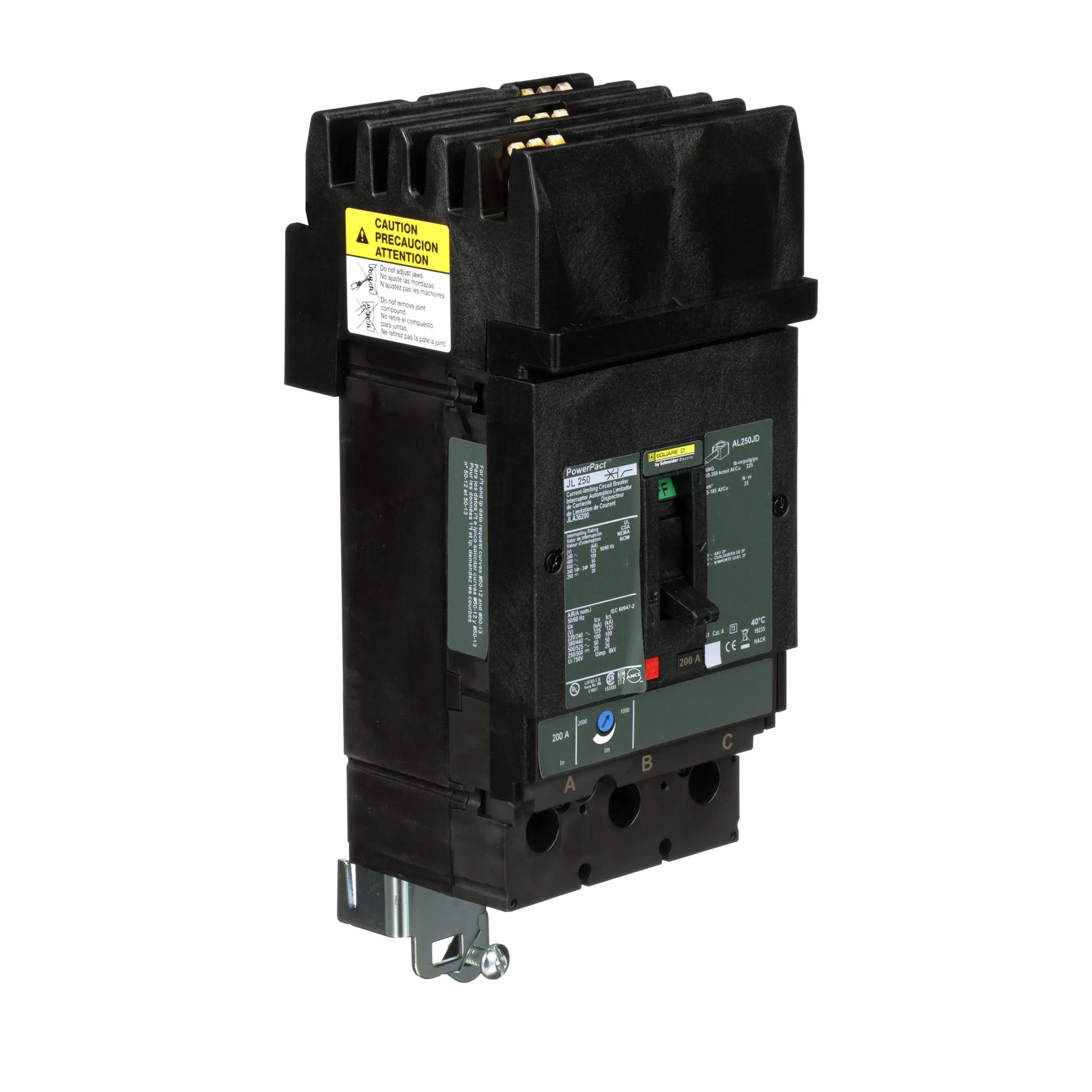

Square D JLA36250 Molded Case Circuit Breaker | 600V 250A 3P 100kA@480V I-Line Plug-In Powerpact

Product Description:
The Square D JLA36250 is a Powerpact family Molded Case Circuit Breaker designed for reliable electrical protection. It is a 3-pole, 250 amp breaker rated for 600 volts with a 100kA interrupting capacity at 480V. This unit features an I-Line Style Plug-In connection and Thermal Magnetic protection for both overload and short-circuit conditions. It is suitable for industrial and commercial electrical distribution systems.

Key Features:
✔ Part Number: JLA36250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JLA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V

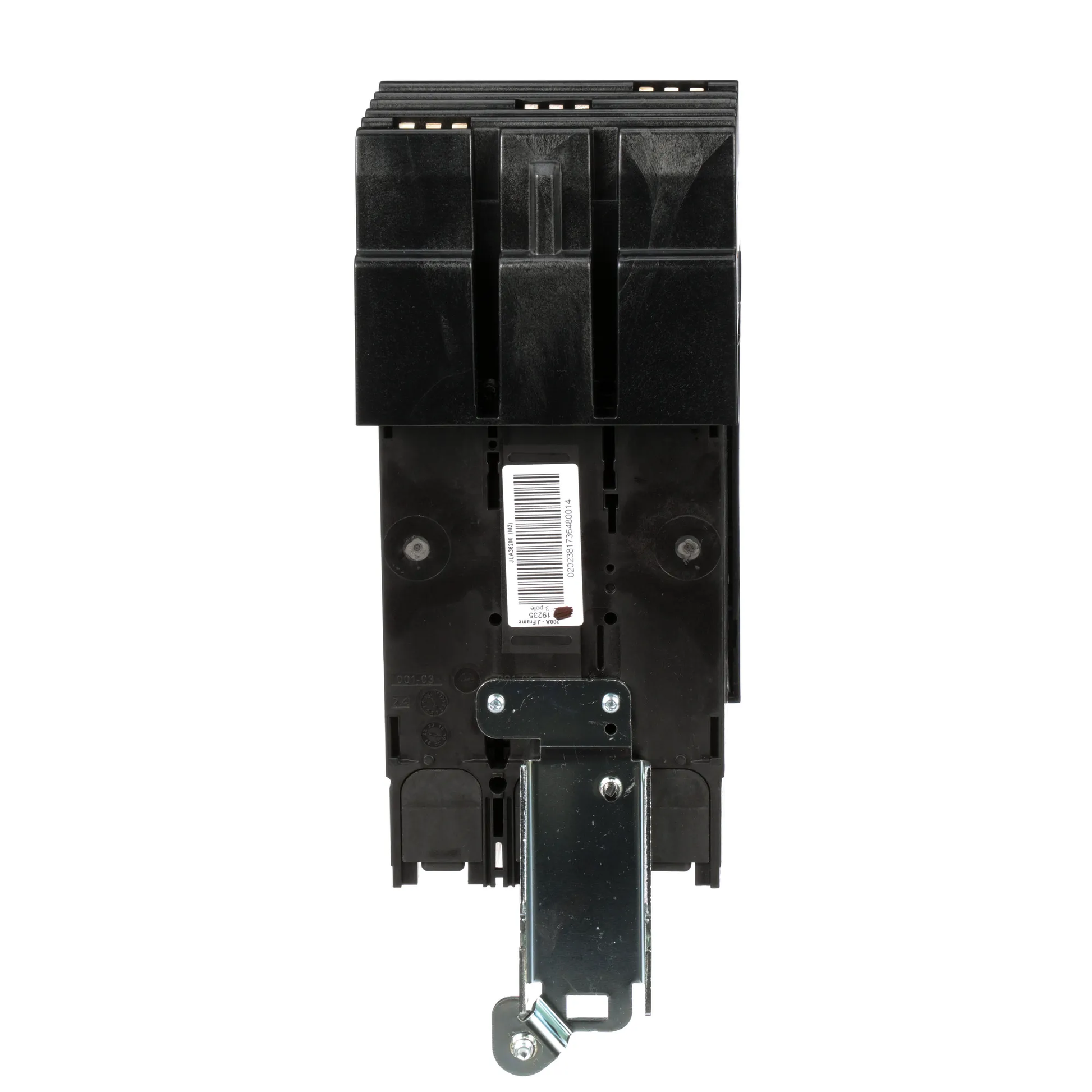

✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901673149
✔ GTIN: 00785901673149
✔ Country of Origin: Mexico

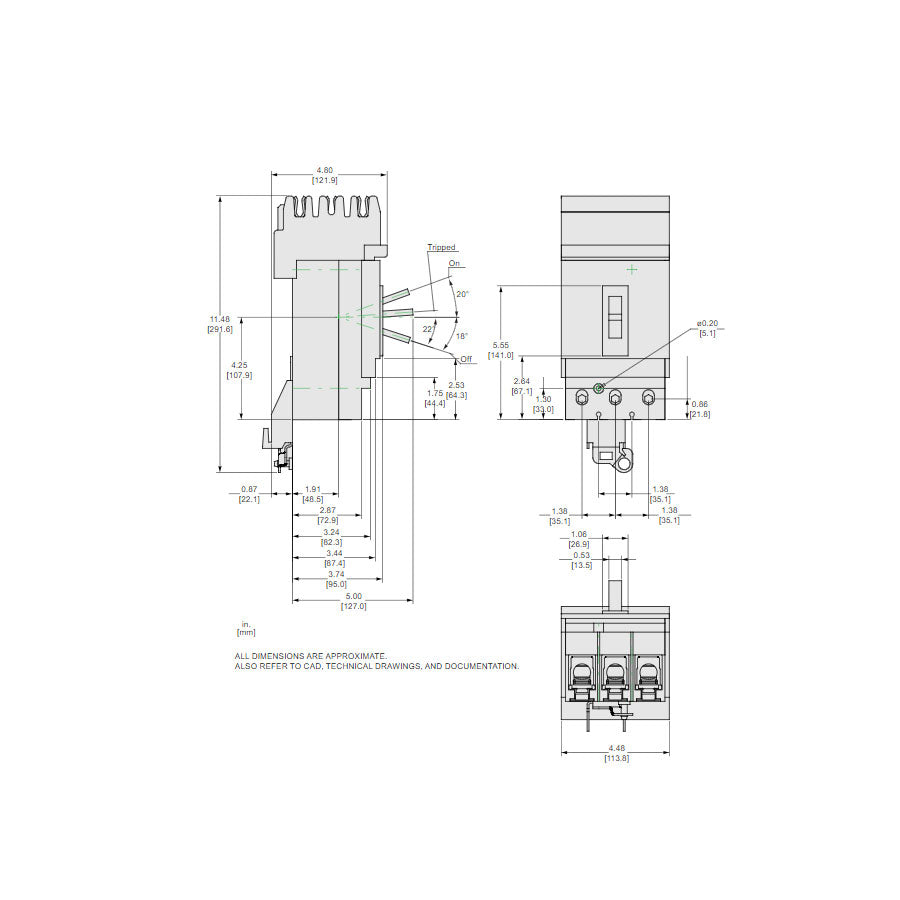

✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 2.76
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
