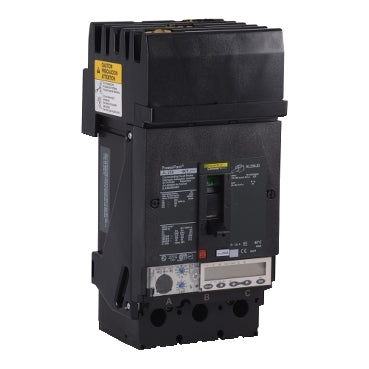

Schneider Electric JLA36250U44X Circuit Breaker | 600V 250A 3P 100kA@480V I-Line Style Plug-In Powerpact
Schneider Electric JLA36250U44X Circuit Breaker | 600V 250A 3P 100kA@480V I-Line Style Plug-In Powerpact
Regular price
$9,280.97 USD
Regular price
$9,976.00 USD
Sale price
$9,280.97 USD
Unit price
/
per
Shipping calculated at checkout.
Product Description:
The Schneider Electric JLA36250U44X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and a 100kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with LSIG functions. It is suitable for industrial and commercial electrical systems.
Key Features:
✔ Part Number: JLA36250U44X
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JLA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: L
✔ Wire Size: Min. 3/0 AWG (Cu/Al), Max. 350 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 078590195113
✔ GTIN: 00785901951131
✔ Country of Origin: United States
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 2.76
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
The Schneider Electric JLA36250U44X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and a 100kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with LSIG functions. It is suitable for industrial and commercial electrical systems.
