Product Description:

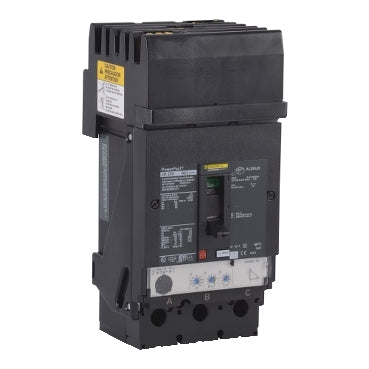

The Square D JRA36250U31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and a 200kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: JRA36250U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JRA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Solid State
✔ UPC: 078590195116
✔ GTIN: 00785901951162
✔ Dimensions: Height 7.52 in (191 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 3.24
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
