Product Description:

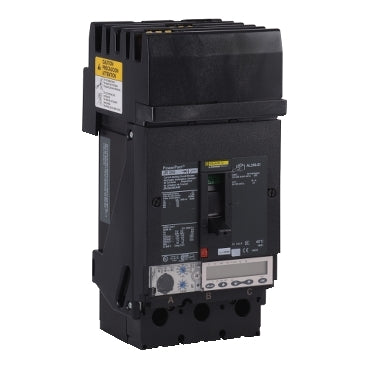

The Schneider Electric JRA36250U43X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 250A amperage rating with a 200kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: JRA36250U43X
✔ Manufacturer: Schneider Electric||Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JRA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Solid State
✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
