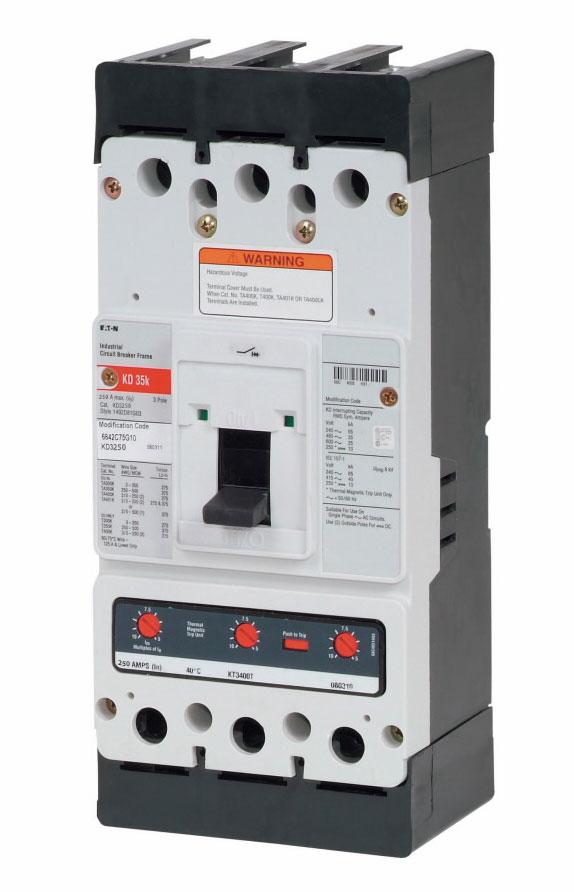

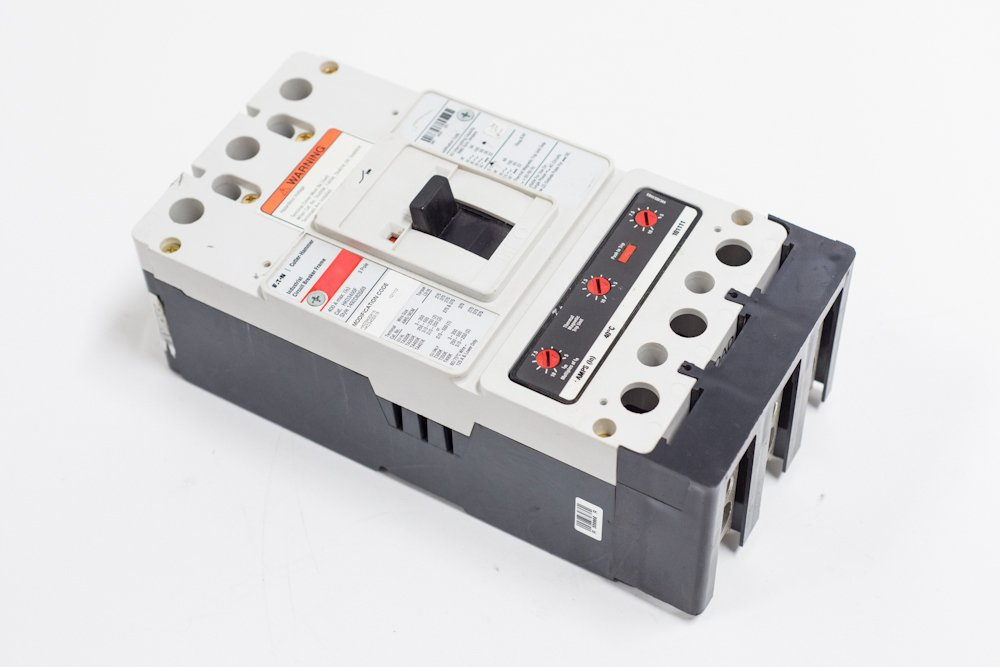

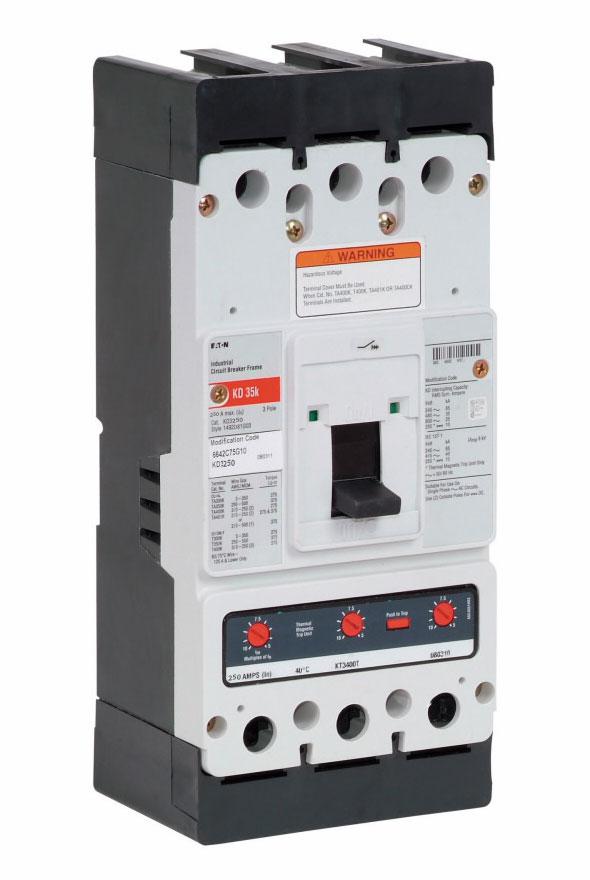

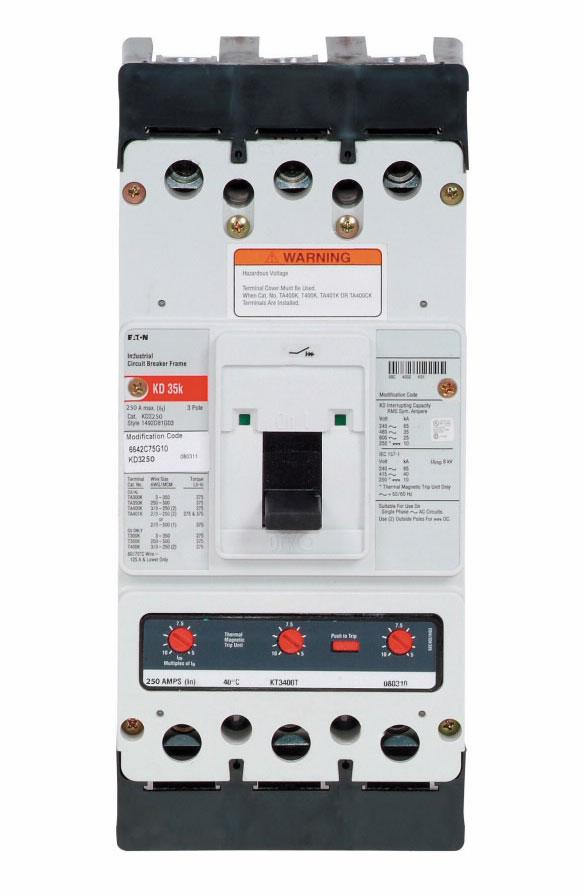

Cutler Hammer KD3250X Molded Case Circuit Breaker | 600V 250A 3P 35kA@480V Bolt-On Series C

Product Description:
The Cutler Hammer KD3250X is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 600V, 250A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: KD3250X
✔ Manufacturer: Cutler Hammer, Eaton, Westinghouse
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: KD
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: K Frame
✔ Protection: Thermal Magnetic
✔ Weight: 13
