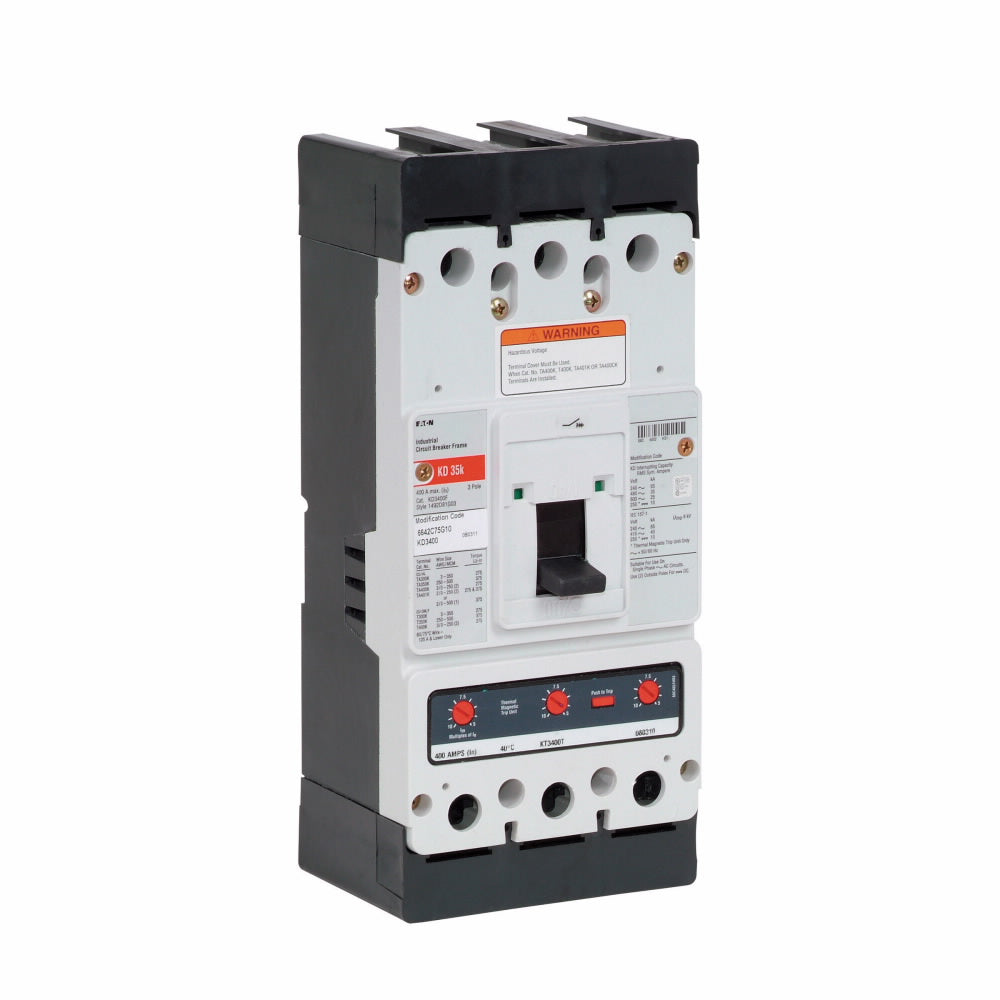

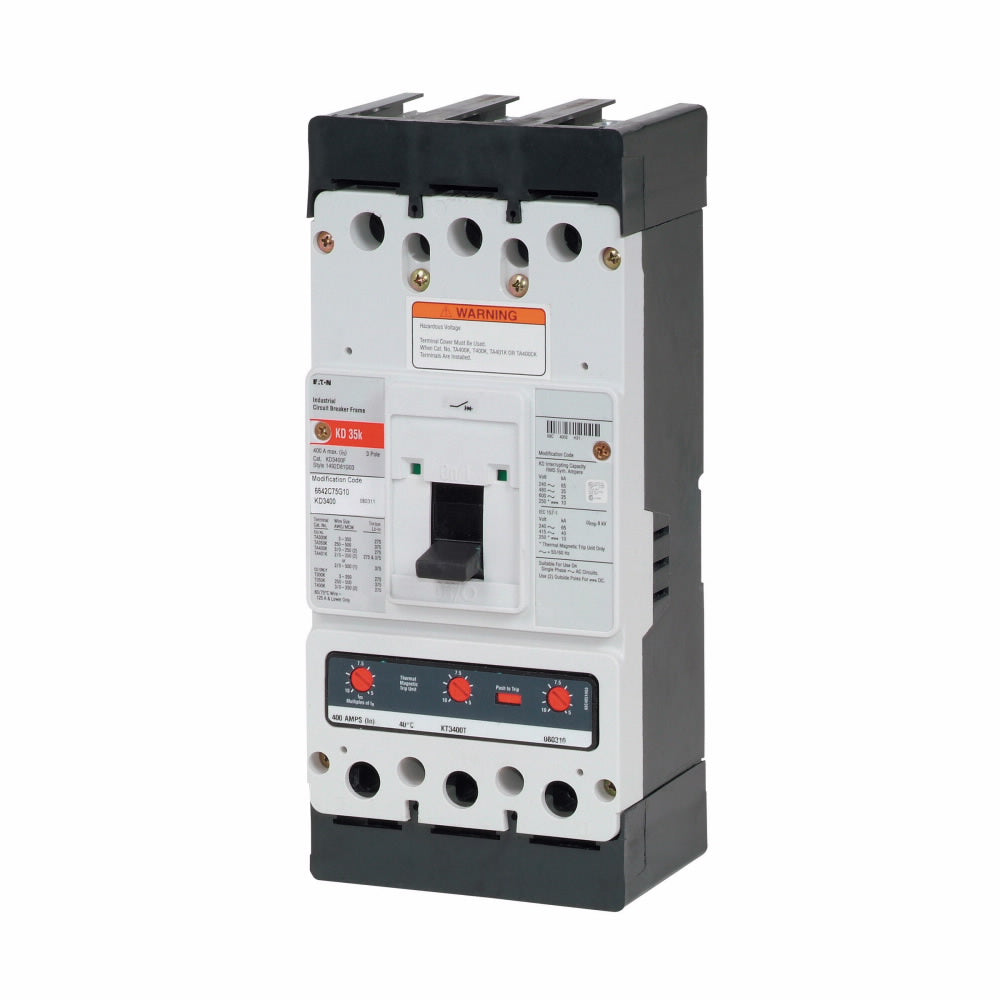

Cutler Hammer KD3300 Molded Case Circuit Breaker | 600V 300A 3P 35kA@480V Bolt-On Series C

Product Description:
The Cutler Hammer KD3300 is a Molded Case Circuit Breaker from the Series C family. It is a 3-pole, 300 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: KD3300
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: KD
✔ Voltage: 600
✔ Amperage: 300
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 400A/K
✔ MCM Size: Min. Wire Size 250 MCM Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 786679349175
✔ GTIN: 00786679349175
✔ Country of Origin: Dominican Republic
✔ Dimensions: 5.5 in x 5.5 in
✔ Weight: 11.5
✔ Panel Type: Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
✔ Standards: CSA Certified, IEC Rated, UL Listed
✔ Certification: CSA Certified, IEC Rated, UL Listed
