Cutler Hammer KD3350 Circuit Breaker | Series C KD 600V 350A

Product Description:

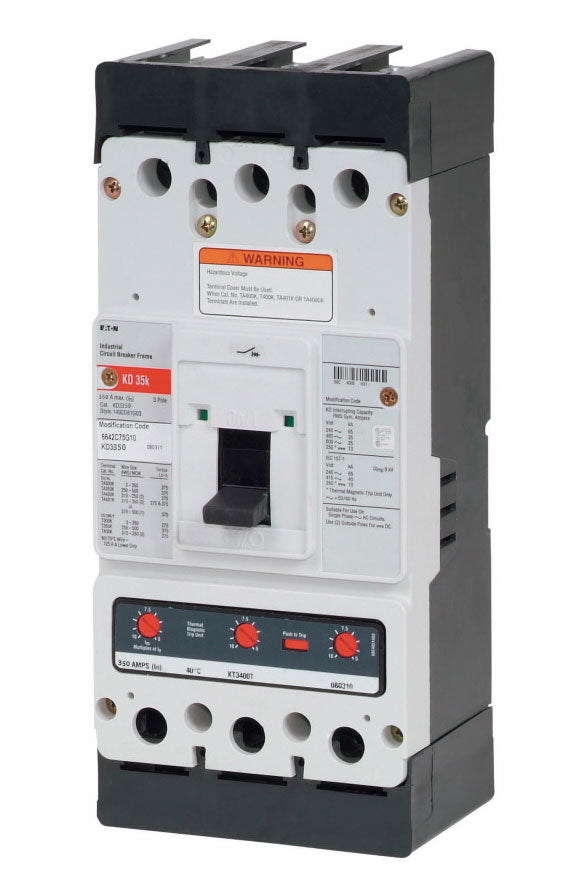

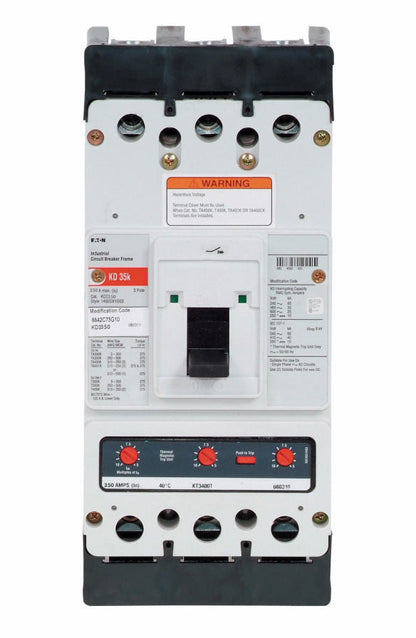

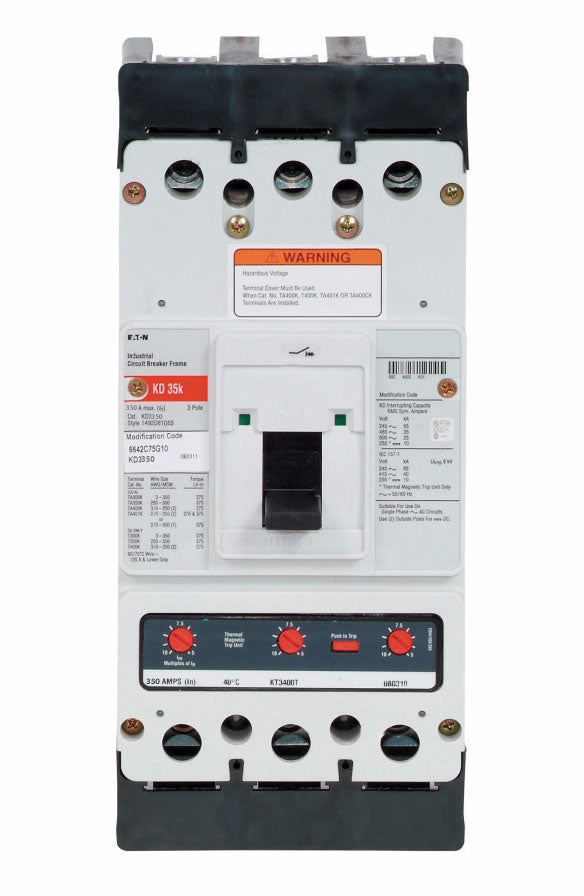

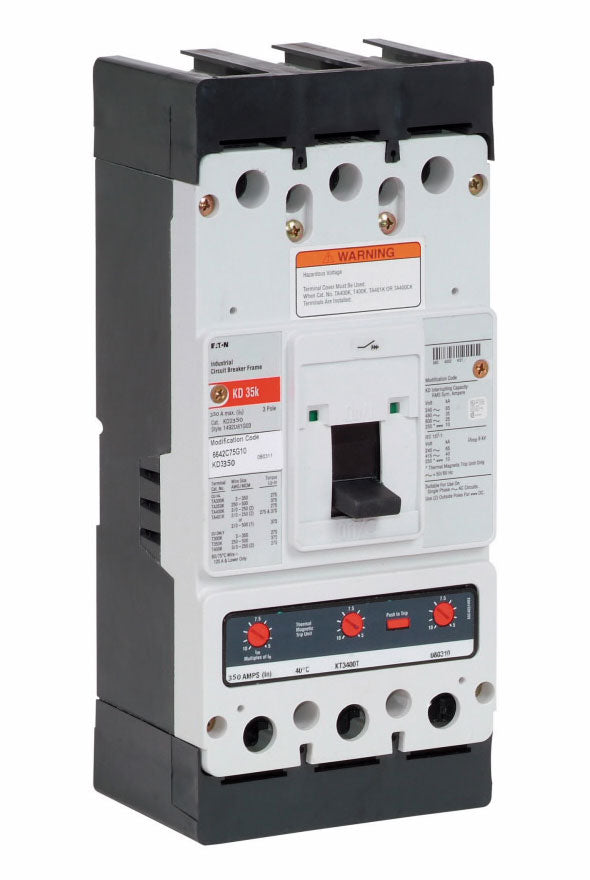

The Cutler Hammer KD3350 is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 600V, 350A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is CSA Certified, IEC Rated, and UL Listed for safety compliance.

Key Features:
✔ Part Number: KD3350
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: KD
✔ Voltage: 600V
✔ Amperage: 350A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 400A/K MCM
✔ Wire Size: Min. 250 MCM, Max. 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ Certification: CSA Certified, IEC Rated, UL Listed
✔ UPC: 786679349182
